Memory Adapter

The Memory adapter allows to store and retrieve values to respectively from the memory. You can find all data types and operations of the Memory adapter in the service panel at Base Types/Bridge Base/Base Components/Add Ons/Memory.

Using the Memory adapter, you can

Task

Adapter Operation

Description

Documentation Reference

Store data to memory

store

You can use the Memory adapter to store data to memory.

Retrieve data from memory

retrieve

You can use the Memory adapter to retrieve data from memory.

Remove data from memory

remove

You can remove data elements from memory that have been stored to a dedicated key.

Clear the memory

clear

You can wipe the complete memory used by the service.

Adding a Memory Adapter Operation to a Diagram

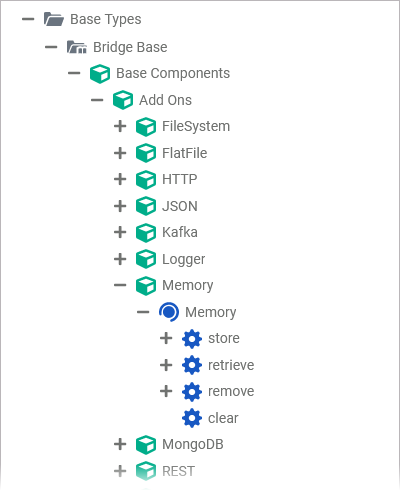

Expand the path to the Memory adapter in the service panel (Base Types/Bridge Base/Base Components/Add Ons/Memory):

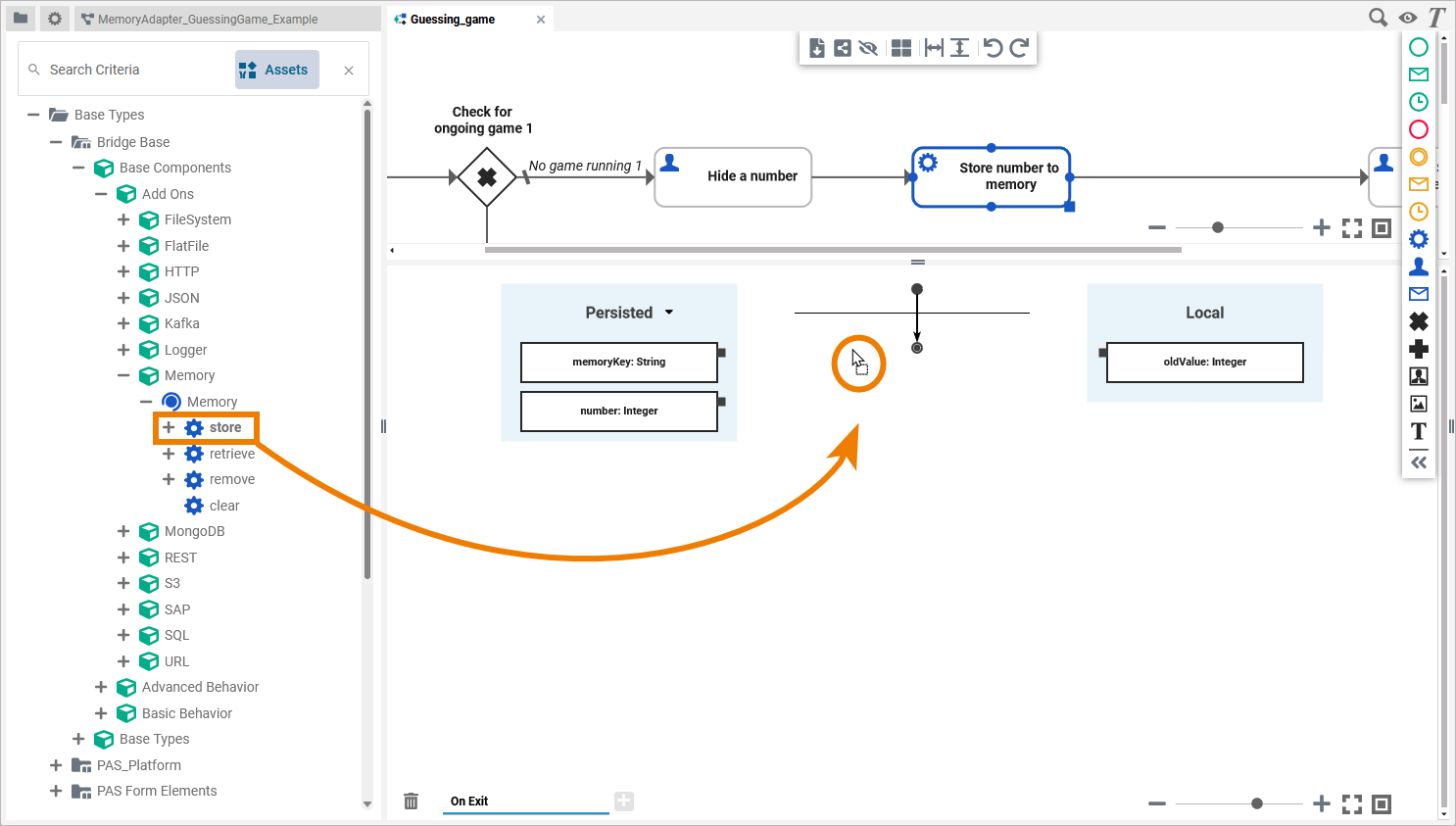

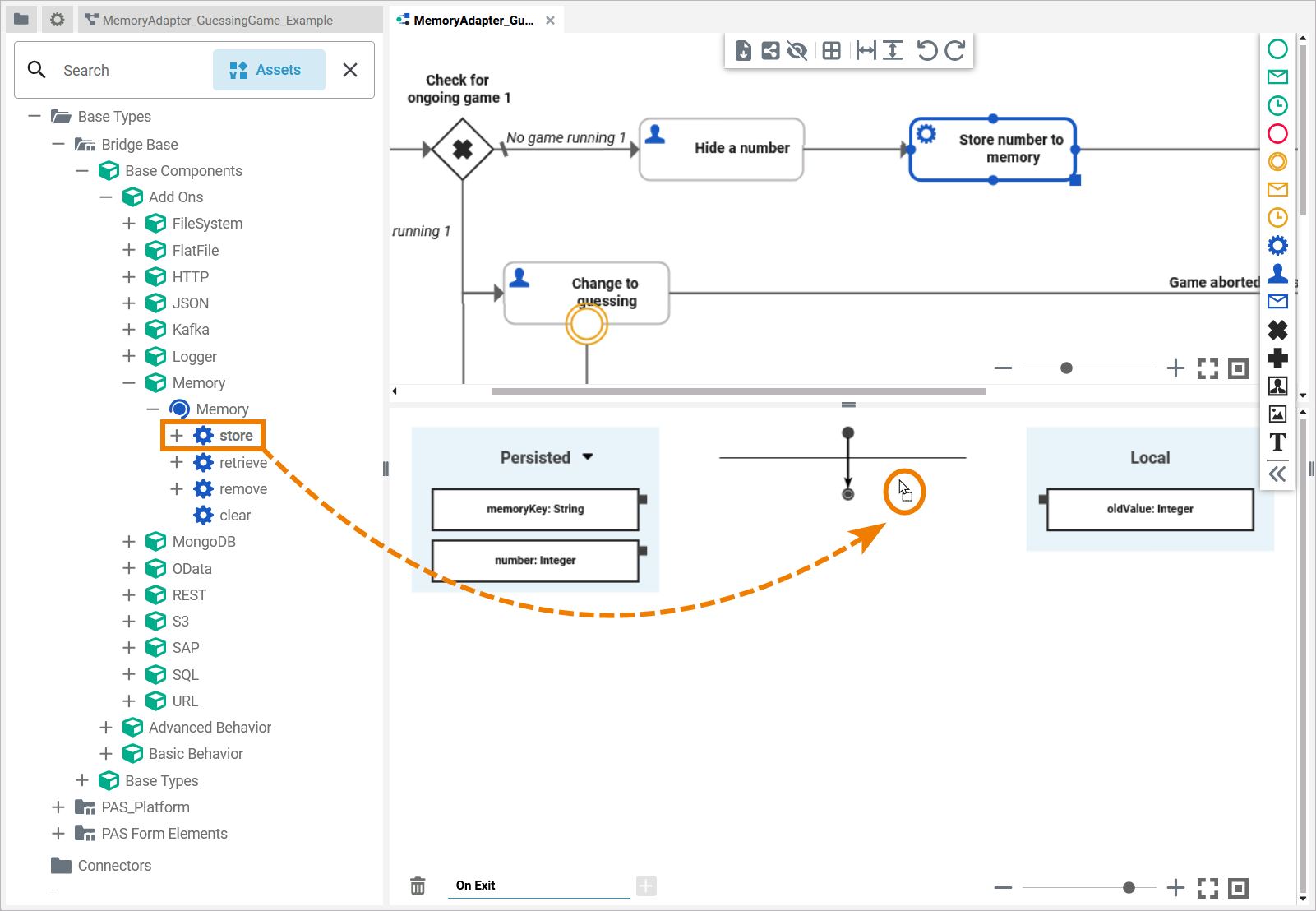

You can drag out operations from the data model to any diagram:

The example shows how to add a Memory adapter operation to an BPMN execution diagram:


Configuring the Memory Adapter Operation

Once an operation has been added to a diagram, it needs to be configured as a Memory adapter.

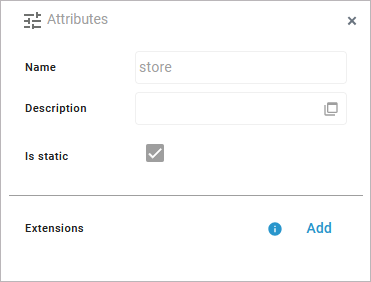

Select the newly added Memory adapter operation and switch to the Attributes panel:


The following attributes are predefined and cannot be changed:

Attribute

Description

Allowed Values / Example

Name

The name of the Memory adapter operation.

store

Description

If provided, you can find a description of the operation in this field.

Is static

Indicates that the operation is static.

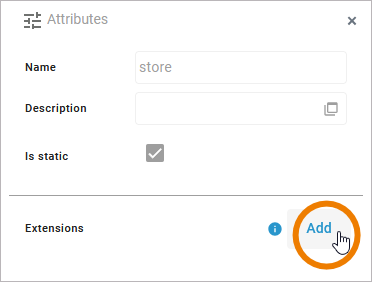

Click Add in the Extensions line to define the selected operation as to be a Memory adapter:

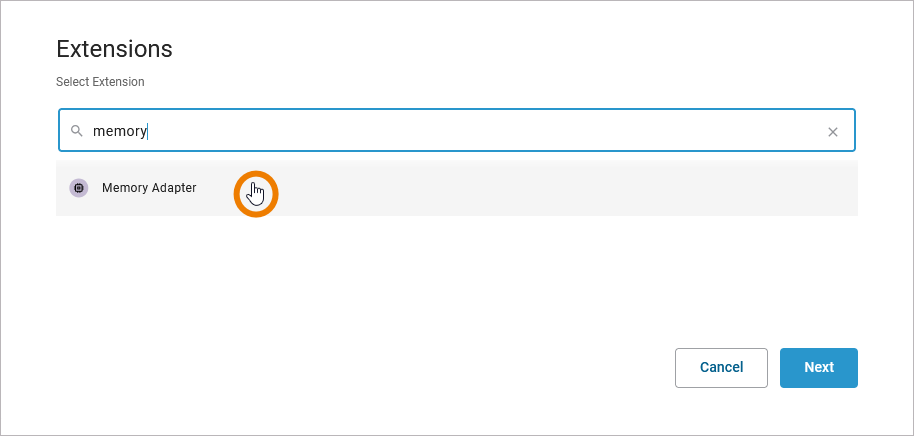

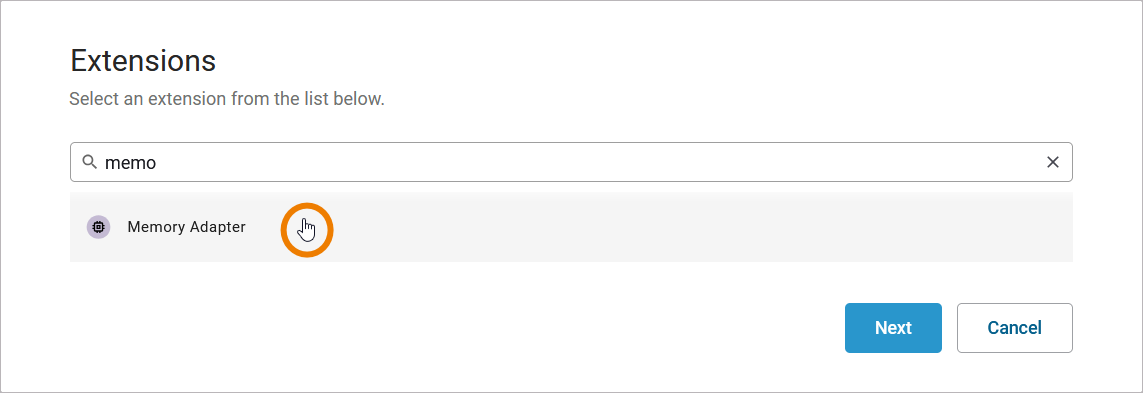

Search for the Memory Adapter and select it from the list of available adapter extensions. Click Next:

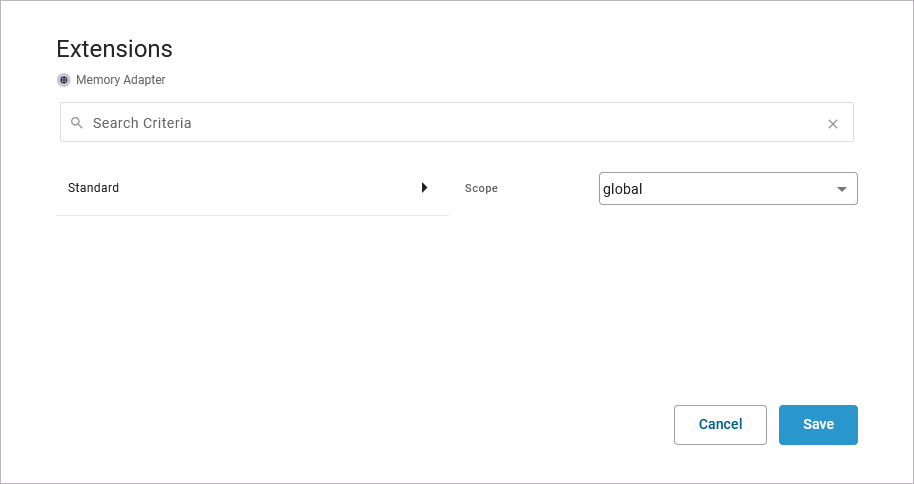

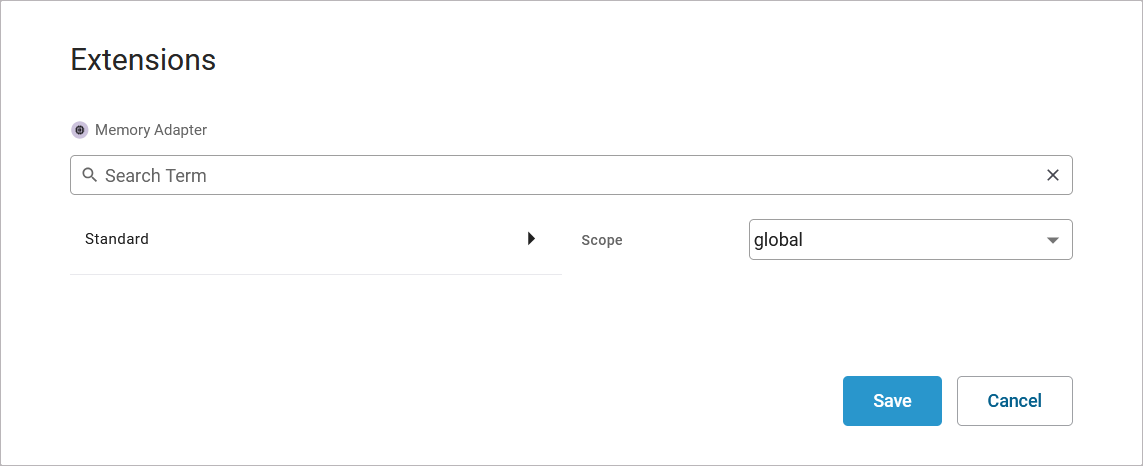

In the next window, you can configure the adapter. You have the following options:


Scope: The scope the value should be stored to. Refer to section Memory Scope below for more information on the implications of the memory scope. Available options:

  • global (default)

  • session

Refer to Memory Adapter Reference for more information on the configuration options of this adapter.

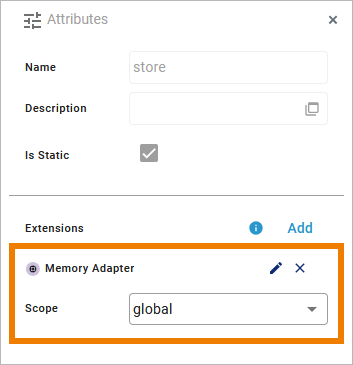

Save the adapter configuration. The Attributes panel now shows the added adapter extension:


Memory Scope

By default, the memory is in scope of the service (server process), but it is also possible to store values in a request session context. Basically, the memory adapter is a thread-safe hash list allowing to

  • share objects between requests (service/global scope)
    To store objects in global scope and to share them between requests to the same service, set Scope to global on the Memory adapter. In this case, you need to propagate the memory key between requests, or use a static key.

  • keep data for one request (session scope) only
    To keep data for the request only, set Scope to session on the Memory adapter. At the end of the request session, the memory will be cleared. Regarding the Designer, the session scope corresponds to the implementation of one execution diagram.

Refer to xUML Runtime Architecture and Transaction Concept for more information on what is regarded as a session by the Runtime in general, and about transaction handling.

MemoryAdapter_GuessingGame_Example

Click here to download a simple example model that shows the usage of the Memory adapter in Scheer PAS Designer.
