Configuring Filters

The Create New Analysis Wizard supports you during the creation of an analysis.

  • In step 1 the user must select a chart type.

  • In step 2 the process to be analyzed is selected

  • In step 3 the axis allocation for the analysis is configured.

  • In step 4 the user can finally create filters for their analysis.

Only the first three steps are mandatory, the creation of a filter is optional.

Creating a Filter

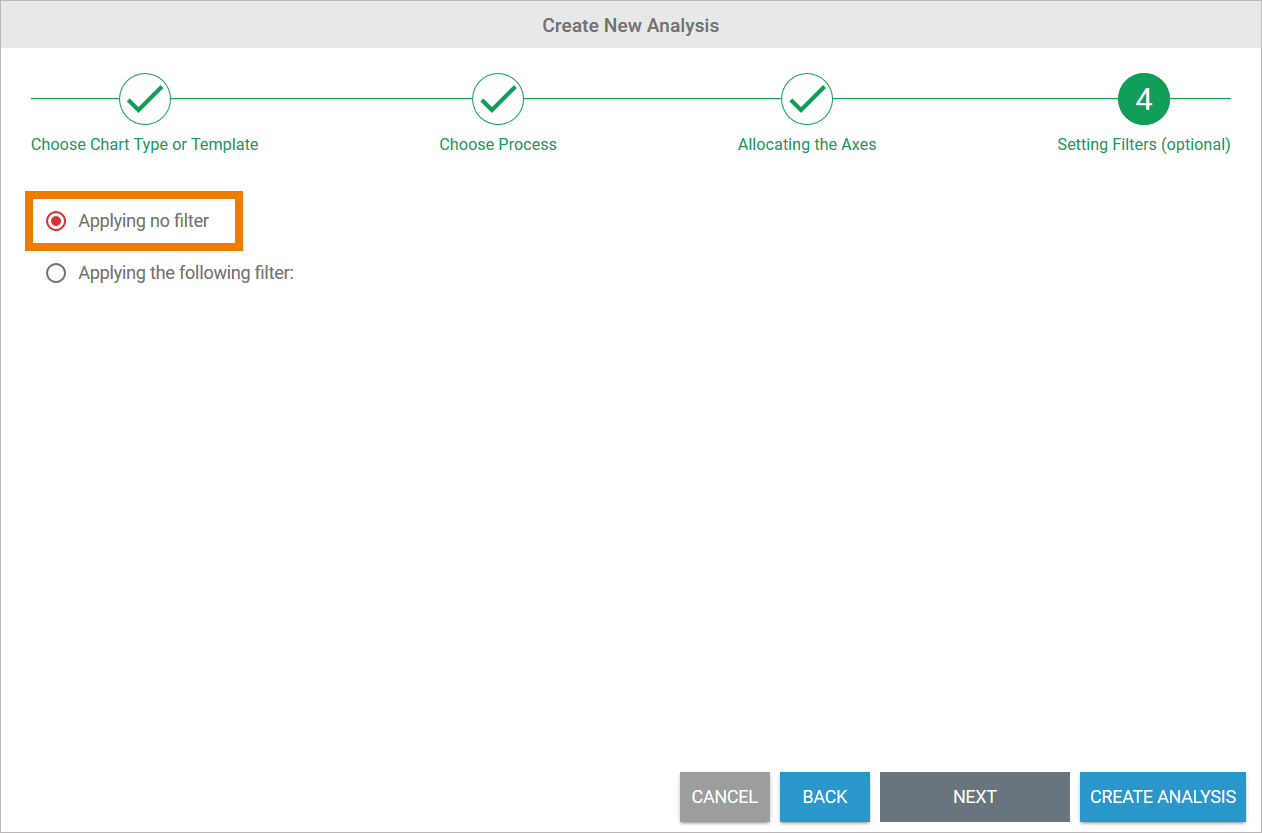

In step 4 of the wizard, the option Applying no filter is selected by default. This means that all instances of the process selected are evaluated in the analysis.
In step 4, it is still possible to create an analysis directly without a filter. Click Create Analysis to do so:

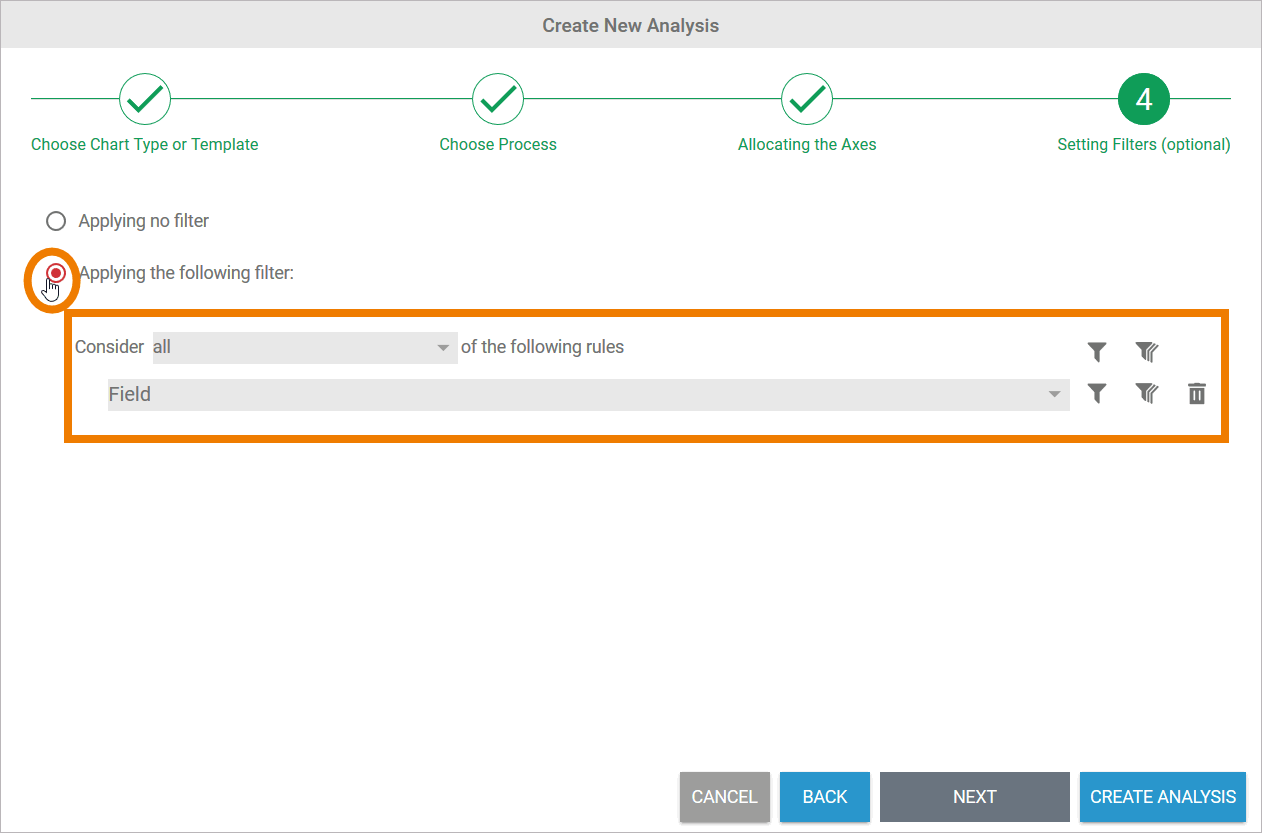

If you change the option on the create following filter function, the filter entry is displayed:

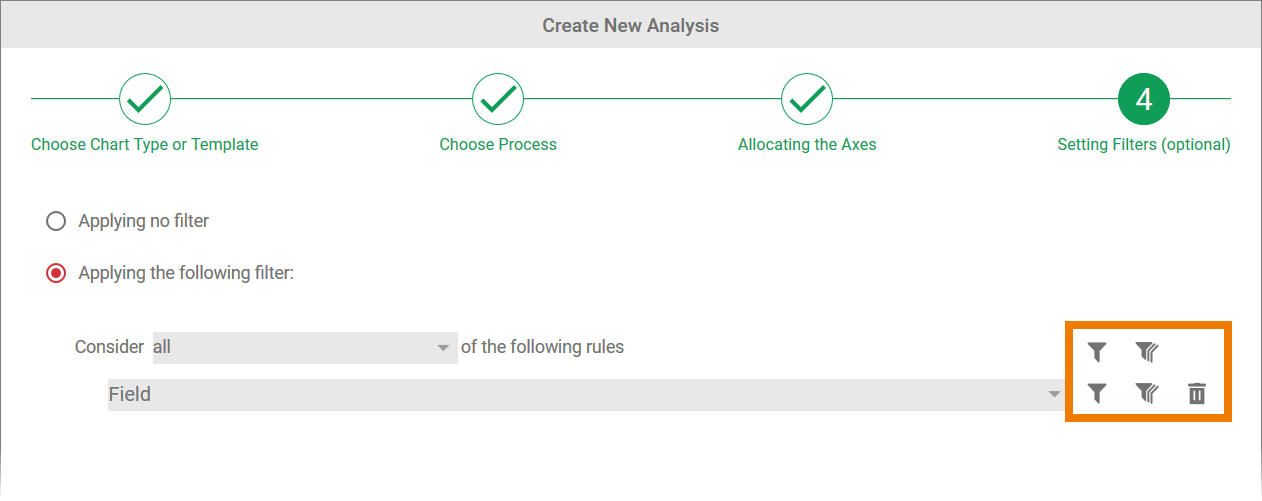

Use one of the following options to manage your filters:

Icon

Description


Create a new attribute filter.


Link attribute filters.


Delete a filter.

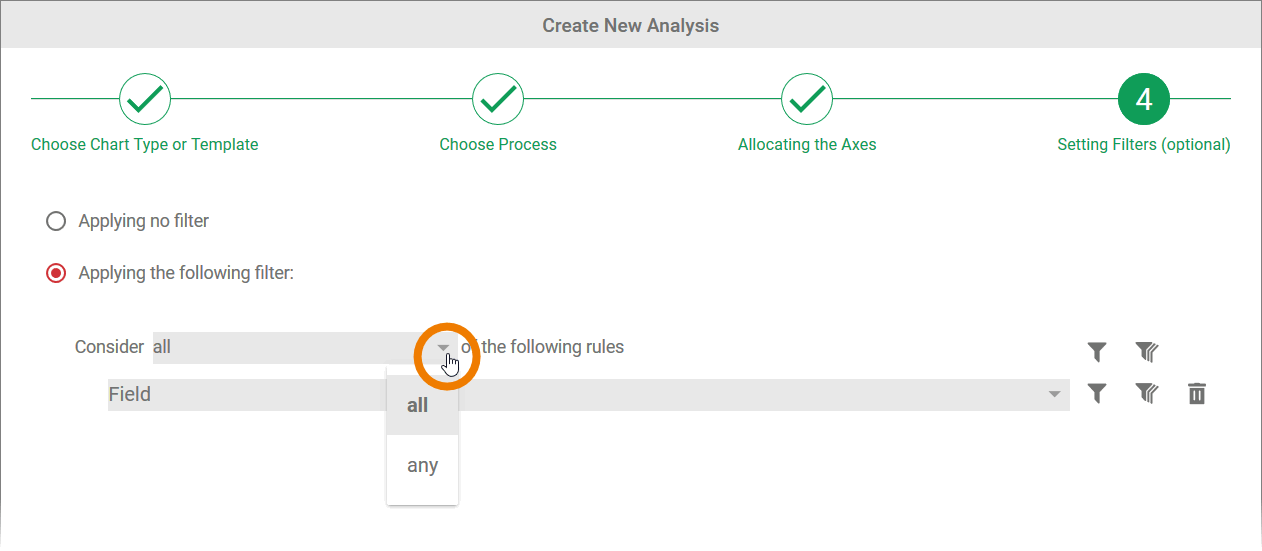

In the first field, the selection list is the basis for determining filtering:

  • All: All rules must be met.

  • Any:  At least one rule must be met.

Creating an Attribute Filter

Once the basis for filtering has been defined, you can create individual attribute filters:

Icon

Description


Create a new attribute filter.


Link link attribute filters.

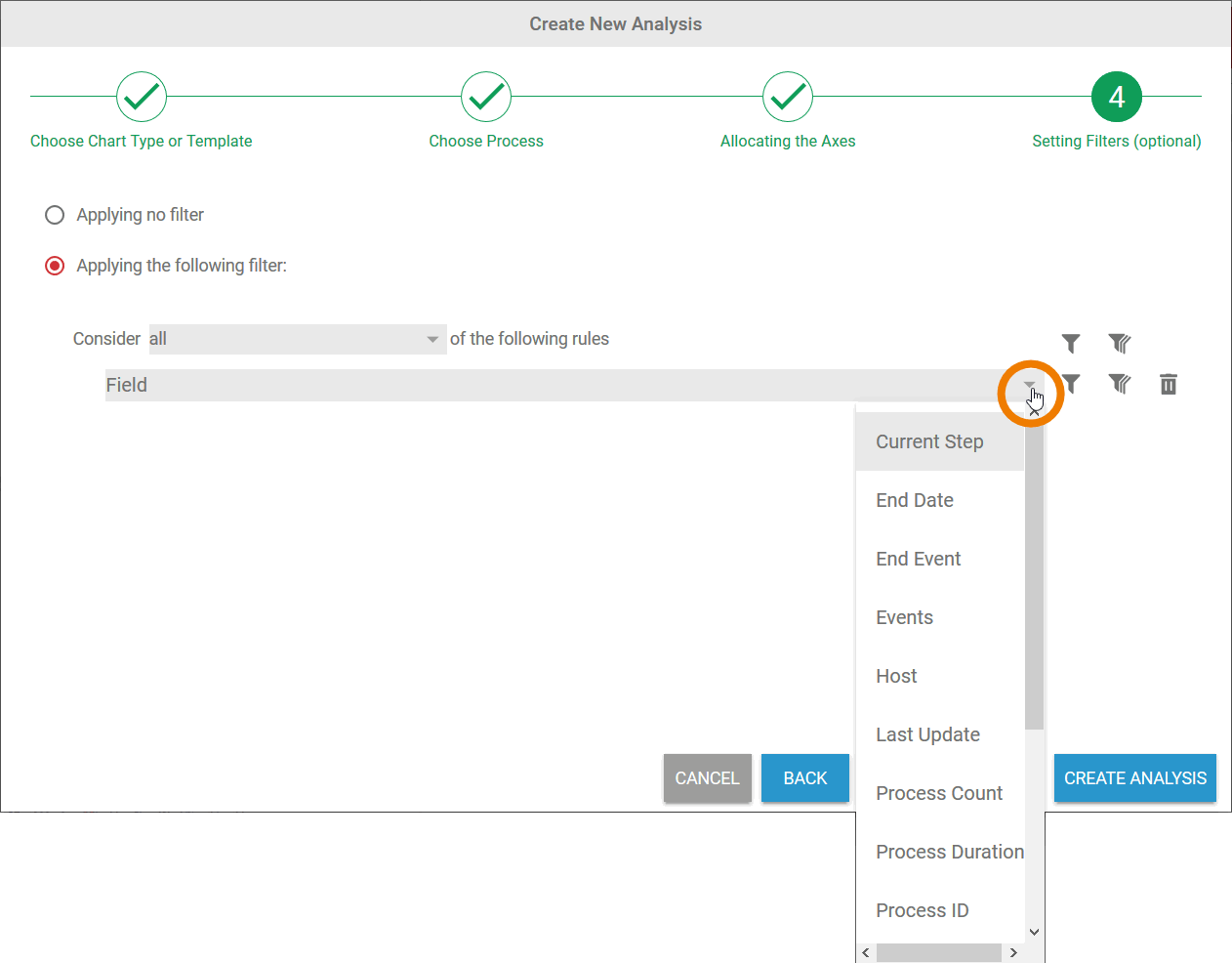

To select an instance attribute, expand the Field selection list:

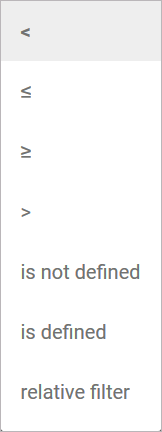

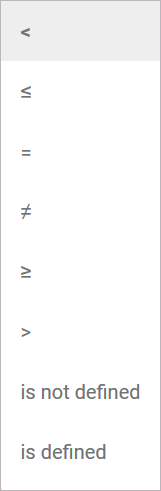

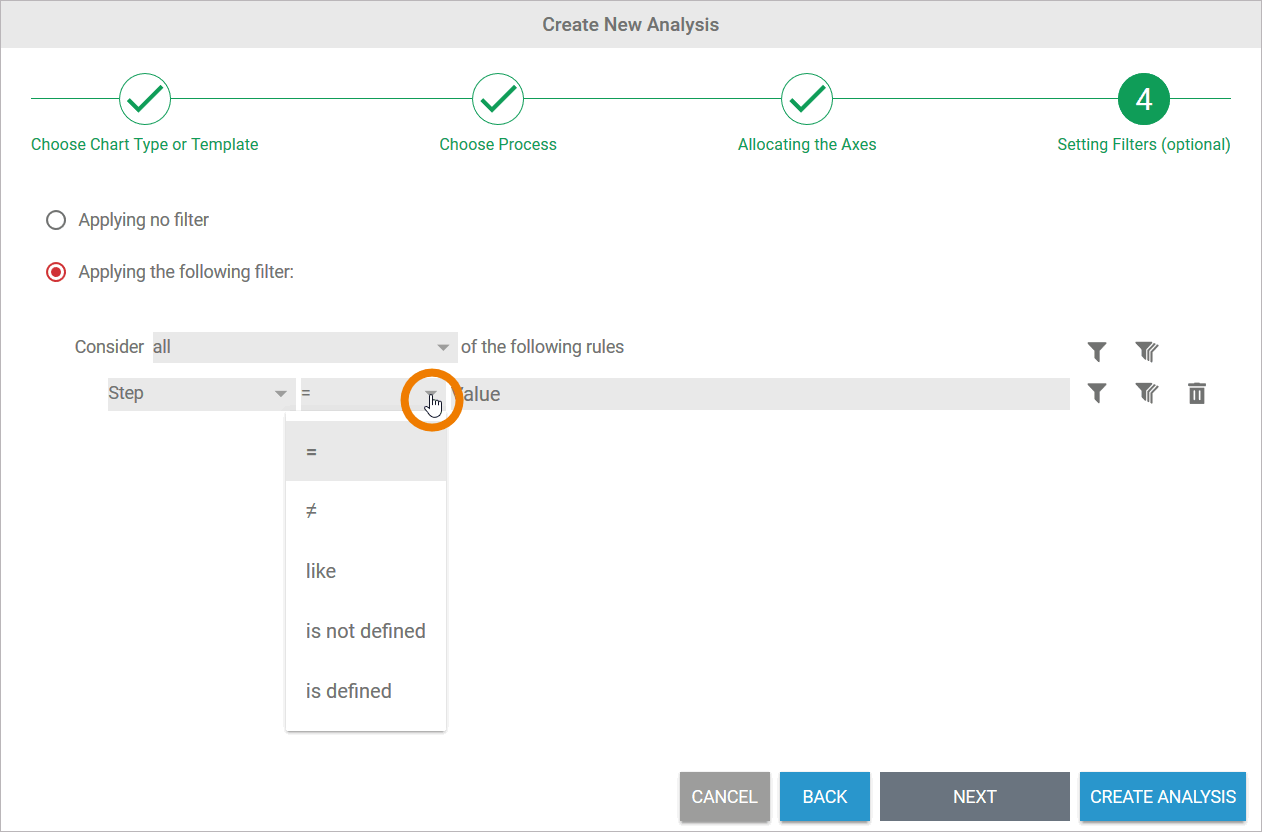

Depending on the selected instance attribute, various operators become subsequently available. The available operators can be displayed via a selection list:

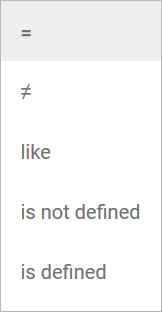

Available Operators

A distinction is made between four groups of instance attributes and the operators belonging to them:

Operators

Instance Attributes

Value Input


Current step

End event

Host

Process name

Process ID

Start event

Step

manual input*

  • Except when operators is defined / not defined


Process time

Step duration

Process count

manual input*

  • Except when operators is defined / not defined


End date

Last update

Start date

Calendar (date picker) and manual input of the time *

  • Except when operators is defined / not defined and relative filtering

If relative filtering is selected, the following options are available via an additional selection list:

  • last minute

  • last hour

  • last day

  • last week

  • last month

  • last year

user-defined (manual input, refer to Relative Filtering)


Event

Steps

Manual input

Inserting Values

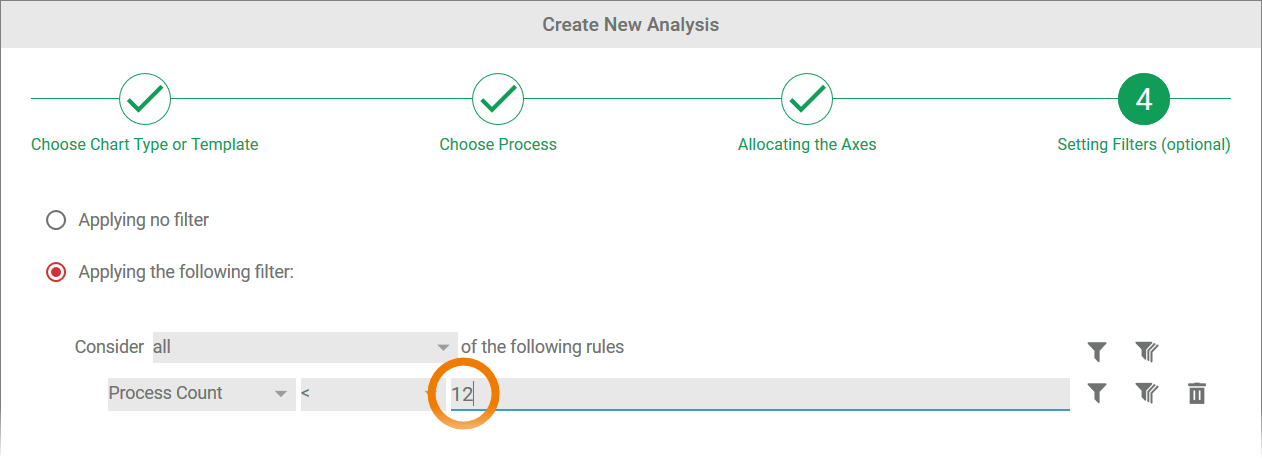

You can enter the related value if an operator has been selected:

Using Wildcards

If you choose the contains operator, you can use wildcards for entries in the value field. The following placeholders are allowed:

  • _ (underscore): Use an underscore as a placeholder for any character.

  • %  (percentage sign): Use the percentage sign as a placeholder for any set of character strings.

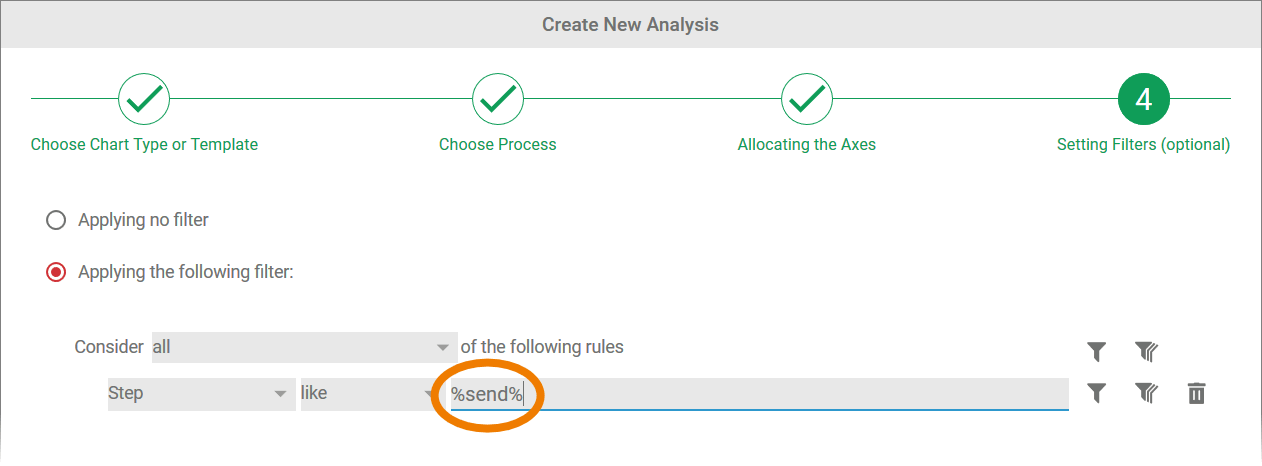

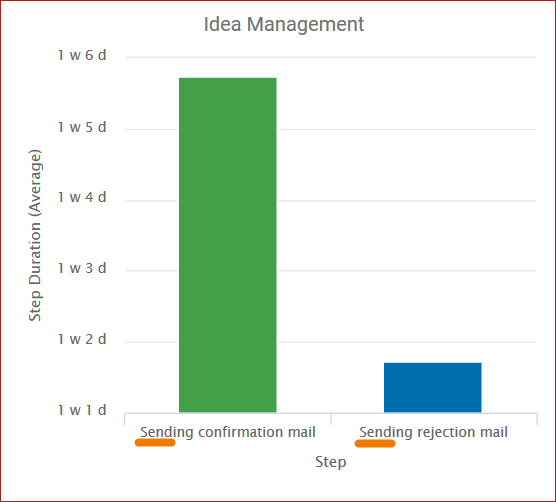

Example: Step contains %end%

All instances containing the string end in the step instance attribute will be displayed. Steps in which additional characters appear before or after the string end are also taken into account.

Entering a Duration

Duration periods (process duration, step duration) are entered as whole numbers. A single number is interpreted as meaning a time unit of seconds.

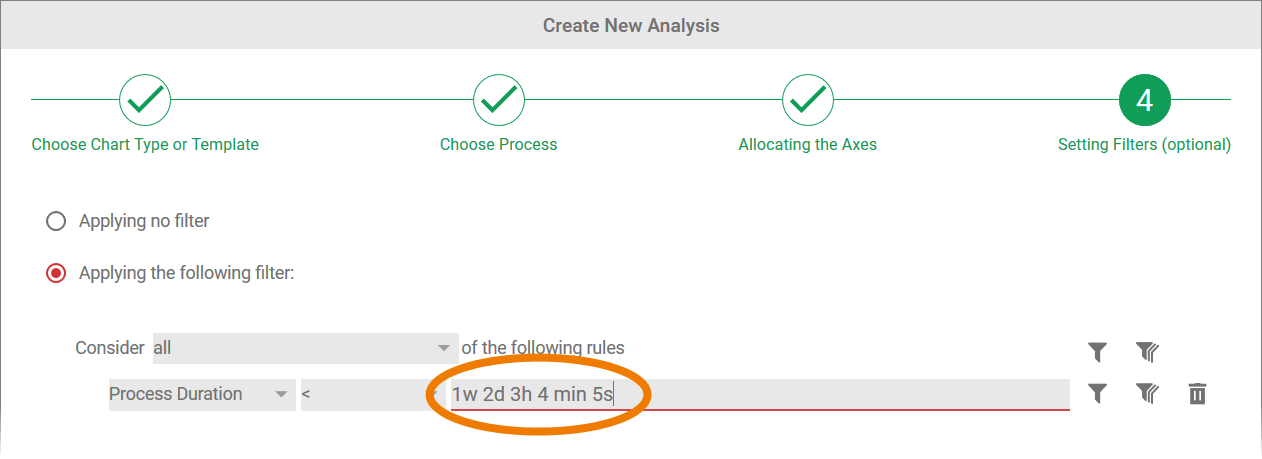

You can also use the corresponding abbreviations to enter weeks, days, hours and minutes:

Time Units

Permitted Input (upper and lower case scripts are allowed

Week

w, week, weeks

Day

d, day, days

Hour

h, hr, hour, hours

Minute

m, min, minute, minutes

Second

s, sec, second, seconds

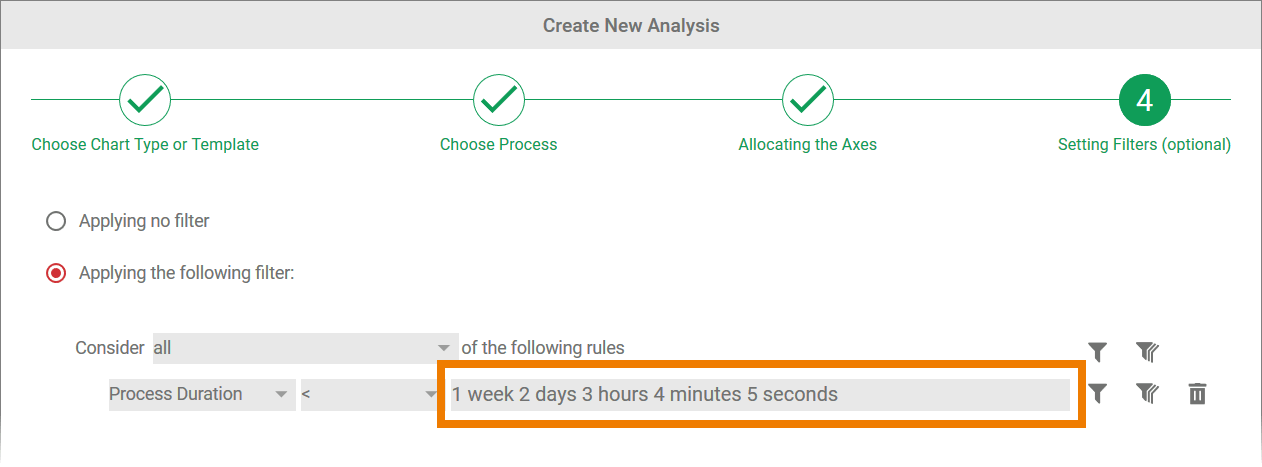

After completing the entry, the applied time units are written out automatically:

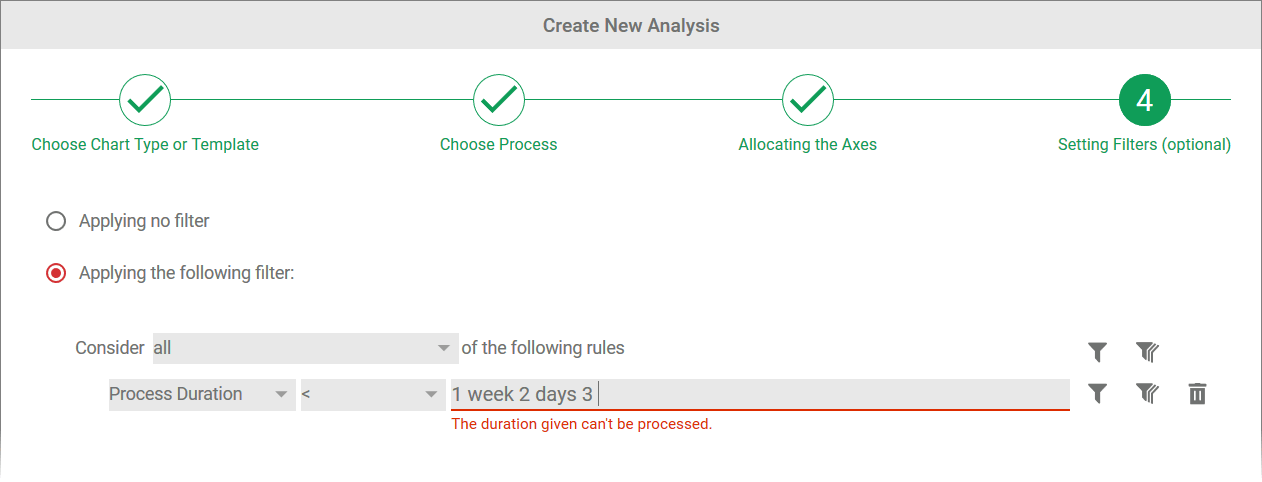

If a time unit entry is not clearly defined, an error message is shown:

Relative Filtering

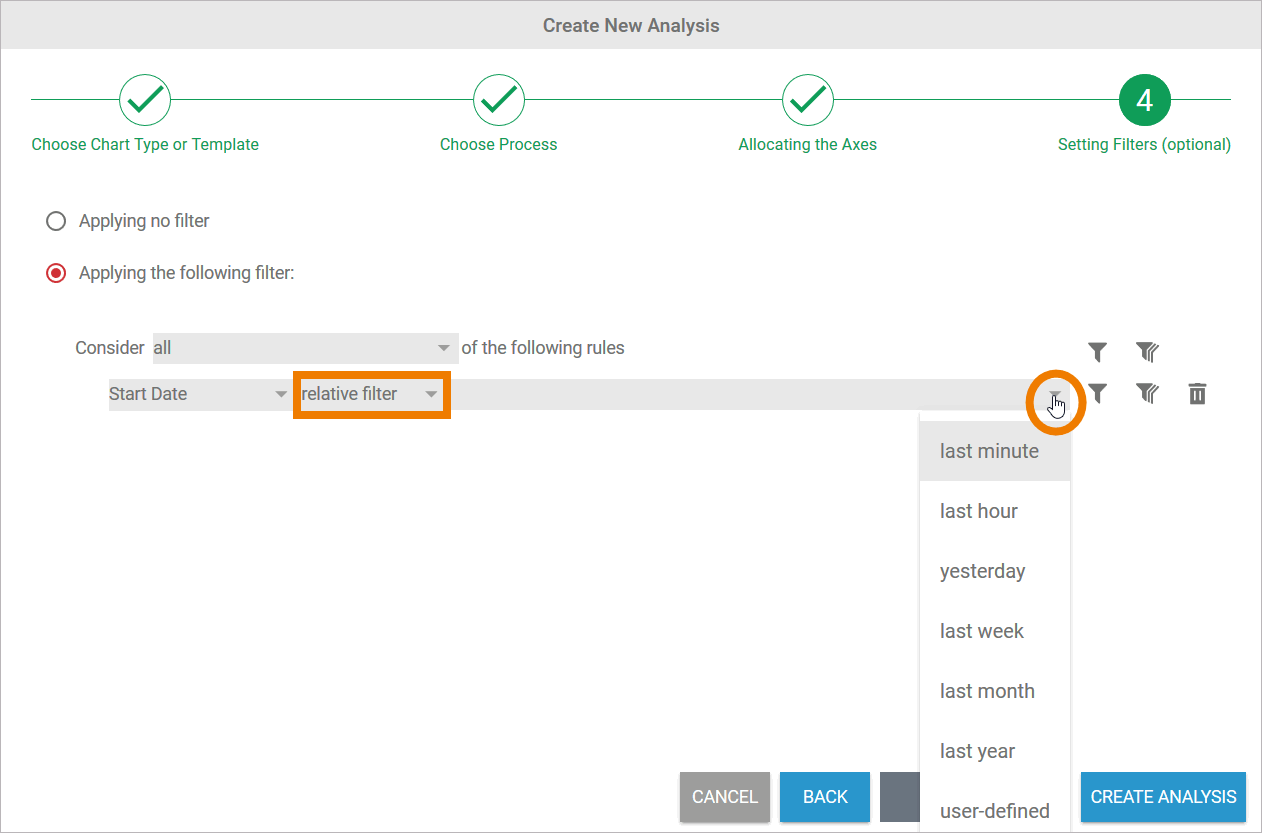

The operator relative filter is available for the instance attributes End DateLast Update, and Start Date. Use the selection list to set predefined filters. The following selections are available:

  • last minute

  • last hour

  • yesterday

  • last week

  • last month

  • last year

  • user-defined

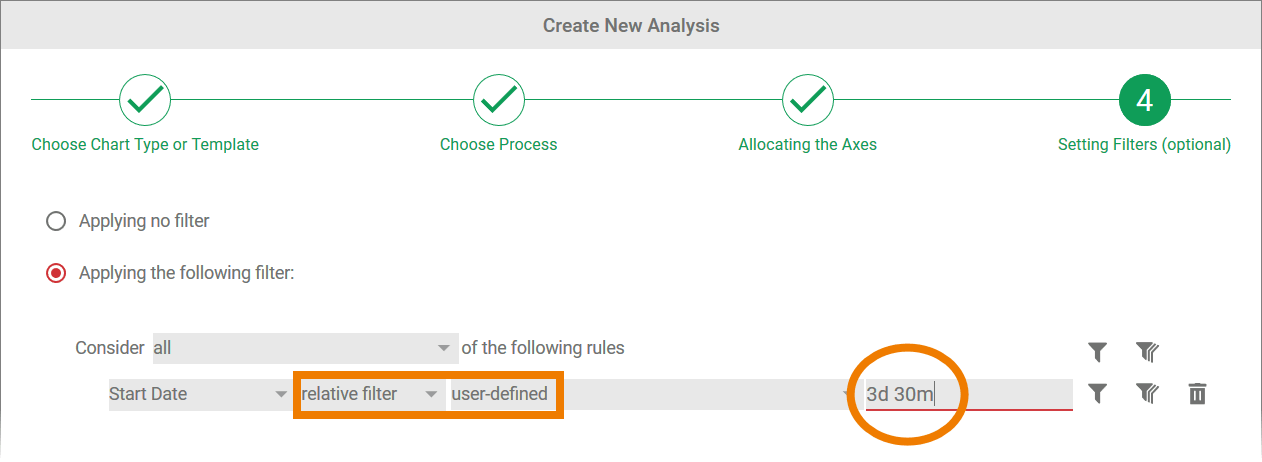

If you choose the option user-defined, you can enter the desired duration manually (see Entering a Duration).

Nesting Filters

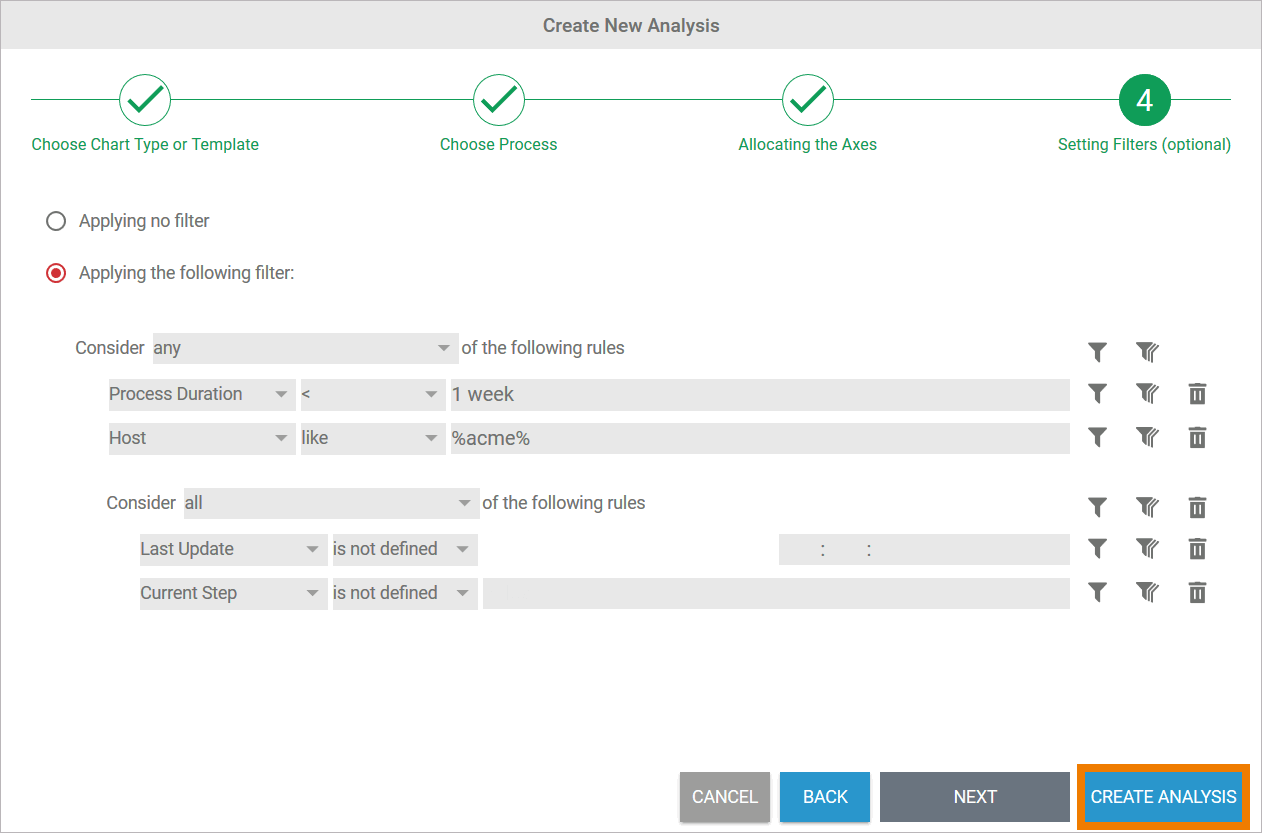

You can create as many filters as you wish. Filters can also be nested to any depth. Once you have finished entering the desired filter, you can create the analysis using the Create Analysis button:


Creating Filters Specific to Measures

If an analysis has been configured with several measures (refer to Configuring Axis Allocation for details), you can also create measure-specific filters.

The creation of measure-specific filters is not available for pie charts and tachometer charts as these charts can only be configured for one index number at a time.

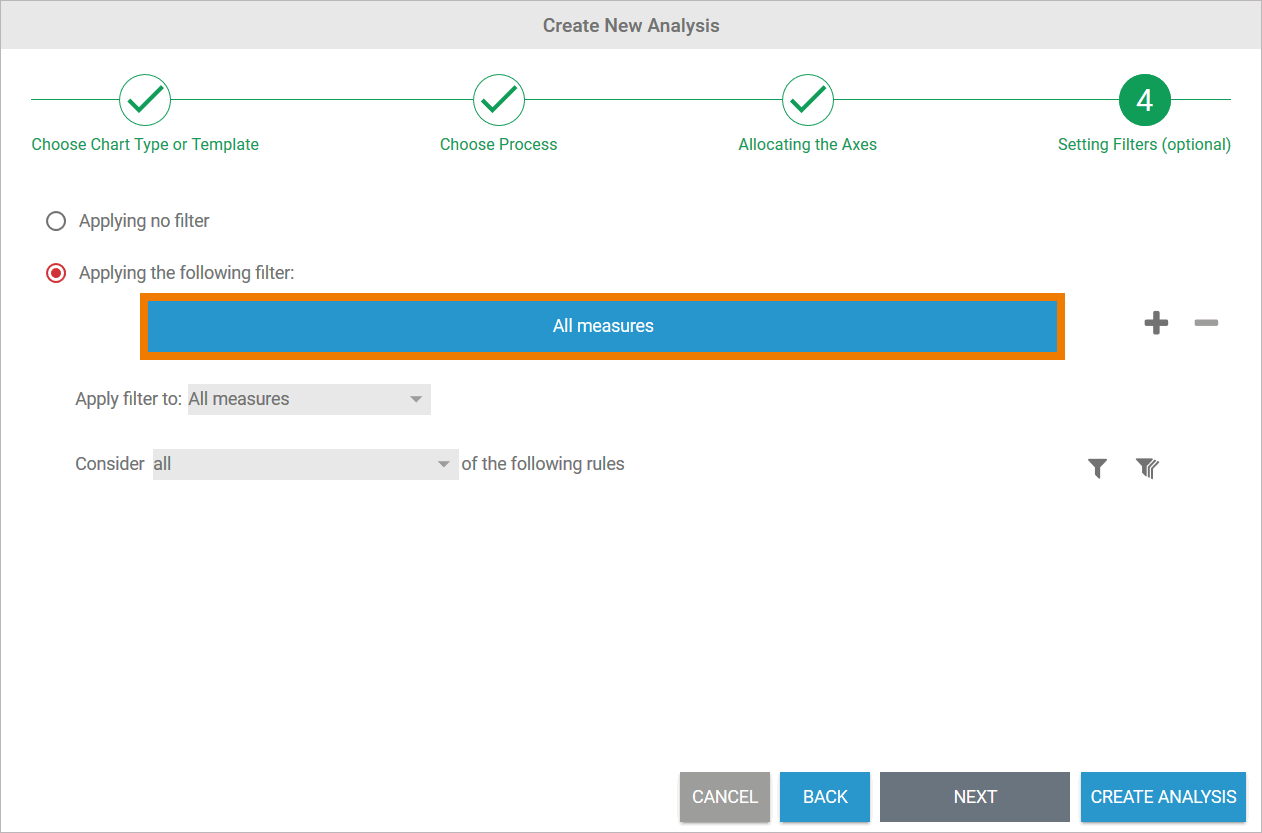

If you have saved several measures on an axis, the All Measures tab appears when you open the filter wizard. If you configure filters in this tab, the filters are applied to all allocated measures:

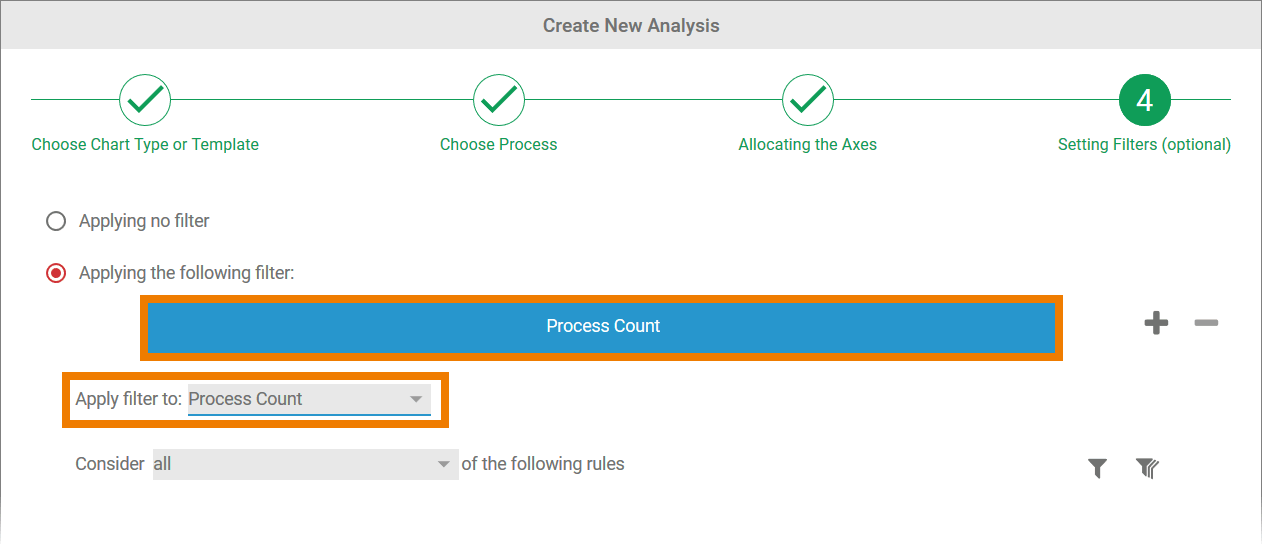

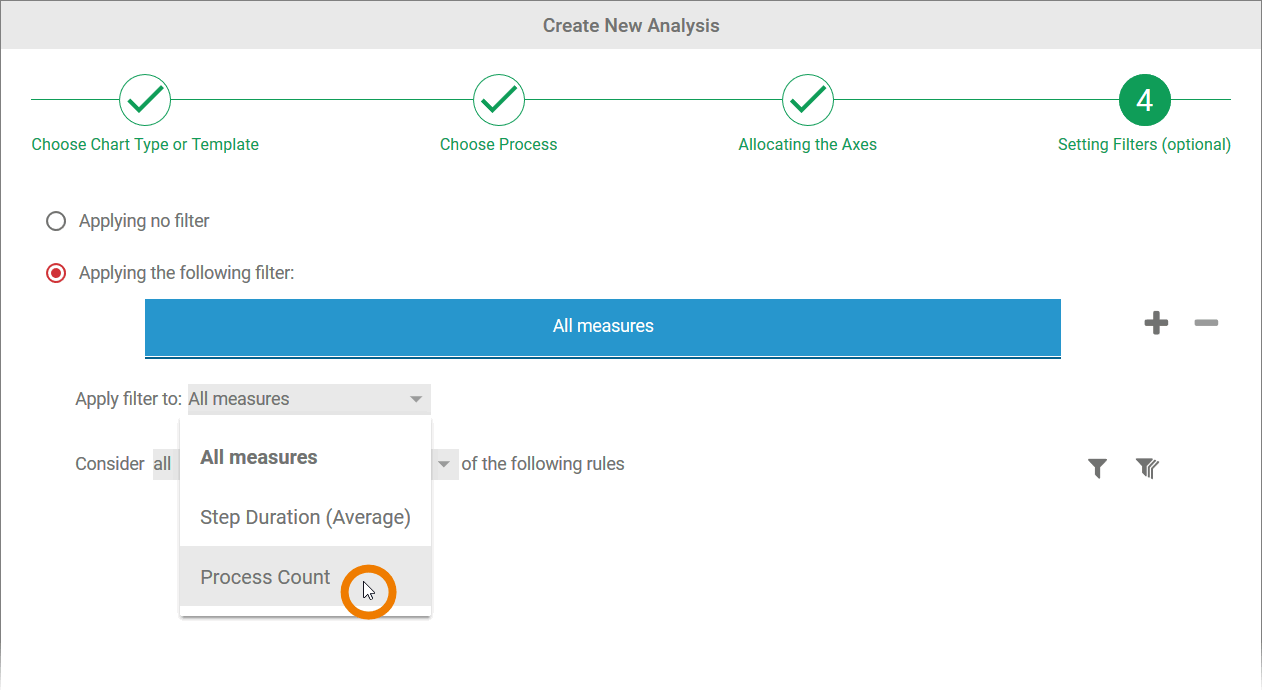

In addition to the global All Measures filter, you can create measure-specific filters. To change the existing global filter to a filter specific to a key measure, open the selection list Apply filter to and select the corresponding measure:

The selected measure is transferred to the tab. All filters that you create now only affect the selected measure:

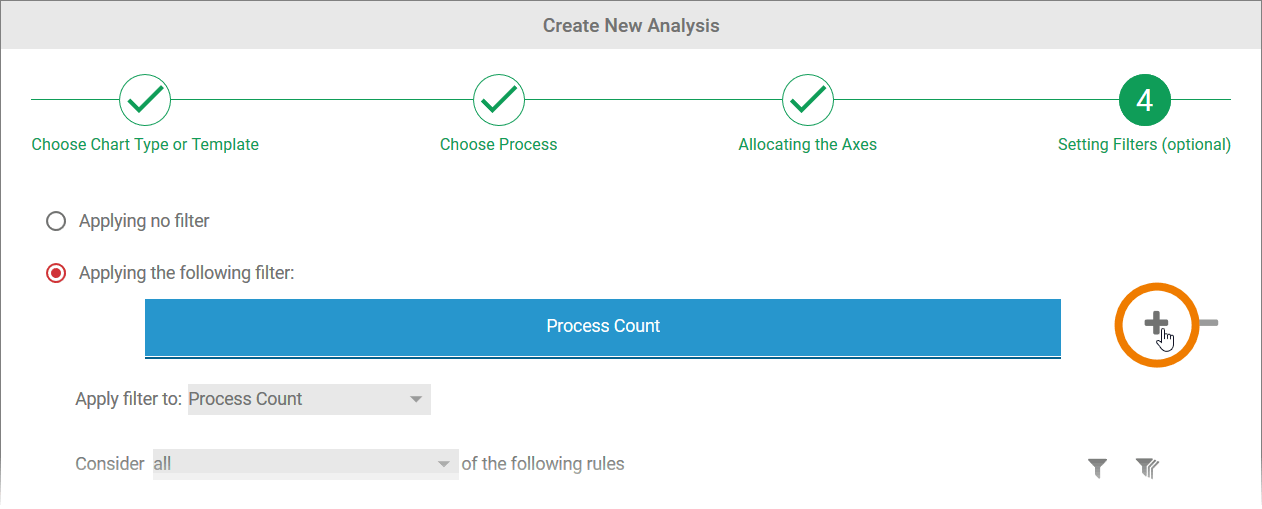

If you wish to create additional measure-specific filters, use option Plus to add more tabs:

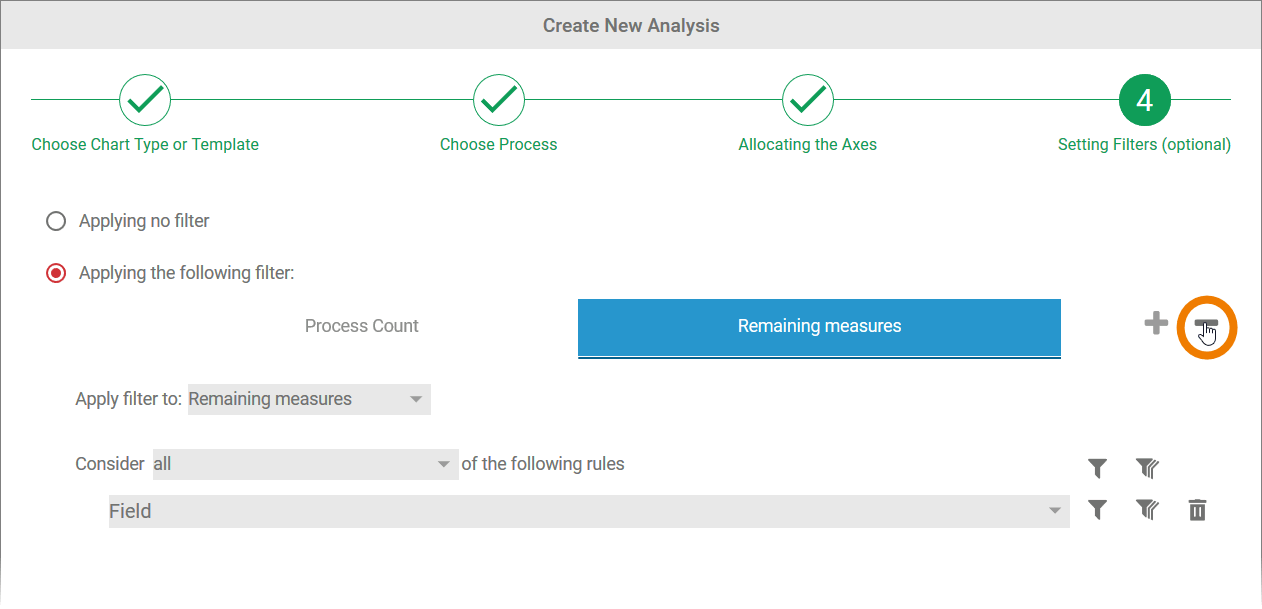

Use option Minus to remove already created tabs:

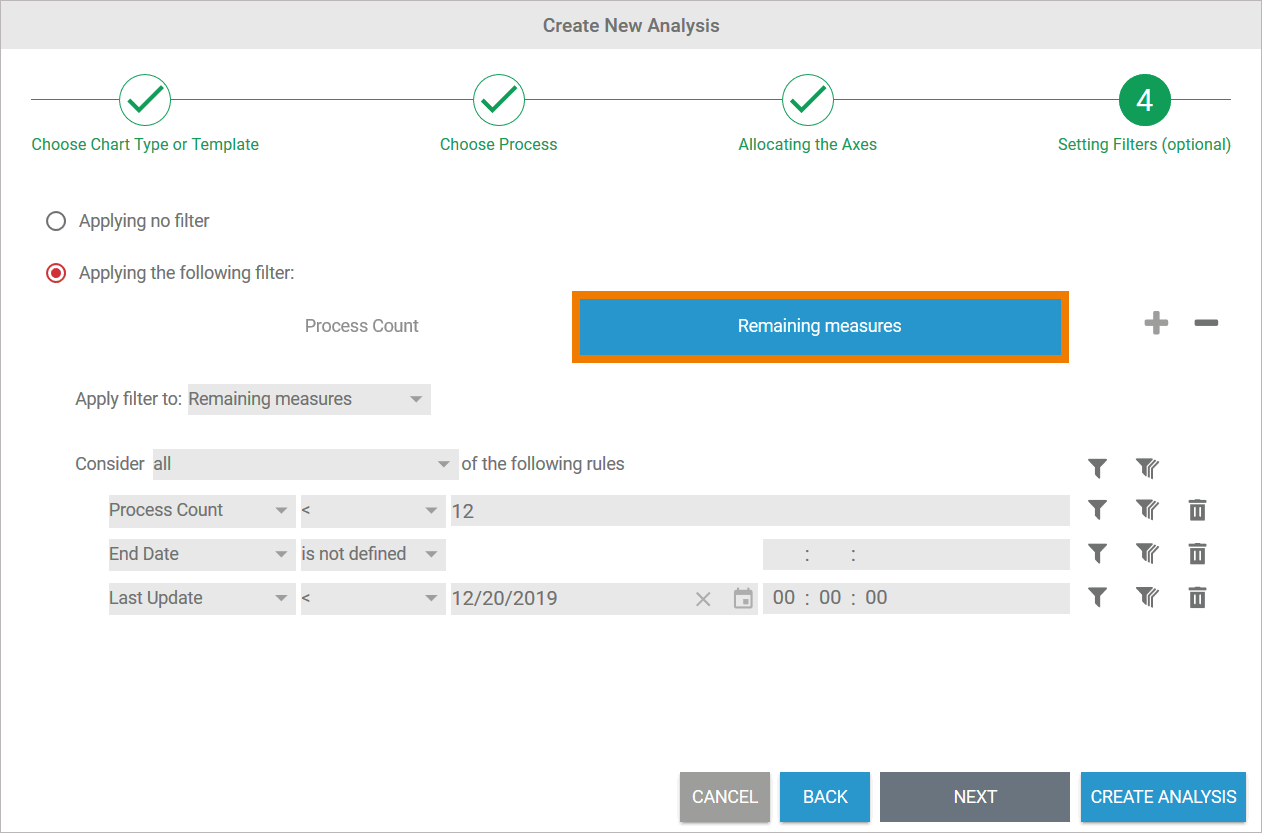

Once a measure-specific filter has been created, the global filter no longer applies to this measure. The name of the tab therefore changes from All measures to Remaining measures.

Example: The filter Process Count < 12 in tab Remaining measures will not be executed. Filters to be applied to the Process Count must be saved in the Process Count tab.


Changing Filters

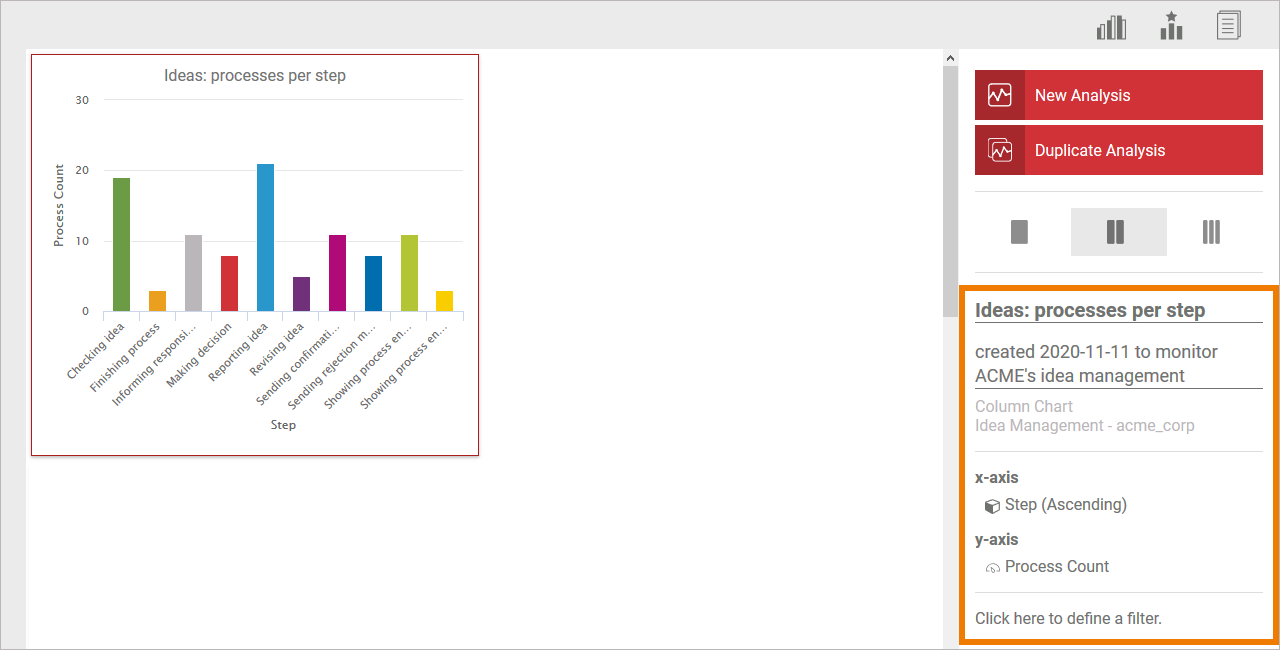

When all required filters have been created and the analysis has been created, the chart is displayed in the Process Analyzer. The settings for the analysis are shown in the sidebar:

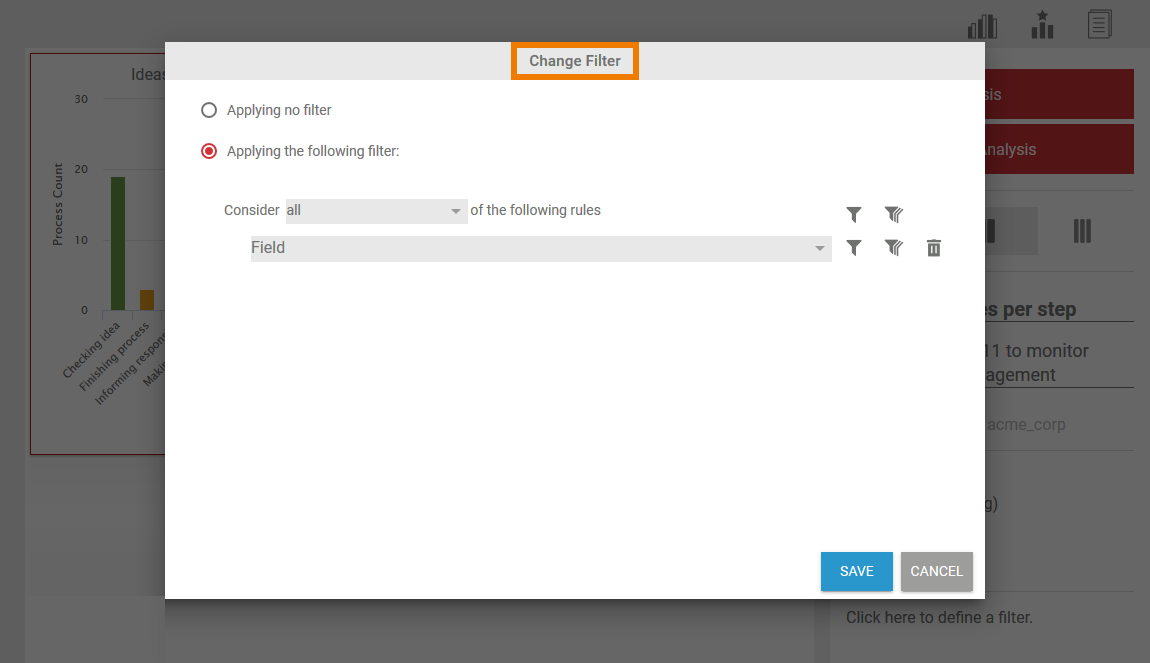

Use the sidebar to assign a name and a description to the analysis. You can also edit the filter settings via the sidebar. Click in the Filters section in the sidebar to open a pop-up window where you can adapt existing filters and also create new ones:
