Configuring the Bridge Connection

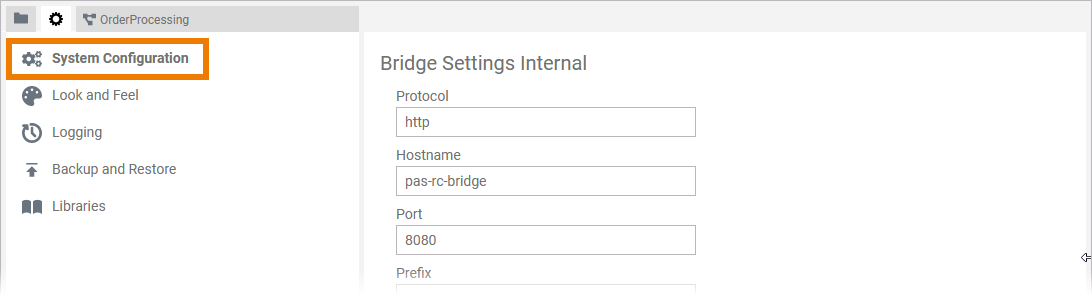

Open the System Configuration menu to manage the basic settings of the Designer.
Tab Configuration is only available on PAS installations with a Docker setup. In a Kubernetes setup, the tab is not displayed.
Two sections are available:
Maintaining the Standard Bridge Settings
In these two sections an administration user defines the standard integration component (Bridge) for all users of the Designer installation.

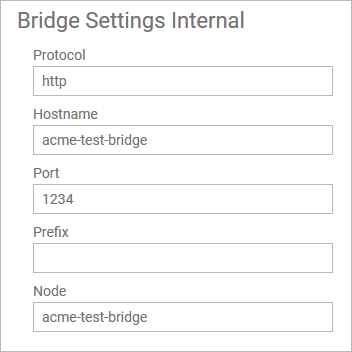

Bridge Settings Internal
The internal configuration is used by the Designer to communicate with the integration component (Bridge):
Protocol: The default protocol of an internal Bridge is http.
Hostname: Enter the name of the server where your Bridge is running. Default is bridge.
Port: Insert the number of the service port of the Bridge.
Prefix: You can insert a prefix if the Bridgeis running behind a proxy.
Node: Consult your Bridge to find out the node name of your Bridge installation. Default is localhost.

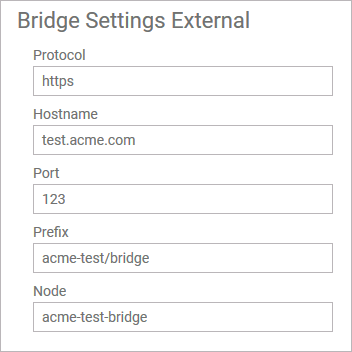

Bridge Settings External
The external configuration is used to create the access to the Bridge console (access from the browser):
Protocol: The default protocol of an external Bridge is https.
Hostname: Enter the name of the server where your Bridge is running. Default is bridge.
Port: Insert the number of the service port of the Bridge.
Prefix: You can insert a prefix if the Bridge is running behind a proxy.
Node: Consult your Bridge to find out the node name of your Bridge installation.
