Examining BPaaS Instances

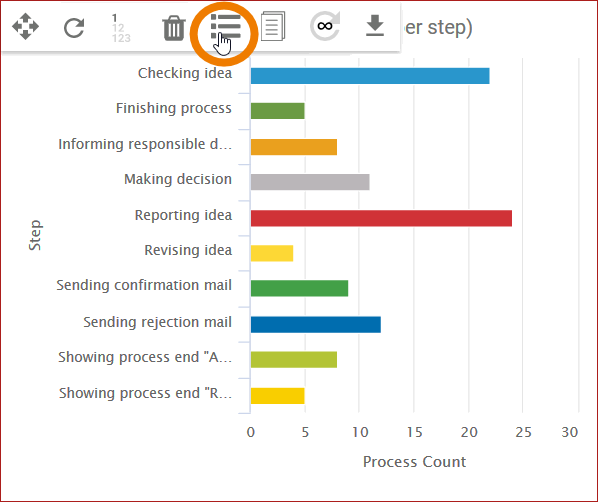

You can use the instance list or instance table to examine individual process instances. The instance table lists all the instances of the underlying process of an analysis. Use option Open Instance List in the analysis menu to open the instance table:

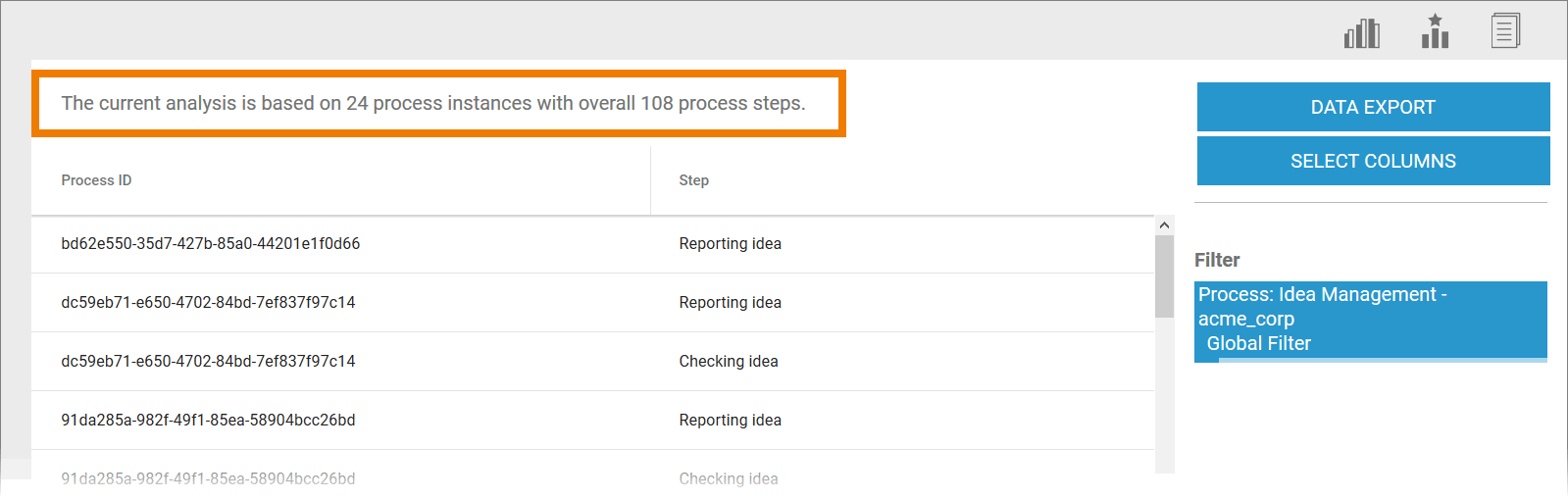

The process instances are listed on the active dialog window. The heading includes a statement of the total number:

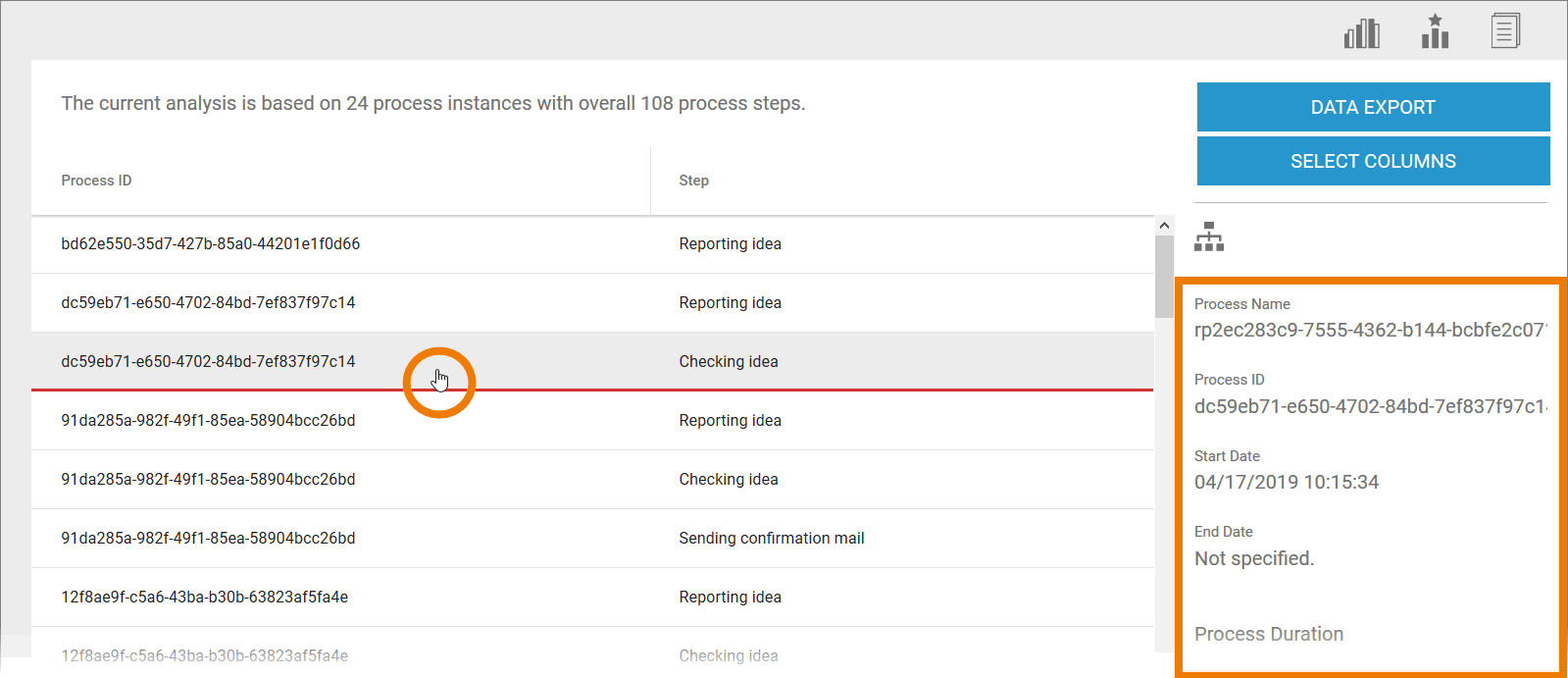

Click on an instance to select it. The instance details are shown in the sidebar:

The following process instance details are shown:

• Process Name

• Process ID

• Start Date (including time, accurate to the second)

• End Date (including time, accurate to the second)

• Process Duration (accurate to the second)

On the following pages you will find detailed information on the use of the instance list and the possible evaluation options for instances:
