Mail Server Connection

An instance of Connection is the first parameter of all MailClient operations. On first encounter in a call, the library will initiate the connection and retain it, i.e. successive calls using the same connection settings will re-use the already opened connection to the mail server, where "same" is identified by host+user+protocol+port+security. So changes to any of these attributes will be considered being a "new" connection, while changes on any other attributes have no effect.


Connection

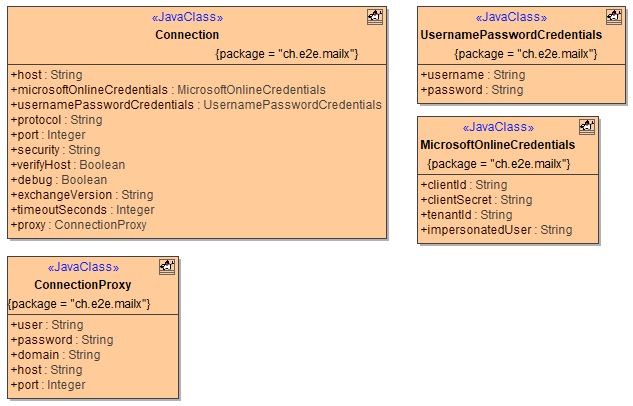

Class Connection has the following attributes:

Attribute Name

Type

Description

Allowed Values

debug

Boolean

Specify whether to write additional debug information to the bridgeserver log.

true

Additional debug information is written to the xUML standard log.

false

No additional logs (default).

exchangeVersion

String

Specify the Microsoft Exchange version (optional).

2007_SP1

Exchange 2007 Service Pack 1

2010

Exchange 2010

2010_SP1

Exchange 2010 Service Pack 1

2010_SP2

Exchange 2010 Service Pack 2 and higher (default)

host

String

Specify the host name/IP address of the mail server.

a valid host name or IP address

for exchange connections this can be left NULL, triggering Autodiscover (which might fail)

for  office365 connections this is ignored

microsoftOnlineCredentials

Object

Specify OAuth login credentials for Microsoft Online connections

a valid set of credentials

either this or usernamePasswordCredentials must be set

port

Integer

Specify the port of the mail server (optional)

a valid port number

If omitted (NULL), the standard port for the chosen protocol and security is used.

protocol

String

Specify the protocol used for e-mail retrieval and storage.
Values are not case sensitive.

imap

Use the IMAP protocol.

imaps

Use IMAP over SSL.

pop3

Use POP3.

smtp

Use the SMTP protocol.

smtps

Use the SMTPS protocol.

exchange

Use Exchange Web Service (EWS) API with a hosted Exchange Server

office365

Use Exchange Web Service (EWS) API with a Office 365 Server (will ignore host).

security

String

Specify the encryption.
Values are not case sensitive.

exchange and office365 protocols ignore this setting and use ssl anyway.

none

No encryption used.
exchangeand office365 protocol (see attribute protocol) use SSL in any case, this cannot be overridden.

ssl

Use SSL encryption.

starttls

Use TLS encryption.
exchangeand office365 protocol (see attribute protocol) use SSL in any case, this cannot be overridden.

Make sure to pick imap, pop3, or smtp with this setting, not imaps, pop3s, or smtps.

timeoutSeconds

Integer

Specify the number of seconds after which a request (send or receive) times out.

any positive integer

Default is 0, which translates to the following defaults:

  • infinite timeout for imap(s), pop3(s), and smtp(s)

  • 100 seconds for exchange

usernamePasswordCredentials

Object

Specify the user's credentials

a valid set of credentials

either this or microsoftOnlineCredentials must be set

verifyHost

Boolean

Specify whether for SSL connections the mail server host shall be verified or not (optional).

true

Verify the mail server's SSL certificate (default, see also security).

false

Do not verify the mail server.

Username and Password Credentials

usernamePasswordCredentials.username

String

Specify the user account on the mail server.

a valid user name

Some SMTP servers allow unauthorized sending, in these cases you may leave it as NULL.

usernamePasswordCredentials.password

String

Specify the user's password.

a valid password

Some SMTP servers allow unauthorized sending, in these cases you may leave it as NULL.

Microsoft Online Credentials (only applicable to office365 protocol)

microsoftOnlineCredentials.clientId

String

client id of your app registration


For details on registering EWS access via OAuth please follow the steps as outlined here: https://docs.microsoft.com/en-us/exchange/client-developer/exchange-web-services/how-to-authenticate-an-ews-application-by-using-oauth

Make sure to follow the path for "app-only authentication"

microsoftOnlineCredentials.clientSecret

String

client secret of your app registration

microsoftOnlineCredentials.tenantId

String

tenant id of your microsoft online organization

microsoftOnlineCredentials.impersonatedUser

String

name (email address) of the mailbox you want to impersonate

a valid email address

Provide the email address of the mailbox you want to interact with (e.g. read messages from)

Proxy Settings (only applicable to HTTP based connections, i.e. exchange or office365 protocol)

proxy.host

String

Specify the host name/IP address of the proxy server.

a valid host name or IP address

proxy.port

Integer

Specify the port of the proxy server.

a valid port number

proxy.domain

String

Specify the user domain on the proxy server (optional). Some Windows-based proxy servers might require this for authentication.

a valid ActiveDirectory domain name

proxy.user

String

Specify the user account on the proxy server (optional).

a valid user

proxy.password

String

Specify the user's password (optional).

a valid password
