Adapting the Configuration of Containerized xUML Services (Kubernetes)

This option is only available for type xuml-service (= containerized xUML services).

The administration application allows you to change the configuration of a containerized xUML service. You have two options to open the configuration:

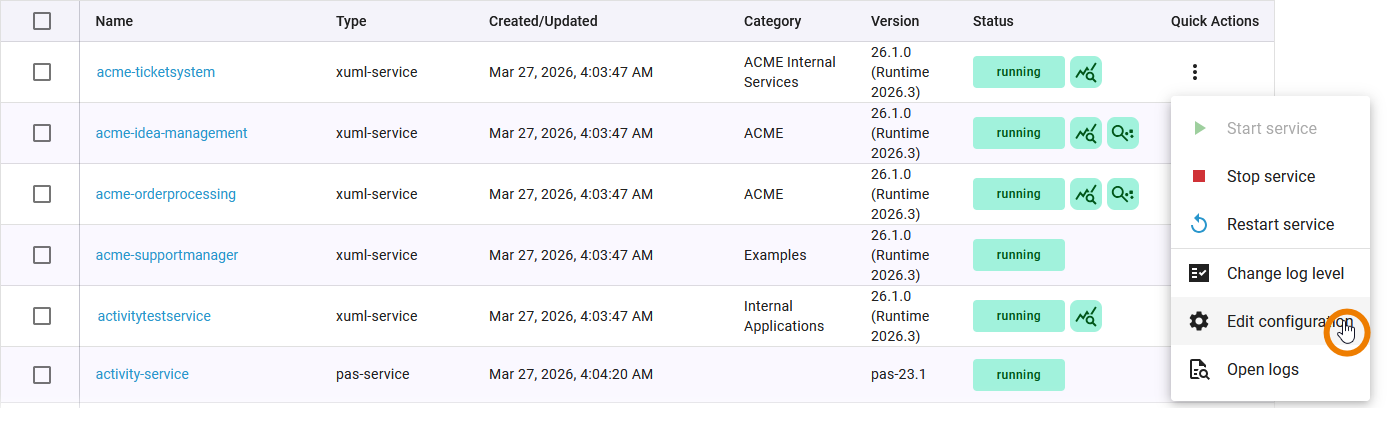

  • Use action Edit configuration from the quick actions bar in the services' list.

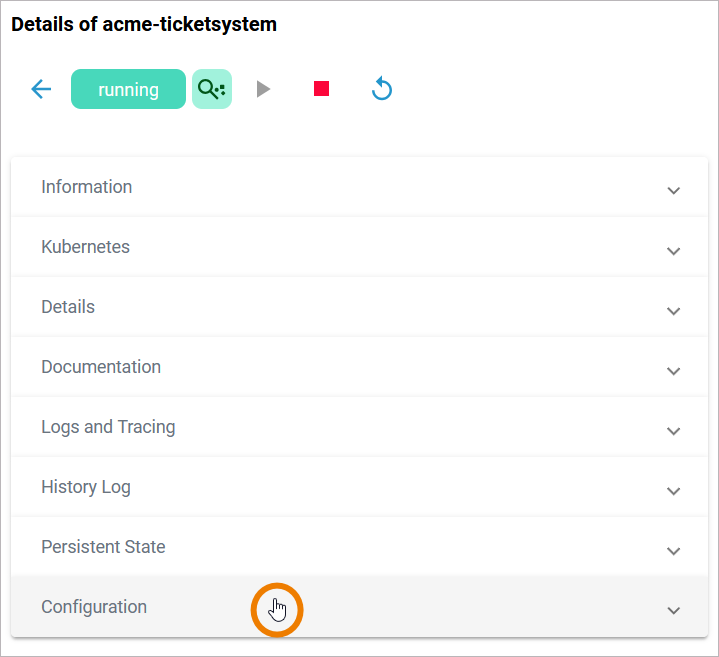

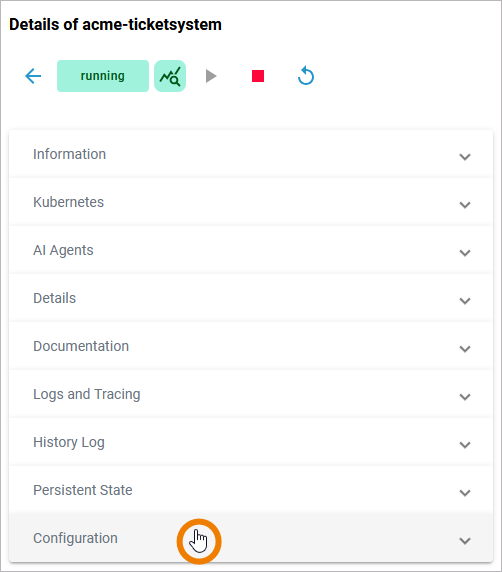

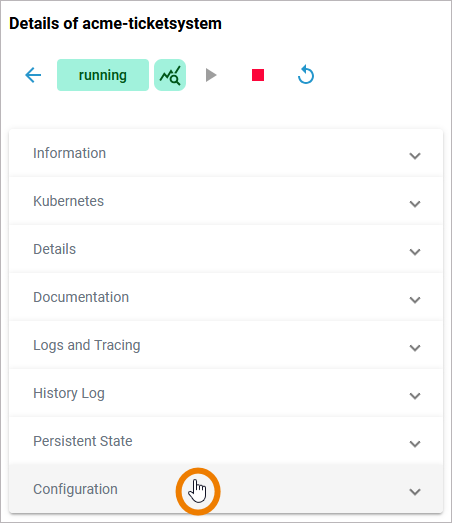

  • Open the details page of the service and scroll down to section Configuration:


Changing xUML Service Settings

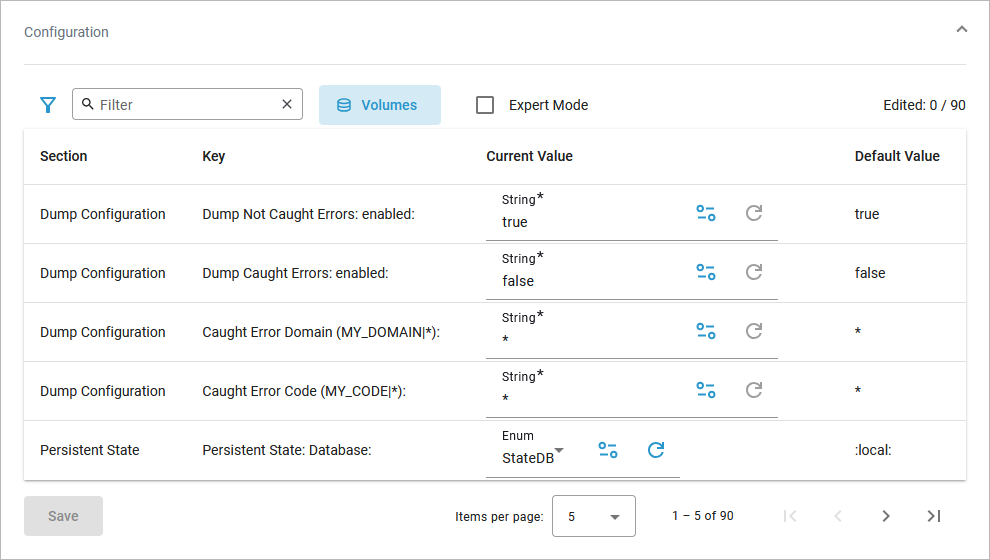

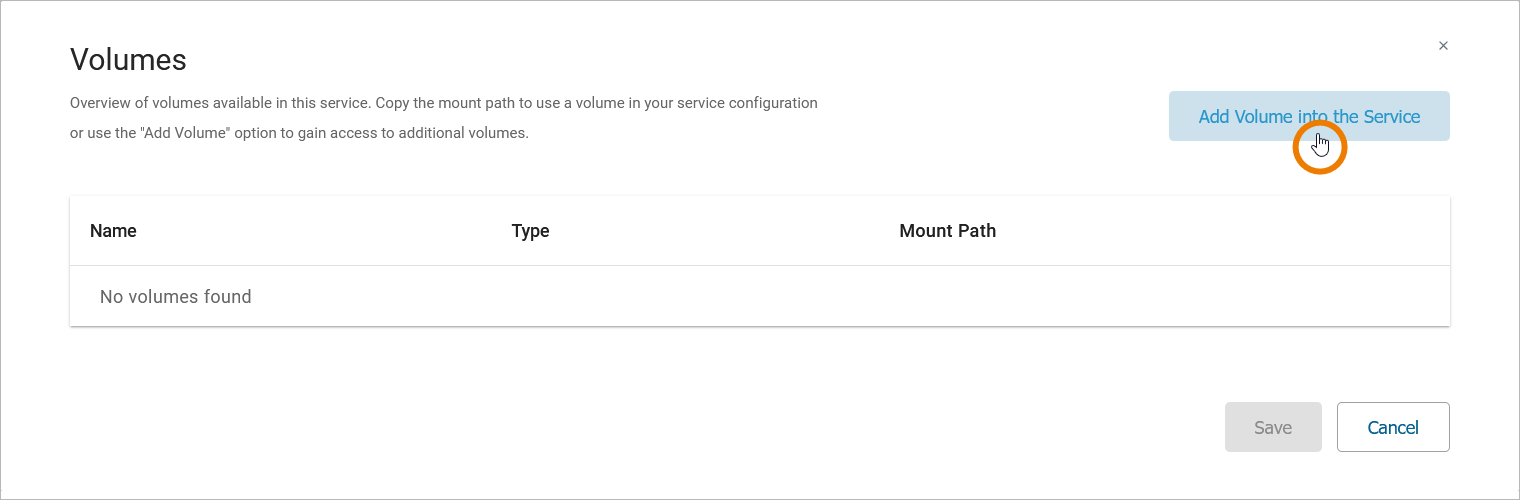

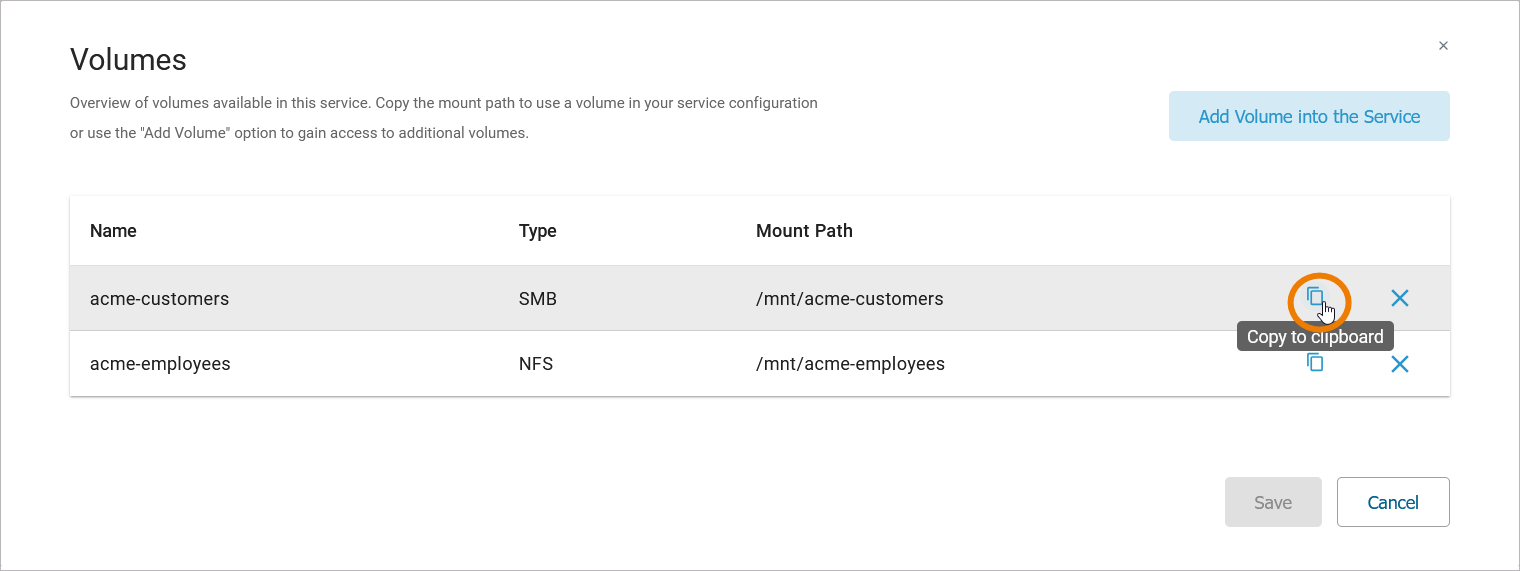

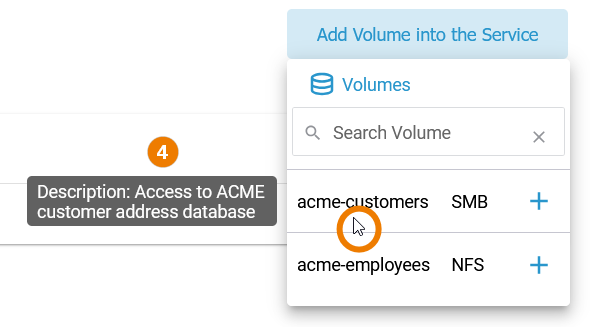

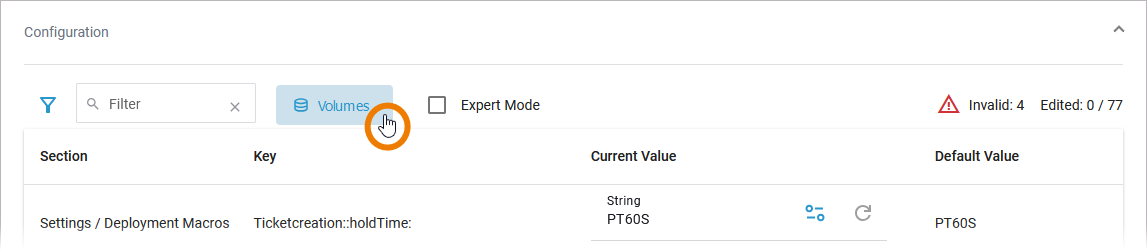

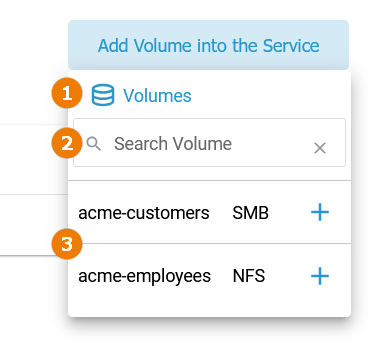

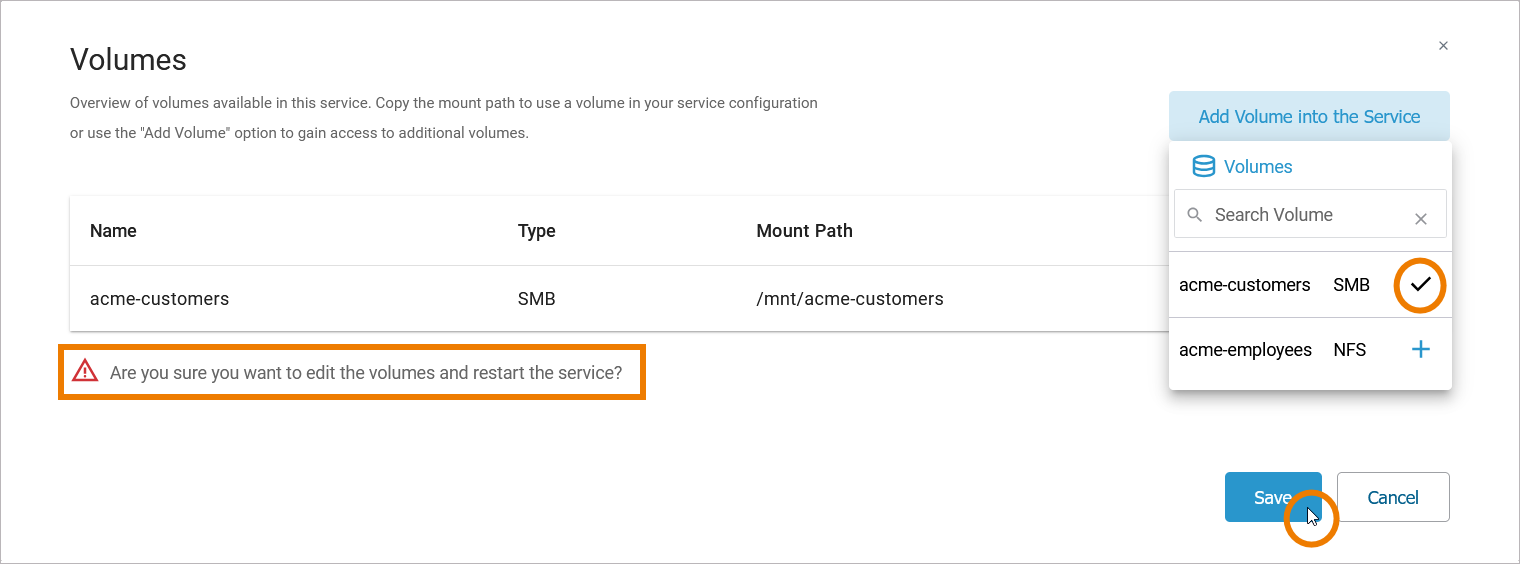

In the Configuration section you can directly modify xUML service settings. When you save your changes, the container will be re-created and restarted. Changes are possible after the first deployment of the containerized service:

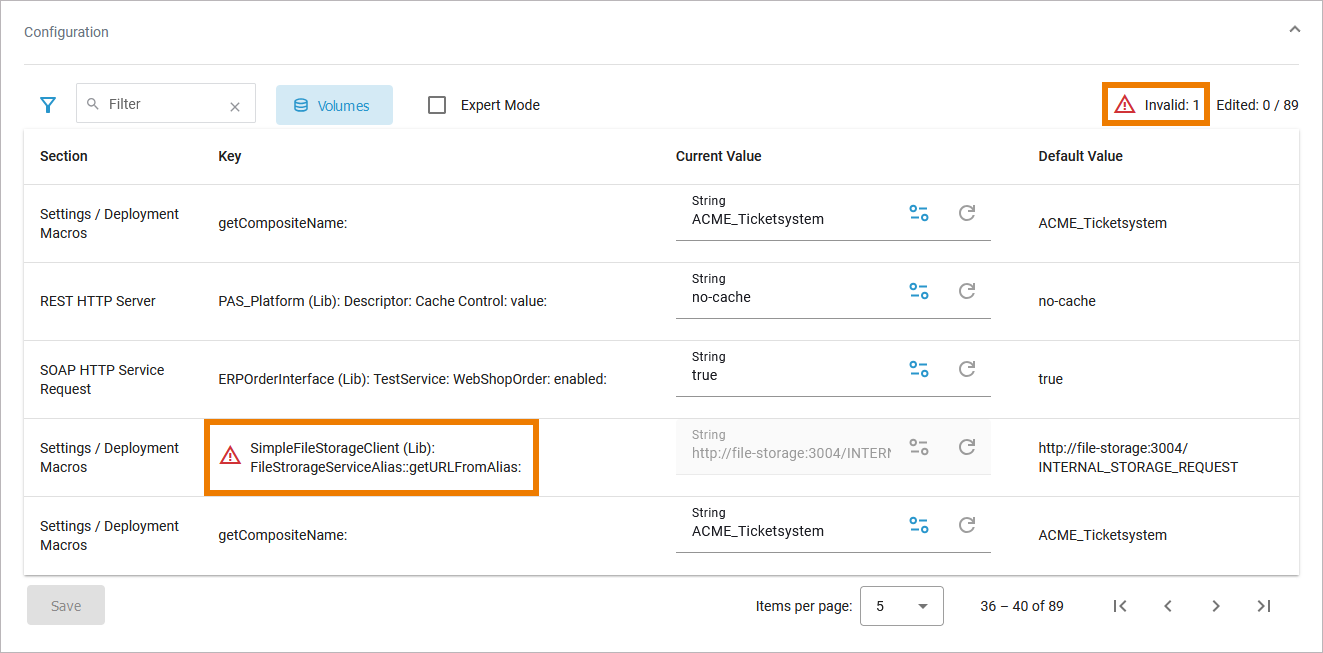

Service settings can be erroneous if a setting name contains special characters or whitespaces. Invalid service settings are marked with a red flag. Their number is also displayed on top right of the list. If a service setting is erroneous, you cannot change its current value.

In case that your service contains erroneous settings, you can do the following:

  • If it is a setting in a Designer service ("custom value"): Open the service in the Designer, correct the settings' name and redeploy the service.

  • If it is a setting in a platform service, please contact our support team.

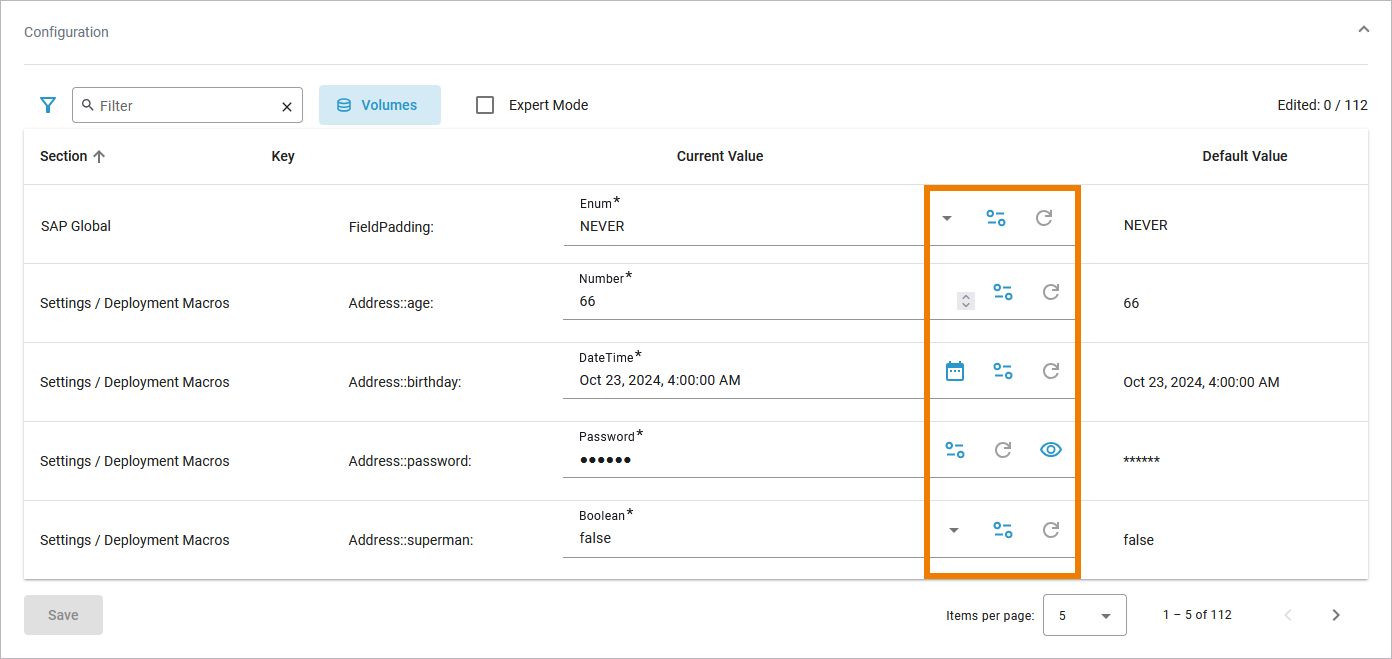

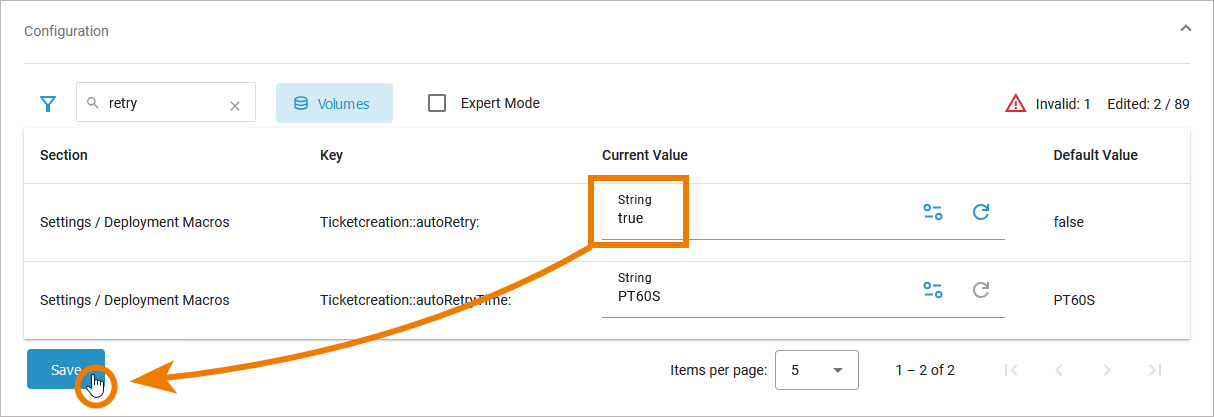

You can change the Current Value of a service setting: Just overwrite the displayed value. Each input field also offers some additional options:


Icon

Option

Description


Assign global variable

Use this option to apply a global variable, see Assigning a Global Variable for details.


Reset to the default value

Use this option to reset the setting to its default. For your information, the Default Value is displayed next to the current value.


Clear value

Use this option to remove the content of the Current Value field.

This option is only displayed when a setting has no default value.

Please note:

  • Save is only enabled when changes have been made.

  • Clicking Save triggers a restart, changes in the Configuration section are directly applied to the service.


Assigning a Global Variable

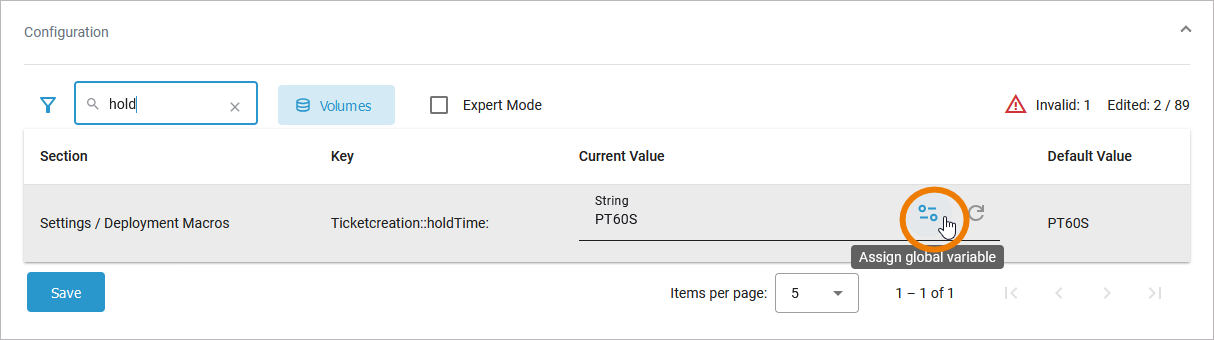

If you want to use a global variable instead of entering a value manually, click Assign global variable:


For detailed information about global variables and how to create them, refer to Managing Global Variables for Containerized xUML Services.

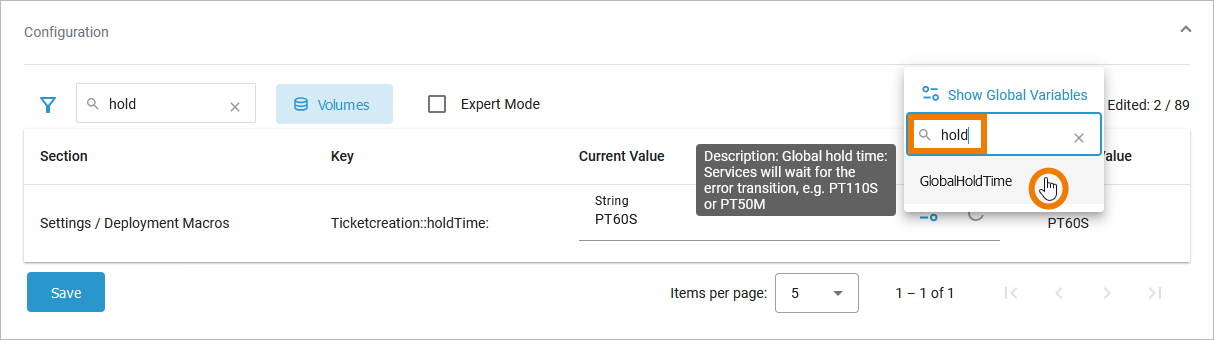

A menu opens in which all available global variables are displayed that are of the same type as the current value that you want to change:

  • Use option Show Global Variables to open the global variables view. It shows all available global variables and their details. You can also create new global variables here (refer to Managing Global Variables for Containerized xUML Services for more information).

  • Use the filter to minimize the list.

  • Hover over a global variable to display its description in a tooltip.

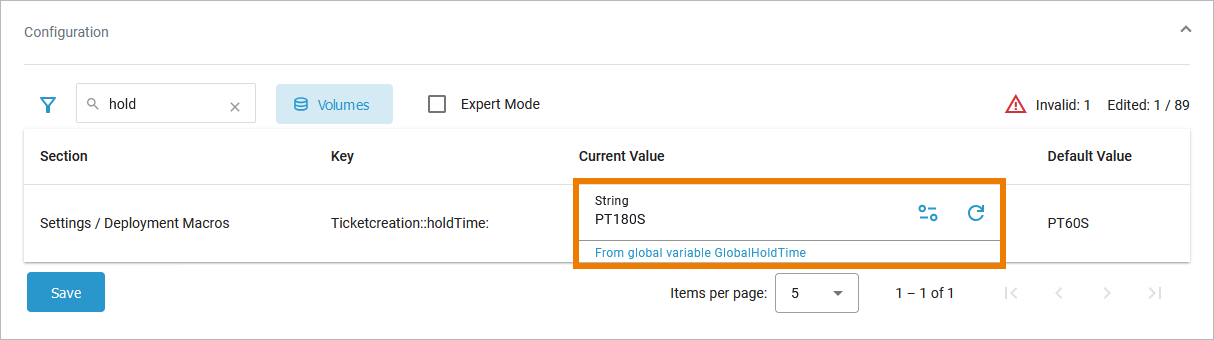

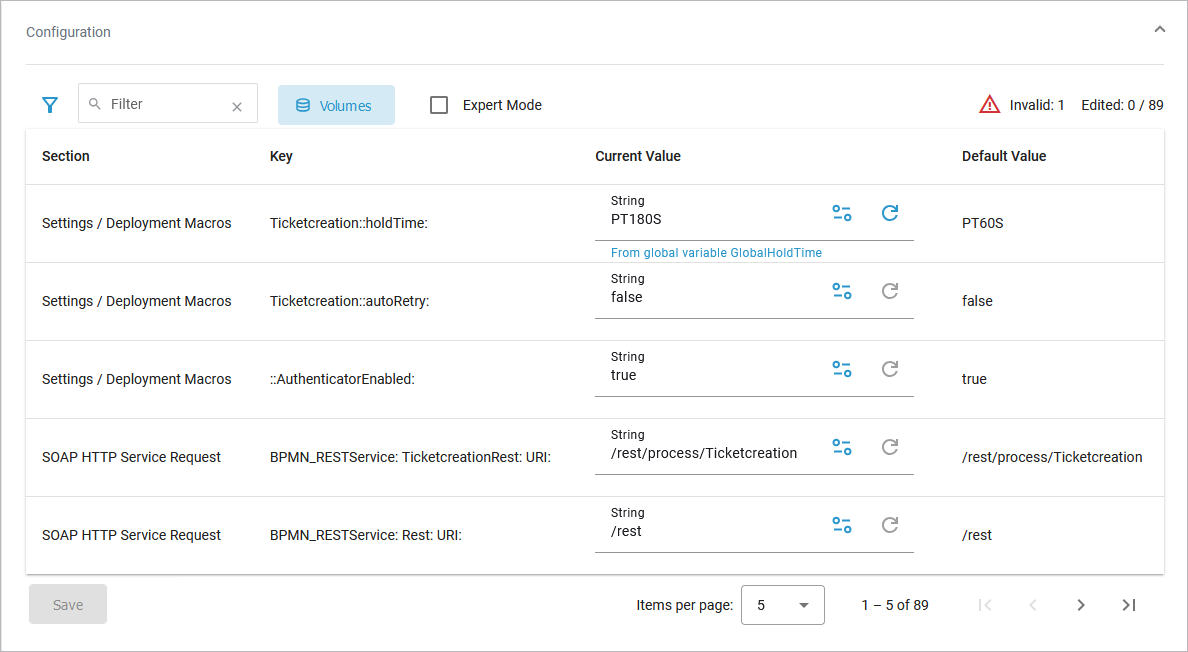

Click a global variable in the list to apply its value to the Current Value field. To emphasize that a global variable is used, a corresponding note is displayed:


Please note:

  • Save is only enabled when changes have been made.

  • Clicking Save triggers a restart, changes in the Configuration section are directly applied to the service.

Filtering the Settings' List

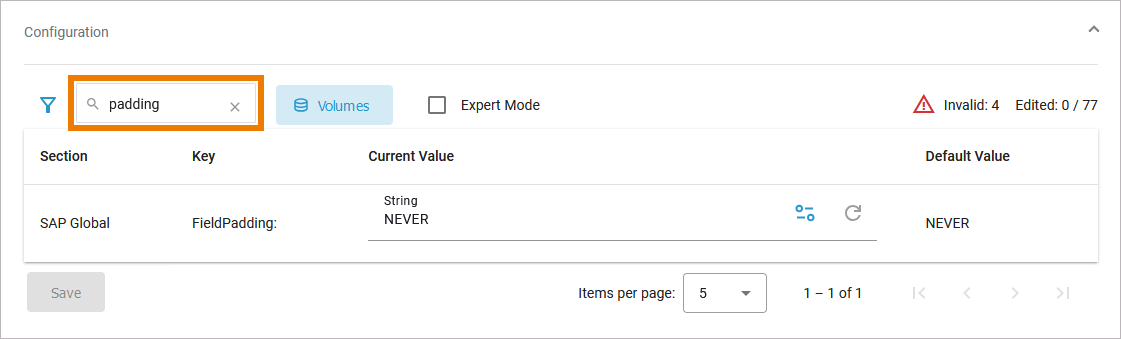

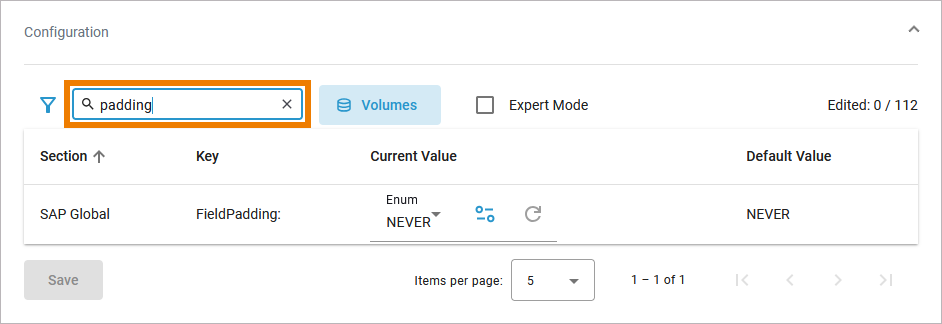

As there are many available settings, use the filter field to search for the setting you want to modify. The content of the filter field is applied to the columns Section and Key:

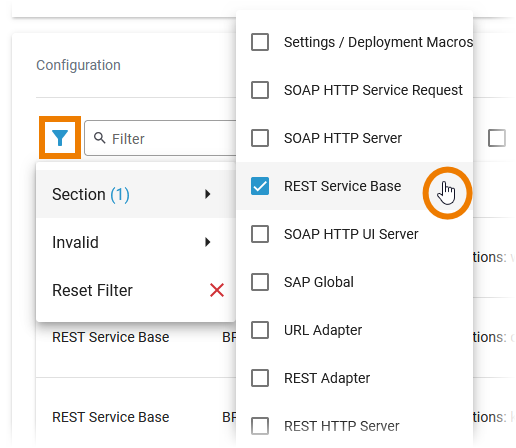

Click Extended Filter to display the extended filter options:

  • Section

  • Reset Filter

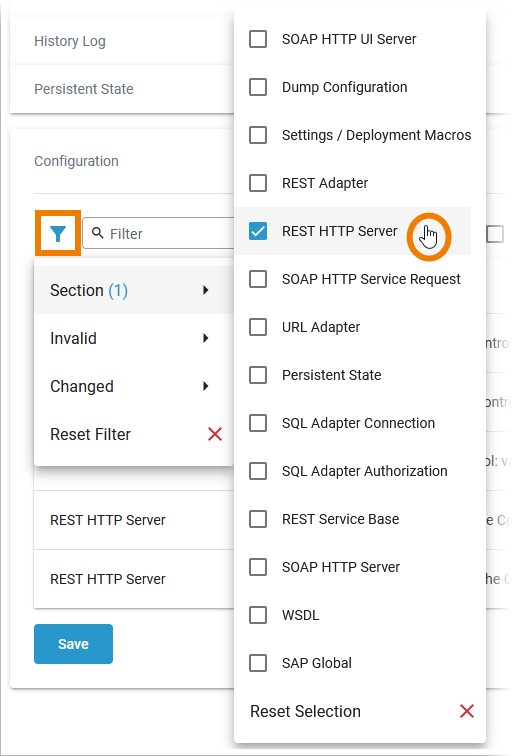

If a filter is applied, the extended filter image changes:

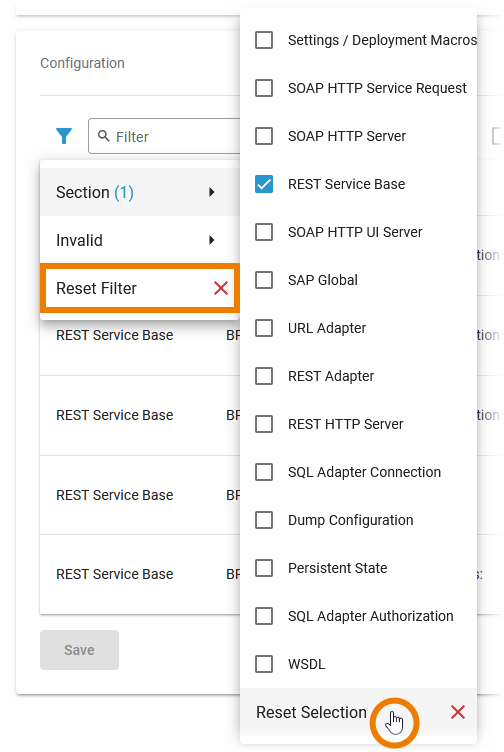

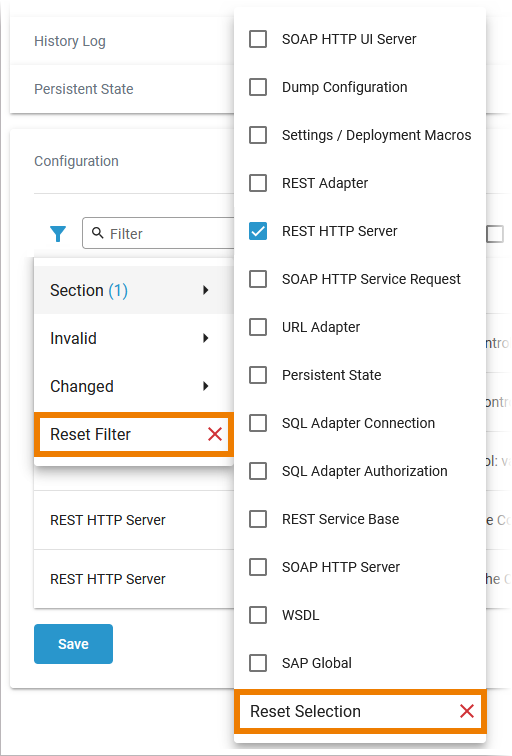

Use option Reset Filter in the main filter window to reset all selected filters. In the filter option window, you can also reset the selection:


xUML Service Settings

You can modify settings of a service no matter if the service is running or if it has been stopped. Saving the changes triggers a re-create and restart of the container. Changing the settings on a stopped service will start the service. Settings will be stored, so if you stop the service and restart it, the settings are restored.

If you delete a service, all settings are lost and cannot be recovered.

Global Settings

Settings Group

Setting

Description

Allowed Values

Settings / Deployment Macros

Service Composite

getCompositeCategory

Value returned by Action Language macro getCompositeCategory(). Initial value of this setting is the category specified in the service details (see Managing the Service Details).
You can change this value here.

any string

getCompositeName

Value returned by Action Language macro getCompositeName(). Initial value of this setting is the service name.
You can change this value here.

any string

getCompositeVersion

Value returned by Action Language macro getCompositeVersion(). Initial value of this setting is the service version in the service details (see Managing the Service Details).
You can change this value here.

a version string

PAS Platform

KeycloakInstance::clientId

Specify the clientId to use when authenticating the service. Default is keycloak-clientId.

The clientId is defined in Keycloak, it should be changed in production to define specific authorization for this service.

any string

KeycloakInstance::clientSecret

Specify the clientSecret associated to the clientId. Default is keycloak-clientSecret.

The clientSecret is defined in Keycloak, it should be changed in production to define specific authorization for this service.

any string

KeycloakAlias:Location:host

Specify the hostname (domain) of the Keycloak SSO system. Default is keycloak-host.

any string

KeycloakAlias:Location:basePath

Specify the subpath of the Keycloak system. Default is keycloak-basePath.

any string

KeycloakAlias:Location:port

Specify the port of the Keycloak system. Default cannot be changed.

8080

KeycloakAlias:Location:protocol

Specify the protocol of the Keycloak system. Default cannot be changed.

http

Service

<service settings>

In your Designer service, you can define name-value pairs using the setting macro in an implementation. These values can be modified here.


Adapter Settings

Each xUML service adapter has its own settings that are initialized in the xUML model and can be changed in the configuration.

If you are running an xUML service that is connecting to a database backend, you can modify the tagged values of the database interface respectively dependency. Before starting a deployed xUML service that connects to a database backend, you may want to redefine required database parameters.

Generally, most of the add-on settings that are related to an xUML Service Adapter have a corresponding tagged value in the component diagram. Refer to the Designer Guide for these settings.

Other

Find below a list of other add-on settings and their description. For the sake of completeness, we also mentioned settings coming from the model for some setting groups (see column Specified in Model on).

Settings Group

Setting

Specified in Model on

Description

Allowed Values

Dump Configuration

Caught Error Code

Only dump errors with the specified code.Specify a Bridge user defined error code.

This setting takes no effect if Dump not Caught Errors/Dump Context on Error is disabled.

a string

Caught Error Domain

Only dump errors of the specified error domain. Specify a Bridge user defined error domain.

This setting takes no effect if Dump not Caught Errors/Dump Context on Error is disabled.

a string

Dump Caught Errors: enabled

Enable/Disable writing an error dump file for errors that have been caught in the xUML service model.

This setting takes no effect if Dump not Caught Errors/Dump Context on Error is disabled.

true

Create a service dump for caught errors.

false

Disable service dump for caught errors (default).

Dump not Caught Errors: enabled

Enable/Disable writing an error dump file at all. This setting corresponds to the xUML service preference Dump Context on Error (refer to Preferences of an xUML Service in the Integration User's Guide).

true

Create a service dump for not caught errors (default).

false

Disable service dump for not caught errors. This disables error dump at all.

Persistent State

Owner

Change the name of the persistent state object owner here. Each persistent state object is owned by a persistent state engine. If you change the owner setting, all subsequently created persistent state objects will belong to the new owner.

All existing persistent state objects of the old owner will not been processed anymore by this service as they belong to a different owner now.

Worker Limit

Composite

Specify the worker limit.

Workers  defines the maximum number of parallel threads used to process pending events. The default setting is 5, which is used if none or 0 workers are configured. The implications of more or less workers are discussed on Performance Considerations of Persistent State in the xUML Service Reference Guide.

REST Service HTTP Server

Descriptor: Cache Control: value

Specify the Browser caching options for the YAML file by setting a value for HTTP header Cache-Control.
For more information on this header, refer to Cache-Control on the Mozilla pages.

Test Tool: Cache Control: value

Specify the Browser caching options for the Swagger UI by setting a value for HTTP header Cache-Control.
For more information on this header, refer to Cache-Control on the Mozilla pages.

REST Service Base

<your service name>: enabled

Switch the service port on / off. When the service port is deactivated, it will not accept any request anymore.

true

Service port is active (default).

false

Service port is deactivated.

<your service name>:JSONComposerOptions: compact

REST Service

Specify the JSON compose option for the REST request/response.

When  jsonCompact  is true, the JSON composer will generate compact JSON, otherwise it will generate pretty JSON.  jsonCompact  defaults to true - also on re-compile of an older model with Builder as of 7.0.0-beta3.

true

Generate compact JSON (default).

false

Generate pretty JSON.

<your service name>: JSONComposerOptions: keepNulls

REST Service

Specify the JSON compose option for the REST request/response.

When jsonKeepNulls is true, attributes of the REST response object having NULL values will be rendered to the REST response, otherwise they will be left out completely (refer to Null Values).

true

Render attributes with NULL values to the REST call.

false

Leave out attributes with NULL values in the REST call (default).

<your service name>: MaximumConnections:

Change the maximum number of parallel requests to the service port.

<your service name>: Port

Change the port the xUML service listens to. The original value comes from the SOAP service component.

a valid port number

<your service name>: ResolveHostnames

Define whether the host name is logged to the service logs instead of the IP address.

true

Resolve the IP address to the hostname in the service logs (default).

false

Write the IP address to the service logs.

SOAP HTTP Server

Allow Tracing

Switching tracing on / off.
All xUML services are compiled with tracing enabled. This option allows you to turn off the tracing, so that no trace information is returned by the Bridge when a service is called.

true

The Runtime returns tracing information on request (default).

false

The Runtime does not return tracing information.

Maximum Connections

Change the maximum number of parallel requests to the service port.

ResolveHostnames

Define whether the host name is logged to the service logs instead of the IP address.

true

Resolve the IP address to the hostname in the service logs (default).

false

Write the IP address to the service logs.

<your service name>Port

Change the port the xUML service listens to. The original value comes from the SOAP service component.

a valid port number

SOAP HTTP Server Request

<your service name>: <your port type>: enabled

Switch the service port on / off. When the service port is deactivated, it will not accept any request anymore.

true

Service port is active (default).

false

Service port is deactivated.

<your service name>: <your port type>: URI

Component diagram

Change the service URI. The default value comes from the component diagram of the xUML service.

SOAP HTTP UI Server

Library Cache Control: value

Specify the Browser caching options for the UI files (HTML, CSS, ...) by setting a value for HTTP header Cache-Control.
For more information on this header, refer to Cache-Control on the Mozilla pages.

WSDL: <your service name>

WSDL: <your service name> host

Specify the host name of the server for the xUML service WSDL.

${server_hostname}

Name of the Bridge node instance the service is deployed to.

a fully qualified system name

Expert Mode

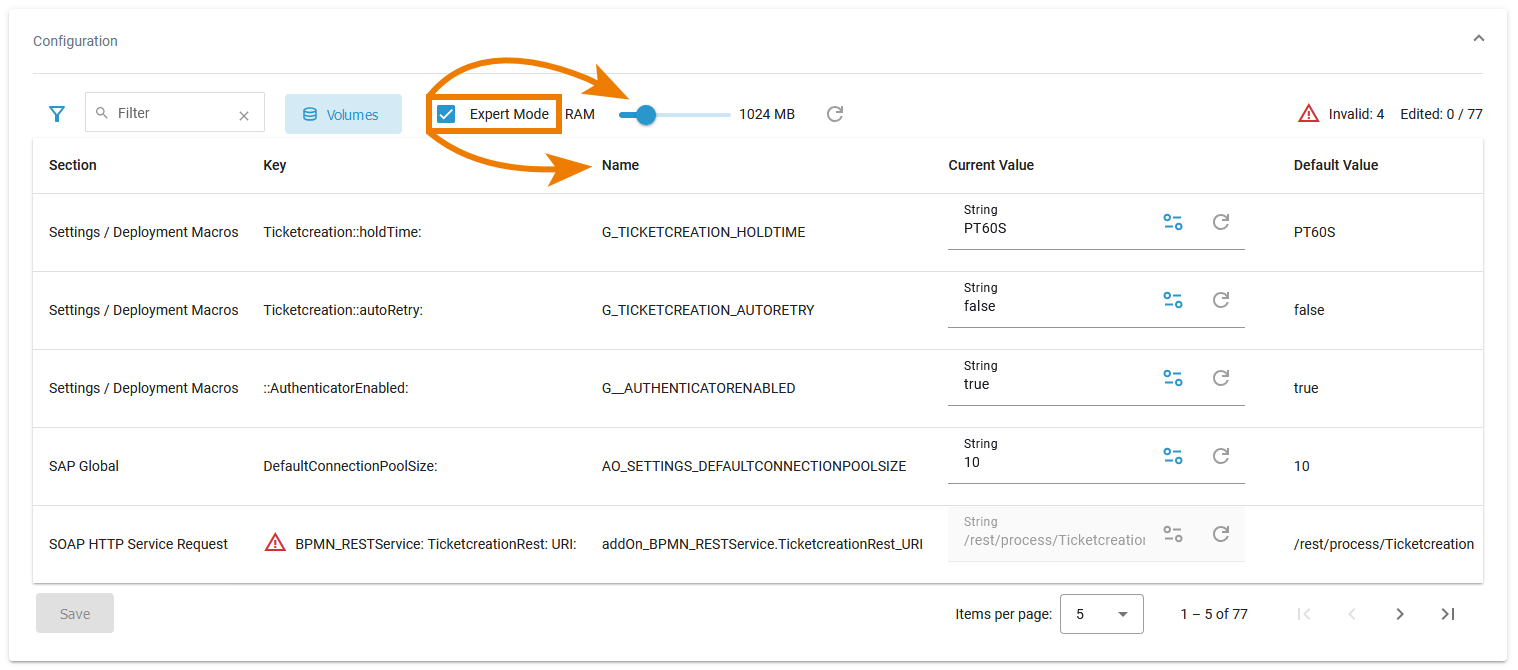

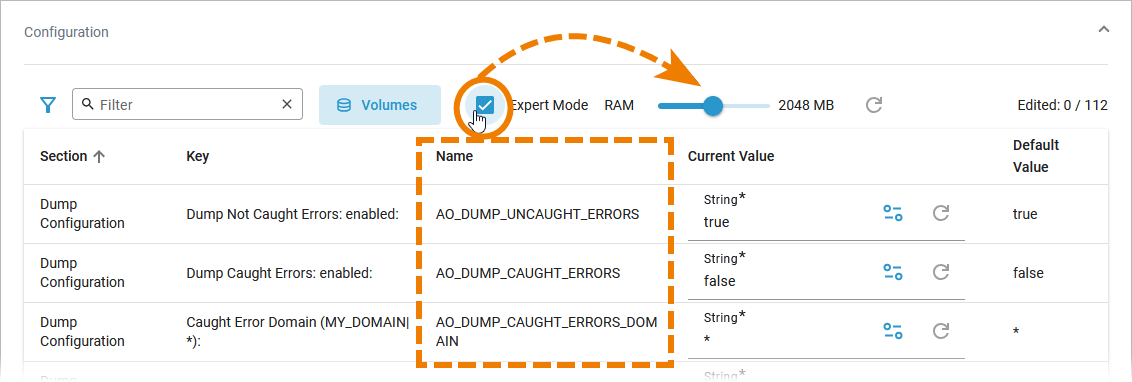

Use the checkbox Expert Mode to display further options:


Option

Description

RAM

Use the slider to increase or decrease the RAM of a service. This option allows you to avoid that one service can comsume all resources. Default is 256 MB, the RAM maximum is 4 GB. You can change the RAM in steps of 64 MB.

Name

If you want to set xUML service settings for containerized services from the outside using the xuml-tool, you will need the Name (= friendly Id) as the environment variable. Refer to xUML Runtime Tool in the Integration Platform User's Guide details.
