BPMN Default Error Handling

The generated model contains prepared procedures for

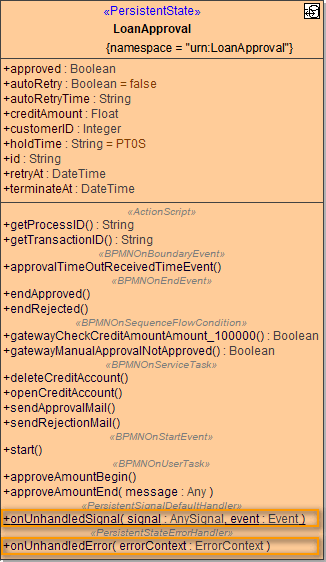

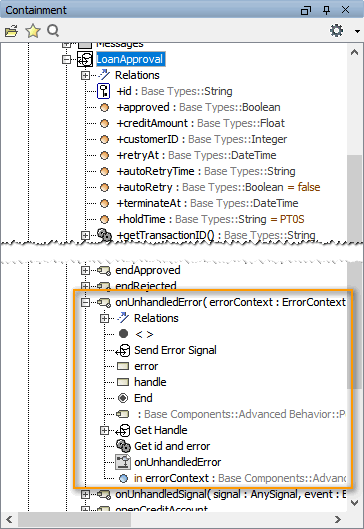

The service interface part (e.g. BPMNLoanApprovalServices) contains a persistent state class that is derived from the abstract definition generated from the BPMN. This class contains overridable operations that are called by the xUML Runtime on unhandled signals and errors.

You can amend these operations as needed.

Signal Errors

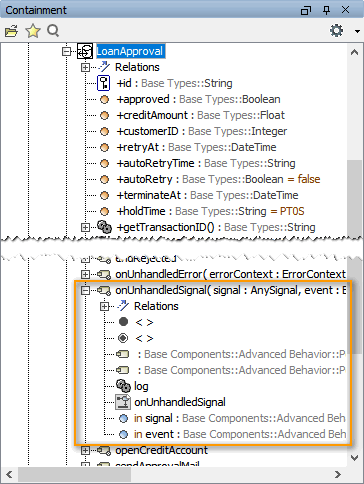

Unhandled signals are caught by the xUML Runtime and the overridable operation onUnhandledSignal is called. This operation is defined in the derived persistent state class (see figure above).

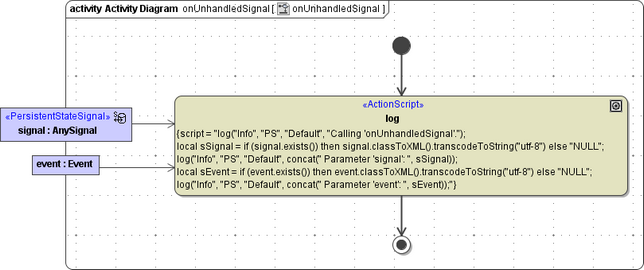

By default, unhandled signals are logged to the bridgeserver log .

You can adapt this activity diagram as needed (e.g. return of an error code to the caller).
Except for the behavior described above, unhandled signals are ignored by the Runtime.

Unhandled Errors

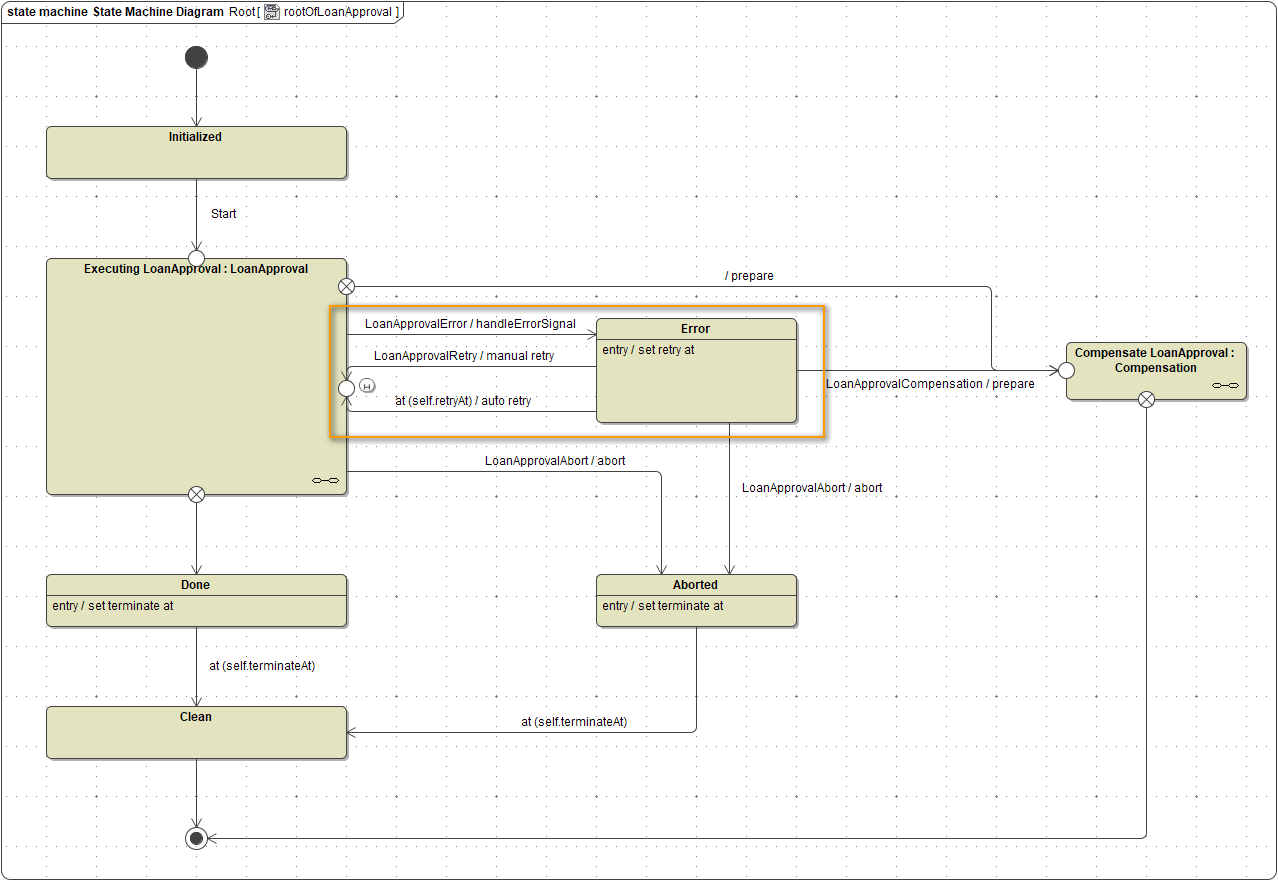

The generated model contains a root state machine that invokes the process state machine. This root state machine contains a default error state that manages all unhandled errors. It is designed to handle technical errors during the course of the process.
After the error having been caught and rectified, the process can be continued by sending a retry signal.

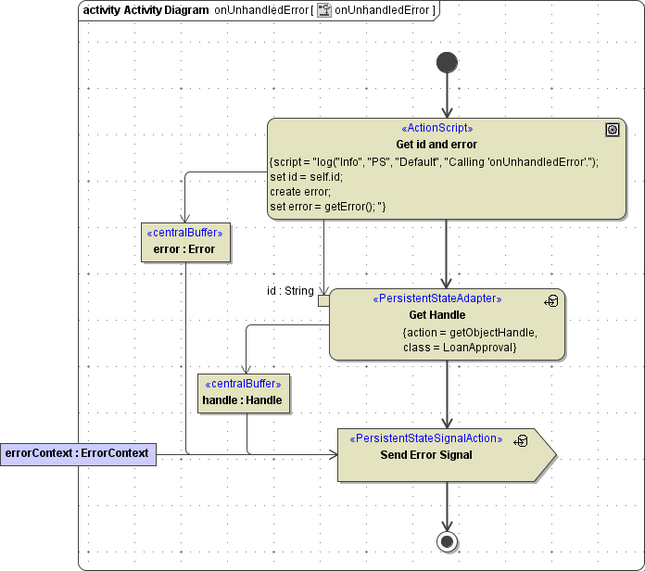

When an error occurs during process execution, the overridable operation onUnhandledError defined in the derived persistent state class (see figure above) gets executed.

Unhandled errors are caught by the xUML Runtime, no exception is thrown. This results in database transactions not being rolled back or committed. You need to do this manually in the related error handler if needed (see below).

On unhandled errors, the error signal is send to the persistent state object.

You can adapt this error procedure as needed.

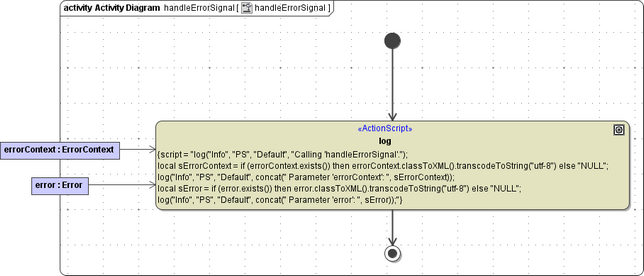

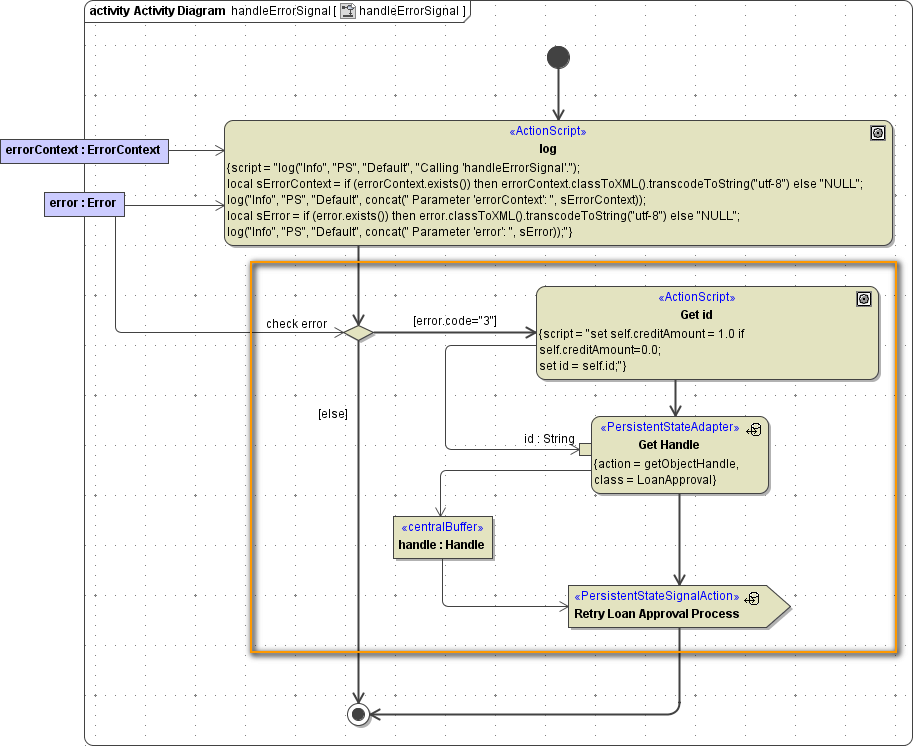

On receiving the error signal, activity handleErrorSignal is executed and, by default, logs the error to the bridgeserver log.

You can adapt this activity diagram as well, e.g. to implement retry logic.

Retrying Process Execution

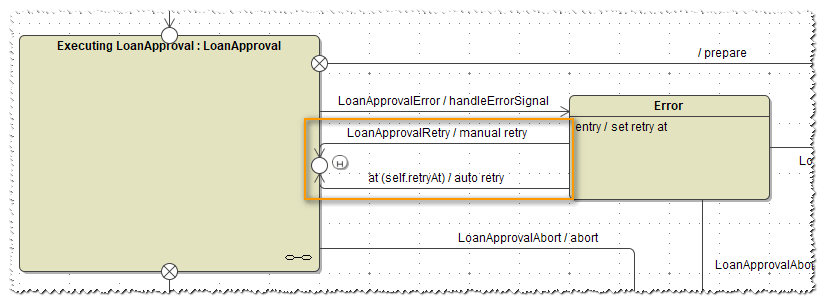

The generated root state machine features automatic and manual retry of process execution.

Manual Retry

If the process is stalled in an error state, you can manually send a retry signal to the process. This can be done in two ways:

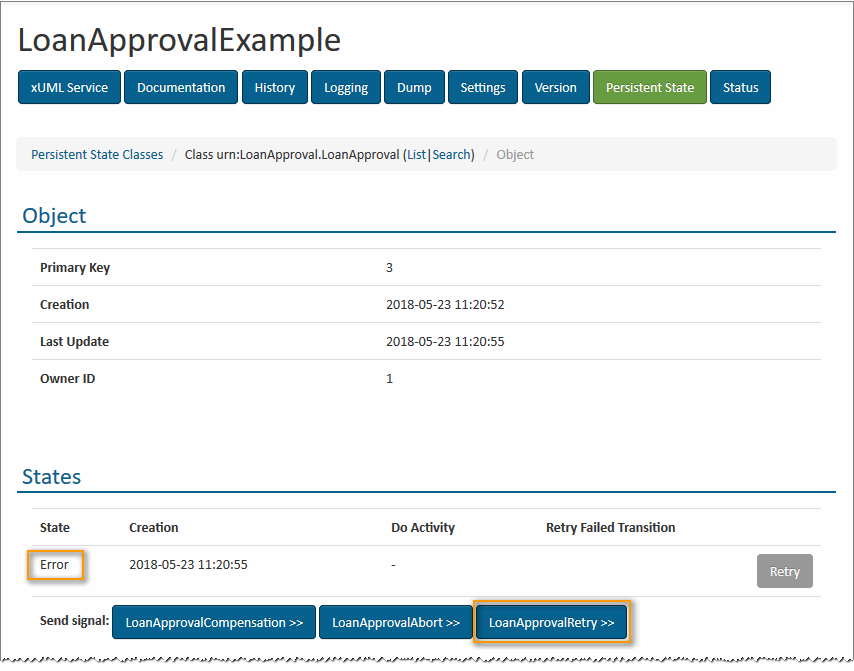

  • You can trigger a retry signal via the administration UI of the E2E Bridge.

    To do this, the retry signal must not have any parameters (as is in the default implementation).
  • You can implement a service operation that triggers the retry and call this operation e.g. via the E2E Analyzer. In this case, you may add parameters to the retry signal, e.g. to rectify erroneous data.

    Keep in mind, that you will not be able to send such a retry signal with parameters via the  administration UI of the E2E Bridge anymore.

It may be that you need to resolve the root cause of the error first before retrying the process, though.

Automatic Retry

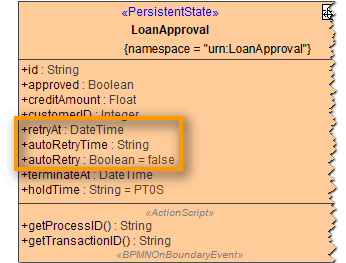

You can configure the root state machine to perform automatic retries after a specified period of time. This configuration can be done on properties of the persistent state class.

PropertyTypeDescriptionValues
autoRetryBooleanSpecify whether automatic retry is activated or not.trueAutomatic retry is activated.
falseAutomatic retry is disabled (default).
autoRetryTimeStringSpecify a duration pattern that defines the interval in which an automatic retry should be performed.A valid duration pattern, like described on Time Durations, e.g. PT1H.
retryAtDateTimeThis field cannot be set by the modeler but is calculated in case of retry using autoRetryTime. It indicates the point in time when the next retry will be performed.A date/time.

If a process is in error state and the point in time indicated by retryAt has been reached, the retry will be triggered by the root state machine (see at(self.retryAt)/auto retry in the root state machine).

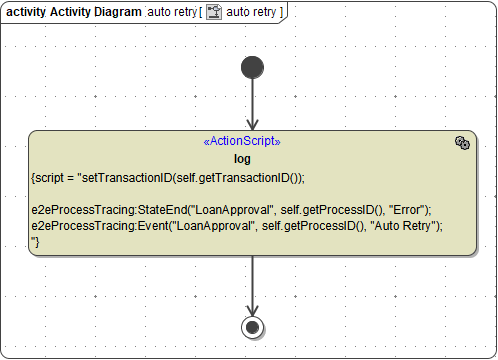

As per default, the activity diagram performing the retry contains a logging action for the E2E Process Dashboard. You can add additional code if necessary.
