Mobile App - Create

Element

Function

The element Mobile App - Create is used to configure the mobile start link for an app. This element can be edited via the Edit Sidebar. If executed on a mobile device, new instances can be created.

Mobile elements can only be executed in the Scheer PAS Mobile App.

Connection

Elements, that are saved to the work area of the Project Editor cannot be linked via connections.

Beispiel

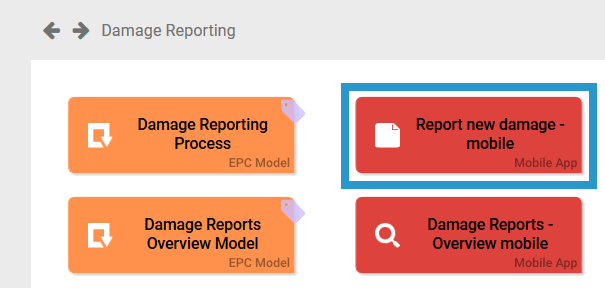

In the app project Damage Reporting two mobile start links were created: Report new damage - mobile to create a new damage report and Damage Reports - Overview mobile, which displays stored reports.

Name

Name of the element within modeling.

ID

The read-only field contains the model ID of the element. Designers can use the ID for example in the search to link the element in other models.

Description

A commentary field for the modeler. Its content is invisible to users and its sole purpose is internal documentation.

Hashtags

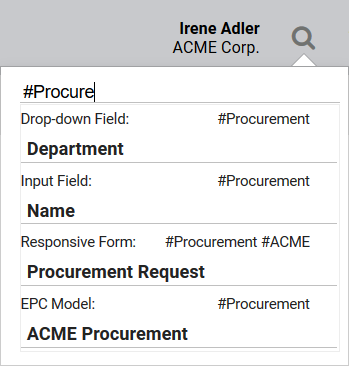

Possibility to insert your own key terms . The leading hashtag sign # (hash) will be inserted automatically. Use the spacebar to insert multiple hashtags:

One hashtag may be issued for multiple elements:

Show as Favorite

Activate this checkbox to show this element as favorite in the Scheer PAS Mobile App.

Activate Role Check

You need to activate this option to verify during app execution if the user was assigned the necessary roles.

For further information visit page Role-based Authorization Concept.

Role for Link

Insert the name of the role to receive app authorization here. The field Role for Link is supported by auto-complete and will list matching suggestions.

Keep in mind to always issue two roles! Each role must be assigned to a Create and an Overview element.

Execution Model

The Execution Model is defined globally in the App Project element. If you configurated an EPC Model, that shall be used with only this precise start link, please save its name here.

This field uses auto-complete. Use the eye icon to open the underlying EPC.

If you define a model directly in the Process App element, then the model assigned to the App Project will be ignored.

Administration Model

The Administration Model verifies that all users were assigned the necessary roles. The Administration Model is defined globally in the App Project element. If you configured an Administration Model to be used with only this precise start link, please save its name here.

This field uses auto-complete. Use the eye icon to open the underlying EPC.

If you define a model directly in the Process App element, then the model assigned to the App Project will be ignored.

DEPRECATED with PAS 18.1

Deprecated with PAS 18.1 Do not use the Administration Model for role-based apps but manage roles centrally via Scheer PAS Administration. For further information visit Administrating BPaaS.

Collection Name

All app data is saved in its own namespace. In field Collection Name you can define sub-namespaces for the instances of this precise start link in the database.

As soon as a collection's name is saved for a start link, its instances will no longer be saved in the same place as the data of the remaining start links of the project. We highly recommend to use this option for trial only. Preferably define the name of the collection on the App Project.
