Testing Services

Testing of SOAP Services

SOAP Services can easily be tested via their SOAP interfaces.

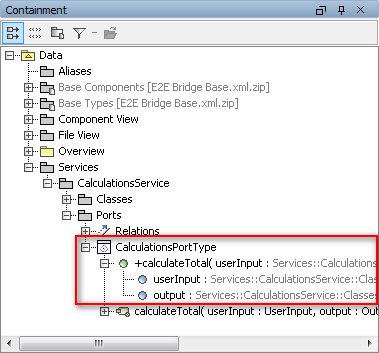

Figure: A SOAP Interface

The E2E SOAP Test Tool as part of the E2E Builder allows testing of SOAP services running on the E2E Embedded xUML Runtime at development time.

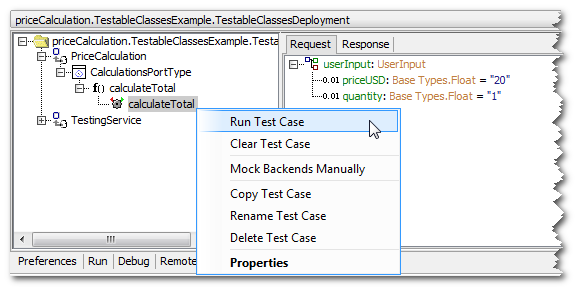

Figure: E2E SOAP Test Tool

In combination with the E2E Interactive Debugger all activities and action scripts of the service can be stepped through watching the parameters and variables.

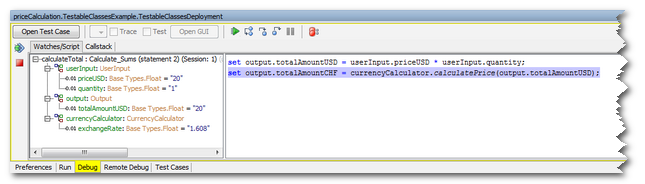

Figure E2E Interactive Debugger

Refer to the Builder User's guide for more information on the usage of the E2E SOAP Test Tool and the The Interactive Debugger.
Services having been deployed to an E2E Bridge can be inspected with the E2E Analyzer. After importing the WSDL of the affected service, the deployed service can be tested similar to testing with the SOAP Test Tool of the E2E Builder.

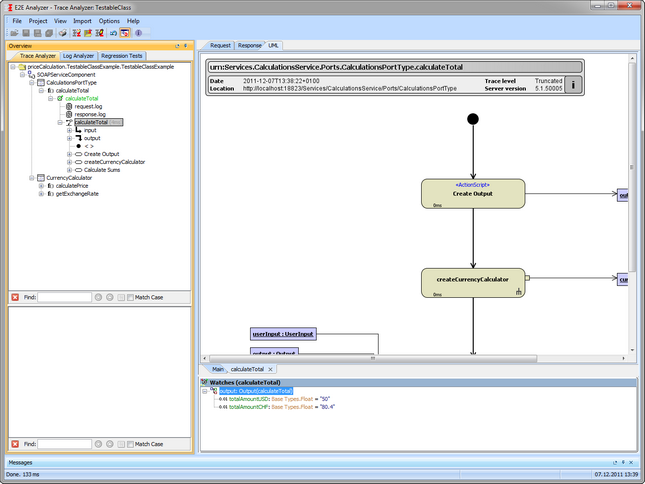

Figure: E2E Analyzer

Whole test scenarios (called test suites) can be built up with the E2E Regression Test Tool integrated into the Analyzer. This offers the possibility to automate tests and to create reproducible test results.

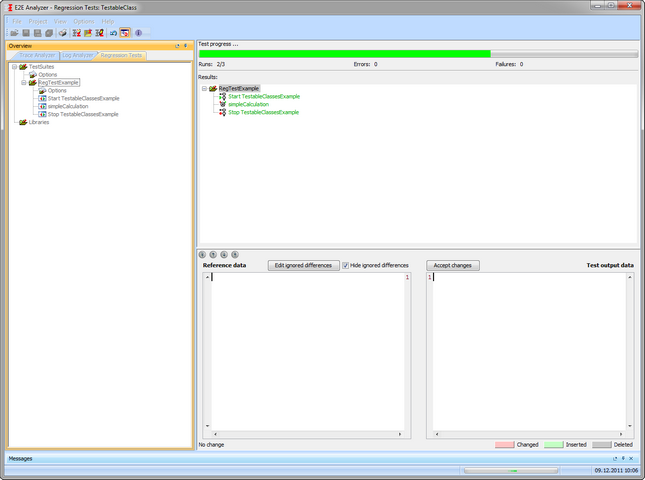

Figure: E2E Regression Test Tool

Testing of REST Services

You can test REST services by using the E2E SOAP Test Tool resp. the E2E Analyzer on the generated SOP interface, or by using the E2E REST Test Tool. Find a comprehensive description how to do that on Testing REST Services.

Testing of Other Services

Non-SOAP services, such as timer services, schedulers, HTTP services and others are supplied by a SOAP interface for testing purposes. This shadow   interface and the corresponding shadow service is generated automatically when compiling the service. That means, non-SOAP services can be tested the same way as described for SOAP services.

The generated shadow port will automatically get the same port number as the xUML service port but with a 5 as the first digit.

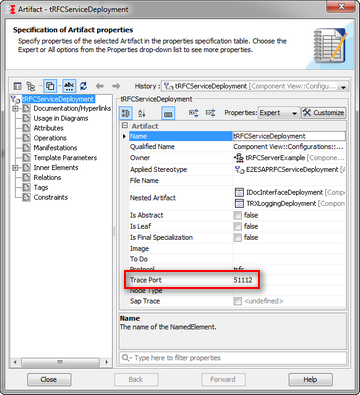

Alternatively, to avoid port conflicts, the trace port can be set via the specification of the service deployment:

Find below a list of all E2E Bridge service types with their corresponding generated SOAP operations.

Service TypeGenerated Operation
TimerEXECUTE_TIMER_DIAGRAM
SchedulerEXECUTE_SCHEDULER_DIAGRAM
Event Observer<name of the Event Observer operation>,
<event name>
HTTP<name of the HTTP operation>
SAP RFC<name of the SAP function>
Java<name of the Java callback operation>
JMS Listener<name of the JMS listener operation>
Startup / ShutdownEXECUTE_STARTUP_ACTIVITY

EXECUTE_SHUTDOWN_ACTIVITY

The Startup/Shutdown service gets the name

StartupShutdownService4<name of the composite>
 All classes can be made testable (see also Testable Classes) and subsequently be tested independently from the main service.
