Monitoring an Integration Service

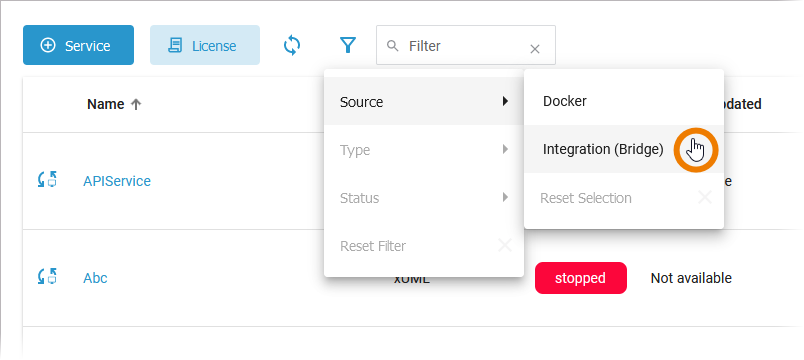

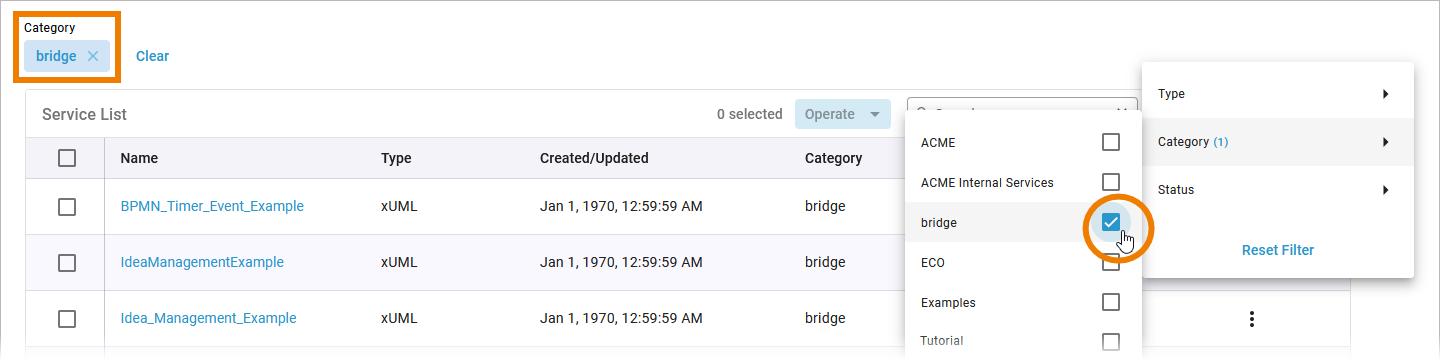

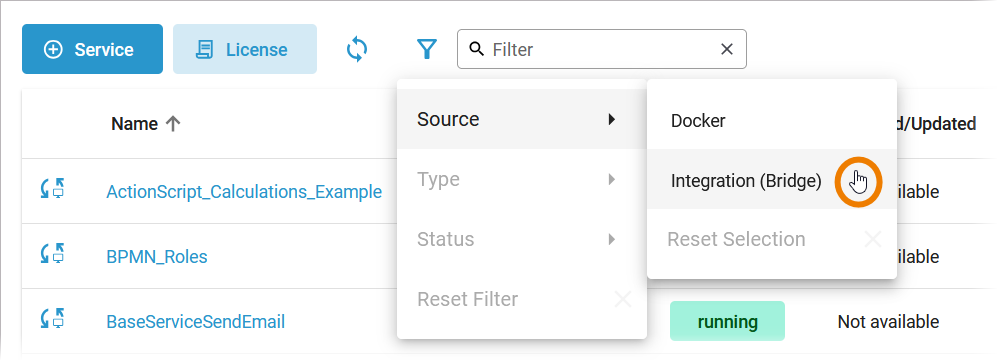

All available services are displayed in the list on the administration start page. If you want to monitor Integration services only, filter for Category bridge:

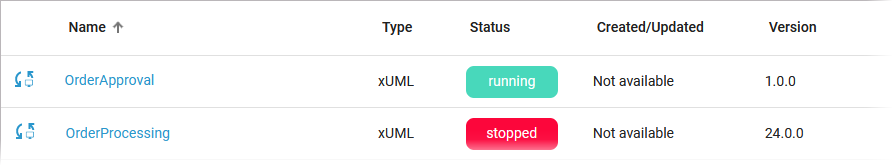

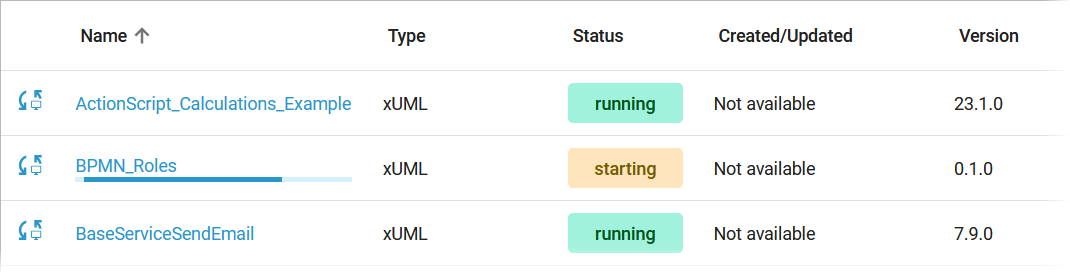

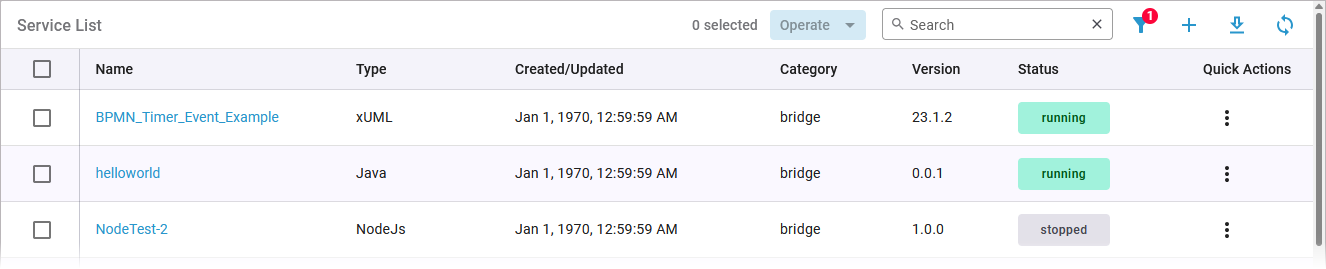

The list of services will help you to check the details for a service at first sight:
For each service, the list shows the following information:
|
Column Name |
Description |
Possible Values |
|---|---|---|
|
Name |
Name of the service. Click on the name to access the service details page. |
any string |
|
Type |
Indicates the type of the service. |
|
|
Created/Updated |
Shows the date and time of the last update of the service. If the service has not been updated yet, its creation date is displayed. |
Datetime in format dd.mm.yyyy, hh:mm:ss |
|
Category |
For services running in the integration component, the displayed category is always bridge. |
bridge |
|
Version |
Version number of the service as specified by its creator. |
any string |
|
Status |
Indicates the status of the service. |
|
|
Quick Actions |
||
Starting and Stopping an Integration Service

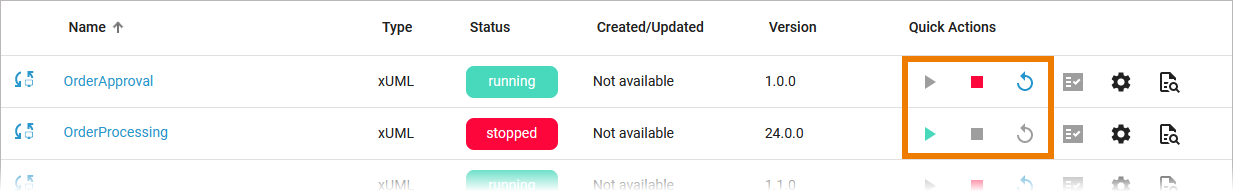

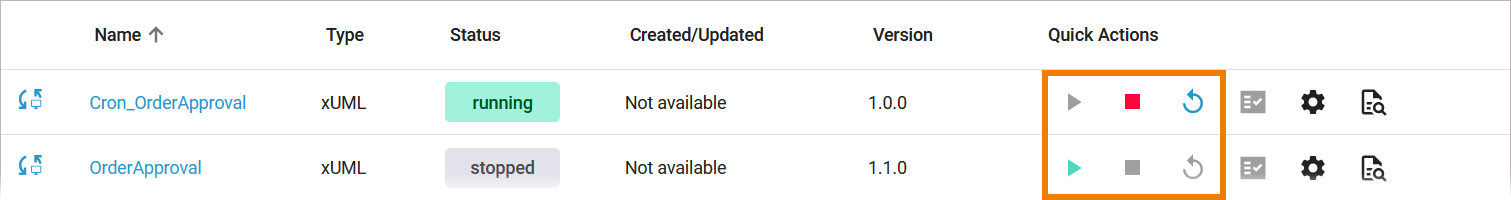

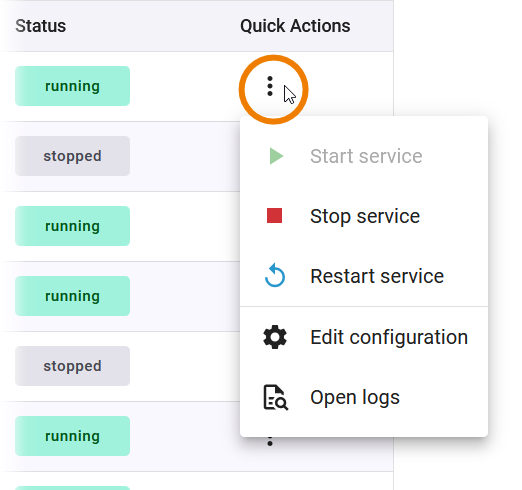

In the last column of the service list, you will find quick actions for each service. They grant direct access to the applicable actions for this service:

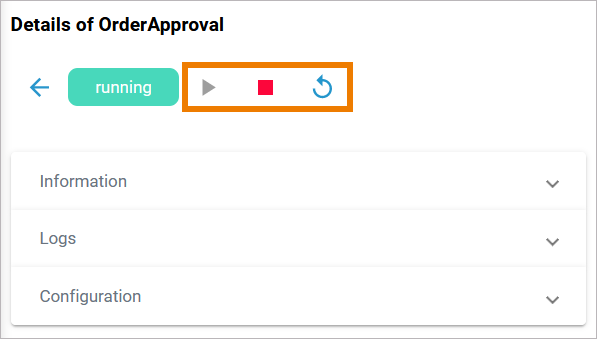

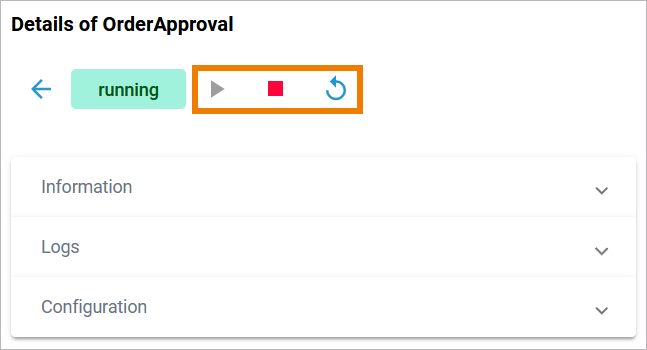

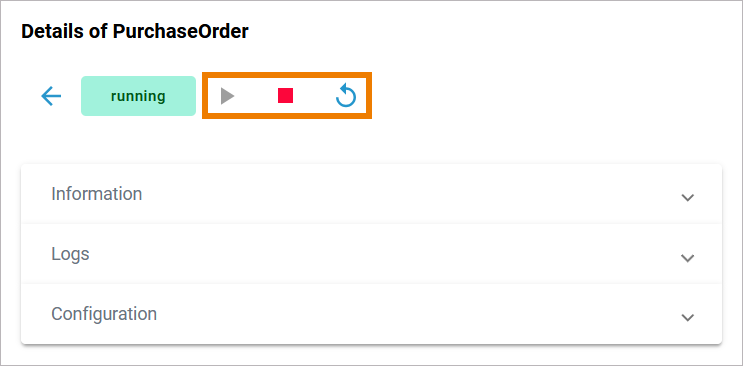

The quick actions for starting, stopping, and restarting a service are also displayed in the header of each details page:
|
Icon |
Description |
|---|---|
|
Start a service, that is currently stopped. |
|
Stop a running service. |
|
Stop a running service and restart it. |
Only applicable actions are enabled.
Using the Service Details

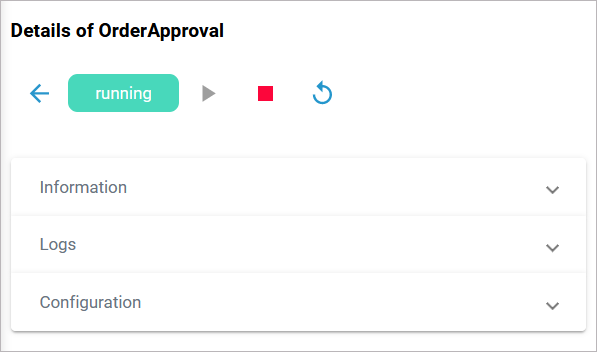

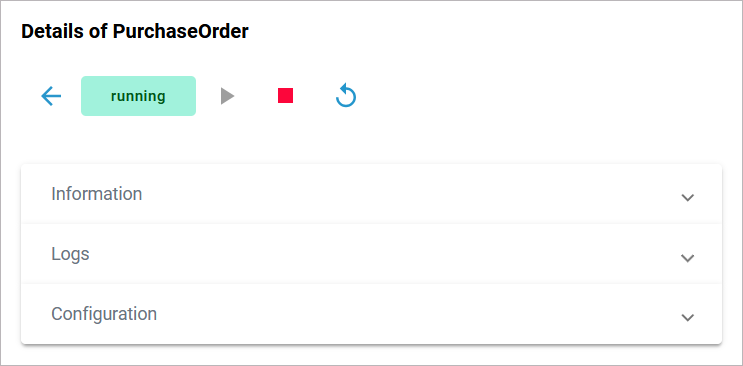

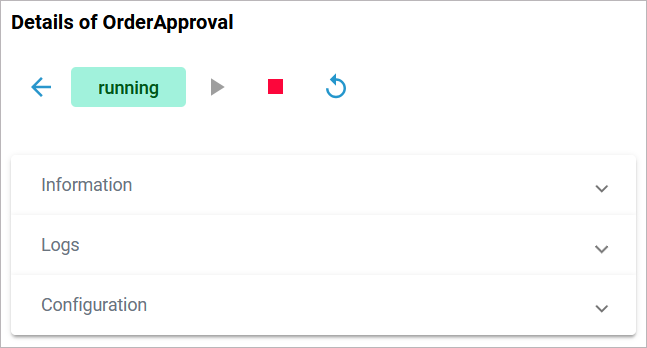

The details page of a service shows you the title of the service and some quick actions:
|
Icon |
Description |
|---|---|
|
Indicates the current state of the service. |
|
Indicates whether tracing is enabled for a service in the Analyzer. |
|
Starts the service. |
|
Stops the service. |
|
Restarts the service. |
It also contains multiple collapsable sections:
Information

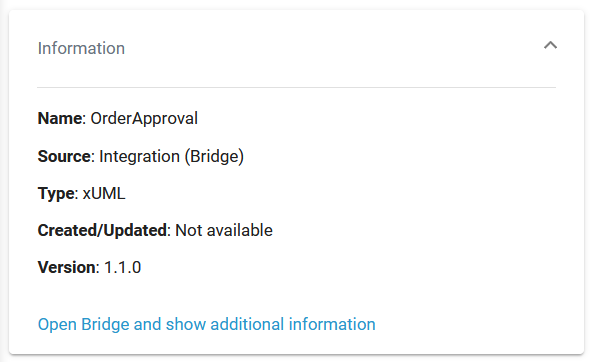

The Information section contains the main information about the service:
-
Name
-
Source is Integration (Bridge) for integration services
-
Type
-
Created/Updated
-
Version

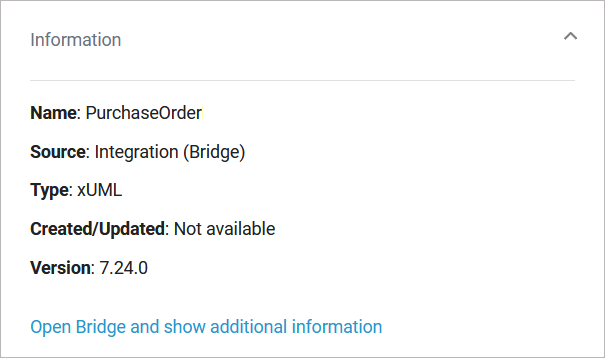

The link in section Information gives you direct access to the service in the integration component:

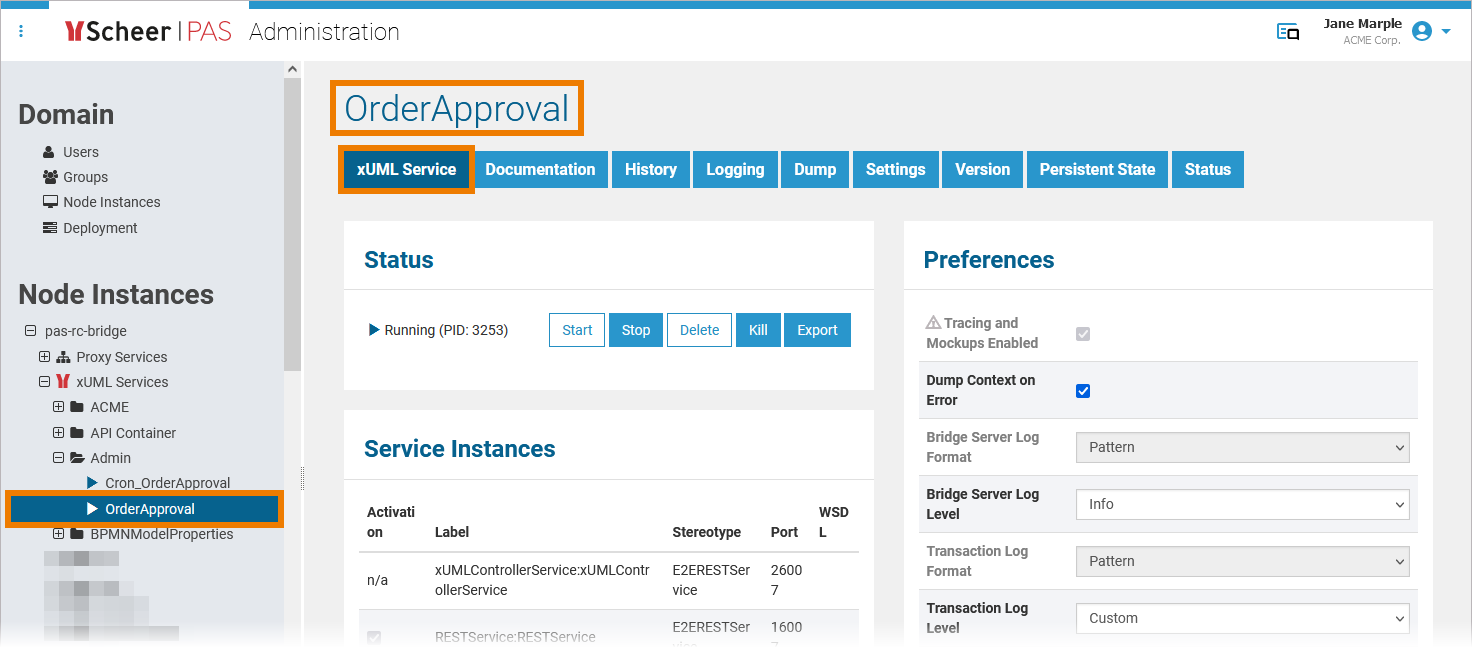

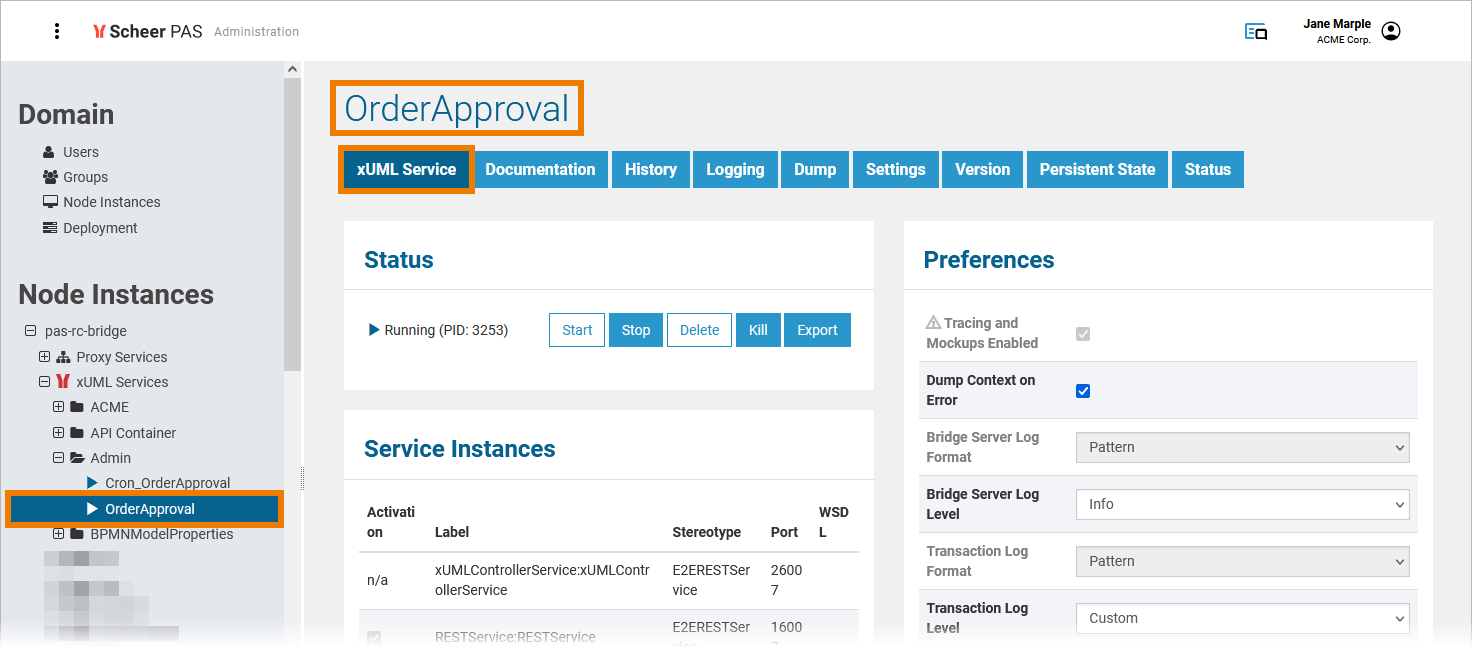

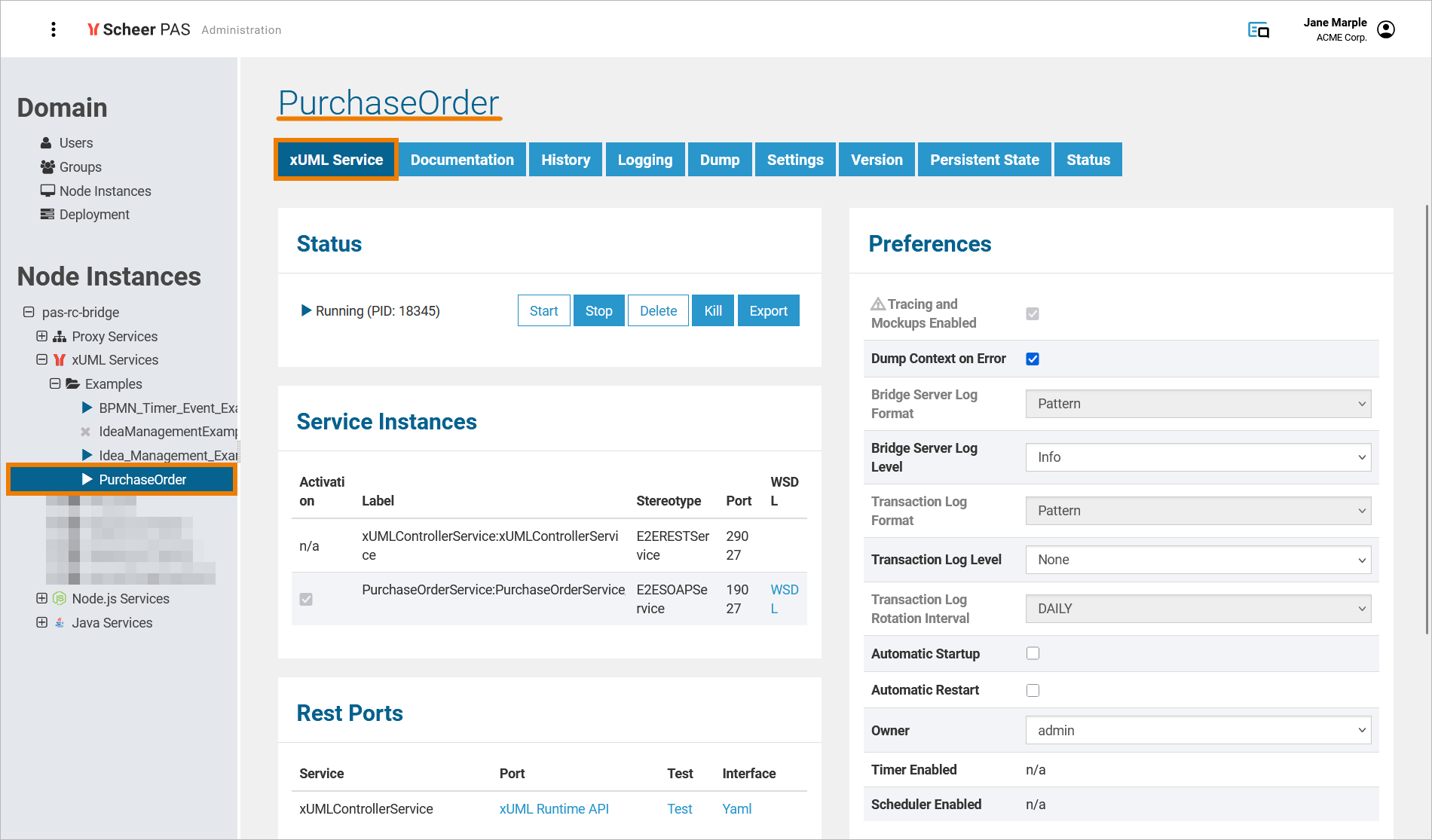

If you click the link, the service opens directly in the Integration (Bridge) and the main tab of the service displayed. The service in our example is an xUML service, so the open tab is XUML Service:
Refer to the Integration User's Guide for detailed information about the functionalities of the integration component.
Logs

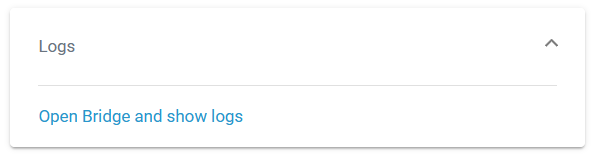

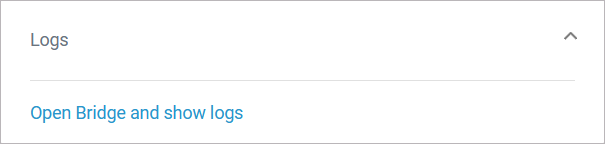

The link in section Logs gives you direct access to the service in the integration component:

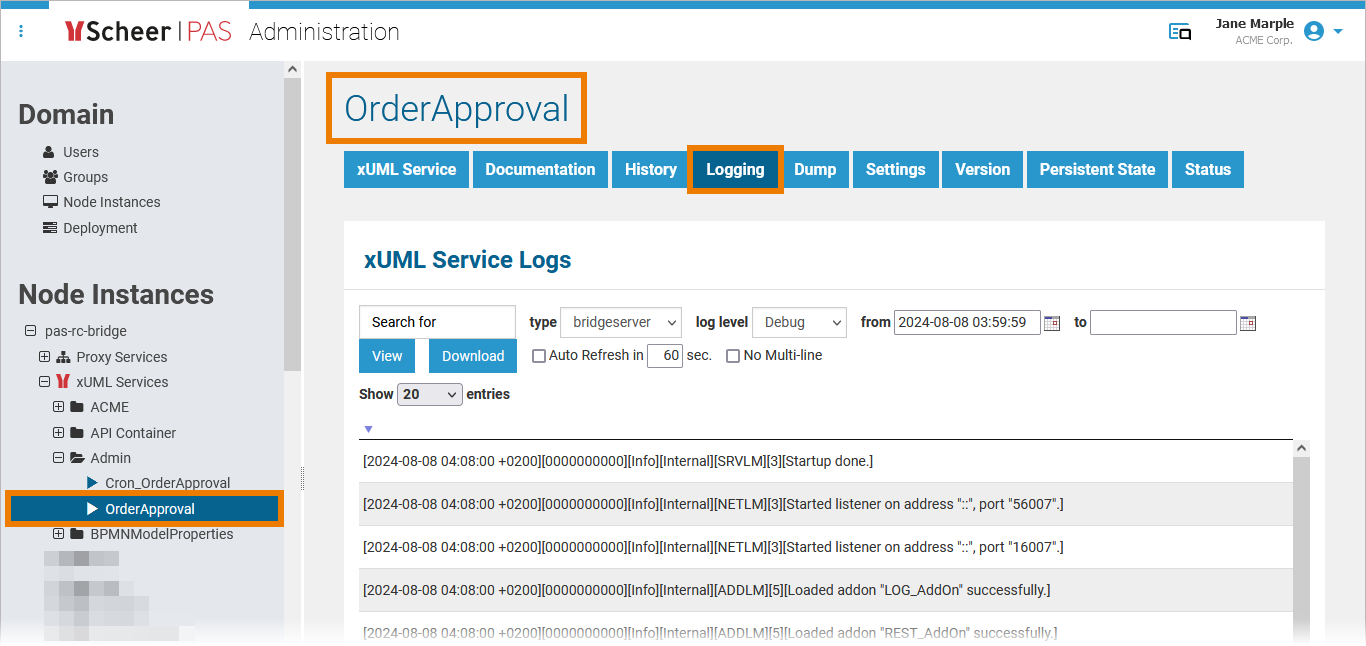

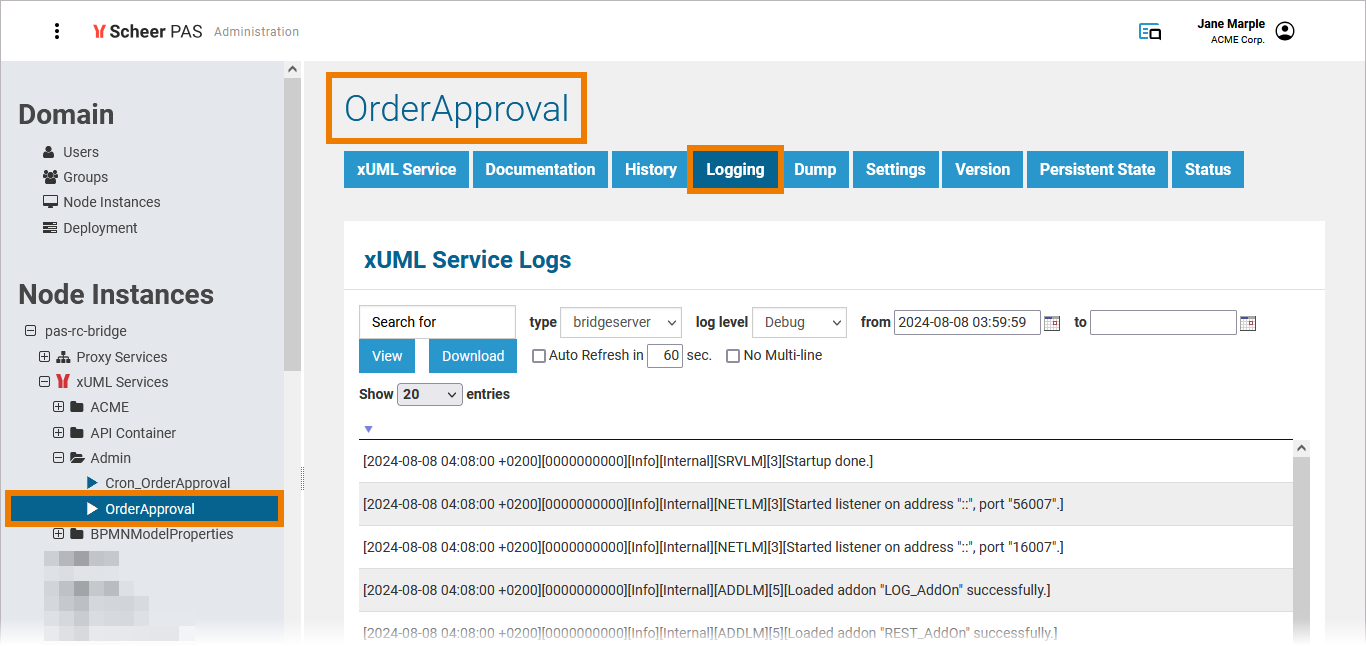

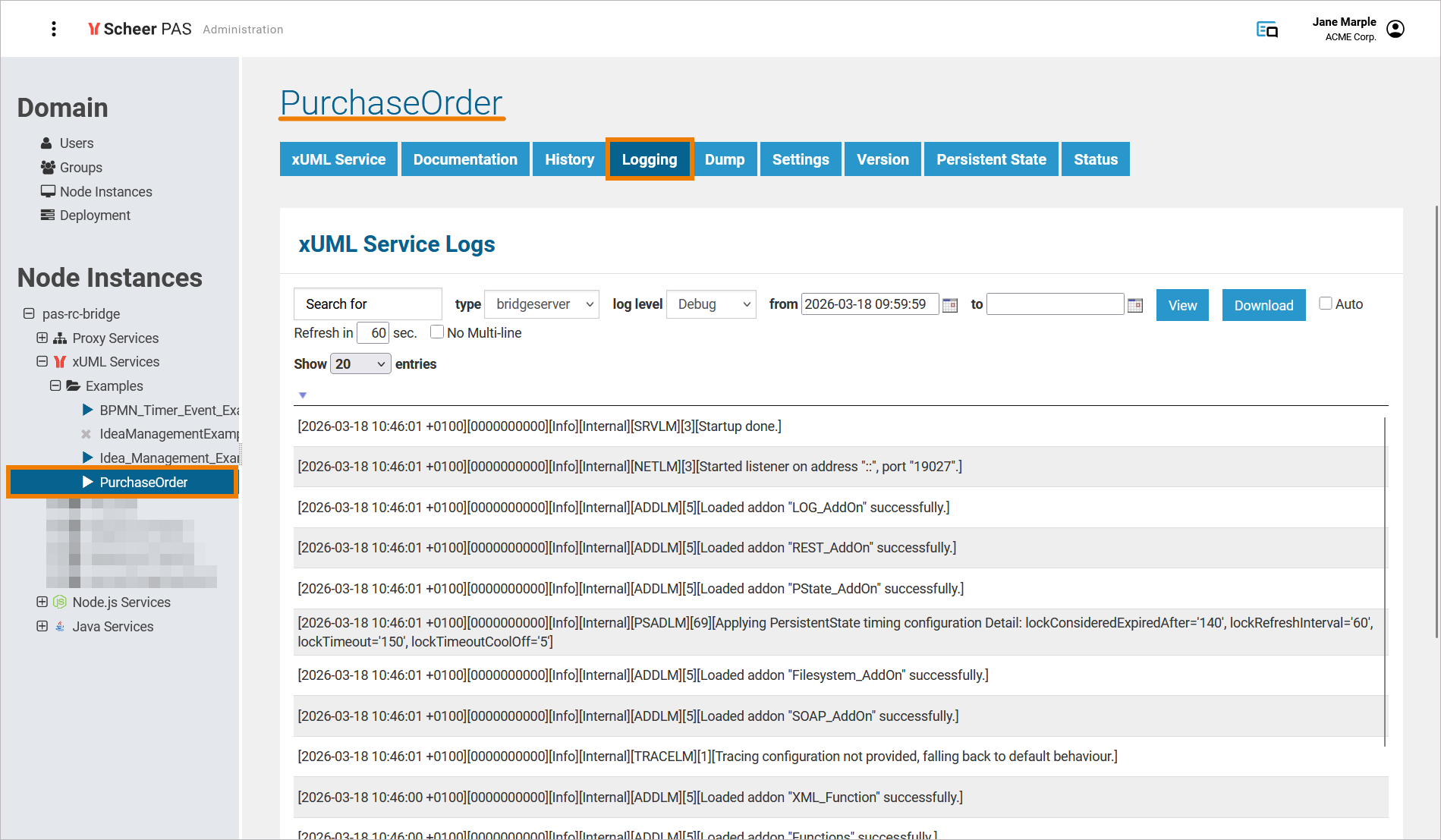

If you click the link, the service opens directly in the integration component (Bridge) of the platform and tab Logging is displayed:
Refer to the Integration User's Guide for detailed information about the functionalities of the integration component.
Configuration

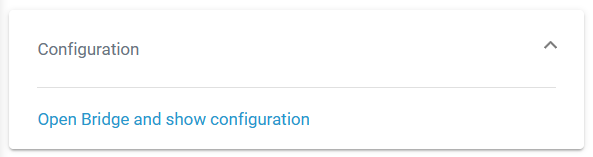

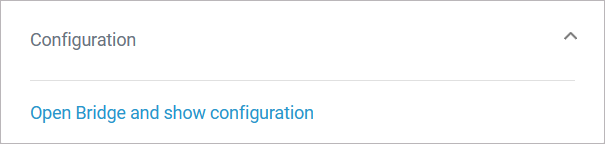

The link in section Configuration gives you direct access to the service in the integration component:

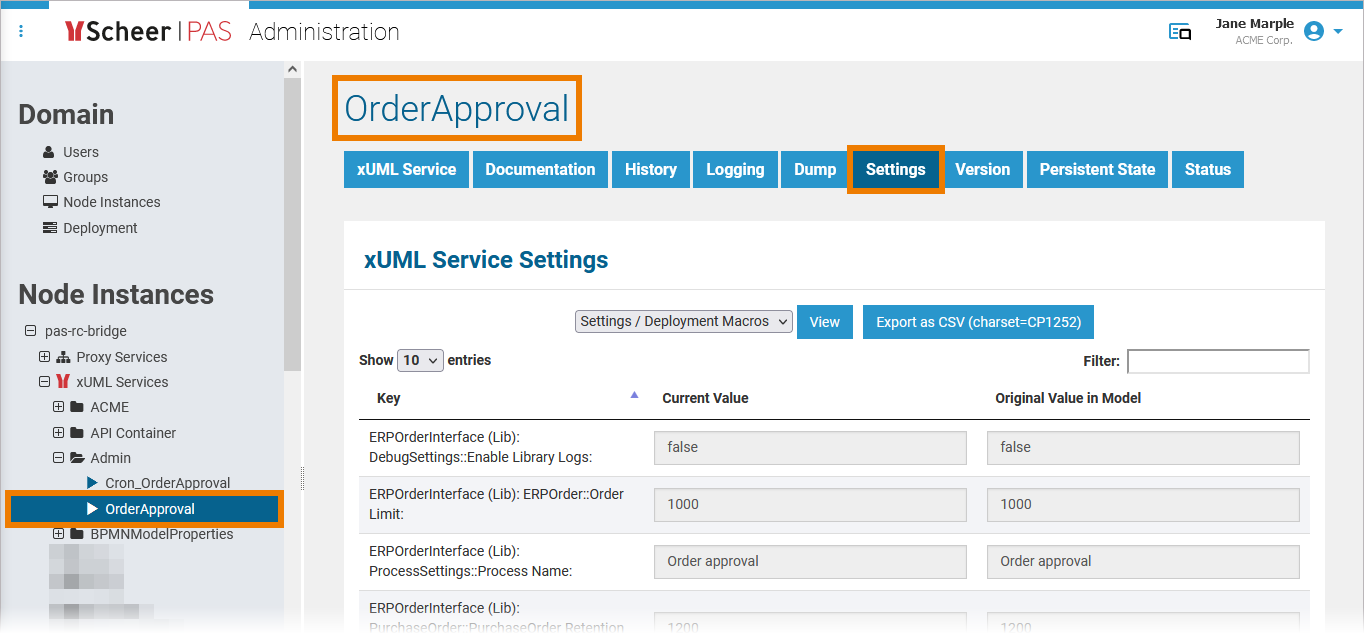

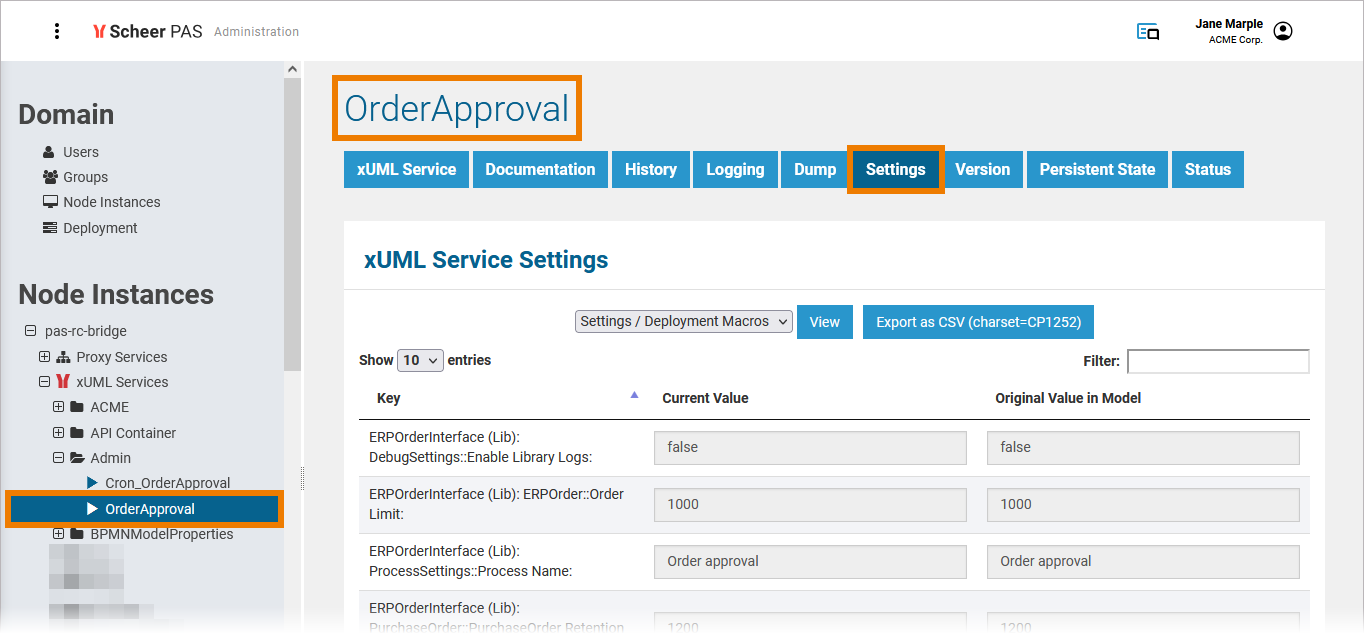

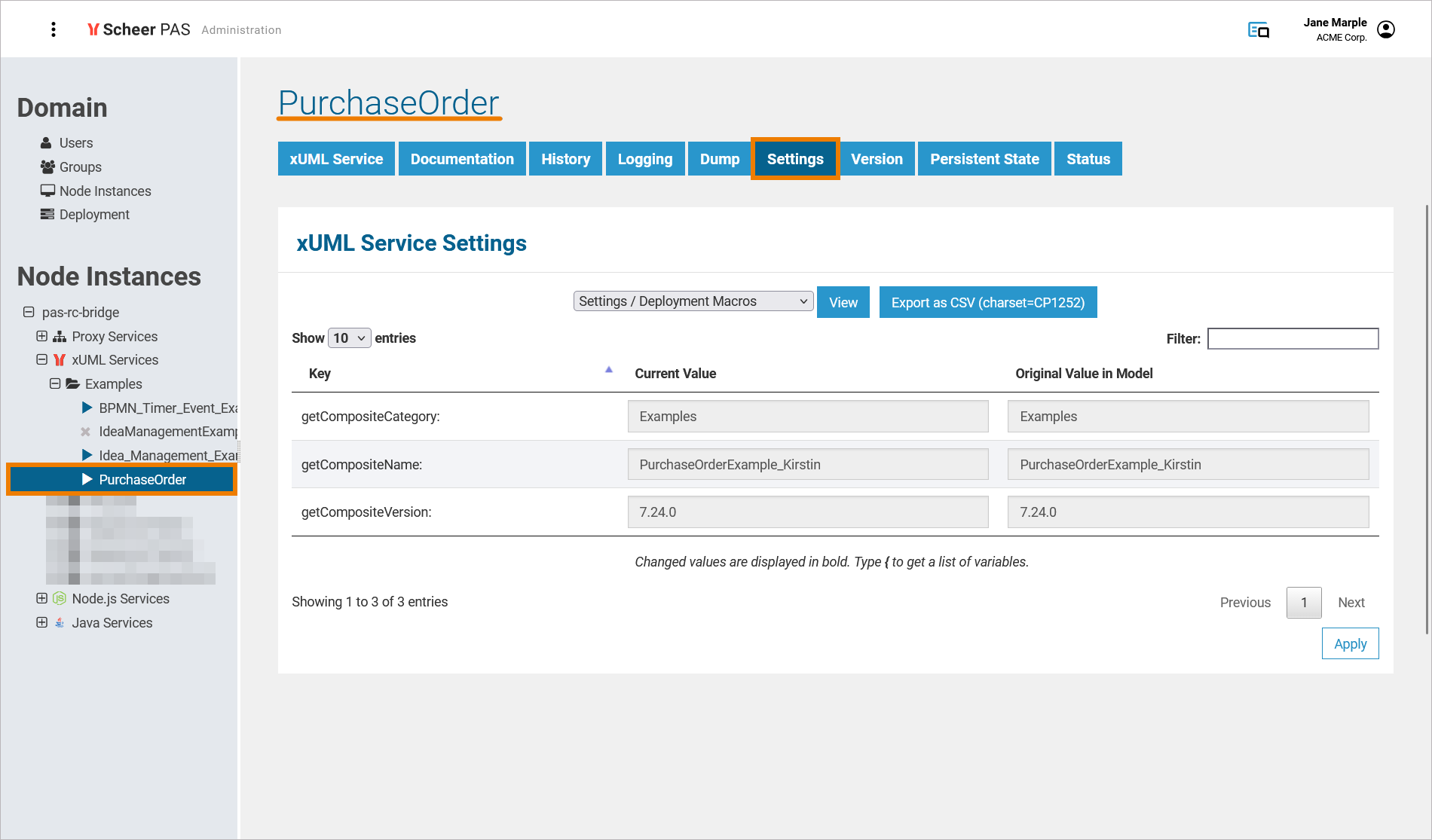

If you click the link, the service opens directly in the integration component (Bridge) of the platform and tab Settings is displayed:
Refer to the Integration User's Guide for detailed information about the functionalities of the integration component.
