Changing the Log Level of a Containerized xUML Service
This option is only available for type xuml-service (= containerized xUML services).
In the administration application you have the possibility to change the log level for a containerized xUML service.
You have two options to open the input form where you can change the log level:
Use action Change log level from the quick actions bar in the services' list. This will open a pop-up window.

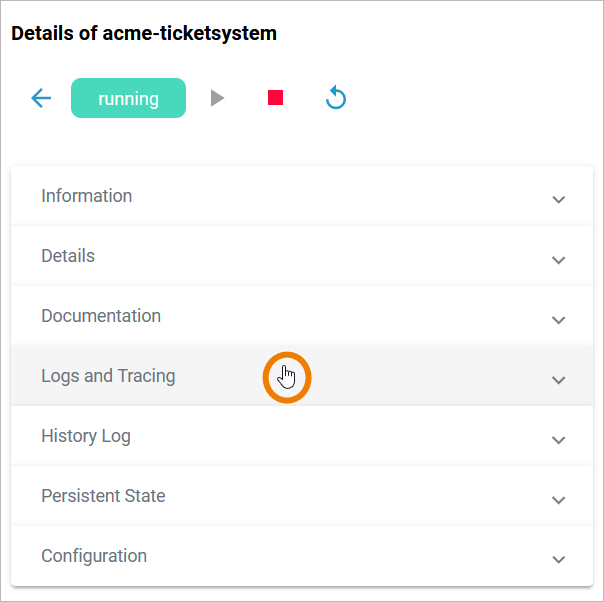

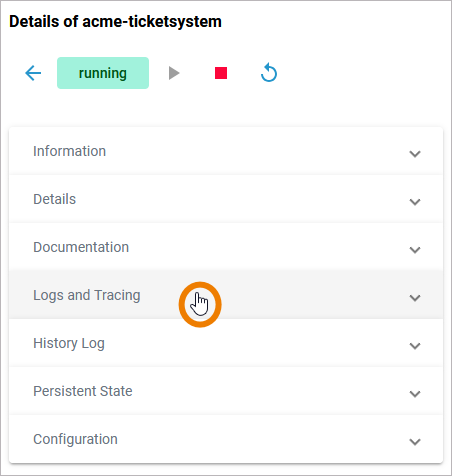

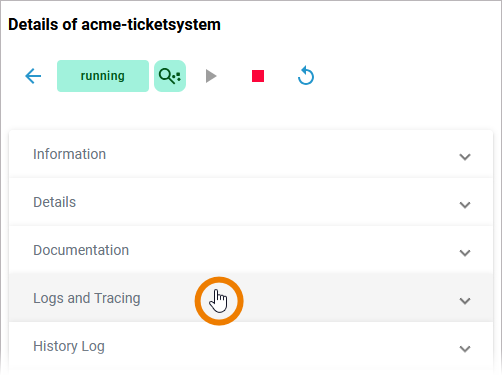

Open the details page of the service and scroll down to section Logs:
The logging concept of the xUML Runtime is build around the concepts of channels and sinks. Refer to xUML Runtime Logger Configuration for detailed information.

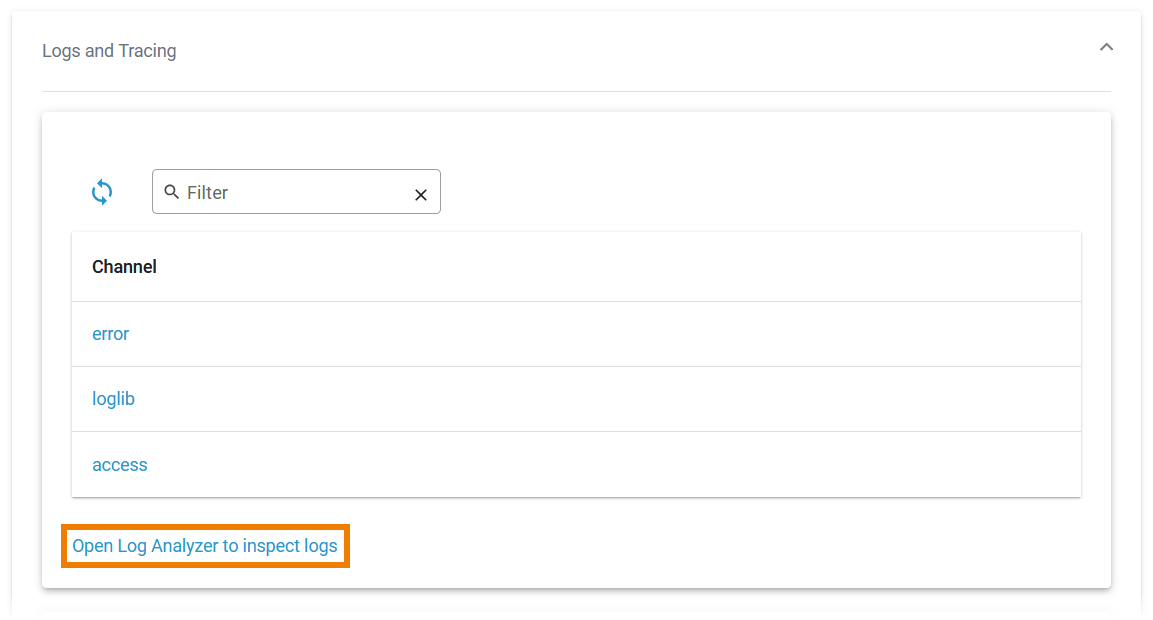

In section Logs, you can choose between two channels:
error to write service logging data.
access to write transaction logging data.
The link below gives you direct access to the Log Analyzer, refer to Showing Logs of a Containerized xUML Service (Docker) for further information.
For more information about the Log Analyzer, refer to Analyzing Platform Logs.
Select a channel to open the related channel sinks. Sinks define the logging output and how it is written. Refer to xUML Runtime Logger Configuration for detailed information.
Channel | Available Sinks | Description |
|---|---|---|
error | fluent | Select sink fluent to change the log level for error logs from xUML services sent to Log Analyzer (OpenSearch). |
monitoring | Select sink monitoring to change the log level for error logs from xUML services sent to the monitoring service. | |
default | Output only visible for technical users. | |
loglib | fluent | Select sink fluent to change the log level for custom logs from xUML services sent to Log Analyzer (OpenSearch). |
access | analytics | For future versions, currently not in use. |
fluent | Select sink fluent for the log information sent to Log Analyzer (OpenSearch). | |
default | Output only visible for technical users. |

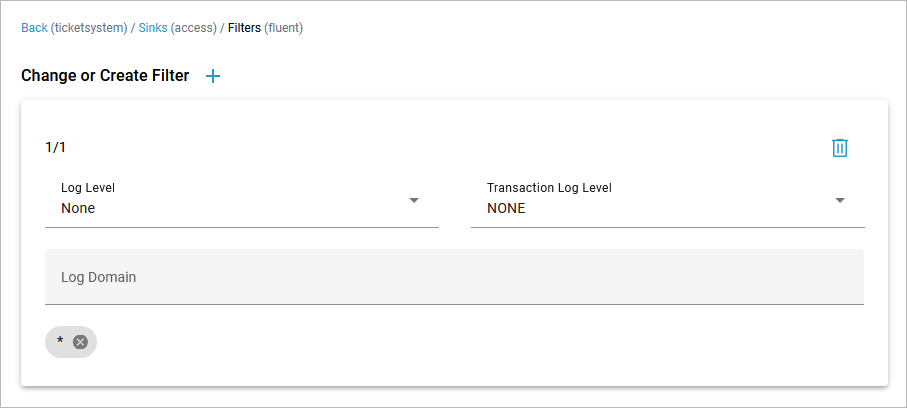

On the sink level, you can now adapt:
If you have selected log level Debug, a lot of information is logged. It can then be helpful to exclude certain log domains in order to narrow down the number of logs. Refer to Log Errors in the Designer Guide for an overview on all error domains and their error codes.

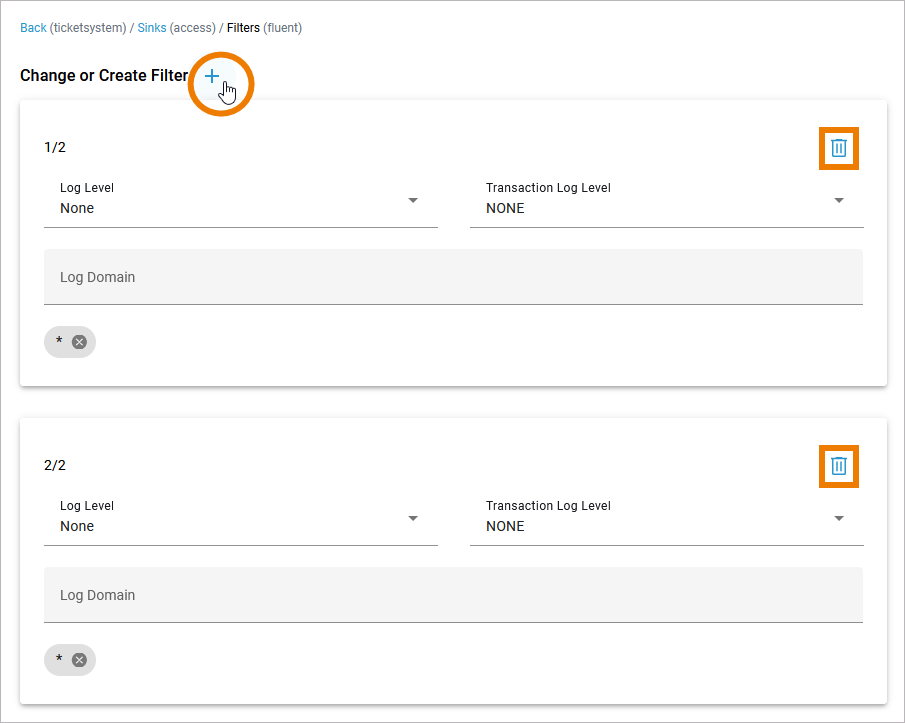

Click Add to add more filters, click Delete to remove single filters:
Default Retention Time of Log Files
The following retention times are valid for log files of your PAS installation:
Container logs: Log files inside all containers are deleted after 7 days.
Log Analyzer (OpenSearch) logs:
Single cluster: Log files are deleted after 14 days.
High Availability cluster: Log files are deleted after 30 days.
Integration (Bridge) logs: The default retention time for Bridge logs is 30 days. This is configurable in the UI, refer to Node Instance Preferences.
Log Levels of an xUML Service
You can set the following log levels for each xUML service. The higher the log level, the more information is written to the log files. The log levels in the table below are cumulative and are ordered from the lowest to the highest log level. For each log level, also the information of the lower levels is logged.
Log Level | Description | |
|---|---|---|
None | Logging is disabled. | |
Fatal | Logs fatal errors. | A fatal error means that the service cannot continue its normal execution, e.g. due to repository errors, system limitations like no more available threads or memory. These errors need the intervention of an administrator to solve the problem. |
Error | Logs fatal errors and other errors. | Errors other than fatal errors are not written if they are caught in the Designer service model, e.g. connection errors, wrong SQL statements, applying operations to invalid values, and so forth. If an error is caught, the modeler must take care of the error handling. |
Warning | Logs errors and warnings. | Warnings indicate unexpected but non-critical situations that do not interrupt normal operation. |
Info | Logs errors, warnings, and general information about your process steps and other service events. | This general information includes, for instance, which component is being started or stopped, loaded add-ons, licensing information, etc. |
Debug | Logs errors, warnings, general information, and low-level debug information. | In addition to log level Info, low-level debug information is written into an error file specified in the error message. Furthermore, the full adapter communication stream is written to the xUML service standard log. Use this log level with care and only when investigating problems. As all tracing information has to be logged, it may result in significant loss of performance with increasing complexity of the deployed xUML service. |
If an error occurred, a call stack is written into the error log exposing the path to the action state where the error occurred in the model.[2006-04-20 08:31:13 W. Europe Standard Time][Error] [Internal][FUASM][3][Division by zero - Callstack: calculate > Calculation > call_Division > Division > Divide]
Transaction Log Levels
You can set the following transaction log levels for each xUML service. The higher the log level, the more information is written to the log files. The log levels in the table below are cumulative and are ordered from the lowest to the highest log level. For each log level, also the information of the lower levels is logged.
Log Level | Description | |
|---|---|---|
None | Logging is disabled. | |
Custom | Logs process information and custom log messages that have been implemented to the process. This is the minimum log level to use if KPIs (for Process Mining) should be logged to the process logs. | For more details, refer to Logger Adapter Reference in the Designer Guide. |
Service | Logs custom messages, and calls to the service interface. | Logs, for example, start and end of calls to REST, SOAP, SAPRFC, or HTTP operations. |
IOExternal | Logs custom messages, calls to the service interface, and adapter calls to external systems. | External systems, for example, are SAP, SQL, REST, etc. For SQL access, for instance, the queries sent to the database will be logged as well. Calls via the file system and system adapter are excluded. |
IOInternal | Logs custom messages, calls to the service interface, and adapter calls to external and internal systems. | Logs also calls to internal systems like , e.g., the Filesystem Adapter. |
Logging also includes start and end time of service calls and can be used to analyze process performance. Refer to Contents of the xUML Service Transaction Log in the Administration Guide for a reference page with all transaction log details.
