Retrieving Persistent State Metadata with the PersistentStateControl Adapter

The Persistent State Control Adapter gives access to persistent state metadata directly from within a service (self context). The same data can be retrieved using the xUML Runtime API.

If you want to retrieve metadata of persistent state of the very same service, always use the Persistent State Control Adapter.
If you want to retrieve data from other services, use the xUML Runtime API.

What a <<PersistentStateControl>> action does can be controlled via tagged value action. Currently the following actions are supported:

<your example path>\Advanced Modeling\PState\uml\pstatePurchaseOrder.xml

Listing all Persistent State Owners

In Load Balancing context, when e.g. running multiple Bridges, you can setup persistent state services to share persistent state objects. The persistent state objects are distinguished by an owner and owner id reflecting the actual service that owns these objects.
Prerequisite is that these services share the same persistent state database, see Load Balanced Persistent State for more details.

listOwners lists all owners that are maintaining persistent state objects of the current service.
For more information on how to manage ownership of persistent state objects, refer to Persistent State Ownership.

Parameters

Name	Type	Direction	Mandatory	Description
owners	Array of Owner	out		The adapter returns an array of owner details.

Getting the Name of an Owner

getOwnerName returns the name of the current owner (self).
For more information on how to manage ownership of persistent state objects, refer to Persistent State Ownership.

Parameters

Name	Type	Direction	Mandatory	Description
ownerName	String	out		The adapter returns the name of the current owner as a String.

Listing all Available Persistent State Classes

listClasses returns an array list of all available persistent state classes of the current service (self). By specifying includeObjectCount = true, you can get the actual object count per class.

Parameters

Name	Type	Direction	Description	Allowed Values
includeObjectCount	Boolean	in	Specify whether to include an object count per class to the response.	true	Include an object count per class.
includeObjectCount	Boolean	in		false	Do not include an object count per class (default).
classes	Array of ClassInfo	out	The adapter returns a list of classes as an Array of ClassInfo.

Getting Object Counters per Class

getClassCounters returns an array list of all available persistent state classes of the current service (self) and their actual counters. Refer to type ClassCounters for more details on which counters are available.

Parameters

Name	Type	Direction	Mandatory	Description
counters	Array of ClassCounters	out		The adapter returns the object counters per class as an Array. Refer to type ClassCounters for more details on the counters.

Name

Type

Direction

Mandatory

Description

counters

Array of

ClassCounters

out

The adapter returns the object counters per class as an Array. Refer to type

ClassCounters

for more details on the counters.

Getting the Persistent State Class Metadata

getClassMetadata returns the metadata of a given class. The action returns an array list of all attributes and their types.

Parameters

Name	Type	Direction	Mandatory	Description
class	String	in		Specify the name of the class to get metadata of. You can provide the value dynamically or via tagged value class on the adapter action.
classMetadata	ClassMetadata	out		The adapter returns a ClassMetadata object, listing all attributes and their metadata, and the primary and search keys. The array of primary keys is sorted in definition order.

Name

Type

Direction

Mandatory

Description

class

String

Specify the name of the class to get metadata of. You can provide the value dynamically or via tagged value class on the adapter action.

classMetadata

ClassMetadata

out

The adapter returns a ClassMetadata object, listing all attributes and their metadata, and the primary and search keys.

The array of primary keys is sorted in definition order.

Querying Persistent State Objects of a Given Class

With action queryObjects you can query the persistent state database for objects of a given class. Queries can use simple query conditions and complex query conditions (and/or).

Using queryObjects, the persistent state database can be search by the search keys that are defined on the persistent state class.

Queries are steered by parameter selectQuery that, on the one hand, specifies global search data like searching by object dates and search order, and, on the other hand, can hold complex search queries.

Parameters

Name	Type	Direction	Description	Allowed Values
selectQuery	Retrieving Persistent State Metadata with the PersistentStateControl Adapter	in	Provide a search query.	.
includeObjectData	Boolean	in	Specify whether to include object data of the matching objects to the response.	true	Return object data of the found objects.
includeObjectData	Boolean	in		false	Only return the objects metadata (default).
objectEntries	Array of ObjectEntry	out	The adapter returns an array of objects and some basic object metadata per object.

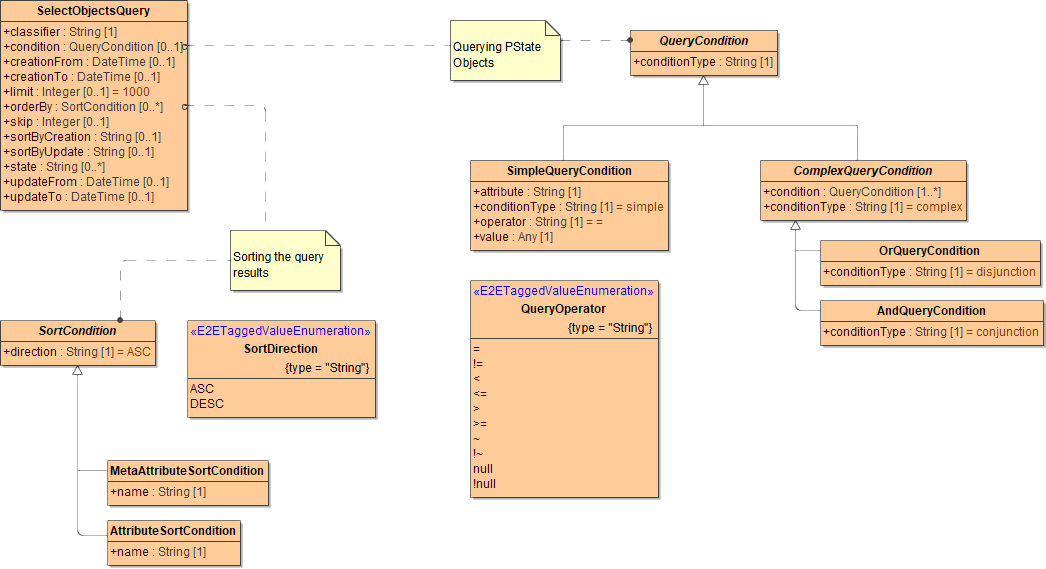

Attribute condition of type SelectObjectsQuery holds the custom search query itself. Attribute orderBy holds sorting specifications.

Building a Simple Query

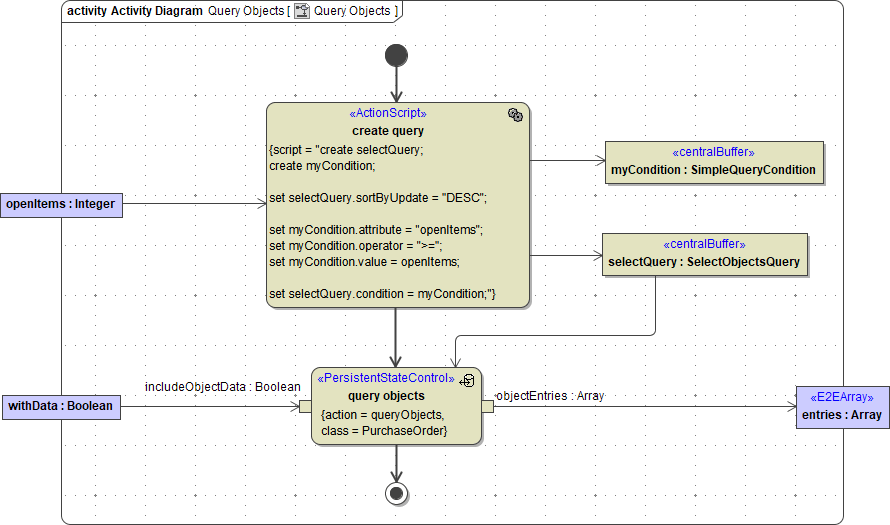

By using only one condition of type SimpleQueryCondition you can build a simple query. Find below a the activity diagram of a simple query that returns all purchase orders with 2 or more open items.

selectQuery.conditions holds the query condition. It consists of

name of the search key attribute to use for comparison
an operator for the comparison
a value to compare against

Valid operators are:

Operator	Description
=	Equal.
!=	Not equal.
<	Less than.
<=	Less or equal.
>	Greater than.
>=	Greater or equal.
~	Like (SQL).
!~	Not like (SQL).
null	Null.
!null	Not null.

All operators will be translated to SQL operators, so the relational operators will not work as expected if any of the operands is NULL. The Runtime will throw error PSADSM/46 in this case.

Exception: The = and != operators will map to IS NULL and IS NOT NULL in this case.

Querying does only work on persistent state attributes that have been marked as <<SearchKey>>. Also, if you apply this stereotype to a persistent state attribute later on, all previous persistent state objects are disregarded if searching with this key.

Building a Complex Query

Using type ComplexQueryCondition, you can build a complex query of multiple simple queries. They can be joined together by a disjunction (or) or a conjunction (and).

Assuming you have myCondition1 and myCondition2 of type SimpleQueryCondition, you can join them to an and query with an andQuery of type AndQueryCondition like:

create selectQuery;
create myCondition1;
create myCondition2;
create andQuery;

set selectQuery.sortByUpdate = "DESC";

set myCondition1.attribute = "openItems";
set myCondition1.operator = ">=";
set myCondition1.value = openItems;

set myCondition2.attribute = "customerID";
set myCondition2.operator = "=";
set myCondition2.value = "4711";

append myCondition1 to andQuery.condition;
append myCondition2 to andQuery.condition;

set selectQuery.condition = andQuery;

In this case, one of the to conditions could also be a complex condition instead of a simple one. Like that you can build very complex combinations of and and or queries.

Sorting the Query Results

You can sort the results that are returned by persistent state attributes and/or by persistent state meta data (creation timestamp and update timestamp).

Sorting	Attribute(s) of SelectObjectsQuery	Description
Only by persistent state meta data	sortByCreation sortByUpdate	Provide a sorting direction with the sortByCreation and sortByUpdate attributes of SelectObjectsQuery (ASC, DESC).
By persistent state attributes	orderBy	Create an array of objects of type AttributeSortCondition and provide it with the orderBy attribute of SelectObjectsQuery. sortByCreation and sortByUpdate will be completely ignored in this case.
By a mixture of persistent state attributes and meta data	orderBy	The array orderBy can hold objects of AttributeSortCondition and MetaAttributeSortCondition as they both derive from SortCondition (see class diagram above). Provide the meta attribute to sort by with an object of type MetaAttributeSortCondition. sortByCreation and sortByUpdate will be completely ignored in this case.

Sorting

Attribute(s) of

SelectObjectsQuery

Description

Only by persistent state meta data

sortByCreation
sortByUpdate

Provide a sorting direction with the sortByCreation and sortByUpdate attributes of SelectObjectsQuery (ASC, DESC).

By persistent state attributes

orderBy

Create an array of objects of type AttributeSortCondition and provide it with the orderBy attribute of SelectObjectsQuery.

sortByCreation and sortByUpdate will be completely ignored in this case.

By a mixture of persistent state attributes and meta data

orderBy

The array orderBy can hold objects of AttributeSortCondition and MetaAttributeSortCondition as they both derive from SortCondition (see class diagram above). Provide the meta attribute to sort by with an object of type MetaAttributeSortCondition.

sortByCreation and sortByUpdate will be completely ignored in this case.

Deleting Persistent State Objects

deleteObject deletes the object identified by class and objectId.

Deleting objects directly via deleteObject is not best practice and can lead to odd side effects. Best practice is to model this in the state machine.

Parameters

Name	Type	Direction	Mandatory	Description	Example
class	String	in		Specify the name of the class to delete objects from.	`PurchaseOrder`
objectId	String	in		Specify the id of the object to delete.	`000100058a79cb967f6e00000079`

Parameter Types

Class	Attribute	Type	Description	Allowed Values
AndQueryCondition	conditionType	String	Type of the condition.	conjunction	Marks the condition as conjunction (and) of simple queries (default and not changeable).
AndQueryCondition	condition	Array of Retrieving Persistent State Metadata with the PersistentStateControl Adapter	List of simple queries that are related by and.
AttributeSortConditon	name	String	Name of the persistent state attribute to sort by.	a valid persistent state attribute name with stereotype <<SearchKey>>
	direction	String	Sort direction as defined on Retrieving Persistent State Metadata with the PersistentStateControl Adapter.	ASC	Ascending sorting (default).
	direction	String		DESC	Descending sorting.
ClassAttributeMetadata	name	String	Name of the persistent state attribute.
ClassAttributeMetadata	type	String	Type of the persistent state attribute, e.g. `String` (for base types) UML class id of the type, `urn:Services.PurchaseOrderService.Classes.Item`
ClassCounters	name	String	Name of the persistent state class.
	count	Integer	Object count.
	stalledCount	Integer	Count of objects that are stalled.
	states	Array of Retrieving Persistent State Metadata with the PersistentStateControl Adapter	List of states including count of objects in this state.
ClassInfo	name	String	Name of the persistent state class.
ClassInfo	count	Integer	Object count.
ClassMetadata	name	String	Name of the persistent state class.
	attributes	Array of Retrieving Persistent State Metadata with the PersistentStateControl Adapter	List of class attributes and their metadata.
	primaryKeys	Array of String	List of attributes that are marked as primary key with stereotype <<PrimaryKey>>. The array of primary keys is sorted in definition order.
	searchKeys	Array of String	List of attributes that are marked as search key with stereotype <<SearchKey>>.
MetaAttributeSortCondition	name	String	Name of the persistent state meta attribute to sort by.	creation	Sort by creation date.
	name	String	Name of the persistent state meta attribute to sort by.	update	Sort by update date.
	direction	String	Sort direction as defined on Retrieving Persistent State Metadata with the PersistentStateControl Adapter.	ASC	Ascending sorting (default).
	direction	String		DESC	Descending sorting.
ObjectEntry	id	String	Unique identifier of the persistent state object.
	name	String	Name of the persistent state object.
	creation	DateTime	Creation date of the object.
	lastUpdate	DateTime	Date object has been last updated.
	states	Array of String	List of states the object is in.
	object	Any	Copy of the persistent state object. object contains the same content as would be returned by getObjectCopy of the Persistent State Adapter.
OrQueryCondition	conditionType	String	Type of the condition.	disjunction	Marks the condition as disjunction (or) of simple queries (default and not changeable).
OrQueryCondition	condition	Array of Retrieving Persistent State Metadata with the PersistentStateControl Adapter	List of simple queries that are related by or.
Owner	id	String	Owner id. For more information on how to manage ownership of persistent state objects, refer to Persistent State Ownership.
	compositeName	String	Composite name from the xUML model.
	host	String	Name of the host that runs the owner.
	lastStartup	DateTime	Last recorded service startup.
	lastShutdown	DateTime	Last recorded service shutdown.
	ownedObjects	Integer	Count of owned objects.
	isSelf	Boolean	True, if the current service is the owner.	true	The current service is the owner.
	isSelf	Boolean	True, if the current service is the owner.	false	The current service is not the owner.
QueryCondition	Parent abstract class of SimpleQueryCondition, AndQueryCondition, or OrQueryCondition.
SimpleQueryCondition	conditionType	String	Type of the condition.	simple	Marks the condition as simple query condition (default and not changeable).
	attribute	String	Name of the search key attribute to use for comparison.	valid name of an existent persistent state class attribute that has stereotype <<SearchKey>>
	operator	String	Operator for the comparison of attribute and value. All operators will be translated to SQL operators, so the relational operators will not work as expected if any of the operands is NULL. The Runtime will throw error PSADSM/46 in this case.Exception: The = and != operators will map to IS NULL and IS NOT NULL in this case.	=	Equal.
				!=	Not equal.
				<	Less than.
				<=	Less or equal.
				>	Greater than.
				>=	Greater or equal.
				~	Like (SQL).
				!~	Not like (SQL).
				null	Null.
				!null	Not null.
	value	Any	Value to compare the attribute against.	Only base types allowed. The value must match the type of the specified attribute.
SelectObjectsQuery	classifier	String	Name of the persistent state class to query.
	creationFrom	DateTime	Creation date from.
	creationTo	DateTime	Creation date to.
	sortByCreation	String	Sort by creation date (ASC/DESC). Relates to sortByUpdate. If sortByCreation and sortByUpdate are both NULL, the resulting order is unspecified. If both, sortByCreation and sortByUpdate are set, the result is sorted update first, creation second. If you provide an invalid value, the Runtime will throw an exception.	ASC	Sort by creation date in ascending order.
	sortByCreation	String		DESC	Sort by creation date in descending order.
	updateFrom	DateTime	Update date from.
	updateTo	DateTime	Update date to.
	sortByUpdate	String	Sort by update date (ASC/DESC). Relates to sortByCreation. If sortByCreation and sortByUpdate are both NULL, the resulting order is unspecified.If both, sortByCreation and sortByUpdate are set, the result is sorted update first, creation second.If you provide an invalid value, the Runtime will throw an exception.	ASC	Sort by date of last update in ascending order.
	sortByUpdate	String		DESC	Sort by date of last update in descending order.
	limit	Integer	Limit the count of returned objects. Default is 1000.	Default is 1000 objects.
	state	Array of String	List of states. A persistent state object must be in one of the states to be part of the result set (disjunction).
	condition	Retrieving Persistent State Metadata with the PersistentStateControl Adapter	Query condition as described further above (see Retrieving Persistent State Metadata with the PersistentStateControl Adapter ).
	skip	Integer	Skip the number of objects provided with skip. Together with limit, this allows to implement pagination. When using this feature with Oracle or SQL Server databases, you need at least the following database versions: Oracle 12c SQL Server 2012
	orderBy	Array of SortCondition	Provide sort conditions (list of persistent state attributes and direction). This array is translated into an `ORDER BY` clause and added to the related query statement. If orderBy is used, specified sortByCreation and sortByUpdate are completely disregarded. Instead use the provided meta attributes creation and update.
SortCondition	direction	String	Sort direction.	ASC	Ascending sorting (default).
SortCondition	direction	String	Sort direction.	DESC	Descending sorting.
StateCounters	name	String	Name of the state.
	count	Integer	Count of objects in this state.
	stalledCount	Integer	Count of stalled objects in this state.
