Attribute Specification

The figure below shows the attribute specification dialog to edit the properties of an attribute.

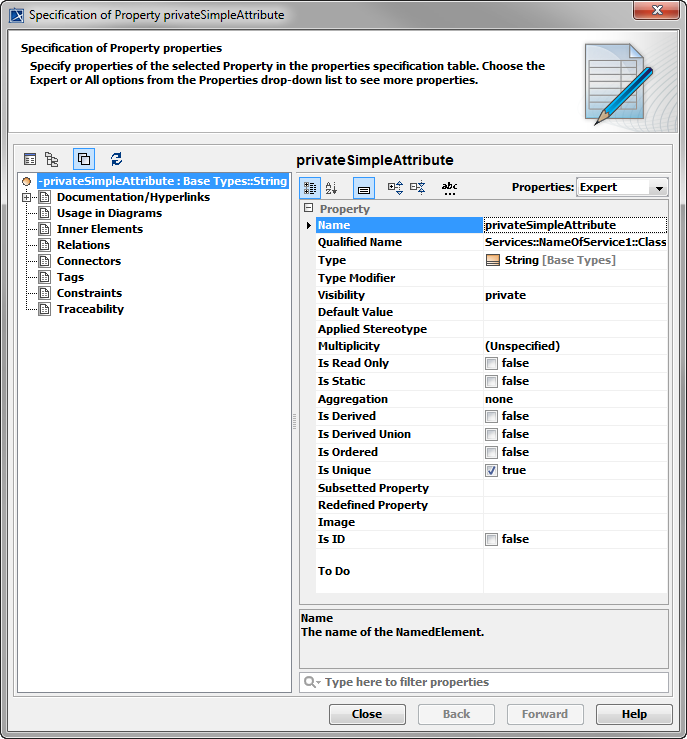

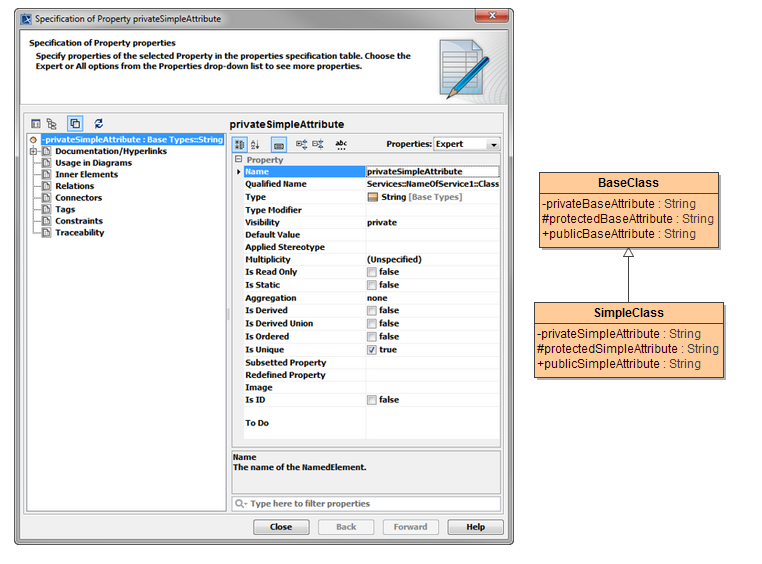

Figure: Attribute Specification Dialog



Initial Value

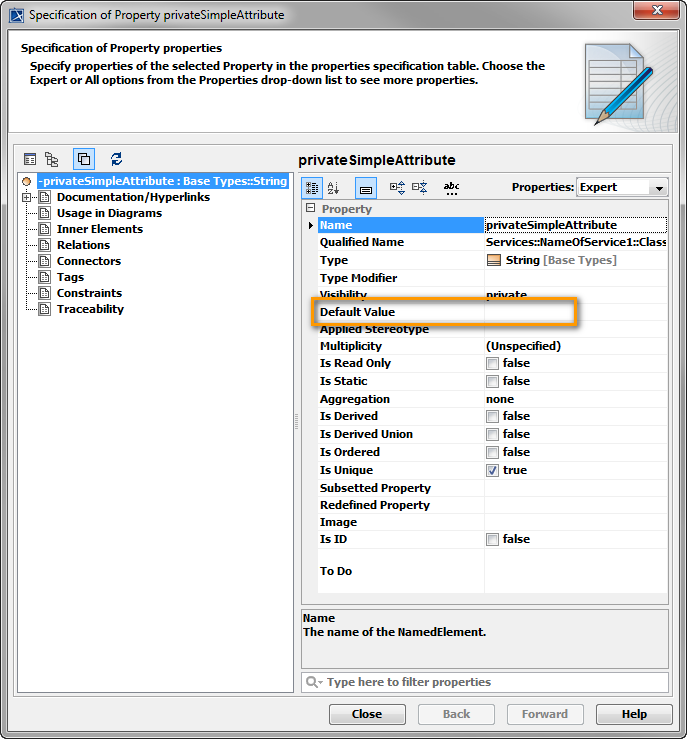

The figure below shows the usage of the property initial value. If an object of the class SimpleClass is instantiated (created) in the action script of an activity diagram, the attribute privateSimpleAttribute is assigned the value given in field Default Value automatically.

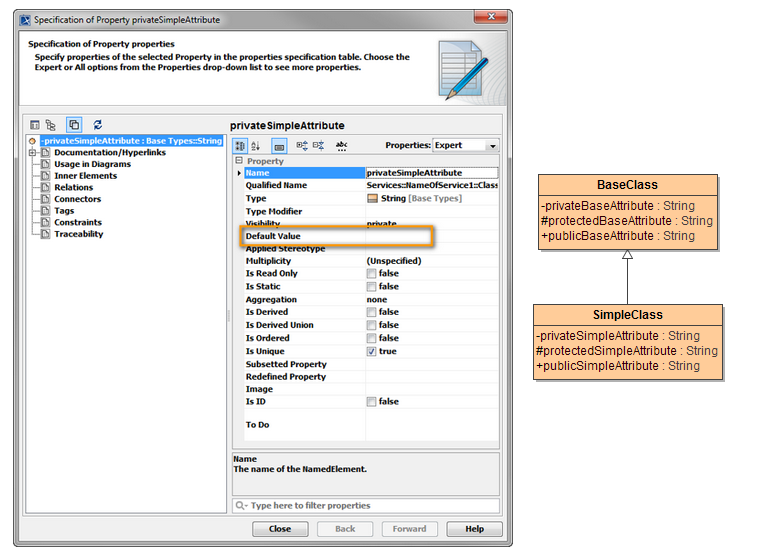

Figure: Initial Value Specification



Default Value can be modified by right-clicking the field text, selecting Value Specification from the context menu and selecting one of the value types.
In addition to specifying a simple value, Default Value can also contain a global setting variable. See Using Global Setting Variables and setting macro() Macro for more information on that.

Frequently, it is necessary to store literals global to an xUML service. In Bridge context, it is possible to define name value pairs that are configurable on the Bridge. This can be achieved by applying the stereotype <<E2EAttribute>> to the corresponding attribute.
As soon as <<E2EAttribute>> is applied, additional specifications can be made in the Settings section of the specification dialog of the attribute.

Tagged ValueDescriptionValues
SettingSpecify whether this attribute is a service setting. Service setting values can be configured via the Bridge, so that the default value of the attribute can be overridden.trueValue is a setting and can be configured via the Bridge.
falseValue is not a setting (default).
Setting NameSpecify an optional name of the setting to be displayed on the Bridge. If no name is specified, the Bridge uses <<class name>>::<<attribute name>>.any valid string
Is Password SettingSpecify whether the setting value contains a password that should not be displayed in the Bridge UI.trueValue is a password and should be masked.
falseValue is no password (default).

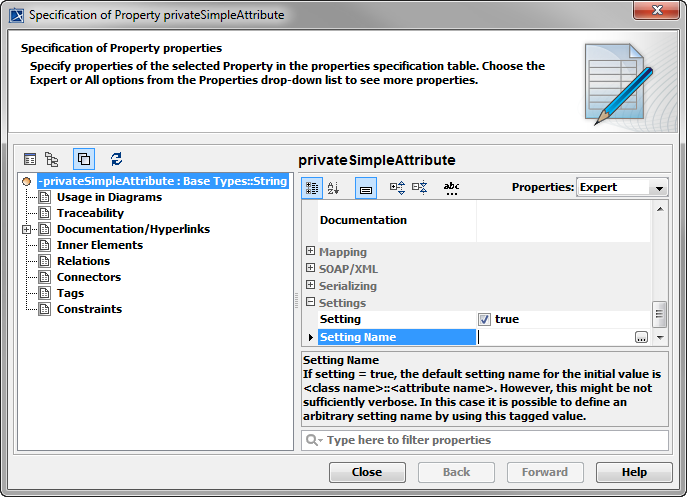

Figure: Specification Dialog with Settings Section

For more information on how to change the settings of an xUML service on the Bridge refer to xUML Service Settings.

Visibility

The visibility describes whether an attribute is accessible from a given context. The context is dependent on the owner of the activity diagram. For instance, if a class has an operation, which is implemented by an activity diagram, then the context is the class.
There are four attribute visibility types:

Visibility TypeSymbolDescription
public+The attribute is inherited and accessible by any outside object.
protected-The attribute is inherited and accessible from inside the current class (class operations) or classes derived from that class.
private#The attribute is not inherited and accessible only from inside the current class (class operations).
package~Not supported yet. The attribute's visibility will be handled like public.

For example, assume an activity diagram Act1 is assigned to the operation Op1 of class Class1. In this case, each attribute of class Class1 can be used as input or output of adapters, functions, and EAL (E2E Action Language) expressions in this activity diagram. This works independently of the attributes' visibility, because the attributes of class Class1 and the activity diagram Act1 are in the same context.
However, assume the class Class1 is used in an activity diagram Act2, which is assigned to an operation Op2, which is a member of class Class2. All actions taking place in activity diagram Act2 are in the context of class Class2. This has the following consequences:

  • Within the activity diagram Act2, it is not possible to access private attributes of class Class1.
  • If class Class2 is inherited from class Class1, it is possible to access protected attributes of class Class1.

If an attribute is public, it is accessible from each context.
Using the visibility makes sense especially with stateful objects (persistent state objects) where the state variables should not be accessible from another class. If the class is used to model data structures, it is recommended to set the visibility of all attributes to public.
Classes can be modeled in a classical sense having properties (attributes) and behavior (operations). They are candidates for introducing getter and setter operations. For more details see Class Design.

Setting the Default Visibility of Attributes in a MagicDraw Project

Default visibility of newly created attributes in MagicDraw is private. When developing xUML services this can be annoying, because for each attribute user has to change the visibility to public.

You can change this behavior on a project basis. In MagicDraw, go to Options > Project > Default Model Properties > Property. Set the value of Visibility to public.

Hiding Attributes From Interfaces

Independent of the visibility specified, all attributes are exposed if a class is used in an interface.

Builder 7.5.0 You can hide selected attributes from interfaces. To do so, apply stereotype <<E2EPrivate>> on such attributes.

Attributes marked with<<E2EPrivate>> will

  • not be exposed to WSDL, XSD, OpenAPI interfaces
  • not be serialized to service responses for REST and SOAP
  • not be serialized to requests of REST and SOAP adapters
  • not be serialized when using classToXML() Operation and classToJSON.
  • not be serialized and thus not saved between transitions and states, if applied to attributes of persistent state classes.

Changeability

An accessible attribute can be read or modified in the action script of an activity diagram depending on its attribute changeability settings.
There are three attribute changeability types:

  • changeable: The attribute value can be modified.
  • frozen: The attribute value may not be altered once the object is instantiated and its values initialized. No additional values may be added to a set of values.
  • add only: This is meaningful only if the multiplicity is not fixed to a single value (e.g. arrays). Additional values may be added to the set of values, but once created a value may not be removed or altered.

This is can be implemented by the use of the property Read only.

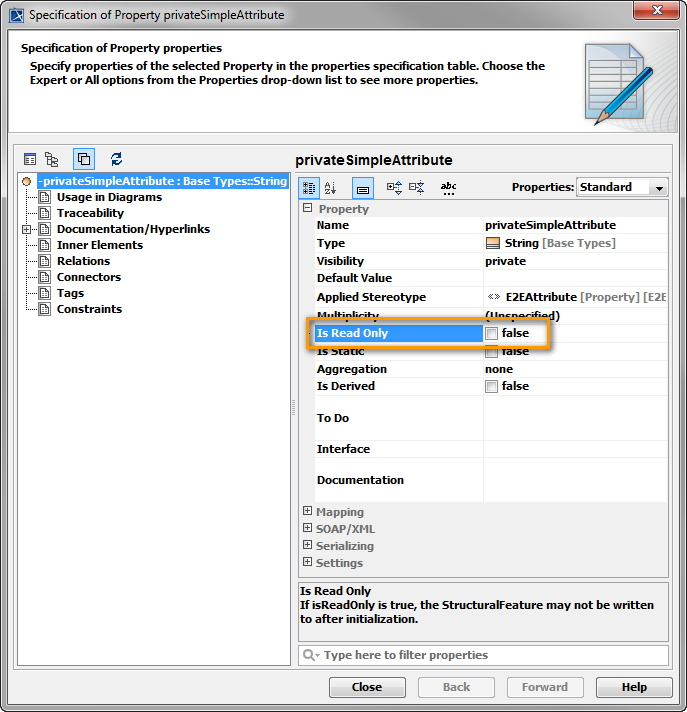

Figure: Read Only Property

Scope

There are two possible scope types: instance and classifier.

If the scope of an attribute is classifier, the attribute will have the same value in all instances of the class. If the scope of an attribute is instance, the attribute values depend on the instances of the class.

The Bridge does not support classifier scopes.

The attribute scope is defined by the flag Is Static in the attribute specification dialog. As classifier scopes are not supported, this flag remains always false.

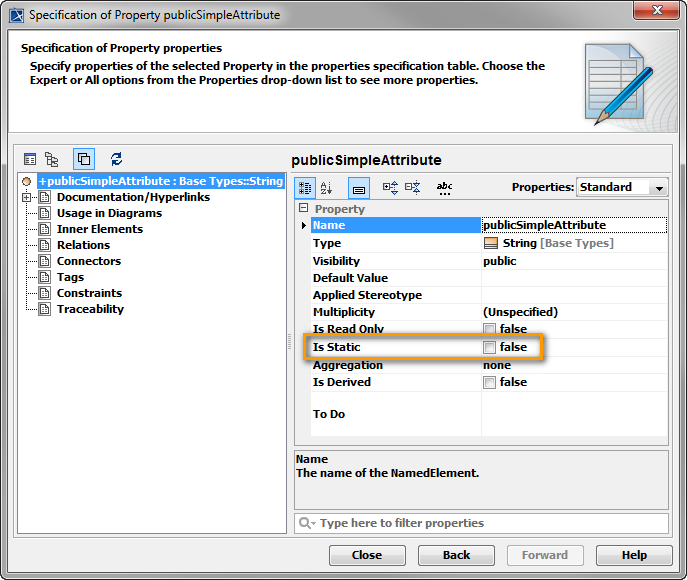

Figure: Is Static Property

Multiplicity

Multiplicity describes the possible number of values of the attribute that may be held by an instance. The cardinality of the set of values is an implicit part of the attribute. In the common case, in which the multiplicity is 1..1, the attribute is scalar (i.e., it holds exactly one value). If the multiplicity is for instance 0..{*}, the attribute is an array, to which values can be appended.

The following multiplicities exist:

MultiplicityDescription
0zero and only zero
1one and only one
0..1zero or one
0..*from zero to any positive integer
1..*from one to any positive integer
*any positive integer

Above rules apply to associations as well.
