Inspecting Action Script

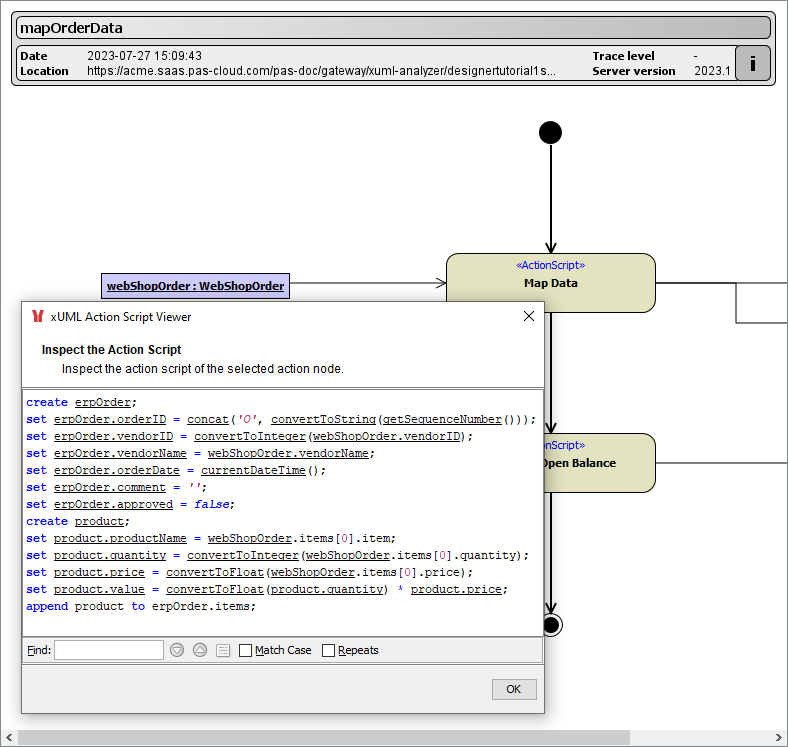

To view the action script that was executed when running the test case, just click on an action node containing action script. This is indicated by the stereotype <<ActionScript>> on the action node. The action script is displayed in the Action Script Viewer:

There are two different types of action script operations in generated xUML services:

1. Action script operations you have implemented yourself to an action script operation (see Using Action Script in the Designer Guide).

2. Action script that has been generated by the Compiler out of other definitions in the Designer service, e.g. a mapping diagram (see example above).
