Defining a Custom Logger Configuration

This page explains the Logger adapter in Bridge context. If you were looking for the same information regarding the PAS Designer, refer to Logger Adapter in the Designer guide.

Runtime 2020.8 If you have special logging needs, you do not need to stick with the standard logging configuration (xUML Service Standard Log and xUML Service Transaction Log): You can define your own logger configuration based on the concepts of channels and sinks:


Element

Description

Allowed Values / Examples

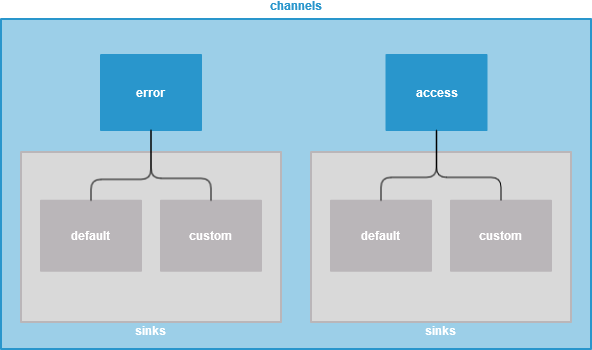

channel

A channel is an object that describes the data that will be written to a log file. It is identified by a channel name.

The following channel names are reserved for internal use of the xUML Runtime:

  • error

  • access

  • channels starting with "xUML" in any casing

error

Write service logging data (bridgeserver log).

access

Write transaction logging data.

sink

A channel can contain an arbitrary number of sinks. Sinks define the logging output and how it is written:

  • log file name and path patterns

  • log file format

  • logged content

Sink names are not important but you need them to access the logging configurations via the xUML Runtime API.
Do not rename the sinks of the access and error channels.

For more information about the concept in general, refer to xUML Runtime Logger Configuration.

Modeling a Custom Logger Configuration

Example File (Builder project E2E Action Language/Operating):

<your example path>\E2E Action Language\Operating\uml\logger_channels.xml

In your UML, models, you can define your own custom channel and sinks to log to.This is done by class diagram containing a set of classes with dedicated stereotypes:

  • <<LogChannel>> for channels

  • <<LogSink>> for sinks

  • <<LogFormatter>> for logfile content formats

  • <<LogKeys>> for defining your own JSON format on base of the standard JSON

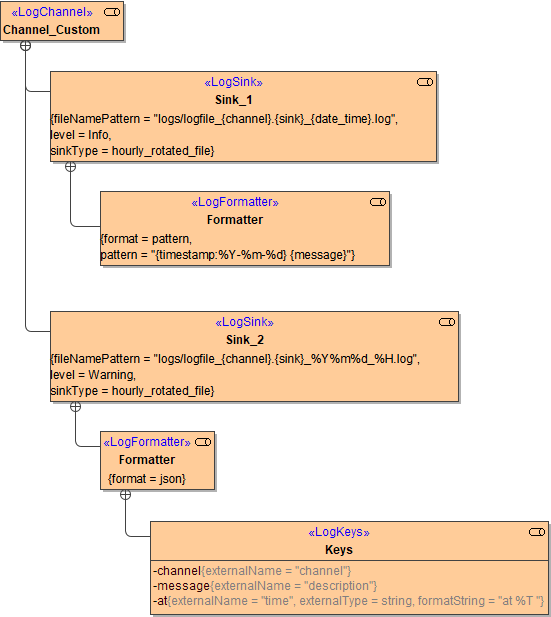

Define the corresponding classes and relate them with containment relations as depicted below:

The above class diagram defines the following configuration for a channel Channel_Custom:

Sink

Log Format

Sink_1

Filename / Path

logs/logfile_Channel_Custom.Sink_1_2020-06-25-16.log

2020-06-25-16 This is an example log message

Content

Log all messages with log level Info or higher to this sink.

Type

Rotate log file hourly.

Format

Output logs to a text file using a dedicated pattern.

Sink_2


Filename / Path

logs/logfile_Channel_Custom.Sink_2_20200625_16.log

{"time":"at 10:22:03","channel":"Channel_Custom","description":"This is an example warning"}

Content

Log all messages with log level Warning or higher to this sink.

Type

Rotate log file hourly.

Format

Output logs in JSON format.

JSON attributes

  • Add channel to the logged content

  • Overwrite attribute name message with name description.

  • Change name and format of the timestamp (at).

For a detailed description of all tagged values and their allowed values refer to Log Adapter Reference.

Defining the Filename of the Log File

Sinks can be configured to log to a file by using a sinkType that is daily_rotated_file or hourly_rotated_file. In these cases, you can specify a filename pattern for the log file to be generated using a <<LogFormatter>> class.

The following variables are available:

Variable

Description

{channel}

Channel name from the <<LogChannel>> class.

{sink}

Sink name from name.

{date_time}

Timestamp of format %Y-%m-%d or %Y-%m-%d-%H, depending on the sinkType .

{extension}

Value depends on the formatting specified in the <<LogFormatter>> class:

  • json: If json is selected as log format.

  • log: If pattern is selected as log format.

Refer to Pattern Formatting Options for more formatting options.

You can only define one <<LogFormatter>> per sink.

Defining the Format of the Logged Content

As per default, the Logger logs to a JSON file if a custom configuration is specified. You have several options to change the log file content, though.

Logging to Text Files

Sinks can be configured to log to a text file by setting format of the related <<LogFormatter>> class to pattern.

To format the content of text files, you can use the following variables in tagged value pattern:

Variable

Description

{channel}

Log channel.

{timestamp}

Timestamp.

{level}

Log level.

{message}

Log message.

{compositeName}

Name of the service composite (see Frontend Components).

{trxId

Transaction id (see Contents of the Transaction Log).

{correlationId

Correlation id (see Contents of the Transaction Log).

Refer to Content Formatting Options for more formatting options.

Logging to JSON Files

Sinks can be configured to log to a JSON file by setting format of the related <<LogFormatter>> class to json.

For JSON log files, the following JSON attributes are available:

JSON Attribute

Description

{channel}

Log channel.

{at}

Timestamp.

{message}

Log message.

{details}

Serialized content of the details object.

{compositeName}

Name of the service composite (see Frontend Components).

{trxId

Transaction id (see Contents of the Transaction Log).

{correlationId

Correlation id (see Contents of the Transaction Log).

  • If nothing is specified but format = json, the default configuration will be used and the log file will look like

    CODE
    {"at":"<a timestamp>","message":"<a log message>"}

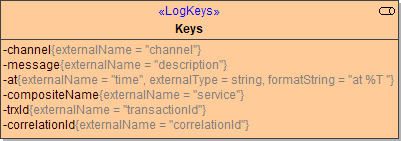

  • You can change the appearance of the JSON file using a <<LogKeys>> class to specify your changes.

    This is done by adding an attribute to the <<LogKeys>> class whose name corresponds to the name of the attribute you want to change.

    Then, set the tagged values as follows:

Topic

Tagged Value

Allowed Values

add attribute

externalName

You can add all attributes listed in the table above. Attributes are only visible if an external name has been added. The external name, however, may be the same name as the name of the attribute.

remove attribute

Empty all tagged values.

change attribute name

externalName

Specify a name for the JSON attribute to be used in the log file. This name must conform to the rules for JSON attribute names.

change type of attribute "at"

externalType

integer

Convert to Integer.

string

Convert to String.

change format of attribute "at"

formatString

Specify how to format the content when serializing it to the specified externalType. Refer to Log Adapter Reference for all available formatting options.

Note, that the format string must match the specified externalType. The xUML Compiler cannot check the correctness of this format string.

  • The Compiler will show an error if you try to add an unknown attribute to the <<LogKeys>> class.

Using a Custom Logger Configuration

Components

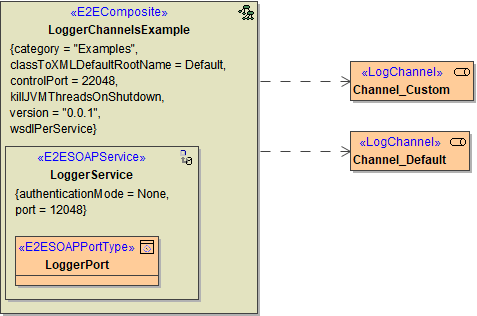

In the component diagram of the xUML service, draw a dependency from the composite to the log channels you want to use:

Activity Diagram

With the <<Logger>> adapter you can write into the log file of the service. Use action logTo in this case to use your custom logger configuration.

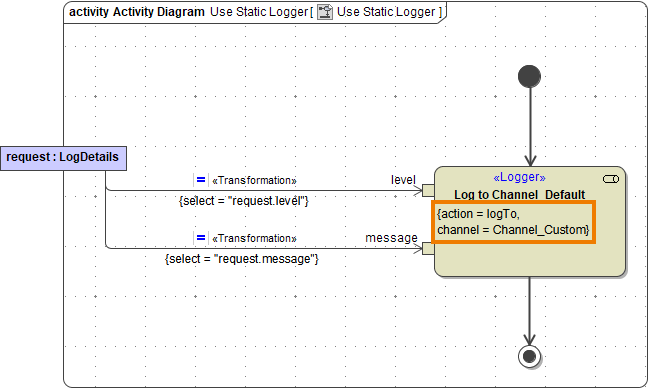

The following picture shows the usage of the <<Logger>> adapter:

Tag action of the logger adapter needs to be set to logTo. Additionally, provide the channel you want to log to.
The following input can be provided:

Name

Type

Direction

Description

Allowed Values / Example

channel

String

in

Specify the channel you want to log to.

level

String

in

Specify a log level. Allowed error log levels are described in the log level guidelines on Bridge Server Log Levels of an xUML Service.

One of Fatal, Error, Warning, Info, and Debug.

message

String

in

Specify a description for the log entry.

Item ID could not be found.

details

Any

in

Specify an object of complex type (class or array) that contains additional details. If provided, the contents of this object will be flattened and appended to the description for text files. In JSON files, details have their own key.

any detail object

As an alternative - e.g. to set the channel dynamically - you can use Action Script and the logTo() Operation.

Example

Info (Sink_1)

Pin

Value

channel

Channel_Custom

level

Info

message

Synchronized.

The output after running the example can be found in custom logfile logs/logfile_Channel_Custom.Sink_1_2020-06-25-16:35:46.log.

2020-06-25 Synchronized.

Warning (Sink_1 and Sink_2)

Pin

Value

channel

Channel_Custom

level

Warning

message

Item not available.

The output after running the example can be found in both logfiles:

 logs/logfile_Channel_Custom.Sink_1_2020-06-25-16.log

2020-06-25 Item not available.

logs/logfile_Channel_Custom.Sink_2_2020-06-25-16.log

{"time":"at 10:22:03","channel":"Channel_Custom","description":"Item not available."}
