Usage of test cases is explained using the solution of the Designer tutorial 4 as an example. The repository file can be downloaded from our documentation.

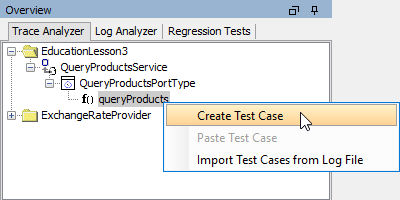

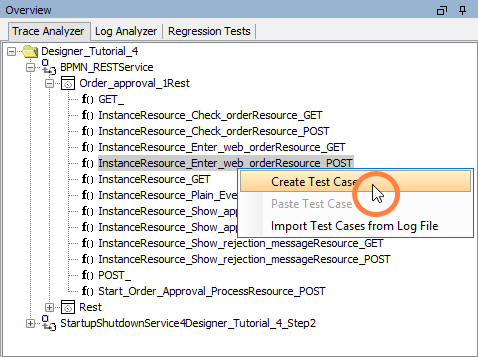

To create a test case, select an operation. From the context menu, select Create Test Case:
Enter a name for the new test case and click OK. Default name suggested is the name of the operation:

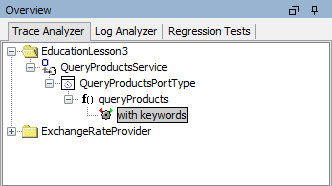

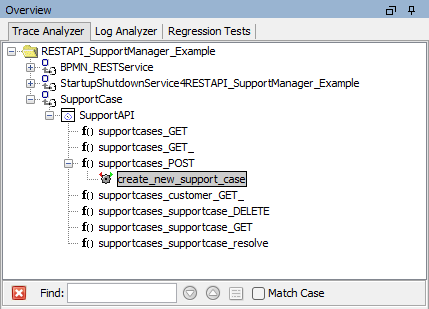

The test case will be listed below the operation and has a grey icon Unknown Attachment . The grey icon indicates that the test case has not been run yet:
Continue with inserting test data.
