Basic Authentication

This policy enables HTTP Basic Authentication on an API. You can use this policy to require clients to provide HTTP BASIC authentication credentials when making requests to the managed API.

Configuration Options

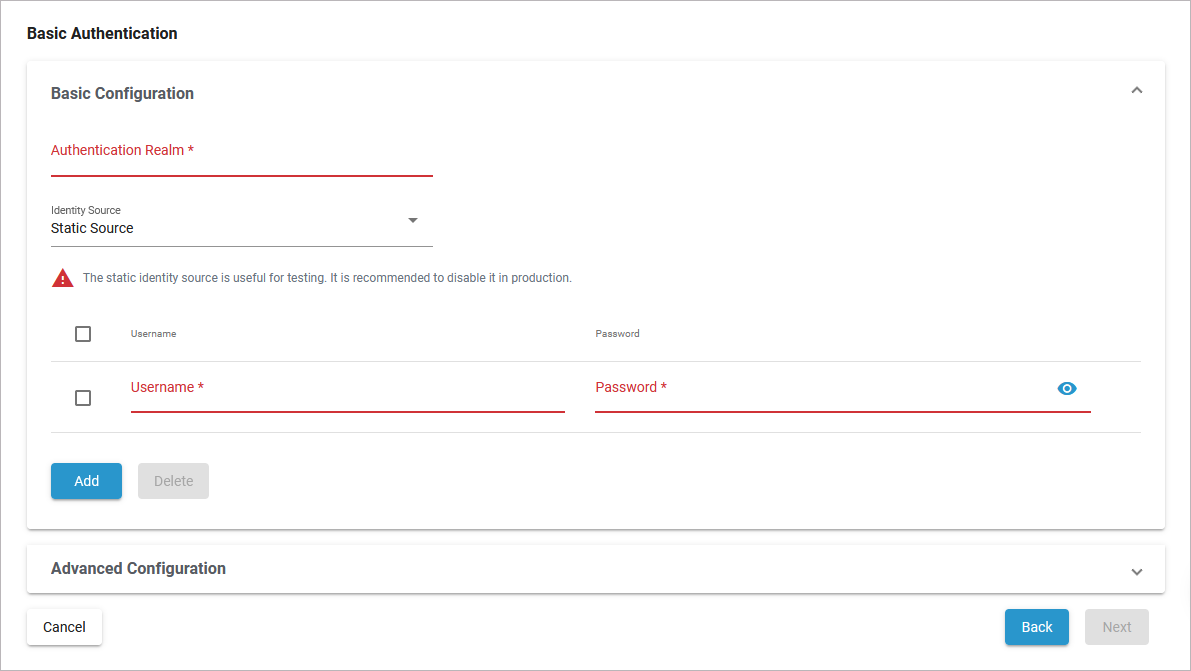

Basic Configuration

Option

Description

Possible Values

Default

Authentication Realm

Defines the Basic Auth realm that will be used when responding with an auth challenge (when authentication is missing or fails). The input of a realm is mandatory.

a string

-

Identity Source

Additionally, one of the complex properties must be included in the configuration, indicating whether API Management should use JDBC, LDAP or Static information as the source of identity used to validate provided user credentials.

Configuration details of the identity source are listed in the table below.

Static Source

Identity Source Configuration Options

Identity Source	Content	Description	Possible Values	Default
Static Source
Not recommended for production. Use Keycloak OAuth or JWT instead.	Username / Password	Allows you to provide a static set of user names and passwords.	-	-
Click Add to create more rows in the table. Click Delete to remove selected rows.
JDBC
Only PostgreSQL, MariaDB and MySQL are supported.	URL	The URL to the JDBC server.	a string	-
	JDBC URL	The URL to the JDBC database.	a string	-
	Username	The username to use when connecting to the JDBC database.	a string	-
	Password	The password to use when connecting to the JDBC database.	a string
	SQL Query	If Also extract user roles from the DB is true: SQL query to use when extracting role information. The first parameter passed to the query will be the username.	a string	-
	Password Hash Algorithm	The hashing algorithm used when the password was stored.	MD5 SHA1 SHA256 SHA384 SHA512	SHA1
	Also extract user roles from database	Enable this option if you also want to extract role information from the database.	enabled disabled	disabled
	Roles SQL Query	If Also extract user roles from database is enabled: SQL query to use when extracting role information. The first parameter passed to the query will be the username.	a string	-
LDAP Deprecated since PAS 23.1.1
Use Keycloak's LDAP User Federation in combination with the Keycloak OAuth policy. Verify with the Scheer PAS support, that your LDAP server is configured as user federation inside Keycloak.	LDAP Server URL	The URL to the LDAP server.	a string	-
	LDAP Bind DN	The pattern to use when binding to the LDAP server (use of ${username} is possible).	a string	-
	Bind to LDAP as	Choose whether to bind directly to LDAP as the authenticating user (UserAccount), or instead to bind as a service account and then search LDAP for the user’s record (ServiceAccount). Configuration details for service account see below.	inbound user service account	inbound user
	Also extract user roles from the directory	Enable this option if you want to extract role information from LDAP.	enabled disabled	disabled
	Group Membership Attribute	If Also extract user roles from the directory is enabled: The attribute representing the user’s membership in a group. Each value should be a reference to another LDAP node.	a string	-
	Role Name Attribute	If Also extract user roles from the directory is enabled: The attribute on a role LDAP node that represents the name of the role.	a string	-
If "Bind to LDAP" is set to "Service Account"
	Username	The username is used when initially binding to LDAP as a service account.	-	-
	Password	The password is used when initially binding to LDAP as a service account.
	User Search Base DN	Used to search for the user’s LDAP record so that it can be used to re-bind to LDAP with the appropriate password.
	User Search Expression	Used to search for the user’s LDAP record so that it can be used to re-bind to LDAP with the appropriate password.	-	-

Advanced Configuration

Option	Description	Possible Values	Default
Forward Authenticated Username as HTTP Header	Indicates the name of an HTTP header to send with the principal/identity of the authenticated user if authentication succeeds. Useful when the backend API needs to know the identity of the authenticated user.	a string	-
