Scheduler Event Handler

Whenever a date time pattern matches (see chapter Date Time Patterns), the Scheduler executes the activity assigned to the <<E2EScheduler>>class. The following activity creates a file for educational purposes.

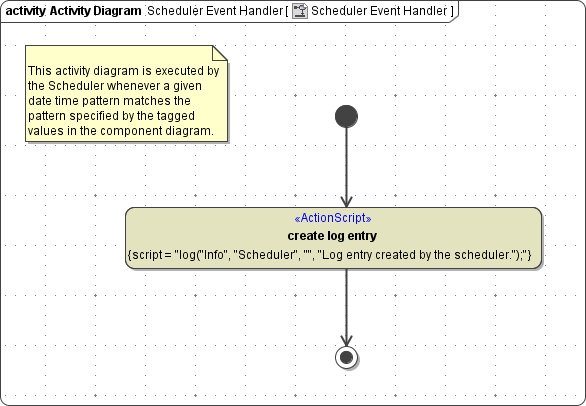

Figure: Activity Diagram Example of a Scheduler Event Handler

The tagged values of an instance of the <<E2EScheduler>> class define the data and time when the Scheduler executes the activity. The deployment diagram specifies the tagged values.
