Administration Tab

Administration Tab Overview

The Administration Panel provides access to all system-wide configuration, customization, and maintenance functions of the Scheer PAS Business Modeler. It is intended for administrative users and centralizes settings that influence the technical behavior, visual appearance, governance, and integration capabilities of the application.

Within the Administration Panel, administrators can manage core technical settings such as System Configuration, Database Configuration, Logging, Backup and Restore, and Reorganization, ensuring stable operation and maintainability of the system. Visual and modeling-related customization options are available through Application Theme, Symbol Customization, Modelling Templates, Identifiers, and Fragments, supporting standardized and consistent process modeling.

Governance and access control are handled via Role settings for models and objects, while analytical and documentation needs are supported through the Reports section. Integration with external systems is enabled through Solman Synchronization, allowing synchronization of modeling content with SAP Solution Manager.

Navigation

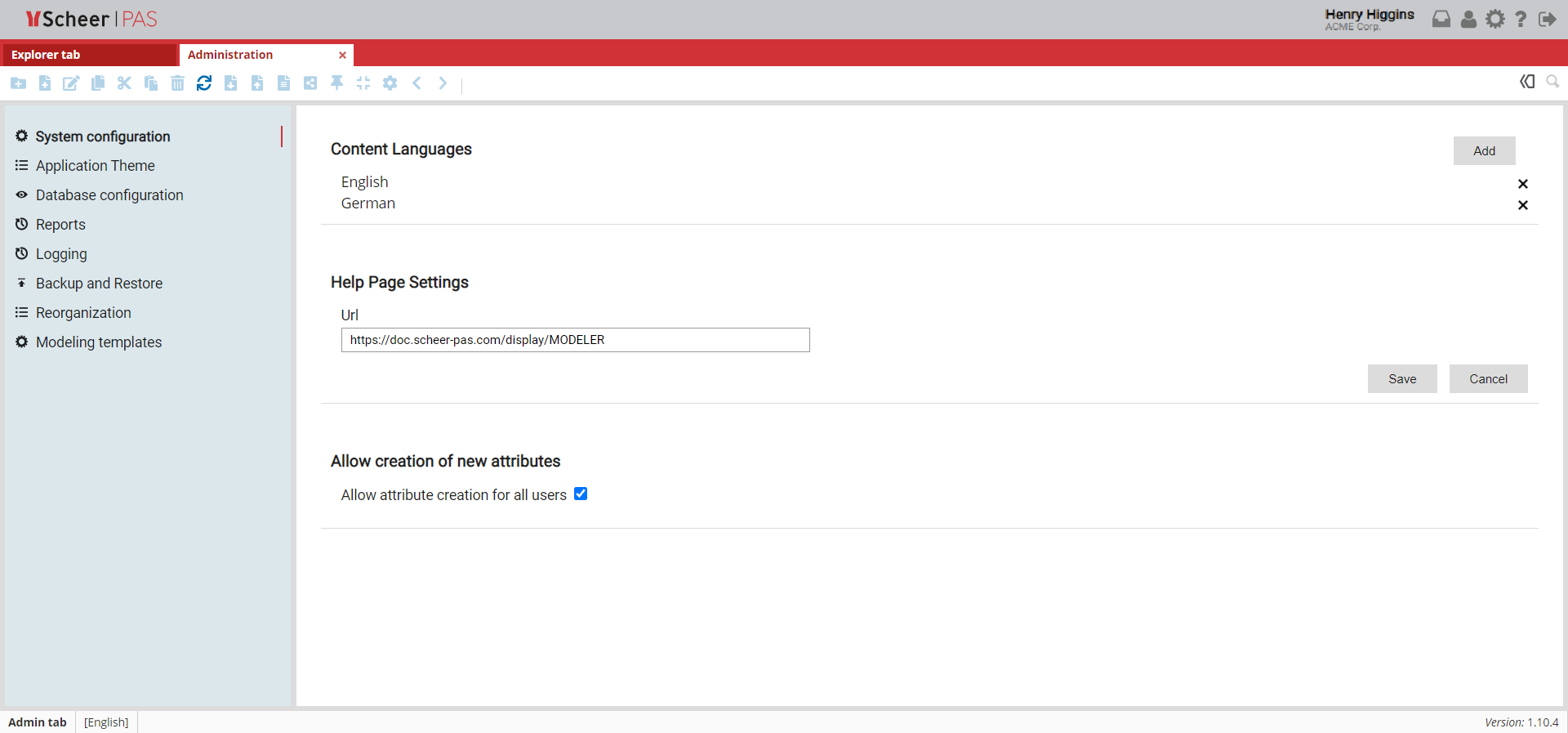

By default, the Administration tab opens with the System Configuration view.

On the left side of the Administration tab, a navigation list is displayed. This list contains all configuration areas that can be managed and customized by administrators, including:

1. System Configuration

2. Application Theme

3. Database Configuration

4. Reports

5. Logging

6. Backup and Restore

7. Reorganization

8. Modelling Templates

9. Role settings for models and objects

10. Solman Synchronization

11. Symbol Customization

12. Identifiers

13. Fragments

When an item is selected from the navigation list, the corresponding configuration options are displayed on the right side of the window.

These options allow administrators to view and modify the settings related to the selected area.
