Troubleshooting Designer
Errors may occur during modeling or when running apps. To facilitate troubleshooting, Scheer PAS Designer displays appropriate error and notification messages. On the following pages we have compiled an overview of the possible information and error messages in Designer.
Error handling is available for the following Designer tools:
We recommend using container deployment as the default deloyment target starting with PAS 23.1. For further information see:
Designer Editor (Toast) Messages

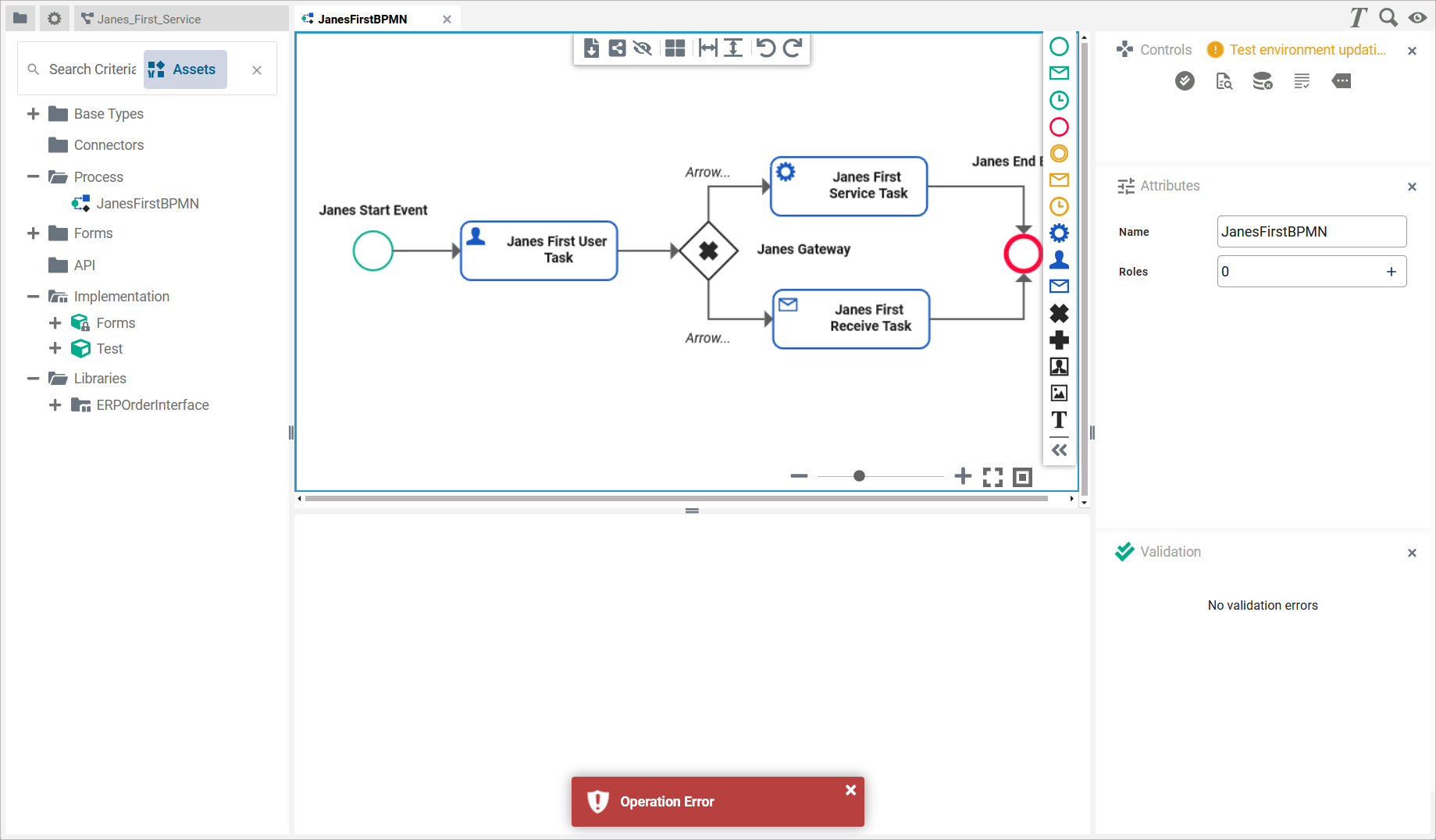

When working in the editors, notifications and error messages are shown as toast message at the bottom of the window:
Refer to Error Handling Designer Editors for an overview on this kind of messages.
Validation Panel Messages

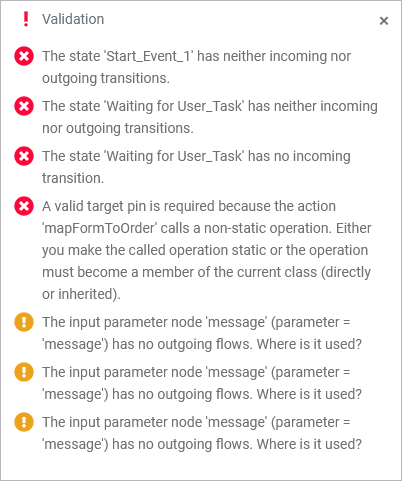

When modeling services, messages for invalid actions and implementations are displayed in the validation panel. You cannot deploy and start a service that still has validation errors. You need to resolve them first.
Refer to Error Handling Validation for an overview on validation panel messages. In the Designer Guide, you find further information about the usage of the validation panel on page Validating a Service.
Expert Advice

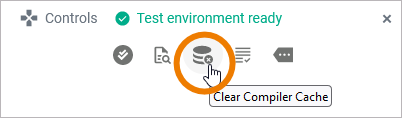

If there are errors in the validation panel that you cannot resolve, try the option Clear Compiler Cache. Using this option reinitializes the test environment:

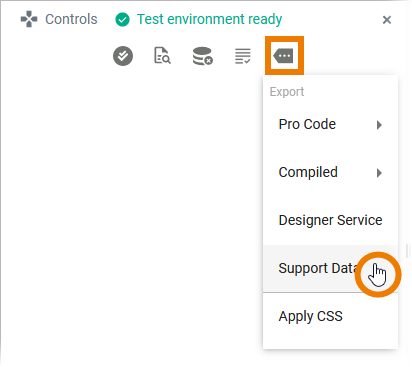

If you still meet errors during compilation or deployment after clearing the cache, export the Support Data and attach it to your support request:

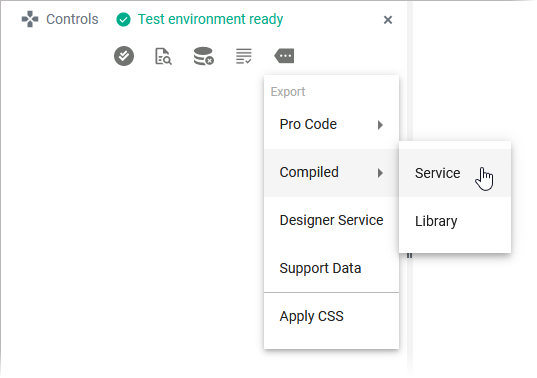

You can deploy a compiled Designer service directly to the PAS integration component or to a container via the deployment wizard in the PAS Administration. This can be a helpful workaround if the deployment keeps running into timeouts:
For further details refer to:
Error Handling Validation > Deploying a Service in the Integration Component
Working with the Deployment Wizard in the Administration Guide
