Monitoring Base Service

Installing the Service

To install the Monitoring service on your system, follow these three steps:

  1. Deploy the service repository on the Bridge you want to monitor.
    The monitoring base service is an BRIDGE service that is deployed like any other BRIDGE xUML service. For further information, see Deployment of xUML Services.
  2. Deploy the needed resources.
    Additionally to the xUML Service, databases errorList.sqlite and errorNotificationJournal.sqlite have to be deployed to the Bridge as a resource. Refer to Deploying and Managing Resources for more information on how to do that.
  3. Register the Monitoring Base Service to receive exceptions from the Bridge.

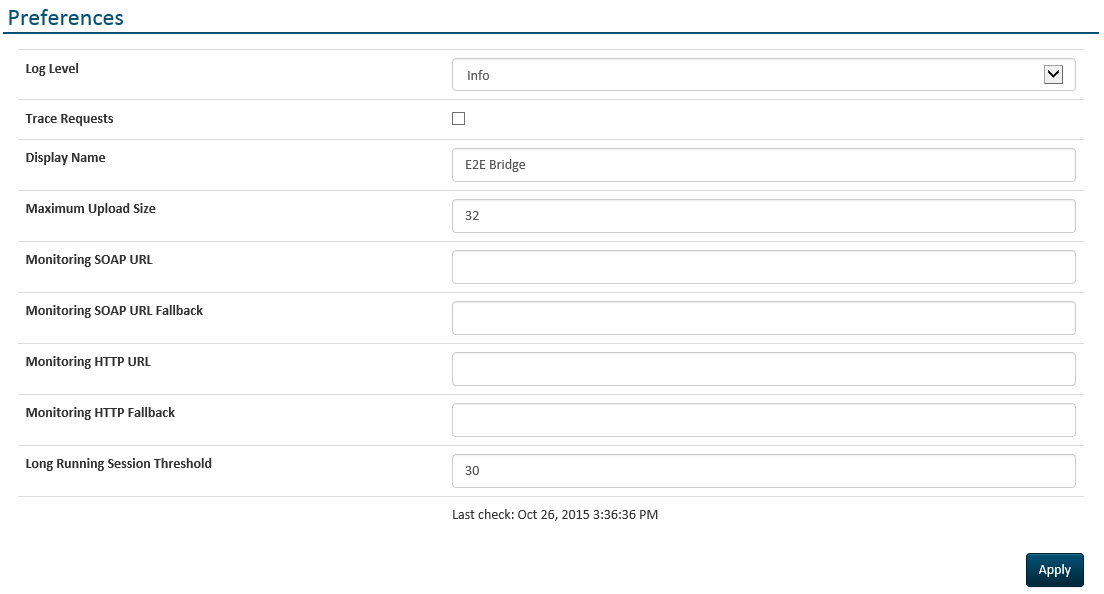

    Go to the top level node of the Bridge. You will find the following preferences:

    The service needs to be registered under Monitoring SOAP URL. If you have several BRIDGE instances, they can be configured as monitoring fallback, if there are problems with the main Bridge. Therefore, the Monitoring Service has to be deployed on the other instance(s), too.

    As SOAP Monitoring URL, enter the following URL:  http://<name of the server>:19000/Services/MonitoringService/MonitoringPortType/MonitoringPort
    Replace <name of the server> with the server name of the BRIDGE instance where the Monitoring Service is deployed.

Changing the Service Settings

The Monitoring Service can be configured via its service settings. For more information on how to access the settings of a service, refer to xUML Service Settings.

Setting NameDescriptionValues / Examples
Basic Mail Settings
(libMonitoring (Lib): EmailSettings)
email test mode (log only)If set to true, notifications will not be sent, but written to the services bridgeserver.log file only.trueTest mode: do not send notifications.
falseNo test mode: send notifications (default).
eMailCCRecipientsSpecify the CC recipients that should receive the notification mail, separated by ";" (no blank).recipient1@domain.com;recipient2@domain.com
eMailSenderSpecify the sender that will appear in the notification mail.sender@domain.com
eMailToRecipientsSpecify the TO recipients that should receive the notification mail.recipient@domain.com
mail send timeout (sec)Specify the number of seconds after which mail sending is considered failed if not completed.60
Template Settings
(libMonitoring (Lib): TemplateSettings)
custom html template fileSpecifies a custom HTML template for the exception mail.
Upload the specified template file (e.g. errorTemplate.html) as a resource to the Bridge (see also Deploying and Managing Resources).
MonitoringHTMLTemplate.html
custom plain text template fileSpecifies a custom text template for the exception mail.
Upload the specified template file (e.g. errorTemplate.txt) as a resource to the Bridge (see also Deploying and Managing Resources).
MonitoringPlainTemplate.txt
custom jira template fileSpecifies a custom template for generated JIRA tickets "description" field.MonitoringJIRATemplate.txt
email subject templateSpecifies the template for generating the subject line of exception mail (may be overriden by notification rules)Bridge Error ${event.type}:${event.code} in ${event.service} on ${event.host}
external template directorySpecifies the location of custom template files. You can leave this blank when use embedded templates=false. But if present, this directory has to exist.../resource/monitoring_templates
first x chars of long messages to render anywaySpecifies the number of characters of long error messages that are displayed in the summary table (see threshold for error message to be considered long further below).30
JIRA summary templateSpecifies the template for rendering the JIRA issue title upon creating new issues.Error ${event.type}:${event.code} in ${event.service} on ${event.host}
link target host nameSpecifies the host part of links generated in notifications that point to the service page in the Bridge UI, i.e. the URL prefix before /admin/Console/...localhost:8080
link target node nameNode part of links, depends on whether you installed Bridge in workstation or server mode. For workstation mode, this is "localhost".localhost
target language [EN, DE]The language you want to have the templates rendered in (this affects only template content, not error message content).EN
threshold for error message to be considered longLong error messages are rendered differently in templates. This setting controls what "long" means. The default is 150+ chars.150
time zoneThe time zone to render for (this affects date/time values rendered in templates only). Refer to Time Zones for a list of valid time zones.Europe/Zurich
use embedded templates

Specifies whether custom templates shall be used for exception mails.

  • If true, settings for external HTML and TXT templates will be ignored and internal templates will be used.
  • If false, the service will attempt to read the specified external templates, and use the internal templates as fallback only.
trueUse internal templates (default).
falseUse custom templates.
Notification Limit Settings
(libMonitoring (Lib): NotificationLimitSettings)

Configuring errors to always notify with a threshold of 1 occurrence can lead to a massive burst of notifications. Some email servers may interpret this as a DoS attack if it happens. Hence you can limit the actual notifications being sent out by specifying a maximum amount per time.

A limit of 10 notifications per minute is effectively the same as 600 notifications per hour, but the latter will allow for small bursts of say 50 mails.

apply notification limitSpecifies whether notification limits are active.trueNotification limits are active.
false Notification limits are inactive (default).
apply notification limit only to guaranteed notificationsSpecifies whether all error notifications are subject to limitation, or only those that are configured as always notify with threshold of one occurrencetrueOnly always=true and threshold=1 are limited (default).
falseAll notifications are limited.
Notification limit (max notifications per period)Specifies the upper limit of notifications allowed to be sent during the configured time window (see Notification limit time window below).any positive integerDefaults to 1000 notifications max.
Notification limit time window [sec]Specifies the time window in seconds for which to apply the maximum number of notifications (see Notification limit (max notifications per period above)any positive integerDefaults to 3600 (one hour)
Threshold in pending notifications to issue an errorIf your services generate error notifications at a high rate, effectively exceeding your sendout limits, notifications start to pile up in a pending state. This setting allows for specifying the tolerated amount of pending notifications. If this limit is exceeded, an according notification will be sent.any positive integerDefaults to 500 pending notifications
JIRA Settings
(libMonitoring (Lib): JIRASettings)
Issue Assignee
Optional: specify the JIRA Assignee for the created ticket by using the JIRA account name (e.g. "userj" for "Joe User").
Be aware that the account used for connecting to JIRA needs the appropriate privileges to set an assignee on a ticket.
juser
Issue  Component
Optional: specify a JIRA Component to be set on the created ticket.
Be aware that the account used for connecting to JIRA needs the appropriate privileges to set a component on a ticket.
QA
Issue  Priority
Optional: specify the priority for the ticket to be created.
Be aware that the account used for connecting to JIRA needs the appropriate privileges to set a priority on a ticket.
Medium
Issue Project Key Specify the JIRA project keyMYPROJ
Issue Reporter
Optional: specify the reporter to set on the created ticket (instead of the account used to connect to JIRA).
Be aware that the account used for connecting to JIRA needs the appropriate privileges to set the reporter on a ticket.
juser
Issue Type Specify the JIRA issue type.Bug (default), any other valid JIRA issue type
JIRA test mode (log only) If set to true, notifications will not be sent, but written to the services bridgeserver log only.trueTest mode: do not send notifications.
falseNo test mode: send notifications (default).
connection settings
For setting up the JIRA connection, refer to the REST Adapter settings at the end of this table.
Mail Server Settings
(libMonitoring (Lib): PrimaryMailServer
libMonitoring (Lib): SecondaryMailServer)
debug output for SMTP SessionSpecify whether the SMTP part should be logged for debug purposes.trueWrite SMTP debug data.
false (default)Do not write SMTP debug data.
Exchange Server version (if applicable) Specify the Exchange Server version, if protocol is set to exchange.2007_SP1Exchange 2007, ServicePack 1
2010Exchange 2010
2010_SP1Exchange 2010, ServicePack 1
2010_SP2Exchange 2010, ServicePack 2 or higher (default).
key store fileSpecify a path to a valid key store file. This file will be used for SMTPS, IMAPS and HTTPS (Exchange) mail sending.
key store passwordProvide the password for the key store access specified above.
Mail Server HostnameSpecify the host name of the mail server.
All Mail Server settings can be set up redundantly (Primary and Secondary) to have a fallback in case the primary mail server is unavailable or raises errors.

Mail Server PasswordProvide the password of the mail server.
Mail Server PortProvide the port the mail server is listening to. Leave this blank if protocol is ' exchange'25 (default)
Mail Server ProtocolProvide the protocol of the mail server.smtp (default)Use SMTP for mail server communication.
smtpsUse SMTPS for mail server communication.
imapUse IMAP for mail server communication
imapsUse IMAPS for mail server communication
exchangeUse MS Exchange for mail server communication
office365Use MS Office365 for mail server communication
Mail Server Security

Specify the encryption method to be used with SMTPS and IMAPS (see Mail Server Protocol). If Exchange is used, leave it none, as HTTPS is used for Exchange Web Services communication anyway.

none (default)No encryption.
sslUse SSL encryption.
starttlsUse STARTTLS encryption.
Mail Server User NameProvide the username of the mail server.

Proxy host

Specify an optional HTTP proxy.

The use of a proxy is optional and applies for exchange/office365 mail server protocols only.

void/emptyNo proxy is used (default).
a valid proxy host
Proxy passwordSpecify the proxy user's password.void/emptyNo proxy is used (default).
a valid password
Proxy portSpecify the proxy server port.-1No proxy is used (default).
a valid proxy port
Proxy user domainSpecify the proxy user's NT domain.void/emptyNo proxy is used (default).
a valid NT domain
Proxy userSpecify the proxy user's name.void/emptyNo proxy is used (default).
a valid proxy user
JIRA Connection Parameters
AddOns -> REST Adapter
(libMonitoring (Lib): JIRAAlias )
Authentication: passwordSpecify the password used for connecting with JIRA. secret
Authentication: userSpecify the JIRA account used for connecting with JIRA. user
FollowRedirects: value Specify the number of redirects to follow (see also REST Adapter reference).5 (default)
Location: basePath Specify the base path for your JIRA server's REST API (leave the default unless you have to use a proxy)./rest/api/2 (default)
Location: hostSpecify the host name of your JIRA server.youraccount.atlassian.net
Location: portSpecify the port to use for connecting with JIRA (leave empty unless you have reasons for not doing so).8081 (e.g. if your proxy forwards HTTPS using this port)
Location: protocolSpecify the protocol to use for connecting with JIRA.https (default)
Proxy: Authentication: password Specify the password used to connect to the proxy server (set to blank if you connect directly).psecret
Proxy: Authentication: use Specify the user used to connect to the proxy server (leave blank if you connect directly).puser
Proxy: type Specify the type of the proxy (leave blank if you connect directly).HTTP

Customizing Message Templates

The service uses the Apache Freemarker template engine to render notifications. The templates are therefore written in FTL (Freemarker Template Language).

If you know what you are doing, you can tweak these templates, but be aware that errors in the template will mean that you will not receive any notifications, as this is the very notification mechanism you are tweaking.

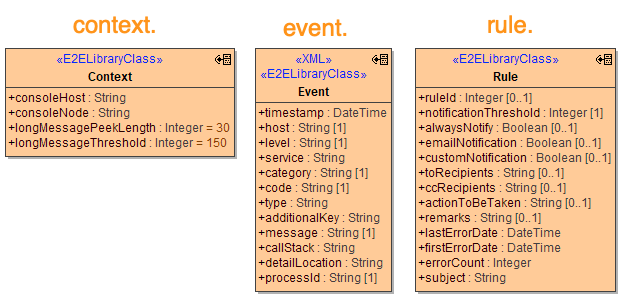

The below class diagram shows the information available to templates (i.e. "the model"). An instance of each class is passed to the engine, prefixed with the lowercase class name and a dot. So e.g. in order to access the message of an error from within a template, you refer to event.message, and in freemarker notation this reads ${event.message}.

  • context: holds information about the host you run on, used mainly to render links to the Console
  • event: details on the specific exception that occured
  • rule: the entry from errorList.sqlite that applied for this exception (you can edit these using the Monitoring UI).

The default templates also refer to internationalized labels and text snippets, which are provided as .properties files and can of cause be adapted or extended to your needs. Be aware that changes to templates require a restart of the monitoring service to take effect. This is due to the service caching the parsed templates for performance reasons.
