This page explains the URL Adapter in Bridge context. If you were looking for the same information regarding the PAS Designer, refer to URL Adapter in the Designer guide.

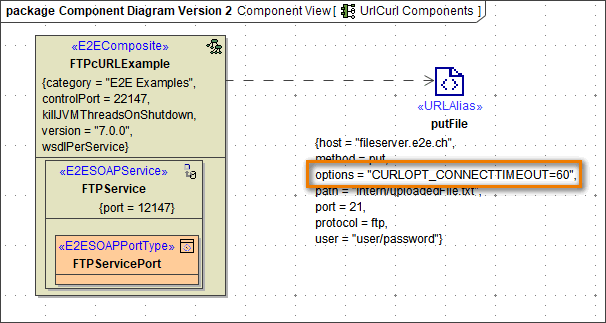

In the component diagram, these options can be set on the URL adapter alias. Use tagged value options in order to set cURL options.
If you want to specify multiple cURL options, list them separated by ',' (comma) or ' ' (blank). If an option allows for multiple values, you can concatenate them by using the '|' (pipe) operator.

Examples:

CURLOPT_CONNECTTIMEOUT=60 (see note below for a hint on this option)
CURLOPT_CONNECTTIMEOUT=60, E2E_FORBID_REUSE=true
CURLOPT_CONNECTTIMEOUT=60 E2E_FORBID_REUSE=true
CURLOPT_HTTPAUTH=CURLAUTH_NTLM|CURLAUTH_NEGOTIATE, E2E_FORBID_REUSE=true

Alternatively it is possible to set the cURL options dynamically in an activity diagram. For that purpose, input an object of type array with name options directly into the URL adapter. The array element must be of class Option which is located in package Base Components/Add Ons/URL. Set the cURL option you want to set to attribute name and the value to attribute value.

Example:

<bridgeDocPath>\\Add-ons\URL\uml\urlCurl.xml

E2E cURL Options

Option	Data Type	Remarks
`E2E_FORBID_REUSE`	Boolean	If `E2E_FORBID_REUSE` is "true" for a SOAP adapter, then all curl connections are closed after the request. This also affects URL adapter options, if there are any.

Native cURL Options

Internally, the URL adapter uses cURL. The following options - listed in alphabetical order - are currently supported (see the cURL documentation for more details).

Legend:	(tick) Option is recognized and forwarded to cURL (warning) Option is recognized and forwarded to cURL, but may overwrite built-in URL adapter functionality (cross) Option is not supported and not forwarded to cURL

All cURL data types can be set by using Bridge Strings:

cURL Data Type	Bridge Type	Comment
Array(String)	Array of Strings	You must use a cast() to use this type, because the URL option value is of type String.
Bitmask	String	It is a string containing a string of cURL options separated by the pipe character ("\|").
Blob	n/a	Is not supported.
Boolean	String	You can use `false` or `0` for false and `true` or `1` for true.
Callback	n/a	Is not supported.
Constant	String	Use the defined strings from cURL . For example, for the option `CURLOPT_FTP_FILEMETHOD` you can use `CURLFTPMETHOD_MULTICWD`, `CURLFTPMETHOD_NOCWD` or `CURLFTPMETHOD_SINGLECWD`. The xUML Runtime will convert the strings to numbers.
FileHandle	n/a	Is not supported.
Integer	String	String will be converted to a number.
String	String

Option	Data Type	Supported	Supported cURL Constants / Remarks		Since Version
`CURLOPT_ACCEPT_ENCODING`	String	(tick)			Runtime 2020.11
`CURLOPT_ACCEPTTIMEOUT_MS`	Integer	(tick)			Runtime 2020.11
`CURLOPT_APPEND`	String	(tick)			Runtime 2020.11
`CURLOPT_AUTOREFERER`	Boolean	(tick)
`CURLOPT_AWS_SIGV4`	String	(tick)			Runtime 2021.4
`CURLOPT_BUFFERSIZE`	Integer	(tick)
`CURLOPT_CAINFO`	String	(warning)
`CURLOPT_CAPATH`	String	(tick)
`CURLOPT_CA_CACHE_TIMEOUT`	Integer	(tick)	In seconds (see cURL documentation ).		Runtime 2023.2
`CURLOPT_CONNECTTIMEOUT`	Integer	(tick)	In seconds (see cURL documentation). This timeout applies to the connection phase of the TCP/IP protocol only. If you want to use timeout limiting the whole interaction time, use `CURLOPT_TIMEOUT`.
`CURLOPT_CONNECT_ONLY`	Boolean	(tick)
`CURLOPT_CRLF`	Boolean	(tick)
`CURLOPT_CRLFILE`	String	(tick)			Runtime 2020.11
`CURLOPT_CONV_FROM_NETWORK_FUNCTION`	Callback	(cross)
`CURLOPT_CONV_FROM_UTF8_FUNCTION`	Callback	(cross)
`CURLOPT_CONV_TO_NETWORK_FUNCTION`	Callback	(cross)
`CURLOPT_COOKIE`	String	(tick)
`CURLOPT_COOKIEFILE`	String	(tick)
`CURLOPT_COOKIEJAR`	String	(tick)
`CURLOPT_COOKIELIST`	String	(tick)
`CURLOPT_COOKIESESSION`	Boolean	(tick)
`CURLOPT_CUSTOMREQUEST`	String	(warning)
`CURLOPT_DEBUGDATA`	Blob	(cross)
`CURLOPT_DEBUGFUNCTION`	Callback	(cross)
`CURLOPT_DIRLISTONLY`	String	(tick)			Runtime 2020.11
`CURLOPT_DNS_CACHE_TIMEOUT`	Integer	(tick)	In seconds (see cURL documentation ).
`CURLOPT_DNS_USE_GLOBAL_CACHE`	Boolean	(tick)
`CURLOPT_DOH_SSL_VERIFYHOST`	Boolean	(tick)			Runtime 2021.4
`CURLOPT_DOH_SSL_VERIFYPEER`	Boolean	(tick)			Runtime 2021.4
`CURLOPT_DOH_SSL_VERIFYSTATUS`	Integer	(tick)			Runtime 2021.10
`CURLOPT_DOH_URL`	String	(tick)			Runtime 2020.11
`CURLOPT_EGDSOCKET`	String	(tick)
`CURLOPT_ENCODING`	String	(tick)
`CURLOPT_ERRORBUFFER`	Blob	(cross)
`CURLOPT_EXPECT_100_TIMEOUT_MS`	Integer	(tick)			Runtime 2020.11
`CURLOPT_FAILONERROR`	Boolean	(warning)
`CURLOPT_FILETIME`	Boolean	(tick)
`CURLOPT_FORBID_REUSE`	Boolean	(tick)
`CURLOPT_FRESH_CONNECT`	Boolean	(tick)
`CURLOPT_FTP_ACCOUNT`	String	(tick)
`CURLOPT_FTP_ALTERNATIVE_TO_USER`	String	(tick)
`CURLOPT_FTPAPPEND`	Boolean	(tick)
`CURLOPT_FTP_CREATE_MISSING_DIRS`	Boolean	(tick)
`CURLOPT_FTP_FILEMETHOD`	Constant	(tick)	CURLFTPMETHOD_DEFAULT	Same behavior as if no method is specified.
			CURLFTPMETHOD_MULTICWD	cURL does a single CWD operation for each path part in the given URL.
			CURLFTPMETHOD_NOCWD	cURL does no CWD at all.
			CURLFTPMETHOD_SINGLECWD	libccURL does one CWD with the full target directory and then operates on the file "normally".
`CURLOPT_FTPLISTONLY`	Boolean	(tick)
`CURLOPT_FTP_RESPONSE_TIMEOUT`	Integer	(tick)	In seconds (see cURL documentation ).
`CURLOPT_FTPPORT`	String	(tick)
`CURLOPT_FTP_SKIP_PASV_IP`	Boolean	(tick)
`CURLOPT_FTP_SSL`	Constant	(tick)	Deprecated. Use CURLOPT_USE_SSL instead.
`CURLOPT_FTP_SSL_CCC`	Boolean	(tick)	false represents `CURLFTPSSL_CCC_NONE`, true is for `CURLFTPSSL_CCC_PASSIVE` .
`CURLOPT_FTPSSLAUTH`	Constant	(tick)	CURLFTPAUTH_DEFAULT	Allow cURL to decide.
			CURLFTPAUTH_SSL	Try SSL first, and only if that fails try TLS.
			CURLFTPAUTH_TLS	Try TLS first, and only if that fails try SSL.
`CURLOPT_FTP_USE_EPRT`	Boolean	(tick)
`CURLOPT_FTP_USE_EPSV`	Boolean	(tick)
`CURLOPT_FTP_USE_PRET`	String	(tick)			Runtime 2020.11
`CURLOPT_FOLLOWLOCATION`	Boolean	(warning)
`CURLOPT_HAPPY_EYEBALLS_TIMEOUT_MS`	Integer	(tick)			Runtime 2020.11
`CURLOPT_HAPROXYPROTOCOL`	String	(tick)			Runtime 2020.11
`CURLOPT_HEADER`	Boolean	(tick)
`CURLOPT_HEADERDATA`	Blob	(cross)
`CURLOPT_HEADERFUNCTION`	Callback	(cross)
`CURLOPT_HTTPAUTH`	Constant	(tick)	^C^URLAUTH_ANY	cURL will automatically select the one it finds most secure.
			^{CURLAUTH_ANYSAFE}	all except basic authentication. cURL will automatically select the one it finds most secure.
			^{CURLAUTH_AWS_SIGV4}	AWS V4 signature (see CURLOPT_AWS_SIGV4).	Runtime 2021.4
			^{CURLAUTH_BASIC}	basic authentication
			CURLAUTH_DIGEST	digest authentication
			^{CURLAUTH_GSSNEGOTIATE}	deprecated, use `CURLAUTH_NEGOTIATE` instead
			CURLAUTH_NEGOTIATE	negotiate (SPNEGO) authentication
			CURLAUTH_NTLM	NTLM authentication
`CURLOPT_HTTPGET`	Boolean	(tick)
`CURLOPT_HTTPHEADER`	Array(String)	(warning)
`CURLOPT_HTTPPOST`	Other	(cross)
`CURLOPT_HTTPPROXYTUNNEL`	Boolean	(tick)
`CURLOPT_HTTP_VERSION`	Constant	(tick)	CURL_HTTP_VERSION_NONE	cURL will use whatever HTTP version it thinks fit.
			CURL_HTTP_VERSION_1_0	Enforce HTTP 1.0 requests.
			CURL_HTTP_VERSION_1_1	Enforce HTTP 1.1 requests.
`CURLOPT_HTTP200ALIASES`	Array(String)	(tick)
`CURLOPT_IGNORE_CONTENT_LENGTH`	Boolean	(tick)
`CURLOPT_INFILESIZE`	Integer	(warning)
`CURLOPT_INFILESIZE_LARGE`	Integer	(warning)
`CURLOPT_INTERFACE`	String	(warning)
`CURLOPT_IOCTLDATA`	Blob	(cross)
`CURLOPT_IOCTLFUNCTION`	Callback	(cross)
`CURLOPT_IPRESOLVE`	Constant	(tick)	CURL_IPRESOLVE_WHATEVER	Resolves addresses to all IP versions that your system allows.
			CURL_IPRESOLVE_V4	Resolve to IPv4 addresses.
			CURL_IPRESOLVE_V6	Resolve to IPv6 addresses.
`CURLOPT_ISSUERCERT`	String	(tick)			Runtime 2020.11
`CURLOPT_KEYPASSWD`	String	(tick)
`CURLOPT_KRB4LEVEL`	String	(tick)
`CURLOPT_LOCALPORT`	Integer	(tick)
`CURLOPT_LOCALPORTRANGE`	Integer	(tick)
`CURLOPT_LOW_SPEED_LIMIT`	Integer	(tick)
`CURLOPT_LOW_SPEED_TIME`	Integer	(tick)	In seconds (see cURL documentation ).
`CURLOPT_MAXAGE_CONN`	Integer	(tick)			Runtime 2020.11
`CURLOPT_MAXCONNECTS`	Integer	(tick)
`CURLOPT_MAXFILESIZE`	Integer	(tick)
`CURLOPT_MAXFILESIZE_LARGE`	Integer	(tick)
`CURLOPT_MAXLIFETIME_CONN`	Integer	(tick)			Runtime 2022.5
`CURLOPT_MAX_RECV_SPEED_LARGE`	Integer	(tick)
`CURLOPT_MAXREDIRS`	Integer	(warning)
`CURLOPT_MAX_SEND_SPEED_LARGE`	Integer	(tick)
`CURLOPT_MIME_OPTIONS`	Constant	(tick)	CURLMIMEOPT_FORMESCAPE	Tells libcurl to escape multipart form field and file names using the backslash-escaping algorithm rather than percent-encoding (HTTP only). See cURL documentation for more.	Runtime 2022.5
`CURLOPT_NETRC`	Constant	(tick)	CURL_NETRC_OPTIONAL	The use of your `~/.netrc` file is optional, and information in the URL is to be preferred.
			CURL_NETRC_IGNORED	cURL will ignore the file and use only the information in the URL.
			CURL_NETRC_REQUIRED	The use of the file is required, the information in the URL is ignored.
`CURLOPT_NETRC_FILE`	String	(tick)
`CURLOPT_NEW_DIRECTORY_PERMS`	Integer	(tick)			Runtime 2020.11
`CURLOPT_NEW_FILE_PERMS`	Integer	(tick)			Runtime 2020.11
`CURLOPT_NOBODY`	Boolean	(tick)
`CURLOPT_NOPROGRESS`	Boolean	(tick)
`CURLPOT_NOPROXY`	String	(tick)	See cURL documentation .
`CURLOPT_NOSIGNAL`	Boolean	(warning)
`CURLOPT_QUOTE`	Array(String)	(tick)
`CURLOPT_PATH_AS_IS`	String	(tick)			Runtime 2020.11
`CURLOPT_PINNEDPUBLICKEY`	String	(tick)			Runtime 2020.11
`CURLOPT_PORT`	Integer	(tick)
`CURLOPT_POST`	Boolean	(tick)
`CURLOPT_POSTFIELDS`	Blob	(cross)
`CURLOPT_POSTFIELDSIZE`	Integer	(tick)
`CURLOPT_POSTFIELDSIZE_LARGE`	Integer	(tick)
`CURLOPT_POSTQUOTE`	Array(String)	(warning)
`CURLOPT_POSTREDIR`	String	(tick)			Runtime 2020.11
`CURLOPT_PREQUOTE`	Array(String)	(tick)
`CURLOPT_PREREQDATA`	Blob	(cross)
`CURLOPT_PREREQFUNCTION`	Callback	(cross)
`CURLOPT_PRIVATE`	Blob	(cross)
`CURLOPT_PROGRESSDATA`	Blob	(cross)
`CURLOPT_PROGRESSFUNCTION`	Callback	(cross)
`CURLOPT_PROTOCOLS_STR`	String	(cross)
`CURLOPT_PROXY`	String	(warning)
`CURLOPT_PROXYAUTH`	Constant	(tick)	CURLAUTH_BASIC	basic authentication
			CURLAUTH_DIGEST	digest authentication
			CURLAUTH_NEGOTIATE	negotiate (SPNEGO) authentication
			CURLAUTH_GSSNEGOTIATE	deprecated, use `CURLAUTH_NEGOTIATE` instead
			CURLAUTH_NTLM	NTLM authentication
			CURLAUTH_ANY	cURL will automatically select the one it finds most secure.
			CURLAUTH_ANYSAFE	All except basic authentication. cURL will automatically select the one it finds most secure.
`CURLOPT_PROXY_CAINFO`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_CAPATH`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_CRLFILE`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXYHEADER`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_ISSUERCERT`	String	(tick)			Runtime 2021.4
`CURLOPT_PROXY_KEYPASSWD`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXYPASSWORD`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_PINNEDPUBLICKEY`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXYPORT`	Integer	(warning)
`CURLOPT_PROXY_SERVICE_NAME`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_SSLCERT`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_SSLCERTTYPE`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_SSL_CIPHER_LIST`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_SSLKEY`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_SSLKEYTYPE`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_SSL_OPTIONS`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_SSL_VERIFYHOST`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_SSL_VERIFYPEER`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_SSLVERSION`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_TLS13_CIPHERS`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXY_TRANSFER_MODE`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXYTYPE`	Constant	(warning)	CURLPROXY_HTTP	HTTP proxy
			CURLPROXY_SOCKS4	SOCKS4 proxy
			CURLPROXY_SOCKS5	SOCKS5 proxy
`CURLOPT_PROXYUSERNAME`	String	(tick)			Runtime 2020.11
`CURLOPT_PROXYUSERPWD`	String	(warning)
`CURLOPT_PUT`	Boolean	(tick)
`CURLOPT_QUICK_EXIT`	Boolean	(cross)
`CURLOPT_RANDOM_FILE`	String	(tick)
`CURLOPT_RANGE`	String	(tick)
`CURLOPT_READDATA`	Blob	(cross)
`CURLOPT_READFUNCTION`	Callback	(cross)
`CURLOPT_REDIR_PROTOCOLS_STR`	String	(cross)
`CURLOPT_REFERER`	String	(tick)
`CURLOPT_RESOLVE`	String	(tick)			Runtime 2020.11
`CURLOPT_RESUME_FROM`	Integer	(tick)
`CURLOPT_RESUME_FROM_LARGE`	Integer	(tick)
CURLOPT_SERVER_RESPONSE_TIMEOUT	Integer	(tick)			Runtime 2021.4
`CURLOPT_SERVICE_NAME`	String	(tick)			Runtime 2020.11
`CURLOPT_SOCKS5_AUTH`	String	(tick)			Runtime 2020.11
`CURLOPT_SOCKS5_GSSAPI_NEC`	String	(tick)			Runtime 2020.11
`CURLOPT_SOCKS5_GSSAPI_SERVICE`	String	(tick)			Runtime 2020.11
`CURLOPT_SSH_AUTH_TYPES`	Constant	(tick)	`CURLSSH_AUTH_KEYBOARD` is not implemented for obvious reasons.
`CURLOPT_SSH_HOSTKEYDATA`	Blob	(cross)
`CURLOPT_SSH_HOSTKEYFUNCTION`	Callback	(cross)
`CURLOPT_SSH_HOST_PUBLIC_KEY_SHA256`	String	(tick)			Runtime 2022.5
`CURLOPT_SSH_PUBLIC_KEYFILE`	String	(tick)
`CURLOPT_SSH_PUBLIC_KEY_MD5`	String	(tick)
`CURLOPT_SSH_PRIVATE_KEYFILE`	String	(tick)
`CURLOPT_SHARE`	FileHandle	(cross)
`CURLOPT_SSLCERT`	String	(warning)
`CURLOPT_SSLCERTTYPE`	String	(warning)
`CURLOPT_SSLCERTPASSWD`	String	(tick)
`CURLOPT_SSL_CIPHER_LIST`	String	(tick)
`CURLOPT_SSL_CTX_DATA`	Blob	(cross)
`CURLOPT_SSL_CTX_FUNCTION`	Callback	(cross)
`CURLOPT_SSLENGINE`	String	(tick)
`CURLOPT_SSLENGINE_DEFAULT`	None	(tick)
`CURLOPT_SSLKEY`	String	(warning)
`CURLOPT_SSLKEYTYPE`	String	(warning)
`CURLOPT_SSLKEYPASSWD`	String	(warning)
`CURLOPT_SSL_OPTIONS`	Constant	(tick)	CURLSSLOPT_ALLOW_BEAST	Tells libcurl to not attempt to use any workarounds for a security flaw in the SSL3 and TLS1.0 protocols. See cURL documentation for more.
`CURLOPT_SSL_SESSIOID_CACHE`	Boolean	(tick)
`CURLOPT_SSL_VERIFYHOST`	Integer	(warning)
`CURLOPT_SSL_VERIFYPEER`	Boolean	(warning)
`CURLOPT_SSL_VERIFYSTATUS`	Integer	(tick)			Runtime 2021.10
`CURLOPT_SSLVERSION`	Constant	(tick)	CURL_SSLVERSION_DEFAULT	Default action. This will attempt to figure out the remote SSL protocol version.
			CURL_SSLVERSION_TLSv1	Use TLSv1.x.
			CURL_SSLVERSION_SSLv2	Use SSLv2.
			CURL_SSLVERSION_SSLv3	Use SSLv3.
`CURLOPT_STDERR`	FileHandle	(cross)
`CURLOPT_TCP_NODELAY`	Boolean	(tick)
`CURLOPT_TELNETOPTIONS`	Array(String)	(tick)
`CURLOPT_TIMECONDITION`	Constant	(tick)	CURL_TIMECOND_IFMODSINCE
`CURLOPT_TIMECONDITION`	Constant	(tick)	CURL_TIMECOND_IFUNMODSINCE
`CURLOPT_TIMEOUT`	Integer	(tick)	In seconds (see cURL documentation ).
`CURLOPT_TIMEOUT_MS`	Integer	(tick)	In milliseconds (see cURL documentation ).
`CURLOPT_TIMEVALUE`	Integer	(tick)
`CURLOPT_TIMEVALUE_LARGE`	Integer	(tick)			Runtime 2020.11
`CURLOPT_TLS13_CIPHERS`	String	(tick)			Runtime 2020.11
`CURLOPT_TRANSFERTEXT`	Boolean	(tick)
`CURLOPT_UNRESTRICTED_AUTH`	Boolean	(tick)
`CURLOPT_UPLOAD`	Boolean	(warning)
`CURLOPT_URL`	String	(warning)
`CURLOPT_USE_SSL`	Constant	(tick)	CURLUSESSL_NONE	Do not attempt to use SSL.
			CURLUSESSL_TRY	Try using SSL, proceed as normal otherwise.
			CURLUSESSL_CONTROL	Require SSL for the control connection
			CURLUSESSL_ALL	Require SSL for all communication.
`CURLOPT_USERAGENT`	String	(tick)
`CURLOPT_USERPWD`	String	(warning)
`CURLOPT_VERBOSE`	Boolean	(warning)
`CURLOPT_WRITEDATA`	Blob	(cross)
`CURLOPT_WRITEFUNCTION`	Callback	(cross)
`CURLOPT_WS_OPTIONS`	Bitmask	(cross)
`CURLOPT_XOAUTH2_BEARER`	String	(tick)			Runtime 2020.11

cURL documentation
