Constructors




<your example path>\Basic Modeling\Data\uml\constructors.xml



Declaring Constructors

A constructor "initializes" an object. Each time an objects gets created, its constructor is called. The constructor then executes its duties like setting initial values or even processing complex operations.

create statement creates an object by invoking its constructor. Object fields are guaranteed to be initialized to their default values when the constructor is called. If no user-defined default constructor exists, an empty constructor will be implicitly created. The implicit default constructor does nothing. The default constructor is a constructor that can be called without parameters (it has no parameters or all its parameters have default values).

Each constructor initializes its part of the final class. Each super class's constructor is guaranteed to be executed first, before the constructor of the child class gets executed. By default, a default constructor of the parent is implicitly run. One can however influence this and replace the implicit call by an explicit call as described in .

User-defined constructors are operations having the same name as the owning class. For example, the classes ParentClass and OutputClass contain four explicitly defined constructors: ParentClass(), ParentClass(privateValue:String) respectively OutputClass(), OutputClass(privateValue:String):

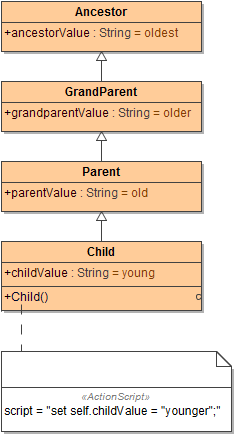

Example: Creating Objects


The statement

create aChildObject;

creates the following object:

aChildObject { ancestorValue:"oldest", grandparentValue:"older", parentValue:"old", childValue:"young"

}


The statement

create aChildObject();

creates the following object:

aChildObject { ancestorValue:"oldest", grandparentValue:"older", parentValue:"old", childValue:"younger"

}

Calling Constructors

Constructors are called if the name of the created object is followed by parentheses:

Syntax


create <objectName>(<constructor parameters>);
create local <objectName>(<constructor parameters>) using ...;


Semantics

Calling a constructor.

Substitutables

objectName

Any given name.

constructorParameters

Parameters of the constructor. The compiler will invoke a constructor of the class of objectName having the same parameters.

Examples


create o1;
create o2(); // difference to o1: looking for a constructor without any arguments
create o3(input.aString);
create local l1 using typeOf(o1);
create local l2() using OutputUsage;
create local l3("local value") using typeOf(o3);


Calling Constructors of Super Classes

If a constructor has to call the constructor of its super class explicitly, the keyword super can be used. The super()statement invokes the constructor that is matching parameters of the super()call itself. This call has to happen as the first statement in the first action.

Syntax


super(<constructor parameters>);


Semantics

Calling a constructor of the super (parent) class.


constructorParameters

Parameters of the constructor. The compiler will then invoke a constructor of the class of objectName having the same parameters.

Examples


super();
super(privateValue);
