Get Array Element Operator [ ]


Syntax




anArray[anIndex]


Semantics

The operator [i] returns the i-th element of the array. The first element has the position 0. anIndex can be a static integer literal, an object of type Integer, or an E2E Action Language operation or expression returning an integer.

Substitutables

anArray

Can be any variable or object attribute having the type Array.

anIndex

Can be any expression that evaluates to an integer.


It is not possible to use class operations as index function – only built-in E2E Action Language operations are allowed.

Examples




set arrayElement = inputContainer.myList[0];
set arrayElement = anArray[anArray.count() - 1].mySubList;
set arrayElement = anArray[indexVariable];





<your example path>\E2E Action Language\Array\uml\arrayGetElement.xml



Consider the example being displayed below. InputContainer is an object that contains an array of type String. This array is named myList and can have zero to n elements. You can select a specific element of an array by using its index. The indices start at 0. To get a reference of the first myList item, the following statement is used:

set arrayElement1 = inputContainer.myList[0];

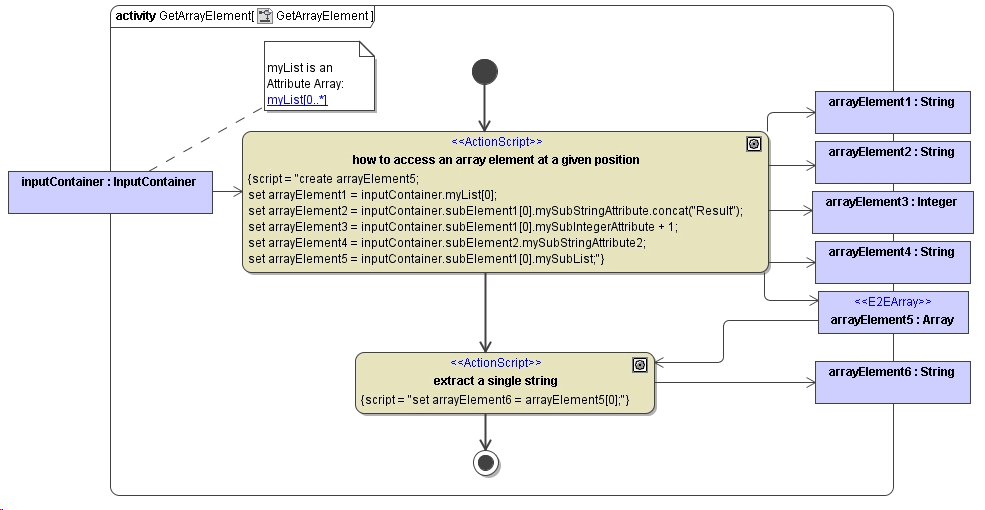

In an activity diagram, this looks like shown below.

Figure: Using the[ ]-Operator: A Simple Example


The index number can be a static integer literal, an object of type Integer or an E2E Action Language operation or expression returning an integer. The following activity diagram illustrates some of the more complicated cases:

Figure: Using the[ ]-Operator: A Complex Example
