Working With the Administration
Using the Services' List

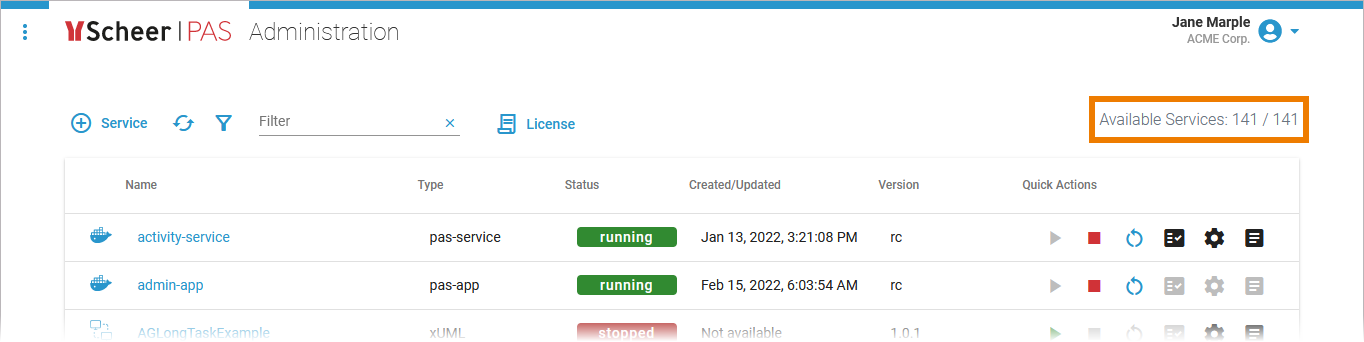

All available services are displayed in the list on the administration start page.
We recommend using container deployment as the default deloyment target starting with PAS 23.1. For further information see:

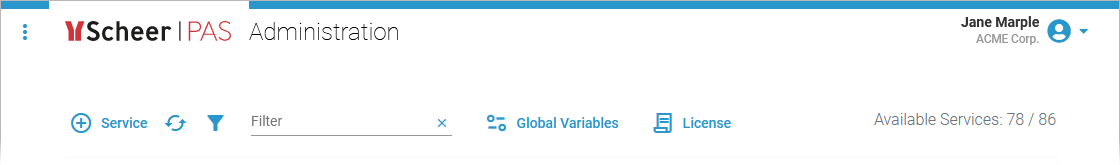

In the navigation bar of the services' list you can find the following options:
UI Element | Name | Description |
|---|---|---|
 | Deployment Wizard | Opens the deployment wizard. |
 | Reload Service List | Refreshes the list of services. |
 | Extended Filter | Opens the extended filter. |
 | Full Text Filter | Enter your search criteria to filter the list of services. |
 | Global Variables | Opens the global variables view.Refer to Managing Global Variables for Containerized xUML Services for details. This feature is only available in a Kubernetes setup. |
 | License Information | Opens detailed license information. |
 | Available Services | Displays the number of all available services. |
Managing Services

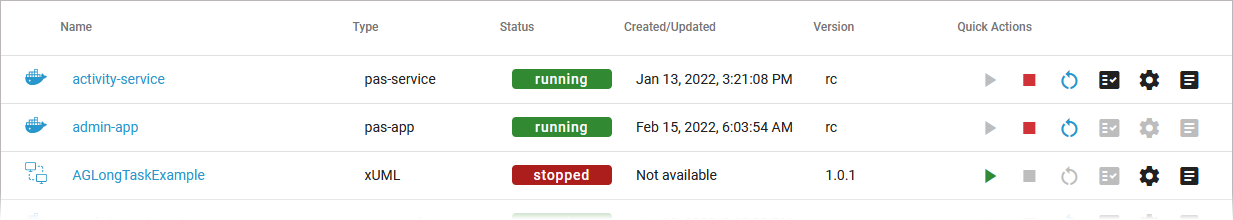

The list of services shows all the services that are available on the platform and that your user is allowed to see according to his user rights (refer to Overview of Standard Profiles for details):
The list contains the following information:
Column Name | Description | Possible Values | Possible Values | Possible Values |
|---|---|---|---|---|
Name | Name of the service. Click on the name to access the service details page. |  Indicates a Docker container. |  Indicates an integration service. |  Indicates a Kubernetes workload. |
Type | Indicates the type of the service. What is the difference between pas-app and pas-service?
|
Other service types may be displayed. |
|
Other service types may be displayed. |
Status | Indicates the status of the service. Container of type init should always be in status exited. |        |     | |
Created/Updated | Shows the date and time of the last update of the service. If the service has not been updated yet, its creation date is displayed. | Datetime in format dd.mm.yyyy, hh:mm:ss | ||
Version |
| - | Version number determined by the creator of the service. | - |
Quick Actions
The quick action icons grant direct access to the applicable actions for each service.
Icon | Description |
|---|---|
 | Click Play to start the service. |
 | Click Stop to stop the service. |
 | Click Restart to restart the service. |
Click Log Level to change the log level. For further details in a Docker setup, refer to: For further details in a Kubernetes setup, refer to: | |
 | Click Edit Configuration to change the service configuration.
For further details in a Docker setup, refer to: For further details in a Kubernetes setup, refer to: |
 | Click Open Logs to access the service logs.
For further details about log analysis refer to Analyzing Platform Logs . For further details in a Docker setup, refer to: For further details in a Kubernetes setup, refer to: |
Filtering the Services' List

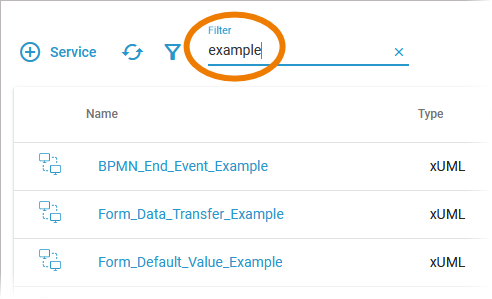

Use the filter field to search for a specific service. The content of the filter field is applied to the services' names and types:

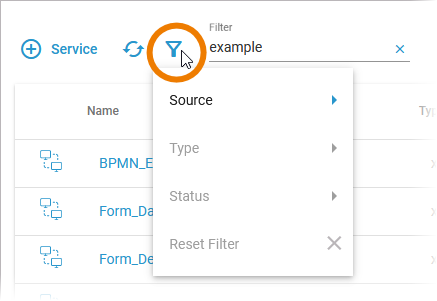

Use the Extended Filter to display the extended filter options:
Source
Type
Status
Reset Filter
The content of Type and Status depends on the selected Source:
Source | Docker | Kubernetes | Integration (Bridge) |
|---|---|---|---|
Type |
Other service types may be displayed. |
Other service types may be displayed. |
|
Status |
|
|
|

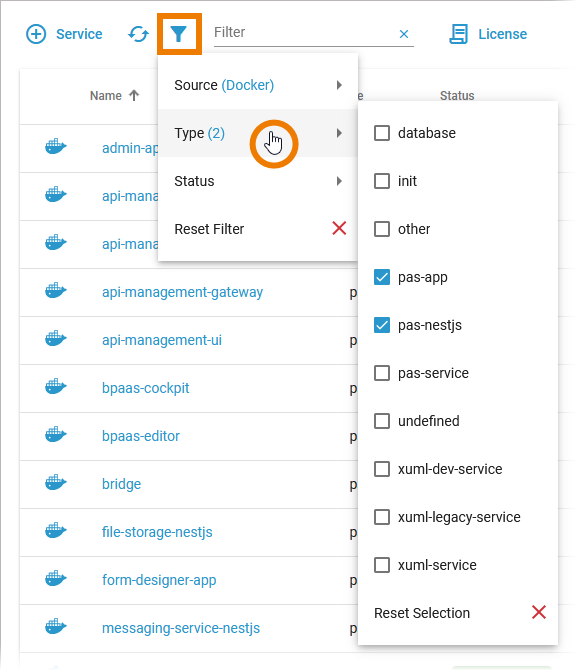

If a filter is applied, the Extended Filter image changes. The extended filter allows you to select multiple types and states:

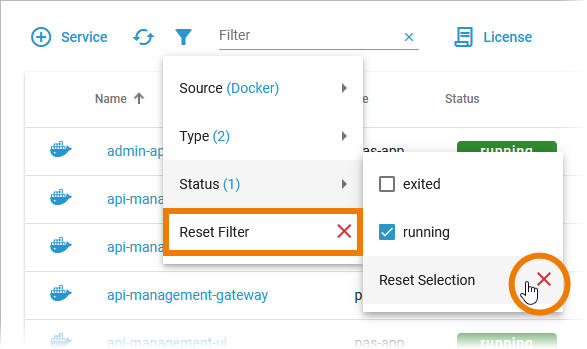

Click Reset Filter in the main filter window to reset all selected filters. In each filter option window, you can also reset the specific selection:
Sorting the Services' List

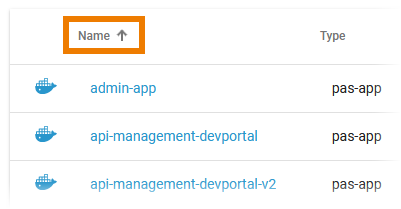

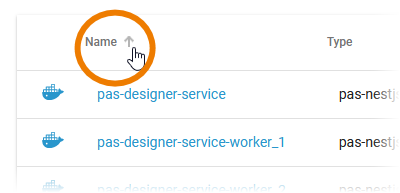

The contents of the service list can also be sorted. Click the column you want to sort by (all columns except Quick Actions are sortable):
The content is sorted according to the selected column. In addition, an arrow appears in the top column, indicating whether the data has been sorted in an ascending or descending order. Click again to change the direction.
First click: Ascending order
Second click: Descending order
Third click: Ordering disabled
Viewing License Information

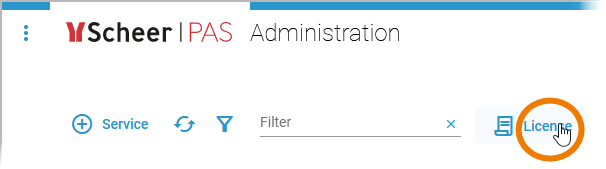

If you want to inspect detailed information about the license of your PAS installation, click License in the navigation bar:

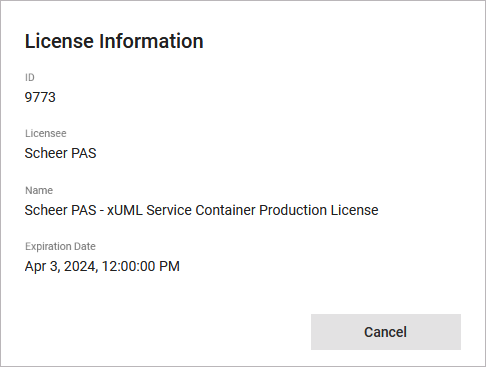

The license information is read-only and will open in a separate pop-up. It shows the following:
License ID
Licensee
License Name
Expiration Date
Click Cancel to close the pop-up:
