Changing the Log Level of a Containerized xUML Service (Kubernetes)

This option is only available for type xuml-service (= containerized xUML services).

In the administration application you have the possibility to change the log level for a containerized xUML service.

You have two options to open the input form where you can change the log level:

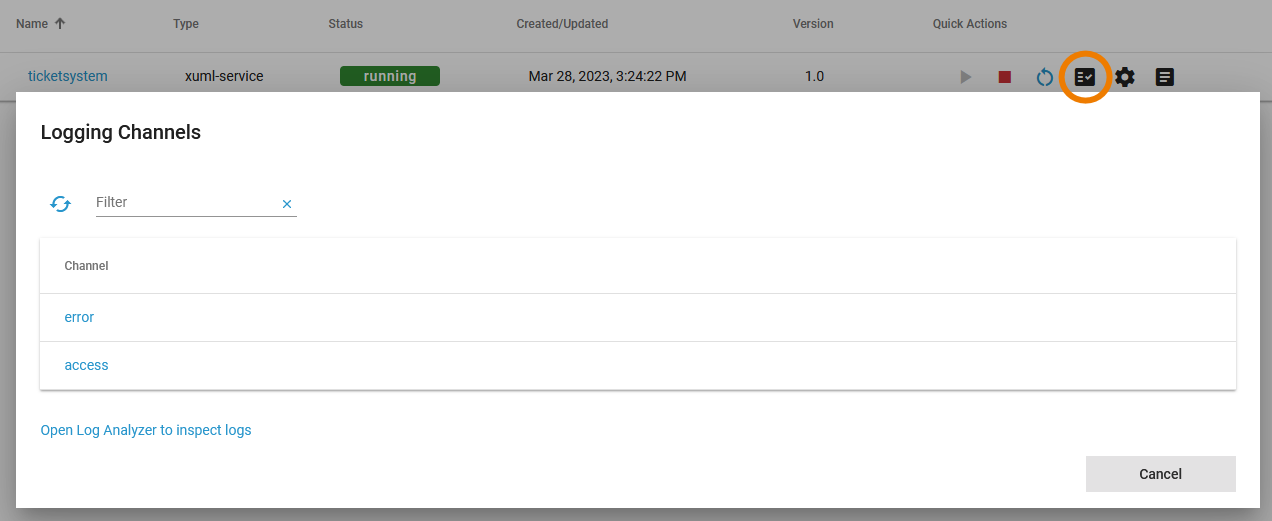

• Use action Change log level from the quick actions bar in the services' list. This will open a pop-up window.

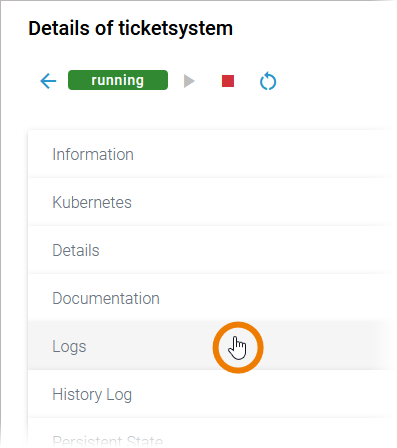

• Open the details page of the service and scroll down to section Logs.

The logging concept of the xUML Runtime is build around the concepts of channels and sinks. Refer to xUML Runtime Logger Configurationfor detailed information.

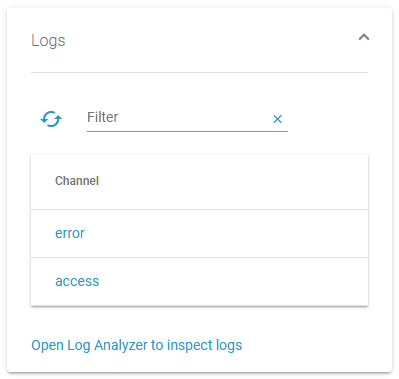

In sections Logs, you can choose between two channels:

• error to write service logging data.

• access to write transaction logging data.

The link below gives you direct access to the Log Analyzer, refer to Showing Logs of a Containerized xUML Service (Kubernetes) and Analyzing Platform Logs for further information.

Select a channel to open the related channel sinks. Sinks define the logging output and how it is written. Refer to xUML Runtime Logger Configuration for detailed information.

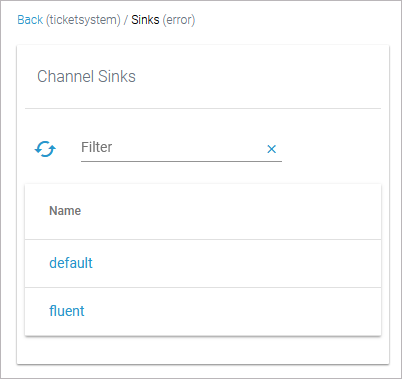

You can choose between two channel sinks:

• default for the console of the Docker container (for experienced admins only having access to the host system).

• fluent for the log information sent to Log Analyzer (OpenSearch).

For more information about the Log Analyzer, refer to Analyzing Platform Logs.

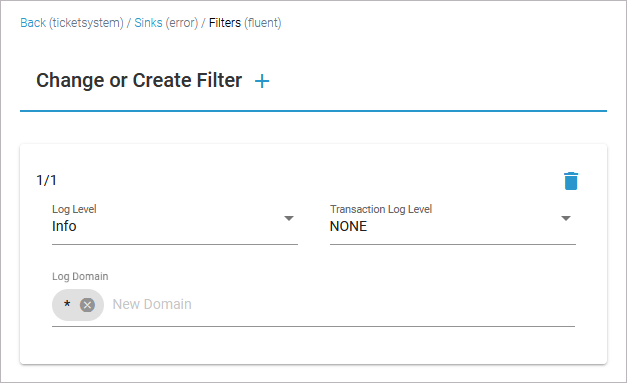

On the sink level, you can now adapt:

• the Log Level (see below)

• the Transaction Log Level (see below)

• the Contents of the Transaction Log

If you have selected log level Debug, a lot of information is logged. It can then be helpful to exclude certain log domains in order to narrow down the number of logs. Refer to Designer Guide > Log Errors for an overview on all error domains and their error codes.

Please note that changes of the log level are directly applied to the container. They are effective until a restart or a recreation of the container which is also the case when the service settings are changed.

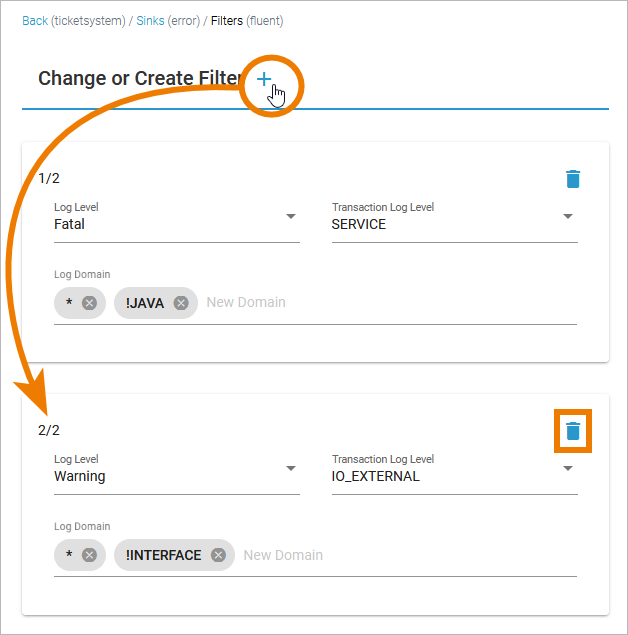

Click Add to add more filters, click Delete to remove single filters:

Default Retention Time of Log Files

The following retention times are valid for log files of your PAS installation:

• Container logs: Log files inside all containers are deleted after 7 days.

• Log Analyzer (OpenSearch) logs:

  • Single cluster: Log files are deleted after 14 days.

  • High Availability cluster: Log files are deleted after 30 days.

• Integration (Bridge) logs: The default retention time for Bridge logs is 30 days. This is configurable in the UI, refer to Node Instance Preferences.

Log Levels of an xUML Service

You can set the following log levels for each xUML service. The higher the log level, the more information is written to the log files. The log levels in the table below are cumulative and are ordered from the lowest to the highest log level. For each log level, also the information of the lower levels is logged.

Log Level	Description
None	No logging at all.
Fatal	Log fatal errors.	The service cannot continue its normal execution, e.g. due to repository errors, system limitations like no more available threads or memory. These errors need the intervention of an administrator to solve the problem.
Error	In addition to Fatal, non-fatal errors are also logged.	These errors are not written if they are caught in the Designer service model, e.g. connection errors, wrong SQL statements, applying operations to invalid values, and so forth.
Warning	In addition to Error,   warnings are also logged.	Warnings indicate unexpected but non-critical situations that do not interrupt normal operation.
Info	In addition to Warning, general information is also logged.	This includes, for instance, which component is being started or stopped, loaded add-ons, licensing information, etc.
Debug	In addition to Info, low-level debug information is also logged.	In addition to log level Info, low-level debug information is written into an error file specified in the error message. Furthermore, the full communication stream when using the URL or SOAP adapter is written to the xUML service standard log. For more details on debugging an xUML service, refer to xUML Service Dump in the Integration User's Guide. Use this log level with care and only when investigating problems. As all tracing information has to be logged, it may result in significant loss of performance with increasing complexity of the deployed xUML service.

Transaction Log Levels

You can set the following transaction log levels for each xUML service. The higher the log level, the more information is written to the log files. The log levels in the table below are cumulative and are ordered from the lowest to the highest log level. For each log level, also the information of the lower levels is logged.

Logging also includes start and end time of service calls and can be used to analyze process performance. Refer to Contents of the xUML Service Transaction Log in the Administration Guide for a reference page with all transaction log details.
