Adapting the Configuration of Containerized xUML Services (Kubernetes)

This option is only available for type xuml-service (= containerized xUML services).

The administration application allows you to change the configuration of a containerized xUML service. You have two options to open the configuration:

Use action Edit configuration from the quick actions bar in the services' list.

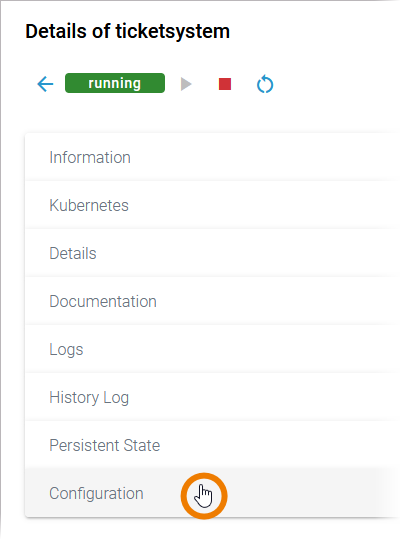

Open the details page of the service and scroll down to section Configuration.

Changing xUML Service Settings

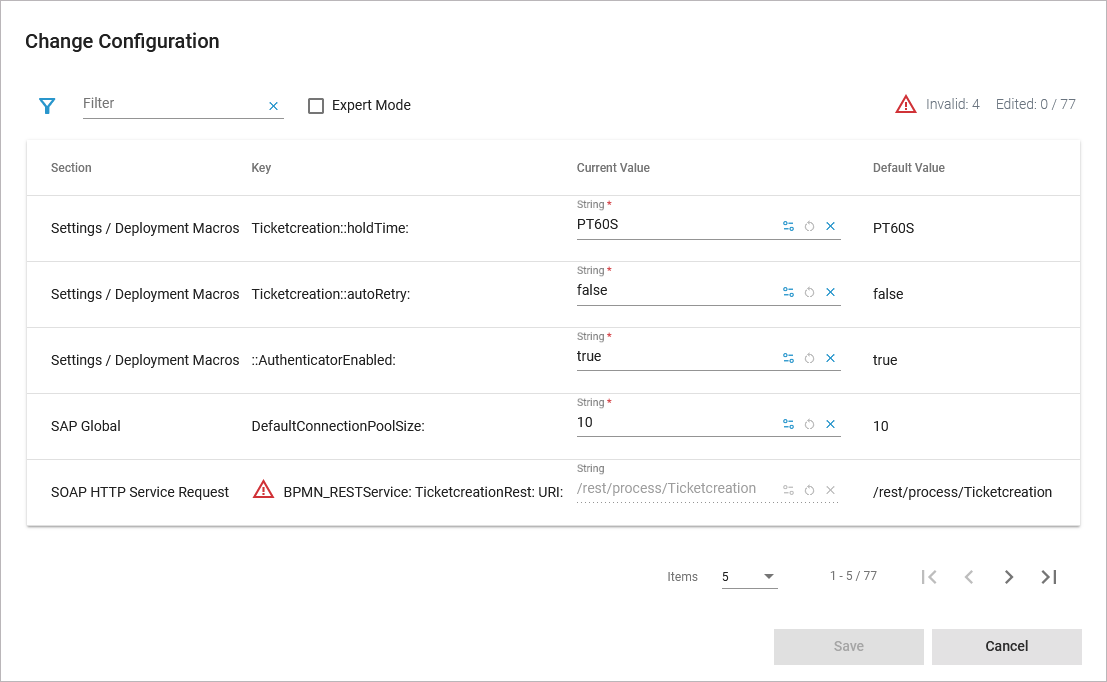

In the Configuration section you can directly modify xUML service settings. When you save your changes, the container will be re-created and restarted. Changes are possible after the first deployment of the containerized service:

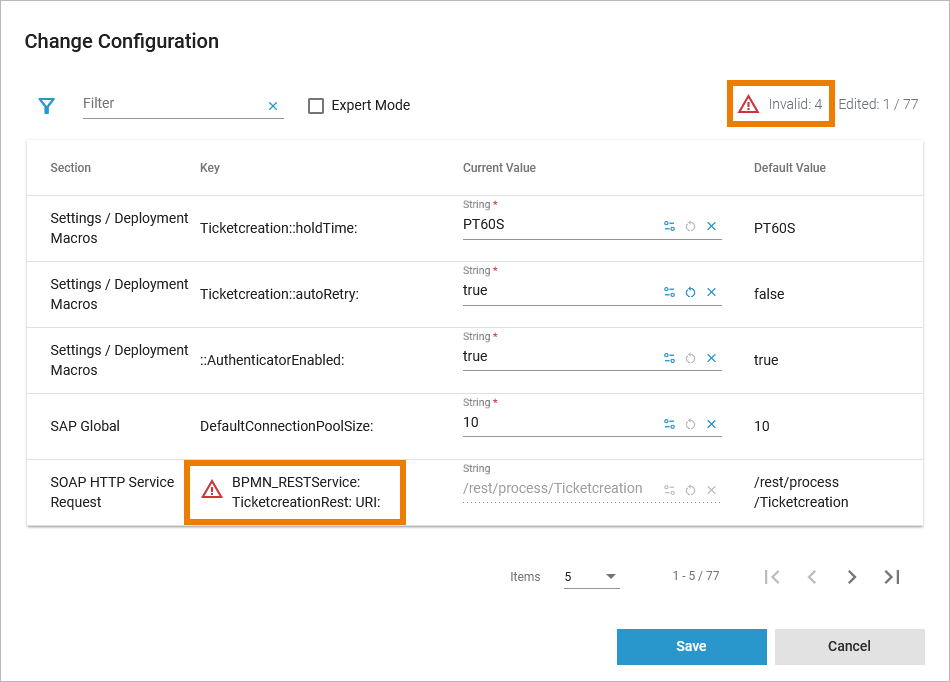

Service settings can be erroneous if a setting name contains special characters or whitespaces. Invalid service settings are marked with a red flag. Their number is also displayed on top right of the list. If a service setting is erroneous, you cannot change its current value.

In case that your service contains erroneous settings, you can do the following:

If it is a setting in a Designer service ("custom value"): Open the service in the Designer, correct the settings' name and redeploy the service.
If it is a setting in a platform service, please contact our support team.

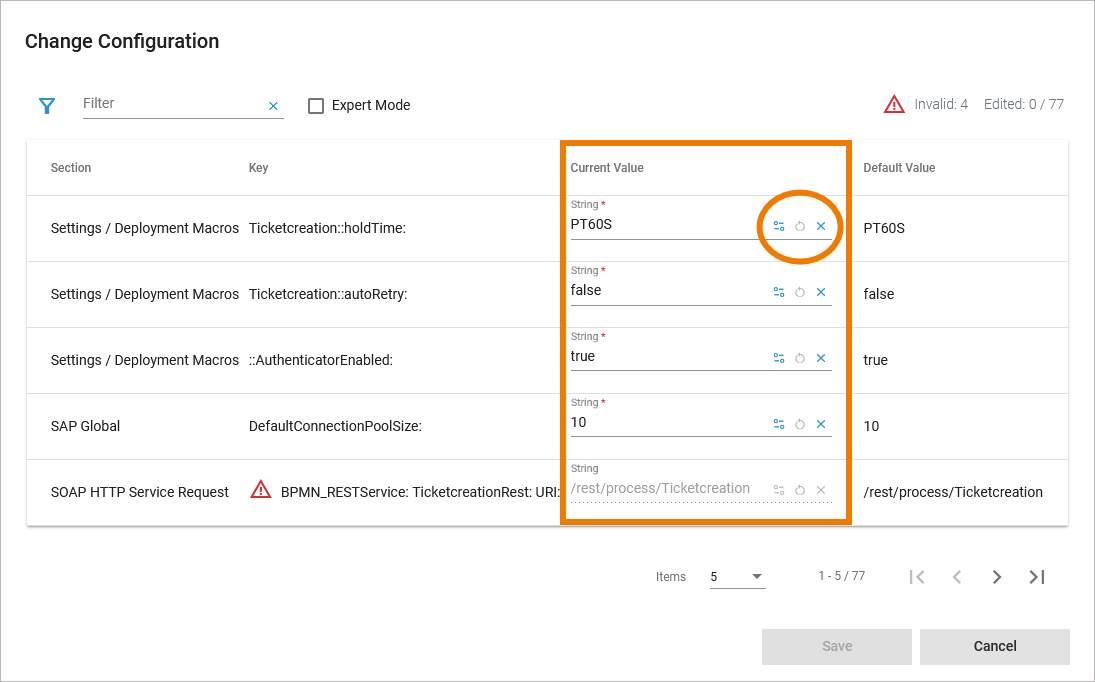

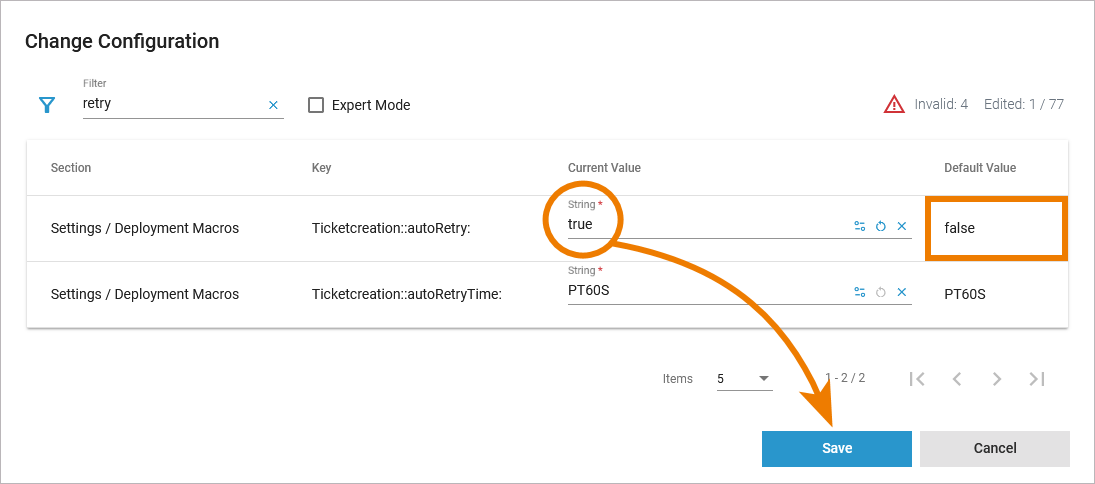

You can change the Current Value of a service setting: Just overwrite the displayed value:

The field offers you three additional options:

Icon	Option	Description
	Assign Global Variable	Use this option to apply a global variable, see Assigning a Global Variable for details.
	Reset to Default	Use this option to reset the setting to its default. For your information, the Default Value is displayed next to the current value.
	Clear Value	Use this option to remove the content of the Current Value field.

Please note:

Save is only enabled when changes have been made.
Clicking Save triggers a restart, changes in the Configuration section are directly applied to the service.

Assigning a Global Variable

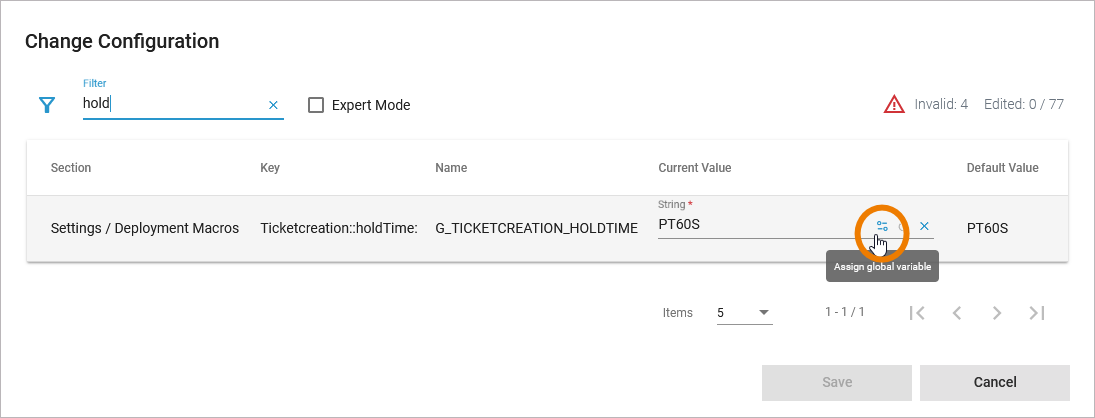

If you want to use a global variable instead of entering a value manually, click Assign global variable:

For detailed information about global variables and how to create them, refer to Managing Global Variables for Containerized xUML Services.

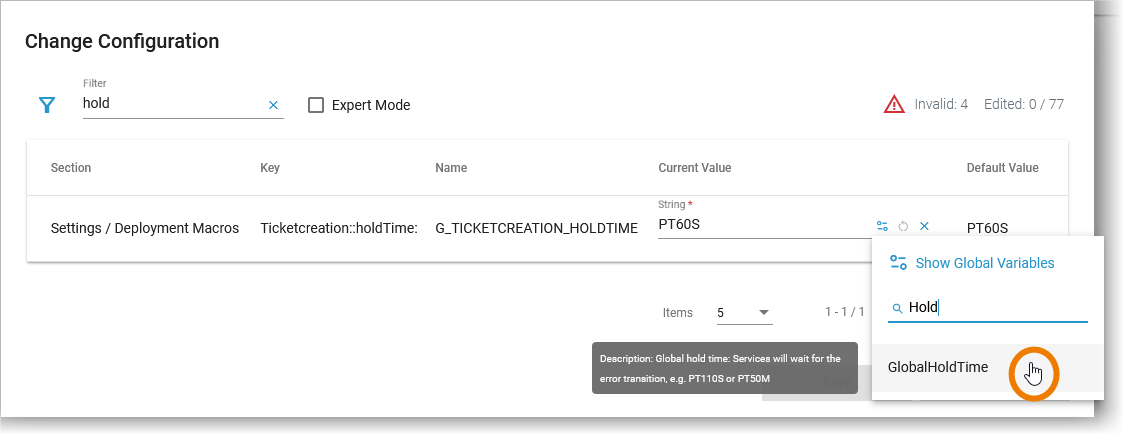

A menu opens in which all available global variables are displayed that are of the same type as the current value that you want to change. Hover over a global variable to display its description in a tooltip. Use option Show Global Variables to open the global variables view. It shows all available global variables and their details. You can also create new global variables here (refer to Managing Global Variables for Containerized xUML Services for more information):

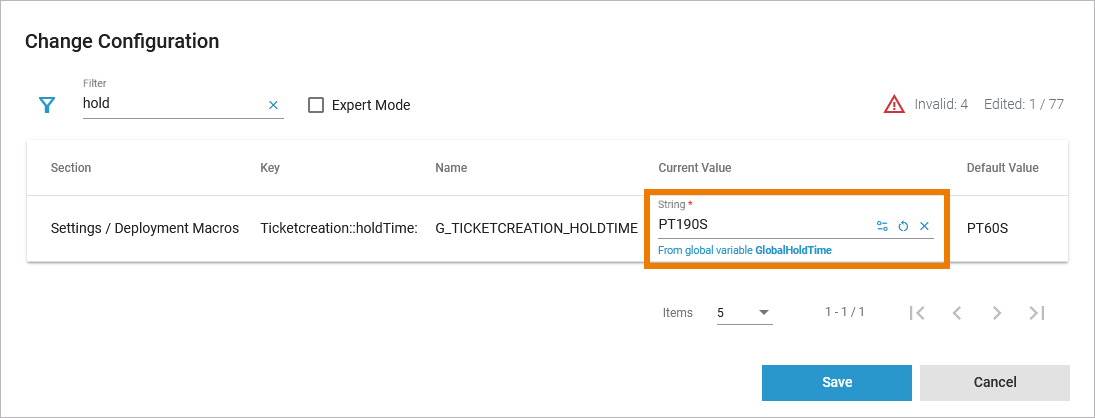

Click a global variable in the list to apply its value to the Current Value field. To emphasize that a global variable is used, a corresponding note is displayed:

Please note:

Save is only enabled when changes have been made.
Clicking Save triggers a restart, changes in the Configuration section are directly applied to the service.

Filtering the Settings' List

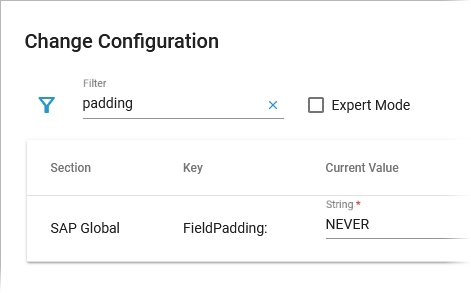

As there are many available settings, use the filter field to search for the setting you want to modify. The content of the filter field is applied to the columns Section and Key:

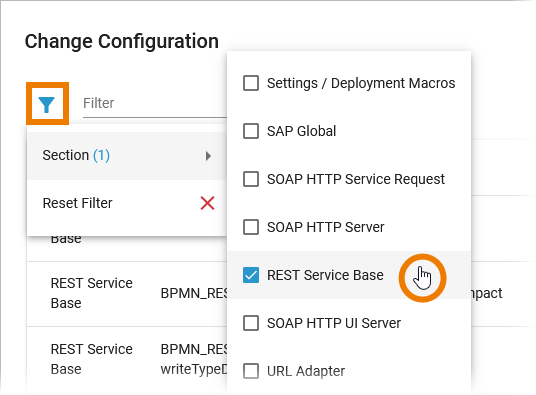

Click Extended Filter to display the extended filter options:

Section
Reset Filter

If a filter is applied, the extended filter image changes:

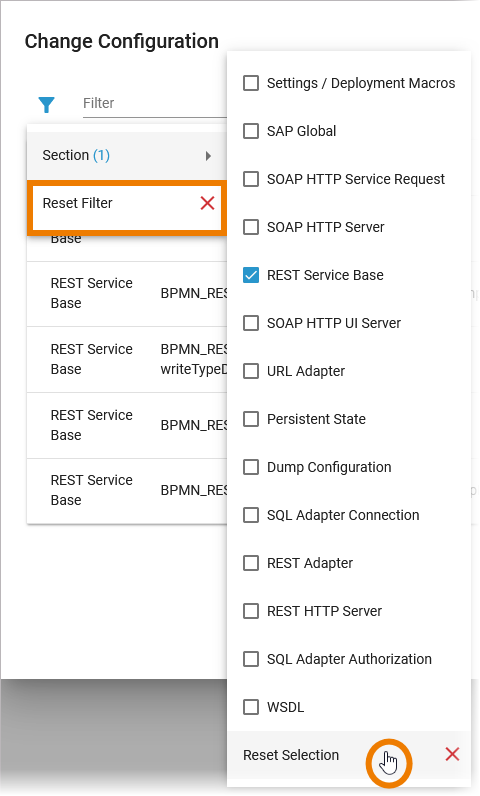

Use option Reset Filter in the main filter window to reset all selected filters. In the filter option window, you can also reset the selection:

xUML Service Settings

You can modify settings of a service no matter if the service is running or if it has been stopped. Saving the changes triggers a re-create and restart of the container. Changing the settings on a stopped service will start the service. Settings will be stored, so if you stop the service and restart it, the settings are restored.

If you delete a service, all settings are lost and cannot be recovered.

Global Settings

Settings Group	Setting	Description	Allowed Values
Settings / Deployment Macros	Service Composite
	getCompositeCategory	Value returned by Action Language macro getCompositeCategory(). Initial value of this setting is the category specified in the service details (see Managing the Service Details). You can change this value here.	any string
	getCompositeName	Value returned by Action Language macro getCompositeName(). Initial value of this setting is the service name. You can change this value here.	any string
	getCompositeVersion	Value returned by Action Language macro getCompositeVersion(). Initial value of this setting is the service version in the service details (see Managing the Service Details). You can change this value here.	a version string
	PAS Platform
	KeycloakInstance::clientId	Specify the clientId to use when authenticating the service. Default is keycloak-clientId. The clientId is defined in Keycloak, it should be changed in production to define specific authorization for this service.	any string
	KeycloakInstance::clientSecret	Specify the clientSecret associated to the clientId. Default is keycloak-clientSecret. The clientSecret is defined in Keycloak, it should be changed in production to define specific authorization for this service.	any string
	KeycloakAlias:Location:host	Specify the hostname (domain) of the Keycloak SSO system. Default is keycloak-host.	any string
	KeycloakAlias:Location:basePath	Specify the subpath of the Keycloak system. Default is keycloak-basePath.	any string
	KeycloakAlias:Location:port	Specify the port of the Keycloak system. Default cannot be changed.	8080
	KeycloakAlias:Location:protocol	Specify the protocol of the Keycloak system. Default cannot be changed.	http
	Service
	<service settings>	In your Designer service, you can define name-value pairs using the setting macro in an implementation. These values can be modified here.

Adapter Settings

Each xUML service adapter has its own settings that are initialized in the xUML model and can be changed in the configuration.

If you are running an xUML service that is connecting to a database backend, you can modify the tagged values of the database interface respectively dependency. Before starting a deployed xUML service that connects to a database backend, you may want to redefine required database parameters.

Generally, most of the add-on settings that are related to an xUML Service Adapter have a corresponding tagged value in the component diagram. Refer to the Designer Guide for these settings.

Other

Find below a list of other add-on settings and their description. For the sake of completeness, we also mentioned settings coming from the model for some setting groups (see column Specified in Model on).

Settings Group	Setting	Specified in Model on	Description	Allowed Values
Dump Configuration	Caught Error Code		Only dump errors with the specified code.Specify a Bridge user defined error code. This setting takes no effect if Dump not Caught Errors/Dump Context on Error is disabled.	a string
	Caught Error Domain		Only dump errors of the specified error domain. Specify a Bridge user defined error domain. This setting takes no effect if Dump not Caught Errors/Dump Context on Error is disabled.	a string
	Dump Caught Errors: enabled		Enable/Disable writing an error dump file for errors that have been caught in the xUML service model. This setting takes no effect if Dump not Caught Errors/Dump Context on Error is disabled.	true	Create a service dump for caught errors.
	Dump Caught Errors: enabled			false	Disable service dump for caught errors (default).
	Dump not Caught Errors: enabled		Enable/Disable writing an error dump file at all. This setting corresponds to the xUML service preference Dump Context on Error (refer to Integration User's Guide > Preferences of an xUML Service).	true	Create a service dump for not caught errors (default).
	Dump not Caught Errors: enabled			false	Disable service dump for not caught errors. This disables error dump at all.
Persistent State	Owner		Change the name of the persistent state object owner here. Each persistent state object is owned by a persistent state engine. If you change the owner setting, all subsequently created persistent state objects will belong to the new owner. All existing persistent state objects of the old owner will not been processed anymore by this service as they belong to a different owner now.
	Worker Limit	Composite	Specify the worker limit. Workers defines the maximum number of parallel threads used to process pending events. The default setting is 5, which is used if none or 0 workers are configured. The implications of more or less workers are discussed in xUML Service Reference Guide > Performance Considerations of Persistent State.
REST Service HTTP Server	Descriptor: Cache Control: value		Specify the Browser caching options for the YAML file by setting a value for HTTP header `Cache-Control`. For more information on this header, refer to Cache-Control on the Mozilla pages.
REST Service HTTP Server	Test Tool: Cache Control: value		Specify the Browser caching options for the Swagger UI by setting a value for HTTP header `Cache-Control`. For more information on this header, refer to Cache-Control on the Mozilla pages.
REST Service Base	<your service name>: enabled		Switch the service port on / off. When the service port is deactivated, it will not accept any request anymore.	true	Service port is active (default).
	<your service name>: enabled			false	Service port is deactivated.
	<your service name>:JSONComposerOptions: compact	REST Service	Specify the JSON compose option for the REST request/response. When jsonCompact is true, the JSON composer will generate compact JSON, otherwise it will generate pretty JSON. jsonCompact defaults to true - also on re-compile of an older model with Builder as of 7.0.0-beta3.	true	Generate compact JSON (default).
	<your service name>:JSONComposerOptions: compact	REST Service		false	Generate pretty JSON.
	<your service name>: JSONComposerOptions: keepNulls	REST Service	Specify the JSON compose option for the REST request/response. When jsonKeepNulls is true, attributes of the REST response object having NULL values will be rendered to the REST response, otherwise they will be left out completely (refer to xUML Service Reference Guide > NULL Values).	true	Render attributes with NULL values to the REST call.
	<your service name>: JSONComposerOptions: keepNulls	REST Service		false	Leave out attributes with NULL values in the REST call (default).
	<your service name>: MaximumConnections:		Change the maximum number of parallel requests to the service port.
	<your service name>: Port		Change the port the xUML service listens to. The original value comes from the SOAP service component.	a valid port number
	<your service name>: ResolveHostnames		Define whether the host name is logged to the service logs instead of the IP address.	true	Resolve the IP address to the hostname in the service logs (default).
	<your service name>: ResolveHostnames			false	Write the IP address to the service logs.
SOAP HTTP Server	Allow Tracing		Switching tracing on / off. All xUML services are compiled with tracing enabled. This option allows you to turn off the tracing, so that no trace information is returned by the Bridge when a service is called.	true	The Runtime returns tracing information on request (default).
	Allow Tracing			false	The Runtime does not return tracing information.
	Maximum Connections		Change the maximum number of parallel requests to the service port.
	ResolveHostnames		Define whether the host name is logged to the service logs instead of the IP address.	true	Resolve the IP address to the hostname in the service logs (default).
	ResolveHostnames			false	Write the IP address to the service logs.
	<your service name>Port		Change the port the xUML service listens to. The original value comes from the SOAP service component.	a valid port number
SOAP HTTP Server Request	<your service name>: <your port type>: enabled		Switch the service port on / off. When the service port is deactivated, it will not accept any request anymore.	true	Service port is active (default).
	<your service name>: <your port type>: enabled			false	Service port is deactivated.
	<your service name>: <your port type>: URI	Component diagram	Change the service URI. The default value comes from the component diagram of the xUML service.
SOAP HTTP UI Server	Library Cache Control: value		Specify the Browser caching options for the UI files (HTML, CSS, ...) by setting a value for HTTP header `Cache-Control`. For more information on this header, refer to Cache-Control on the Mozilla pages.
WSDL: <your service name>	WSDL: <your service name> host		Specify the host name of the server for the xUML service WSDL.	`${server_hostname}`	Name of the Bridge node instance the service is deployed to.
WSDL: <your service name>	WSDL: <your service name> host			a fully qualified system name

Expert Mode

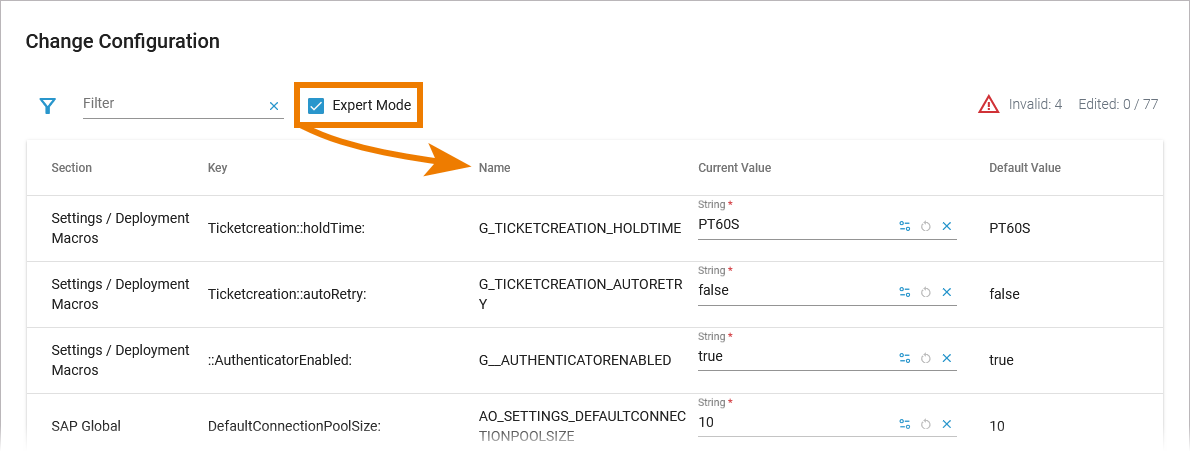

Use the checkbox Expert Mode to display further options:

If you want to set xUML service settings for containerized services from the outside using the xuml-tool, you will need the Name (= friendly Id) as the environment variable. Refer to Integration Platform User's Guide > xUML Runtime Tool for details.
