REST API
With the Designer, you can model REST services and develop software in the form of resources with RESTful interfaces. For more information on the concepts of REST refer to the Wikipedia pages of Representational State Transfer.
These pages explain, how REST concepts are implemented to Designer services. The implementation supports JSON and XML content types, and other content types via blob parameters. It also provides an OpenAPI 2.0 Specification for REST service documentation and test.
The xUML REST service supports IPv6. For more information on how to access a REST service from a Designer service, refer to REST Adapter.
Concepts and Conventions
The concepts of REST are based on Resource-Oriented Architecture (ROA) design principles. All elements accessible via the REST interface are REST resources, that can be accessed via their path.
The REST Resource Path
Resources can be accessed via their resource path. Together with protocol, server name/IP, and port, the paths form URLs. Unless proxied, the protocol is always HTTP for PAS installations.
The resource paths are calculated from the underlying model: the resulting path is a concatenation of all relative paths in the model hierarchy. The path starts with '/' - denoting server root - followed by the path definitions of the REST port type. Next, the path definition of each nested resource is appended, finalized by the path definition of the method.

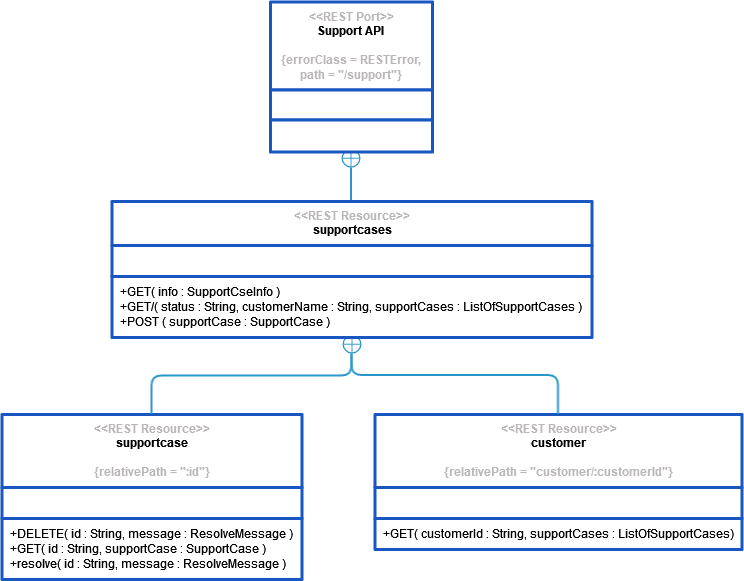

Parts of the resource path can be dynamic, a so called path variable. This is a part of the path that can be given any value at runtime. Each dynamic path segment within a path has to have a unique name as it will be turned into an method parameter. Have a look at the figure above and the following examples:
Resource | Class | Resource Path | Example Resource Path |
|---|---|---|---|
support API | SupportAPI | /support | /support |
support cases | supportcases | /support/supportcases | /support/supportcases |
a specific support case | supportcase | /support/supportcases/:id | /support/supportcases/987654321 |
a named method on a specific support case | supportcase | /support/supportcases/:id/resolve | /support/supportcases/987654321/resolve |
support cases of a customer | customer | /support/customer/:customerID | /support/supportcases/customer/1234 |
REST Parameters
Output
There can be exactly one output parameter that has to be of complex type. It will be written to the response body. The format of the response depends on the definitions in the REST headers Accept and Content-Type. The Designer supports JSON and XML.
Input
Input parameters can be provided via path, query, body, or header of the HTTP request.
Parameter | Description | Example |
|---|---|---|
path | Path parameters are part of the path and, in consequence, the URL. They are all required. | id on rest resource supportcase |
query | Query parameters are appended to the path after the '?' delimiter in standard query-string. Query parameters are optional. | status and customerName on resource supportcases, method GET/ |
header | Header parameters are transferred through request headers. | |
body | Body parameters are transferred within the request body. Since there is only one body, only one body-parameter can be defined for a method. | supportcase on resource supportcases, method POST |
REST Methods
REST Methods are methods that can be called on REST resources via HTTP requests. The Designer supports the following HTTP methods for REST methods: GET, POST, PUT, PATCH, DELETE, OPTIONS and HEAD.
Refer to The REST Resource Path above for an example and to Defining REST Operations for more details.
REST Documentation
The Designer generates an OpenAPI 2.0 Specification service descriptor encoded in YAML (Swagger) that describes the REST interface. PAS API Management comes with a REST service documentation and test tool that reads the service descriptor and shows an overview of the capabilities of the REST service. Furthermore, it enables you to interact with the service and perform HTTP calls. Refer to Testing and Integration for more details.
REST Service and HTTP Protocol Support
xUML services read the following incoming HTTP headers containing correlation information:
X-Transaction-Id or xTransactionId (in JMS context)
This header identifies the transaction the call belongs to. You can set the transaction id manually with setTransactionID() Function.
This header will be passed through the callstack to identify all service calls that belong to a transaction.X-Request-Id
This header should identify the unique request.X-Sender-Host and X-Sender-Service
These headers should contain the sender host resp. the sender service.
These headers will be all logged to the transaction log. Having this information, you can use this for error analysis or usage metrics.
RESTAPI_SupportManager_Example
Click here to download a simple example model that shows the implementation of a REST API with Scheer PAS Designer.
RESTAPI_BlobContent_Example
Click here to download a simple example model that shows the implementation of a REST API that receives and returns Blob content with Scheer PAS Designer.
