Controlling Docker Container

Monitoring a Docker Container

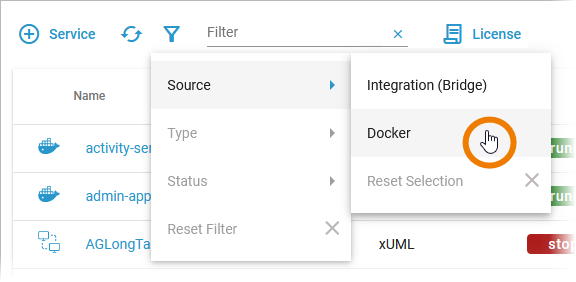

All available services are displayed in the list on the administration start page. If you want to monitor only Docker containers, filter for Source Docker:

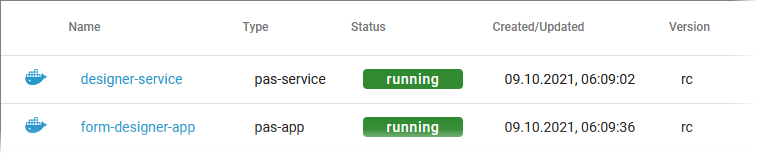

The list of services will help you to check the details for a container at first sight:

For each container, the list shows the following information:

Column Name

Description

Possible Values

Name

Name of the service. Click on the name to access the service details page.


Indicates a Docker container.

Type

Indicates the type of the service.

What is the difference between pas-app and pas-service?

  • pas-app: Applications accessible via UI.

  • pas-service: Applications without UI.

  • database

  • init

  • other

  • pas-app

  • pas-nestjs

  • pas-service

  • undefined

  • xuml-legacy-service

  • xuml-service (= services created in Designer or with deployment wizard)

Other service types may be displayed.

Status

Indicates the status of the service.

Container of type init should always be in status exited.


Created/Updated

Shows the date and time of the last update of the service. If the service has not been updated yet, its creation date is displayed.

Datetime in format dd.mm.yyyy, hh:mm:ss

Version

Version tag of the Docker container.

-

Starting and Stopping a Docker Container

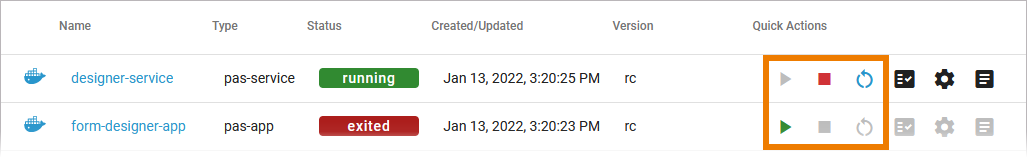

Use the quick actions to start, restart and stop a container. You can find the actions in the quick actions bar in the services' list…

... and in the header on every container details page:

Icon

Description


Start a container, that is currently stopped.


Stop a running container and restart it.


Stop a running container.

Only applicable actions are enabled.

Using the Container Details

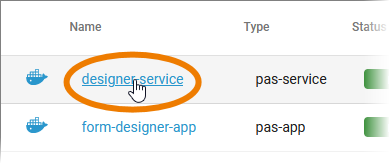

You can open a details page for each container. To do so, click on the service name in the list:

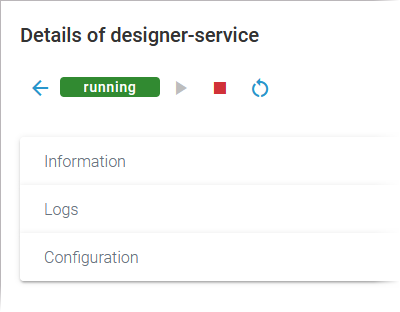

Click on a name in the service list to open its details page. The details page shows you the title of the service and some quick action icons:

Icon

Description


Shows the current state of the service.


Starts the service.


Stops the serivice.


Restarts the service.

It also contains different collapsable sections:

Refer to Controlling Containerized xUML Services (Docker) for an overview on the available details of a containerized xUML service.

Information

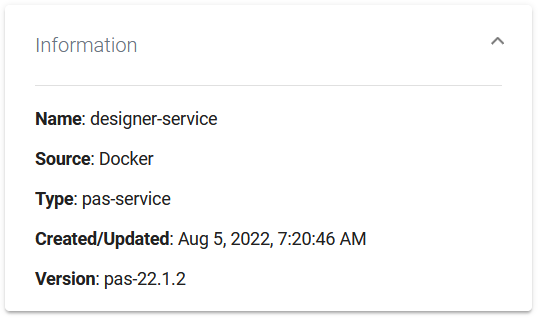

The Information section contains the main information about the container:

  • Name

  • Source is Docker for Docker containers

  • Type

  • Created/Updated

  • Version

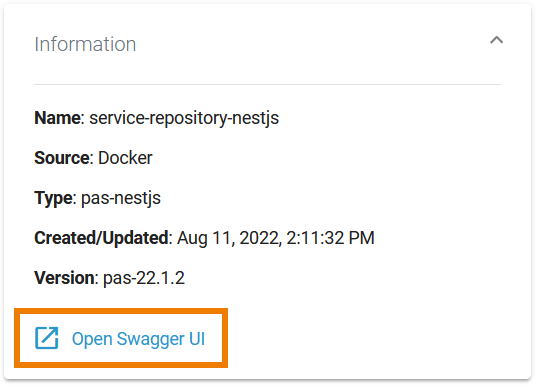

For services of type pas-nestjs, the information section also contains a link to the Swagger UI:

Logs

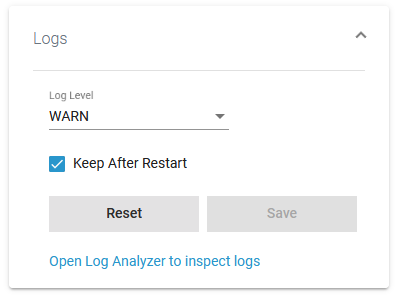

In section Logs you can change the log level. Refer to Changing the Log Level of a Docker Container for detailed information.

The link in section Logs gives you direct access to the Log Analyzer, where you can inspect the logs. Refer to Showing Docker Container Logs and Analyzing Platform Logs for further information.

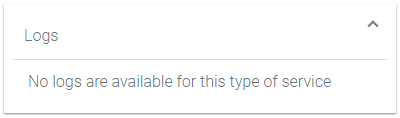

The Logs section also informs you if there are no logs available for a service type:

Configuration

In the Configuration section you can change the configuration file of the container. The content of section Configuration depends on the service type.

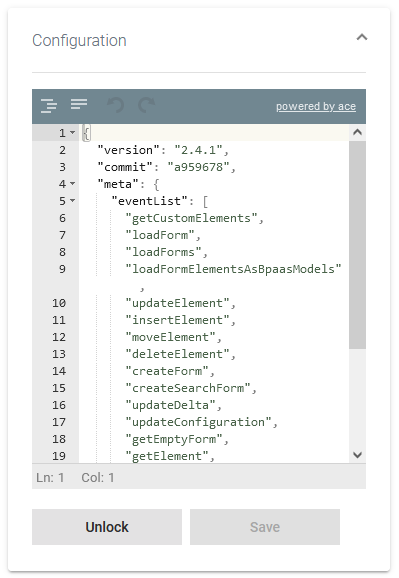

For services of type pas-service a JSON editor is displayed (refer to Adapting Docker Container Configuration for detailed information):

For services of type pas-nestjs (= internal services of the PAS platform) developers can define a service-specific schema and documentation.

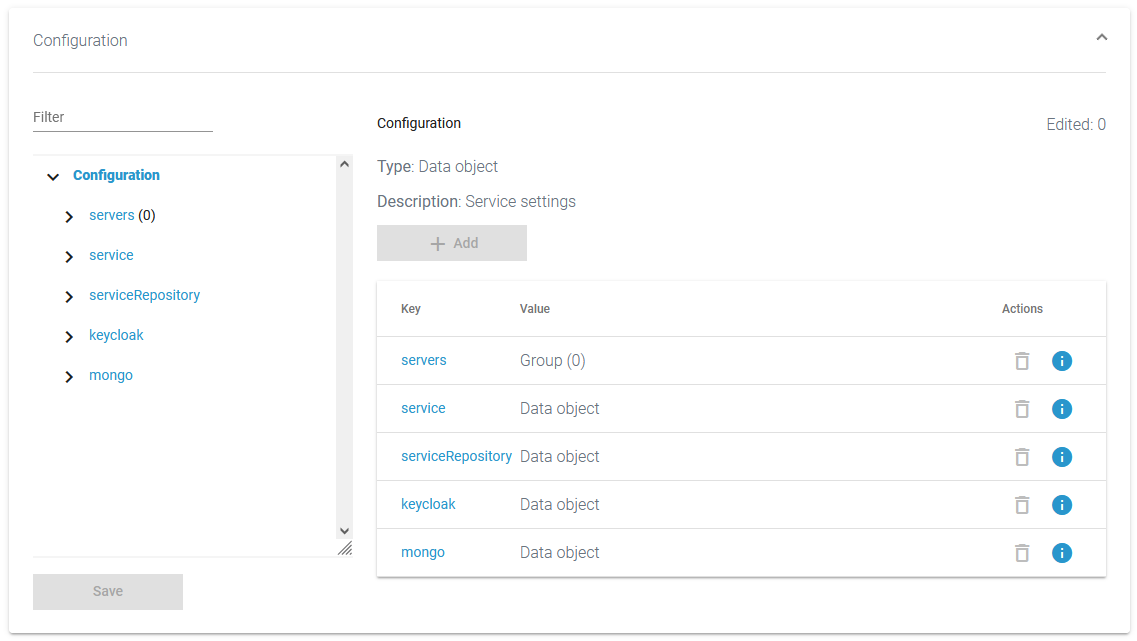

If a schema is available, the display in section Configuration will change and show the defined configuration options (refer to Adapting Docker Container Configuration for detailed information):

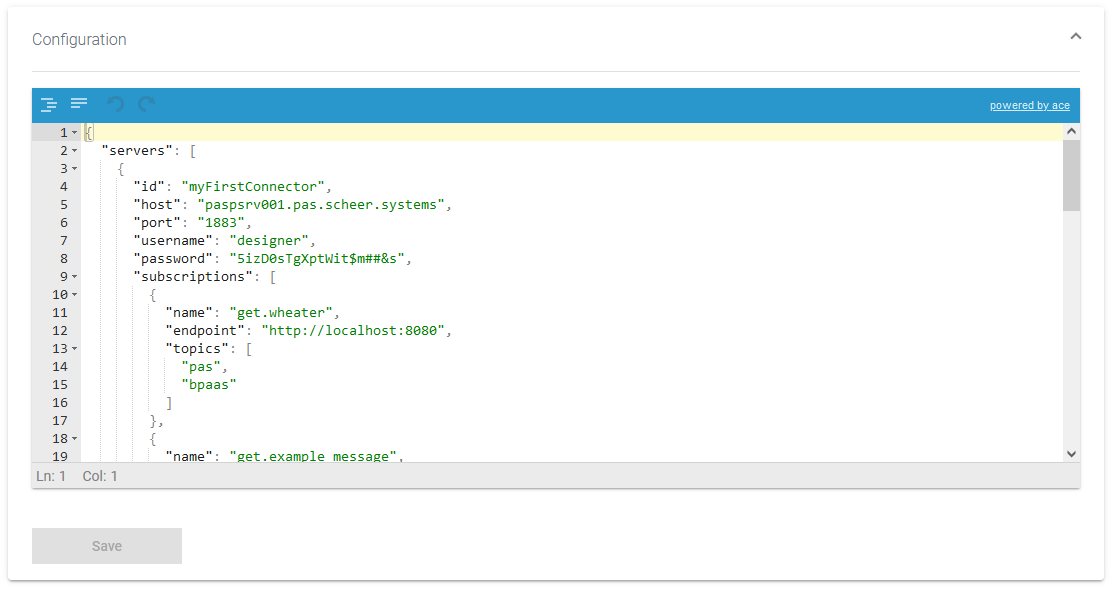

If no schema is available, a JSON editor is displayed in section Configuration:

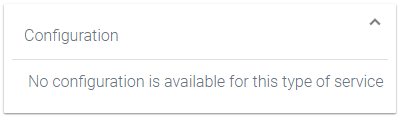

The Configuration section also informs you if the configuration UI is not available for a service type:
