Modeling APIs

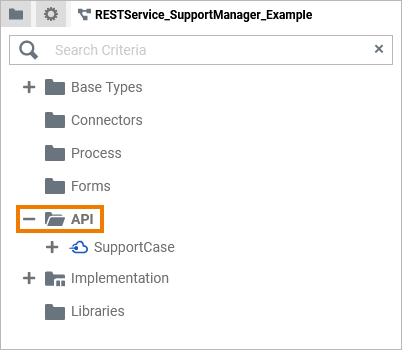

In the Service Panel resides a folder API where you can define your own service APIs. In your service, go to the API folder in the service panel:

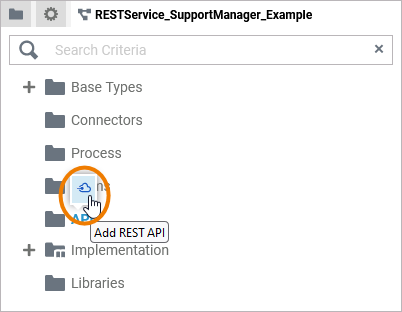

First you need to create the API needed for your service inside the API folder. All other elements will be created within this API. Add a new API via the quick action or the context menu. Refer to API for more information on how to create a new API in the API folder:

Expert Advice

Apply the same naming conventions to all your models. This makes reading a model much easier. Refer to Naming Conventions and Containment Tree Organisation in the https://scheer-pas-doc.atlassian.net/wiki/spaces/BRIDGE/pages/19268288/Builder+User%27s+Guide for an overview on practice-approved naming conventions.

API Elements

To define a service API, you have the following elements available:

Element					Description	Details
API					An API is the entrance port of your service. It can be used to communicate with the service from the outside. There are different kinds of APIs (e.g. REST API, SOAP API, ...) that describe different communication standards.	API
	Port				Ports are elements of the UML modeling standard. A port defines an entrance point to the service and connects the API to an interface or class.	Port
		Class			A class is an aggregation of properties and operations that describes a complex data type from which objects can be created.	Class
			Class		Classes can have sub-classes.
			Operation		An operation adds behavior to a class or interface. The behavior describes how to process the data given by the parameters. In the context of the Designer, you can implement operations as Modeling Data Mapping, Using Action Script or Modeling Activities.	Operation
				Parameter	Operations can have parameters that define the input and output objects. Operation parameters can be of simple type (Available Base Types) or of complex type (class or interface).	Parameter
		Interface			In contrast to a class, an interface has no properties nor implementations. Interfaces are used to define common operations of multiple classes, and then derive from that interface. Operations of interfaces do not have an implementation but only define the signature (parameters and types).	Interface
			Interface		Interfaces can have sub-interfaces and sub-classes.
			Class		Interfaces can have sub-interfaces and sub-classes.
			Operation		Operations and parameters for interfaces are the same as for classes. The difference is that they have no implementation but only define the signature for the dependent classes to derive from.	Operation
				Parameter		Parameter

Each element of the API folder has a context menu and quick actions. The context menu contains options to create new elements to the selected element, and to edit the current element. Via the quick actions, you can access the most used menu items directly with a single click.

API

An API is the entrance port of your service. It can be used to communicate with the service from the outside. There are different kinds of APIs (e.g. REST API, SOAP API, ...) that describe different communication standards.

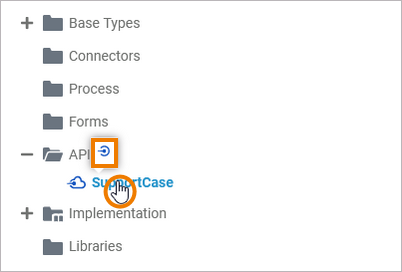

The quick action of an API allows for the creation of ports:

Quick Action	Description
	Add a port to the API.

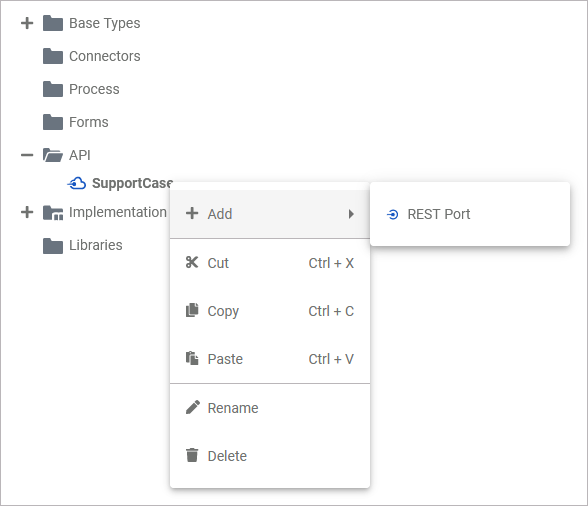

The context menu of an API allows you to create a port, to cut, copy and paste the API, to change the name of the API, and to delete it:

Menu Item	Description
Add Port	Add a port to the API
Cut	Cut the API to paste it elsewhere to the API folder.
Copy	Copy the API to paste it elsewhere to the API folder.
Paste	Paste the API elsewhere to the API folder. Available if Copy or Cut option have been used before.
Rename	Change the API name.
Delete	Delete the API.

Port

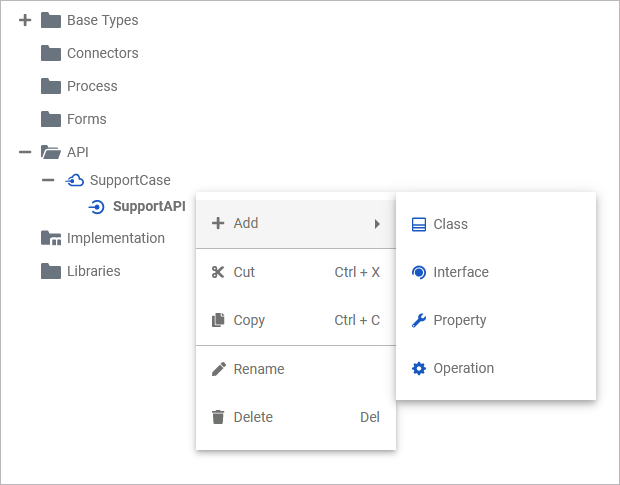

Ports are elements of the UML modeling standard. A port defines an entrance point to the service and connects the API to an interface or class. The context menu of a port allows for the creation of classes and interfaces, to change the name of the port, and to delete it:

Menu Item	Description
Add Class	Add a class to the port.
Add Interface	Add an interface to the port.
Rename	Change the port name.
Delete	Delete the port.

Class

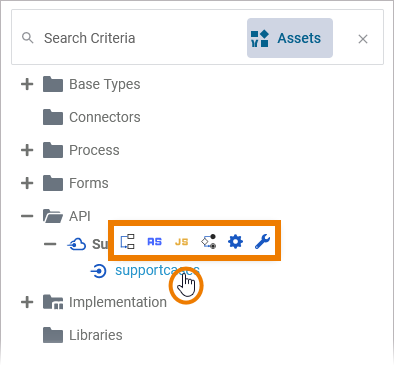

A class is an aggregation of properties and operations that describes a complex data type from which objects can be created. The quick actions of a class allow for the creation of operations with different types of implementation:

Quick Action	Description
	Add a mapping operation to the class.
	Add an action script operation to the class.
	Add a JavaScript operation to the class.
	Add an activity operation to the class.
	Add an operation to the class. The implementation is to be defined later.

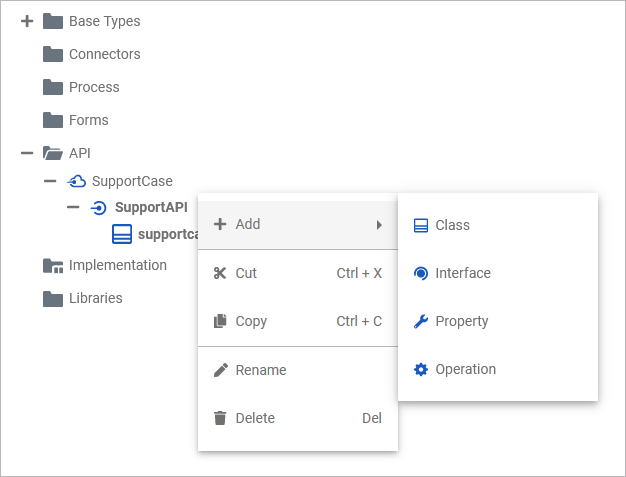

The context menu of a class allows you to create further elements, to cut, copy and paste the class, to change the name of the class, and to delete it:

Menu Item	Description
Add Class	Add a sub-class to the class.
Add Interface	Add an interface to the class.
Add Operation	Add an action script operation to the class.
Cut	Cut the class to paste it elsewhere to the API or Implementation folder.
Copy	Copy the class to paste it elsewhere to the API or Implementation folder.
Paste	Paste the class elsewhere to the API or Implementation folder. Available if Copy or Cut option have been used before.
Rename	Change the name of the class.
Delete	Delete the class.

Operation

An operation adds behavior to a class or interface. The behavior describes how to process the data given by the parameters. In the context of the Designer, you can implement operations as Modeling Data Mapping, Using Action Script or Modeling Activities.

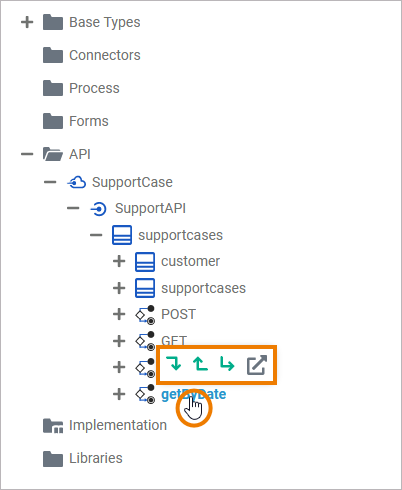

The quick actions of an operation allow for the creation of parameters with different directions, and to jump to the implementation of the operation:

Quick Action	Description
	Add an input parameter to the operation.
	Add an output parameter to the operation.
	Add a return parameter to the operation.
	Open the implementation of the operation in a separate tab. If you have not yet selected an implementation, a dialog opens first, which allows you to select the desired implementation. Refer to Create (Implementation) below for more information.

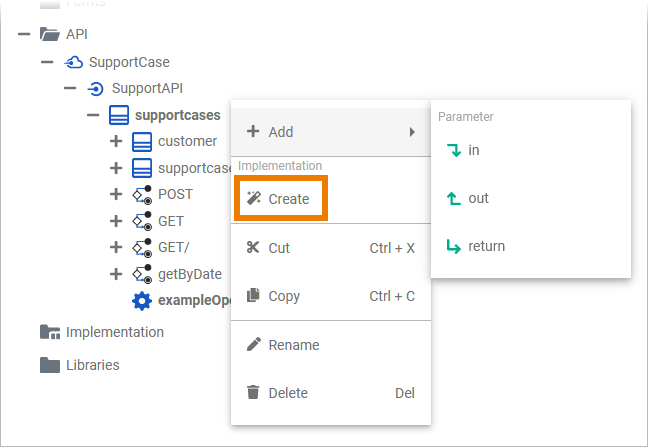

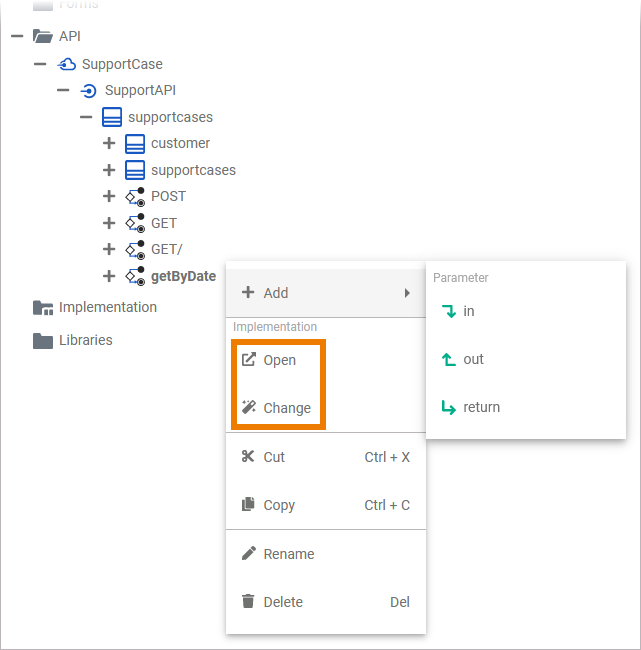

The context menu of an operation allows you to create further elements, to select and change the type of implementation of the operation and to open the implementation of the operation. Furthermore you can cut, copy and paste the operation, change the name of the operation, and delete it via this menu:

Menu Item	Description
Add Parameter in	Add an input parameter to the operation.
Add Parameter out	Add an output parameter to the operation.
Add Parameter return	Add a return parameter to the operation.
Add Operation (Suboperation)	Add a suboperation to the operation.
Open (Implementation)	Open the implementation of the selected operation in a separate tab. Available if the operation has an implementation, yet.
Change (Implementation)	Change the type of implementation or remove the implementation. Available if the operation has an implementation, yet.
Create (Implementation)	You can choose between three different types of implementation for your class operations: Mapping Diagram: Refer to Modeling Data Mapping for detailed information. Action Script: Refer to Using Action Script for detailed information. Activity Diagram: Refer to Modeling Activities for detailed information. Available if the operation has no implementation, yet.
Cut	Cut the operation to paste it elsewhere to the API or Implementation folder.
Copy	Copy the operation to paste it elsewhere to the API or Implementation folder.
Paste	Paste the operation elsewhere to the API or Implementation folder. Available if Copy or Cut option have been used before.
Rename	Change the name of the operation.
Delete	Delete the operation.

Parameter

Operations can have parameters that define the input and output objects. Operation parameters can be of simple type (Available Base Types) or of complex type (class or interface).

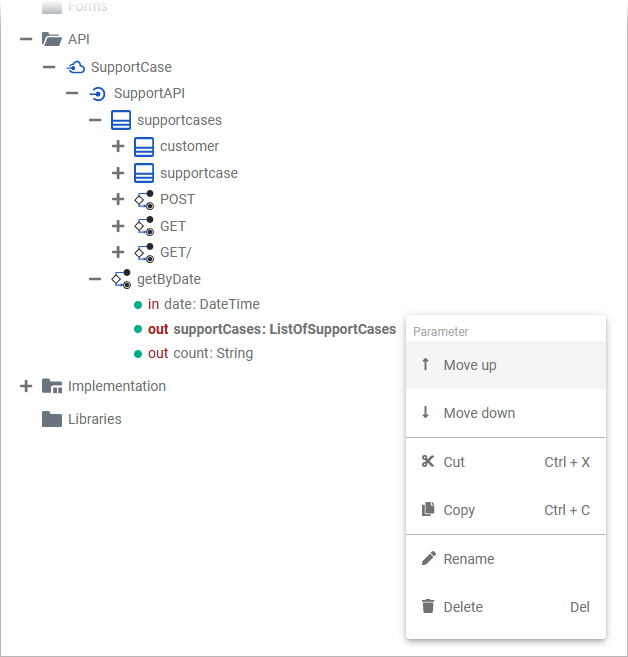

The context menu of a parameter allows you to change the order of parameters as well as to change the names of a parameter. Furthermore you can cut, copy and paste a parameter. It is not possible to create further elements below a parameter:

Menu Item	Description
Move up	Change the order of parameters.
Move down	Change the order of parameters.
Cut	Cut the parameter to paste it elsewhere to the API or Implementation folder.
Copy	Copy the parameter to paste it elsewhere to the API or Implementation folder.
Paste	Paste the parameter elsewhere to the API or Implementation folder. Available if Copy or Cut option have been used before.
Rename	Change the name of the parameter.
Delete	Delete the parameter.

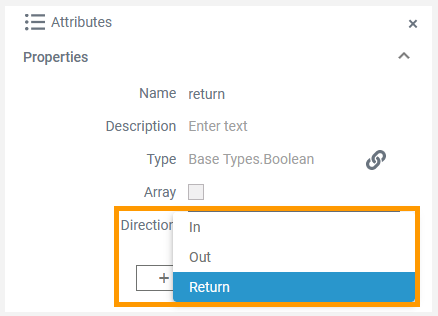

If you want to change the direction of a parameter, select the parameter and change attribute Direction in the Attributes panel:

Interface

In contrast to a class, an interface has no properties nor implementations. Interfaces are used to define common operations of multiple classes, and then derive from that interface. Operations of interfaces do not have an implementation but only define the signature (parameters and types).

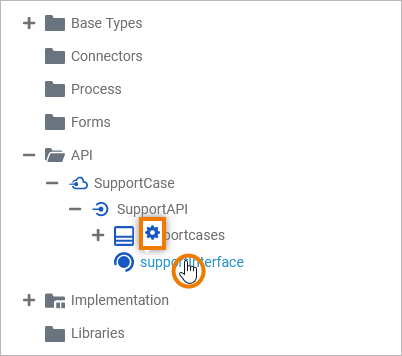

The quick action of an interface allows for the creation of operations:

Quick Action	Description
	Add an operation to the interface. Operations of interfaces have no implementation, they only describe the signature of the operation.

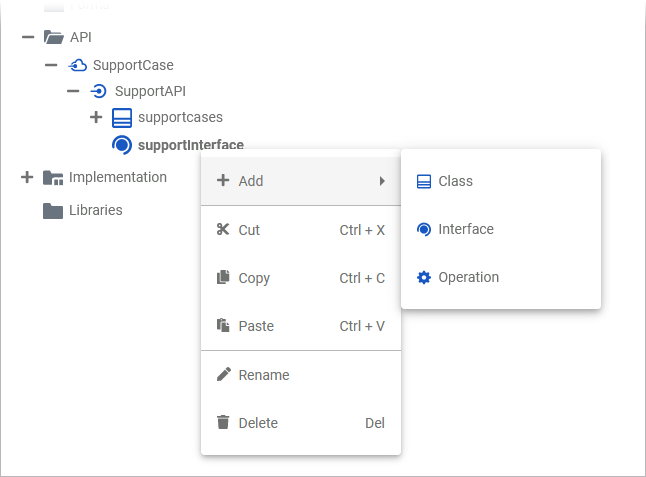

The Interface context menu allows you to create further elements and to change the name of the interface. Furthermore you can cut, copy and paste as well as delete the interface via this menu:

Menu Item	Description
Add Class	Add a class or sub-class to the interface. Classes within interfaces can be nested.
Add Interface	Add another interface to the interface. Interfaces can be nested.
Add Operation	Add an operation to the interface. Operations of interfaces do not have an implementation but only define the signature (parameters and types).
Cut	Cut the interface to paste it elsewhere to the API or Implementation folder.
Copy	Copy the interface to paste it elsewhere to the API or Implementation folder.
Paste	Paste the interface elsewhere to the API or Implementation folder. Available if Copy or Cut option have been used before.
Rename	Change the name of the interface.
Delete	Delete the interface.

RESTAPI_SupportManager_Example

Click here to download a simple example model that shows the implementation of a REST API with Scheer PAS Designer.
