API Security: Authentication and Authorization

Securing REST APIs

A common API Management use case is that an API should not be accessible to anyone, but only to authorized users. To secure your APIs, several security policies are available:

Basic security policies:

• 18189355 Use this policy in a PAS environment to secure your API via Keycloak.
• 18189355 Use this policy to secure your API via any other identity provider.

Additional security policies:

• 18189355 Use this policy in addition to Keycloak OAuth or Basic Auth to control precisely who is allowed to access the API.

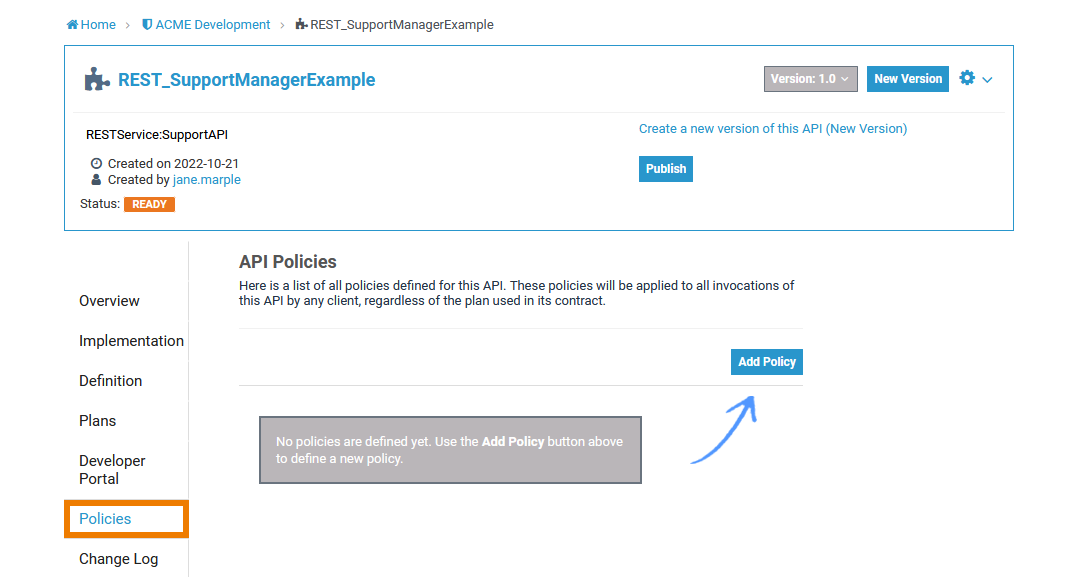

To apply one of the policies to your API, open the API settings and switch to tab Policies.

Go to page Assigning Policies for a step by step description on how to assign policies to an API.

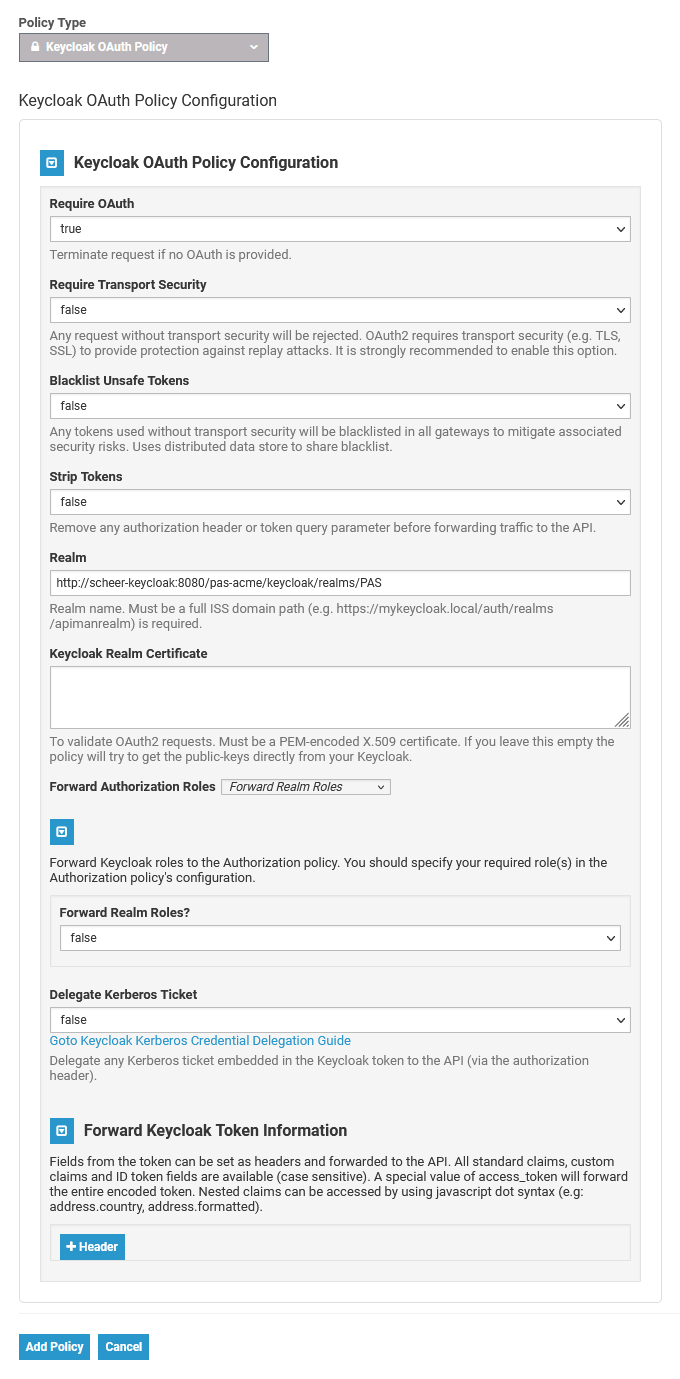

Adding the Keycloak OAuth Policy

Since every Scheer PAS installation contains a Keycloak instance, this Keycloak-specific OAuth2 policy should be your first choice to secure an API in the PAS environment.
Use Keycloak in combination the Keycloak OAuth policy to...

• ... synchronize users from LDAP and other Active Directory servers.
• ... enable login with different social networks.
• ... authenticate with external OpenID Connect or SAML Identity Providers.
• ... to automatically authenticate users that are logged-in to a Kerberos server.

In general, this is one of the best approaches for achieving security without greatly impacting performance.

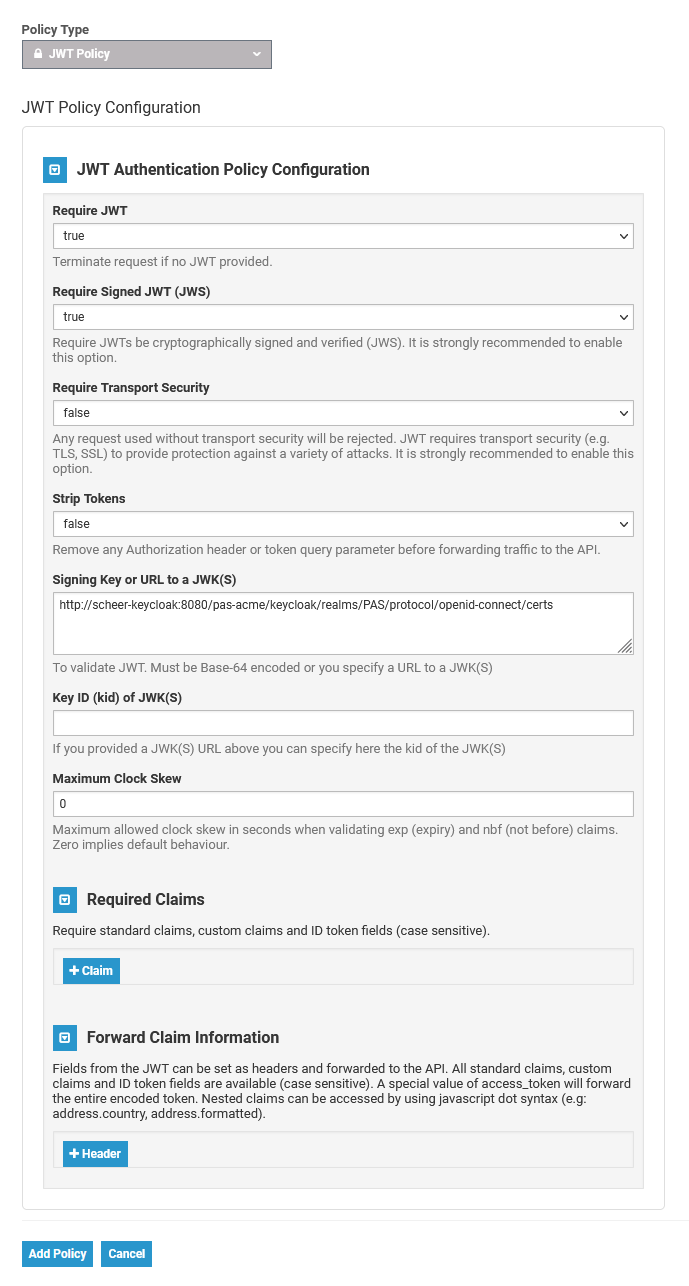

Adding the JWT Policy

If you want to secure your API via an identity provider different from Keycloak, choose the JWT policy. It helps you to validate JSON Web Tokens (JWT) by providing a signing key or a JSON Web Key Set (JWK(S)). You can also require claims and strip them to forward them as header to the backend API.

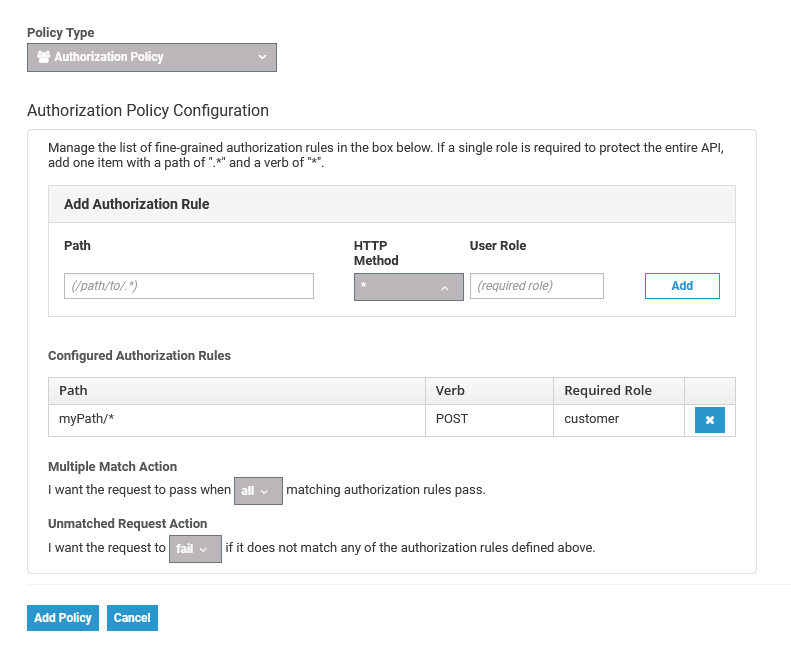

Adding the Authorization Policy

In addition to the Keycloak OAuth policy, you can use the Authorization policy to add a list of fine-grained authorization rules which allows you to control precisely who is allowed to access the API.

Make sure that you configure the Authorization policy after the standard authentication, because an authentication policy is responsible for extracting the authenticated user’s roles - and this is data, that is required for the Authorization policy to do its work.

Working with Keycloak Tokens

With PAS 23.1.1, the Scheer PAS installation comes with the default Keycloak client api-management-oauth . Keycloak clients are entities that can request Keycloak to authenticate a user. In most cases, Keycloak clients are applications and services that want to use Keycloak to secure themselves and provide a single sign-on solution. However, clients can also be entities that just want to request identity information or an access token so that they can securely invoke other services on the network.

If you use the Keycloak OAuth policy, we recommend to check against the default client api-management-oauth.

Expert Advice

If you need to create your own client in Keycloak, visit the official Keycloak documentation for further information.

How to Get the Secret

To retrieve a Keycloak token, you need to know the secret of the used client.

Open the Identity Managament (Keycloak):

If your user has no permission for the identity management, contact an administrator and ask him to provide the secret.

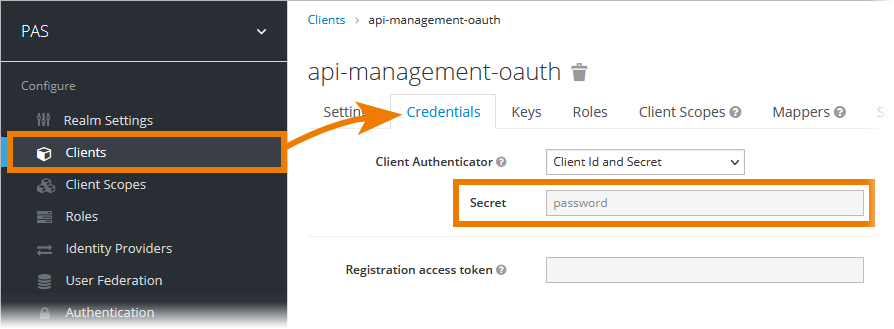

You will find the secret of the client in the PAS realm: Clients > Credentials > Secret

How to Retrieve the Keycloak Token

The token exchange in Keycloak is a very loose implementation of the IETF's OAuth Token Exchange specification. It is a simple grant call on the OpenID Connect token endpoint of a realm. It accepts form parameters (application/x-www-form-urlencoded) as input. The output depends on the type of token for which you requested an exchange. The token exchange is a client endpoint, so requests must include authentication information for the calling client.

The client_secret parameter is required for clients that use form parameters for authentication and use a client secret as credentials. A list of all form parameters can be found in the official Keycloak documentation > Form parameters.

The token URL is composed as follows:

• https://<system name>/<client name>/keycloak/realms/<realm name>/protocol/openid-connect/token

Example:

• https://scheer-acme.com/acme-test/keycloak/realms/PAS/protocol/openid-connect/token

Send your request to the token URL.

Example:

curl --location 'https://scheer-acme.com/acme-test/keycloak/realms/PAS/protocol/openid-connect/token' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'username=<username>' \
--data-urlencode 'password=<password>' \
--data-urlencode 'client_id=api-management-oauth' \
--data-urlencode 'client_secret=<client-secret>' \
--data-urlencode 'grant_type=password'

 A successful response from an exchange call returns the HTTP 200 response code with a content type that depends on the requested-token-type and requested_issuer. Clients requesting a refresh token receive both an access token and refresh token back in the response. Clients requesting only an access token receive only an access token in the response.

Example:

{
    "access_token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZSI6IkpvaG4gRG9lIiwiaWF0IjoxNTE2MjM5MDIyfQ.SflKxwRJSMeKKF2QT4fwpMeJf36POk6yJV_adQssw5c",
    "expires_in": 300,
    "refresh_expires_in": 7200,
    "refresh_token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZSI6IkpvaG4gRG9lIiwiaWF0IjoxNTE2MjM5MDIyfQ.SflKxwRJSMeKKF2QT4fwpMeJf36POk6yJV_adQssw5c",
    "token_type": "Bearer",
    "not-before-policy": 0,
    "session_state": "f5dd0490-aaf8-42f7-87b5-df0c7b1cb4a7",
    "scope": "email profile pas_user"
}

Expert Advice

For detailed information about the token exchange, refer to the official Keycloak documentation > Using token exchange.

How to Use the Token for a Request

You have to send the received token with each request as authorization header. If you use the PAS internal request UI (Swagger UI), the token is set automatically.

Example:

curl --location 'https://scheer-acme.com/acme-test/gateway/test/hello-oauth/1.0' \
--header 'Authorization: Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZSI6IkpvaG4gRG9lIiwiaWF0IjoxNTE2MjM5MDIyfQ.SflKxwRJSMeKKF2QT4fwpMeJf36POk6yJV_adQssw5c'
