API Management Tutorials

You want to get to know the basic functionalities of Scheer PAS API Management ? In our step-by-step tutorials you can quickly learn how to manage an API.

For those interested in detailed knowledge, we have integrated two types of hints:

Links to releated pages in the official API Management guide, e.g.: Refer to API Settings in the API Management Guide for more information.
Good to Know infoboxes with background information about the concept of the introduced API Management functionality. Click on the box to expand its content.
Example:

Good to Know: What is API Management?

Scheer PAS API Management is a component that helps you to manage APIs (Application Programming Interfaces) and API requests. It is situated between the API and the client. It enables you to apply different policies, enforcing them as runtime rules for each managed API request made.

Start now with Tutorial 1 - Managing a public API!

By working through the first tutorial, you will learn

how to create an organization
how to import an API from PAS Administration to API Management
how to restrict an API by adding policies
how to test your configurations
how to consume a public API via the API Developer Portal

Start now with Tutorial 2 - Managing a private API!

By working through the second tutorial, you will learn

how to create an organization and a plan
how to import an API from the API Catalog
how to create a contract and a client
how to test your configurations
how to consume a private API via the API Developer Portal

Start now with Tutorial 3 - Understanding the Approval Process!

By working through this tutorial, you will learn

how to request approval for private APIs via the API Developer Portal
how the approval process works within API Management
how to consume private APIs via the API Developer Portal

As users with different authorizations are required for the approval process, this is not a "do it yourself" tutorial.

Prerequisites

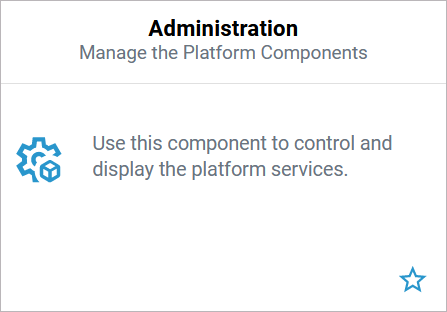

Deploy the service via the deployment wizard within the PAS Administration. To access the deployment wizard, open the Administration:

Your user needs the profile xuml_container_admin to use the deployment wizard and to manage xUML services in the Administration.

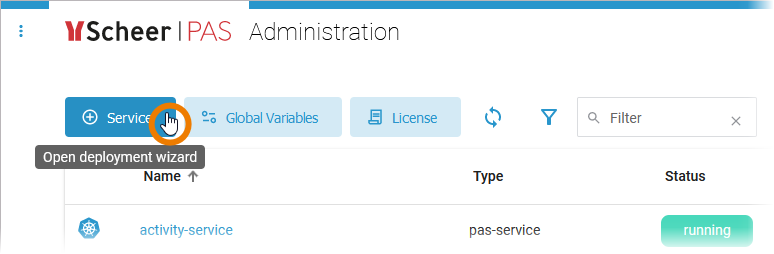

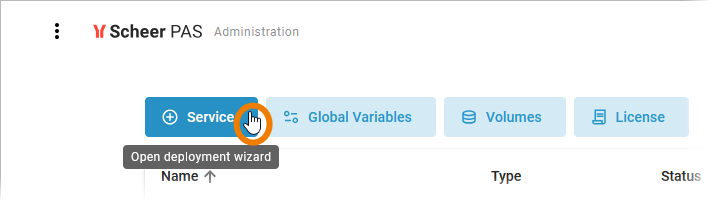

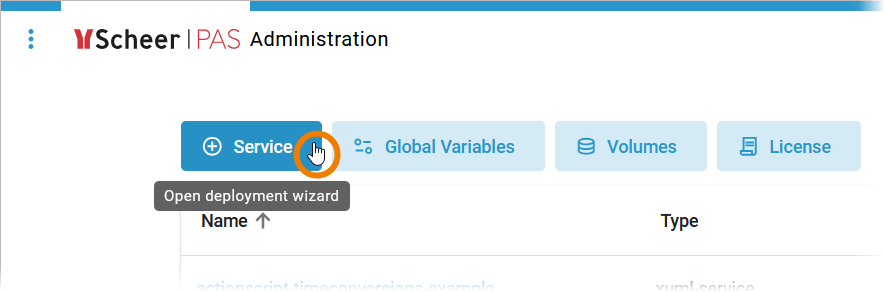

Use option + Service in the navigation bar to open the deployment wizard:

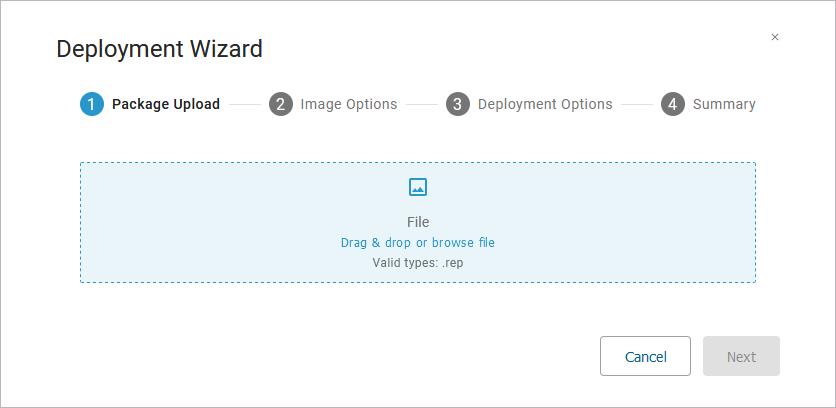

The wizard opens in a separate pop-up window. As soon as you have selected the .rep file of the service, the wizard guides you through the necessary steps to deploy the xUML service:

In step 2 of the deployment wizard, please adjust the service name so that it matches your user, e.g. restapi-echo-example-stringer.

Refer to Working With the Deployment Wizard in the Administration Guide for detailed step-by-step instructions.
