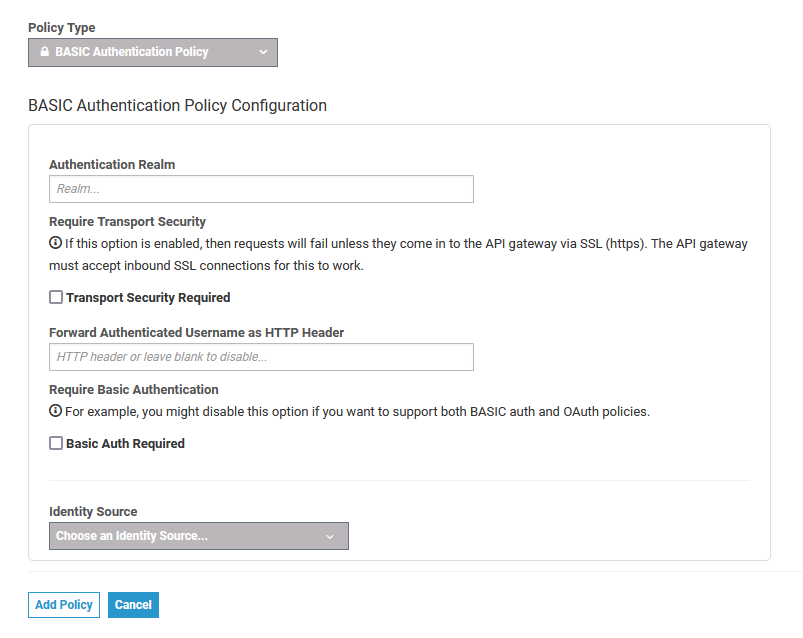

BASIC Authentication

Authentication Realm

String

Defines the BASIC Auth realm that will be used when responding with an auth challenge (when authentication is missing or fails).

-

-

Transport security required

Boolean

Enabling this will require clients to use https.

true / false

false

Forward Authenticated Username as HTTP Header

String

Indicates the name of an HTTP header to send with the principal/identity of the authenticated user if authentication succeeds.
Useful when the backend API needs to know the identify of the authenticated user.

-

-

Basic Auth required

Boolean

Must be set to true so that BASIC authentication credentials are required.

true / false

true

Identity Source

Object

Additionally, one of the complex properties must be included in the configuration, indicating whether API Management should use JDBC, LDAP or Static information as the source of identity used to validate provided user credentials.

Configuration details of the identity source are listed in the table below.

Static
JDBC
LDAP

-

Static

Object

Allows you to provide a static set of user names and passwords.

-

-

Static Identities

Object

Contains a set of user names and passwords.

-

-

JDBC

Object

This object is included when you wish to use JDBC to connect to a database containing user and password information.

-

-

JDBC Type

Enum

Type of JDBC connection to use.
Configuration details of Data Source and URL see below.

Data Source
URL

Data Source

Also extract user roles from the DB

Boolean

Set to true if you also want to extract role information from the database.

true / false

false

Roles SQL Query

String

If Also extract user roles from the DB is true: SQL query to use when extracting role information. The first parameter passed to the query will be the username.

-

-

JDBC MariaDB Example - do not use unadapted!

# example db
CREATE DATABASE testusers DEFAULT CHARACTER SET = 'utf8mb4';
# example table
CREATE TABLE users(id int NOT NULL PRIMARY KEY AUTO_INCREMENT COMMENT 'Primary Key',create_time DATETIME COMMENT 'Create Time',password CHAR(40) NOT NULL,name VARCHAR(255) NOT NULL) COMMENT '';
# example insert statement
INSERT INTO users(password,name,create_time) VALUES(SHA1('secret'),'test.user','2023-07-05 00:00:00');

When "JDBC Type" is Data Source

JDBC Datasource

String

The JNDI path of the datasource to use (only when type is Data Source).

-

-

When "JDBC Type" is URL

JDBC URL

String

The URL to the JDBC database.

-

-

JDBC Username

String

The username to use when connecting to the JDBC database.

-

-

JDBC Password

String

The password to use when connecting to the JDBC database.

-

-

JDBC Password (verify)

String

Password repetition to verify the password.

-

-

SQL Query

String

The SQL query to use when searching for a user record. The first parameter passed to the query will be the username, the second parameter will be the (optionally hashed) password.

-

-

Password Hash Algorithm

Enum

The hashing algorithm used when storing the password data in the database.

None
SHA1
MD5
SHA256
SHA384
SHA512

SHA1

LDAP Deprecated since PAS 23.1.1

Object

This object is included when you wish to connect to LDAP when validating user credentials.

-

-

LDAP Server URL

String

The URL to the LDAP server.

-

-

LDAP Bind DN

String

The pattern to use when binding to the LDAP server (use of ${username} is possible).

-

-

Bind to LDAP As

Enum

Choose whether to bind directly to LDAP as the authenticating user (UserAccount), or instead to bind as a service account and then search LDAP for the user’s record (ServiceAccount).
Configuration details for Service Account see below.

The inbound user
A Service account

The inbound user

Also extract user roles from the directory

Boolean

Set to true if you want to extract role information from LDAP.

true / false

false

Group Membership Attribute

String

If Also extract user roles from the directory  is true:  The attribute representing the user’s membership in a group. Each value should be a reference to another LDAP node.

-

-

Role Name Attribute

String

If Also extract user roles from the directory  is true: The attribute on a role LDAP node that represents the name of the role.

-

-

Only when "Bind to LDAP" is Service Account

Service Account Username / Service Account Password

Object

The credentials are saved as an object with two properties: username and password . The credentials are used when initially binding to LDAP as a service account.

-

-

User Search Base DN / User Search Expression

Object

An object with two properties: baseDn and expression. Used to search for the user’s LDAP record so that it can be used to re-bind to LDAP with the appropriate password.

-

-
