Step 1: Adding Execution to Handle the Form Data

Follow Our Example User Story

David has now designed the business process model and the necessary user interfaces (forms). But his goal is to develop an executable application. So now he needs to bring his process to life and add the executional parts to his process. In the first step of the process, order data is entered into a web form. But the entered data should also be available during the process, therefore David has to define the execution of the data.

You are going to help him with that task.

The execution part of a process is created in an execution diagram. To open the execution diagram of a BPMN element, just click on it.

Good to Know: What is "Execution"?

The goal of your work in the Designer is an executable application. So once you have modeled your business process as a BPMN model, you need to add execution parts to bring the process to life. Processes are based on data that is going in, is processed, and coming out. This data is specified by data types. Data types can be structured into packages or interfaces. They are defined by classes and their properties, and have related operations and their parameters.

The execution diagram is the place where you make your model executable. Two steps are necessary to implement executional parts to your model:

  1. You need to provide all necessary data types and operations. These types and operations reside in the Service panel.

  2. In the second step, you need to select data types and operations from the Service panel, and add them to your process at the right places.

If you want to learn more about the concept of data modeling, refer to the chapters Modeling Data Structures and Concepts of Data Modeling in the Designer Guide. If you want to learn more about the execution diagram, refer to chapter Modeling Execution in the Designer Guide.

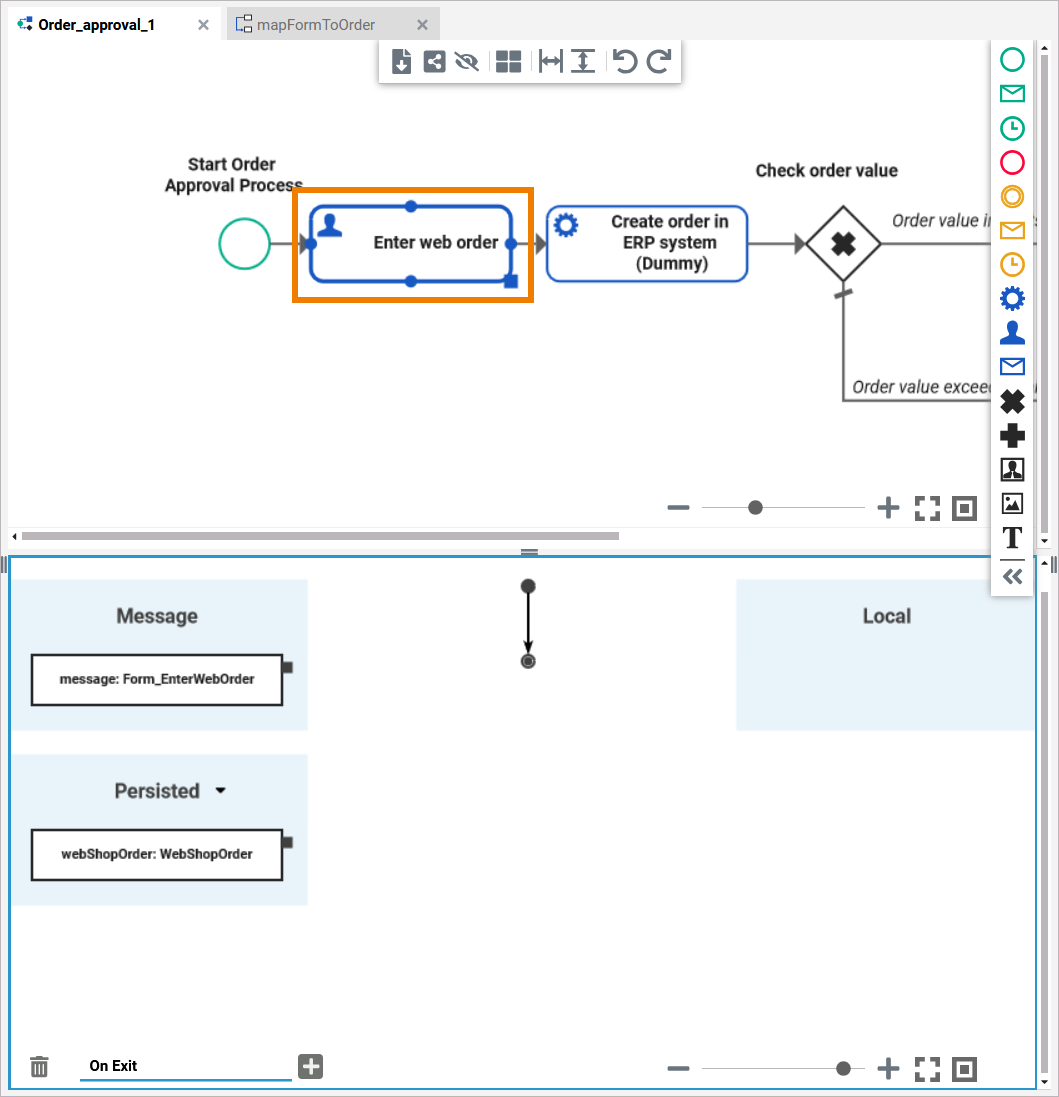

Click on user task Enter web order in the BPMN diagram. The related execution part will be displayed on the execution pane below the BPMN diagram:

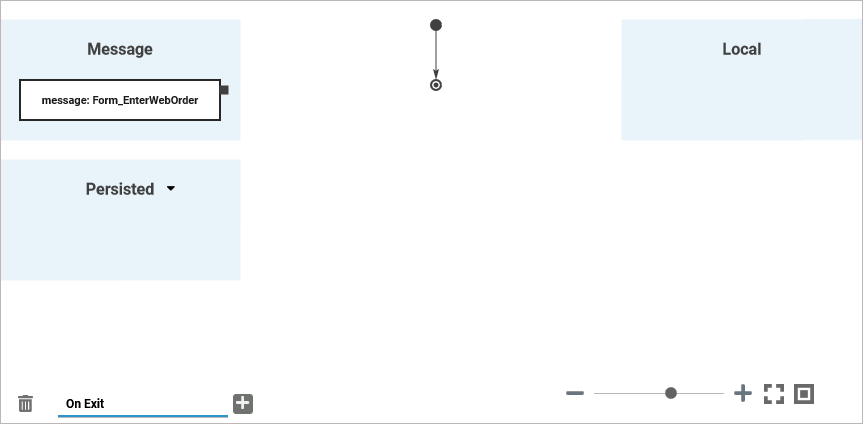

Since no execution has been implemented yet, the panel shows an empty UML diagram with only an incoming message variable. This message will contain the form data.

In the previous tutorial step you have already assigned Form_EnterWebOrder to user task Enter web order.

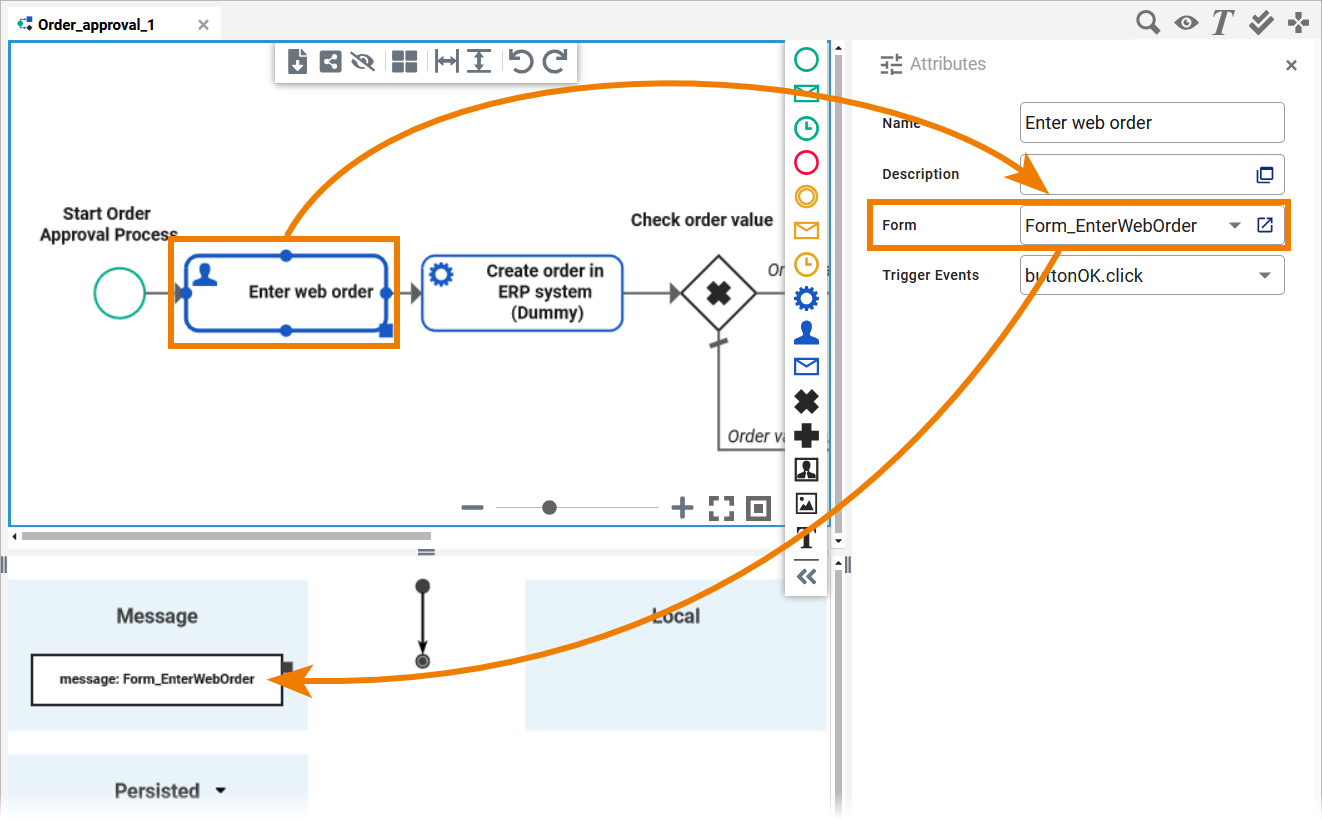

Therefore the message variable of Enter web order already is of type Form_EnterWebOrder meaning that the input data of form Form_EnterWebOrder now will be sent to the process with this message:


Persist the Form Data

You need to persist the incoming order data that comes with this message to be able to access the order data throughout the process. Library ERPOrderInterface provides a data type WebShopOrder for this.

Good to Know: What is the meaning of "persisting data"?

Processes are based on data that is going in, is processed, and coming out. However, the application developer must determine which data can be accessed in which process step. Therefore, the execution diagram contains different sections:

  • Message: Section Message is shown for all BPMN elements that need to process an incoming message.  As per default, the incoming message has type any . To gain access to the data used in your process, you have to apply the correct type from a customized library.

  • Persisted: Variables created in section Persisted are usable in all executions of the BPMN model. They are "persisted" during the execution of the entire process.

  • Local: Variables created in sectio  Local are only available for use within the current execution. They are discarded when switching to the next process step.

Data that you want to be able to access throughout the process, you need to keep - this is the meaning of "persisting data".

If you want to learn more about how to persist data in the Designer, refer to Persisting Data in the Designer Guide.

Create a Variable to Hold the Data

Expand library ERPOrderInterface in the Libraries folder and select classs WebShopOrder from the list of available types. Drag and drop it…

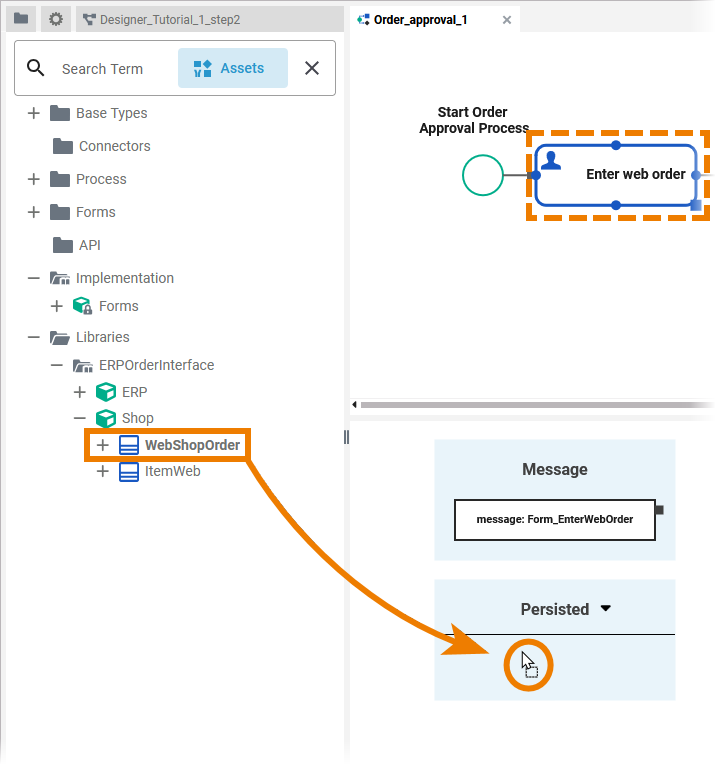

… to the Persisted area in the execution editor to create a persisted variable:

A persisted variable is created. As a name, it gets assigned the name of the type:

You can change the name of persisted variables to one of your own choice by double-clicking the name.

Find more information on persisted variables on Persisting Data in the Designer Guide.

Create a Mapping Operation

To actually persist the incoming data from the form into variable webShopOrder, you need to map the information between the two. This can easily be done with a mapping diagram. Mapping diagrams reside in the Implementation folder in the service panel and are implemented to class operations.

Good to Know: What is mapping?

Data mapping is a very common task in the integration business: It is the process of connecting a data field from one source to a data field in another source. The Designer comes with a mapping editor that allows you to define attribute mappings directly in a mapping diagram by drawing relations between the properties of the involved classes.

Mapping diagrams are automatically created if you create a mapping operation on a class. The mapping diagram is based on the data model contained in the Implementation folder. It defines mappings between the data structures defined in this data model. You cannot change the data model in the mapping diagram, all attributes are read-only.

If you want to learn more about data mapping, refer to the chapters Modeling Data Mapping and Mapping Data Structures in the Designer Guide.

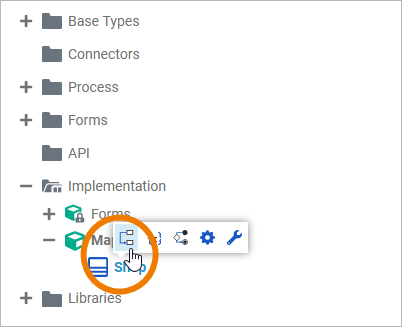

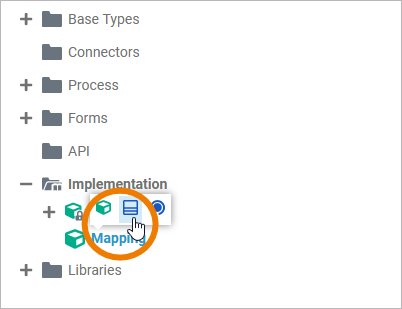

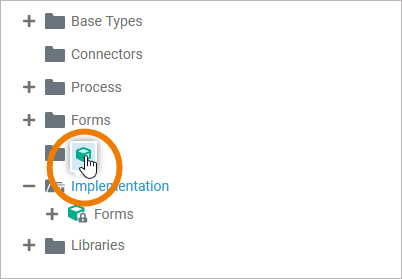

Add a new package Mapping to Implementation:


Add a new class Shop to Implementation > Mapping:


Add a new mapping operation mapFormToOrder to Implementation > Mapping > Shop:

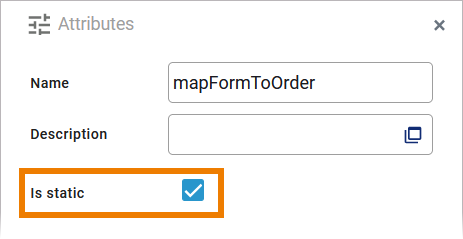

In the attributes panel of the operation, check that the operation is static:


Static operations are independent from the class they reside in. They get and provide data via parameters only.

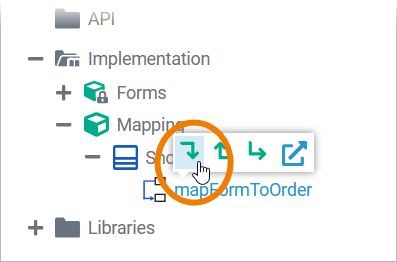

The data that should be mapped is provided via operation parameters. Add a new input parameter formData to operation mapFormToOrder:

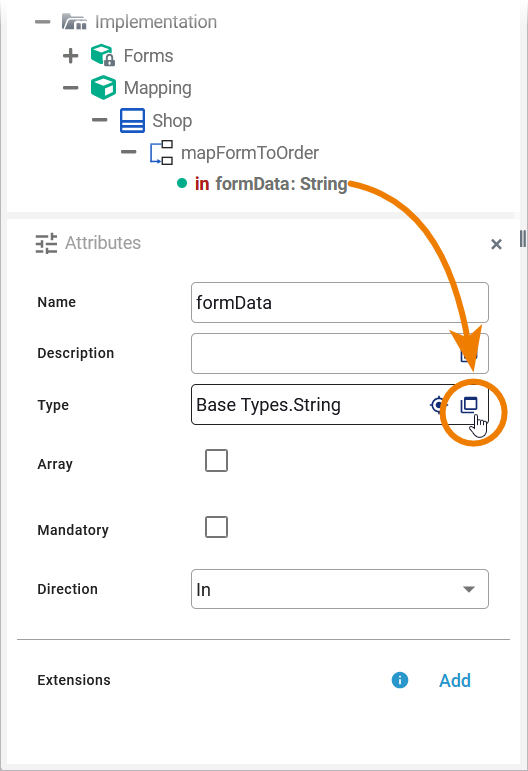

Select parameter formData and switch to the attributes panel. As per default, new parameters are of type String. Click icon icon_type.png on the right of attribute Type to change it:

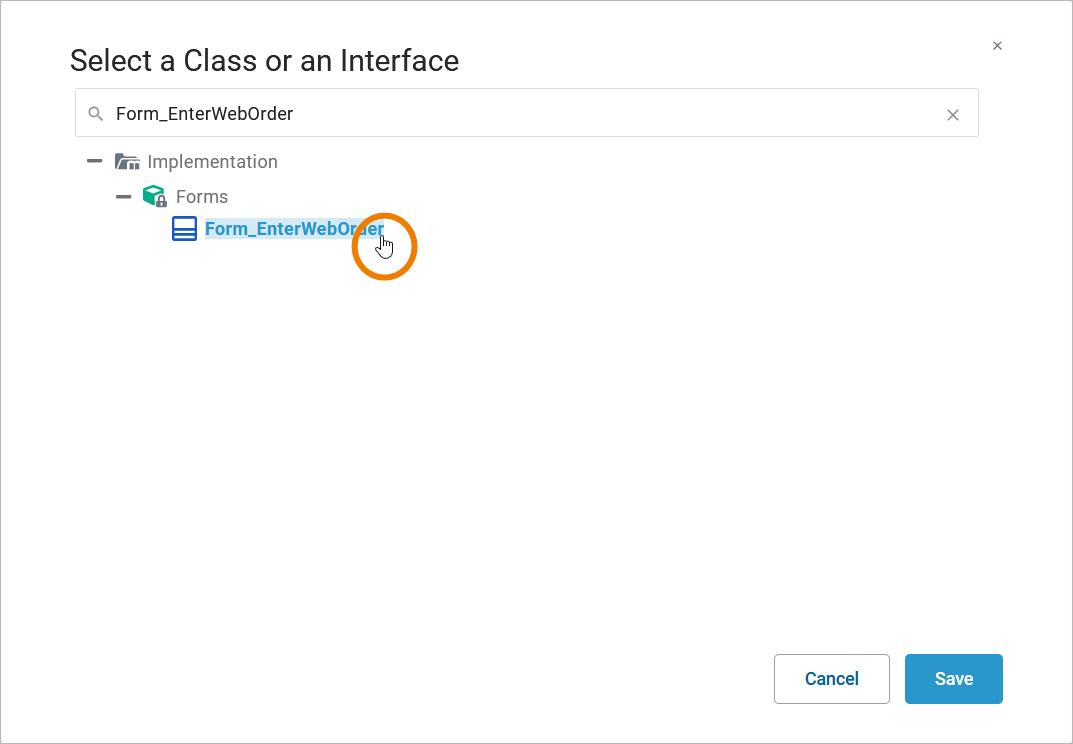

In the pop-up, search for type Form_EnterWebOrder. Select it and click Save:

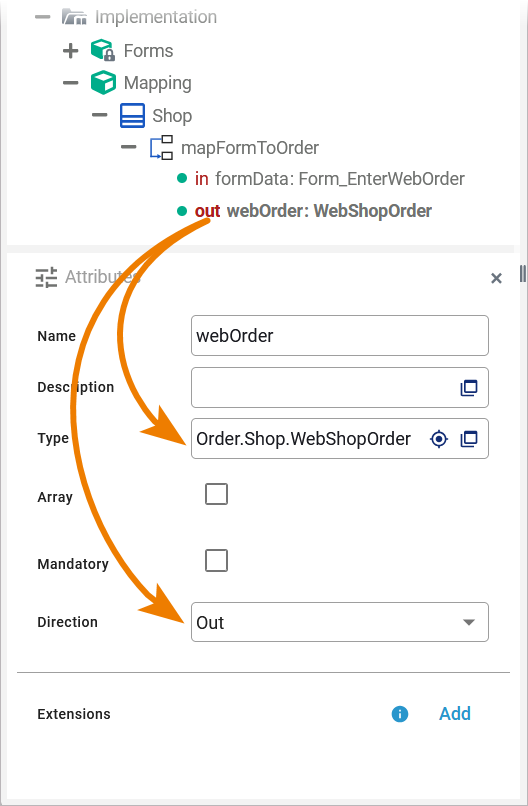

Add an output parameter webOrder to operation mapFormToOrder. In the attributes panel, change the type to WebShopOrder:

Create the Mapping Diagram

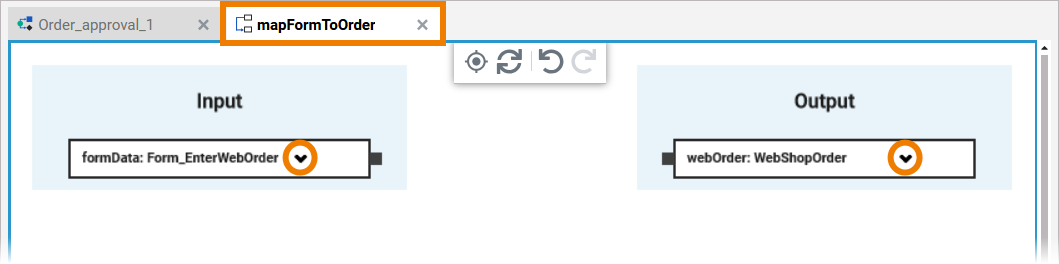

Now you are ready to create the implementation of the mapping operation. As you created the mapping operation  mapFormToOrder, the corresponding mapping diagram is already open in a new tab and shows the data structures to be mapped. On the Input side, you can see the form data, on the Output side, you can see the order object you want to persist the data to. In both sections click on the arrow icon to see the content of each object:

To map the item data, click the plus icon in the Output section next to the items array. This adds an array element to the items array (item [0] in the picture below):

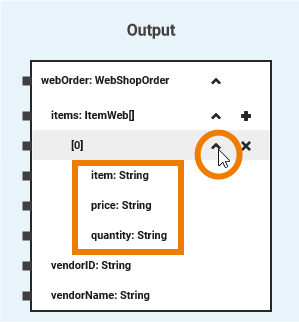

Expand the array item [0] to see its content:

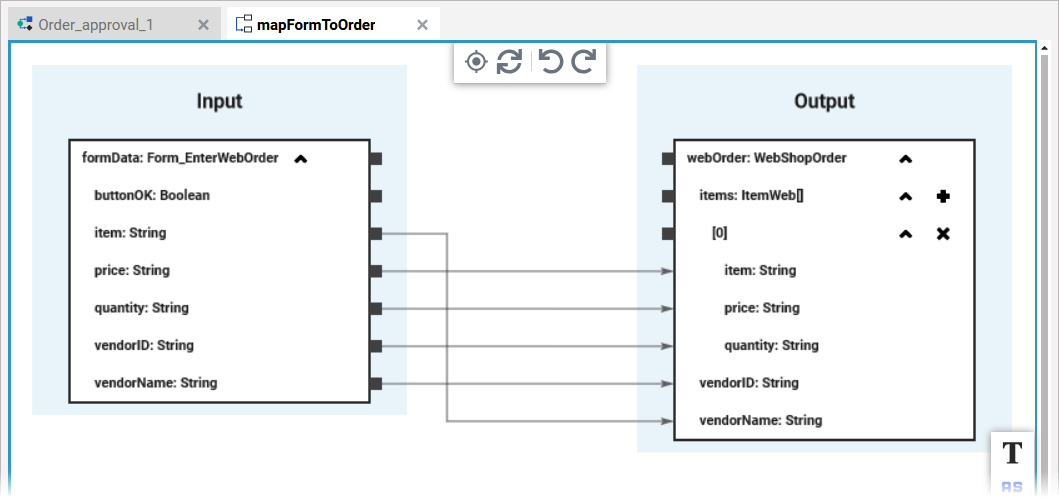

Now connect the corresponding data items of Input to the Output side with an object flow:

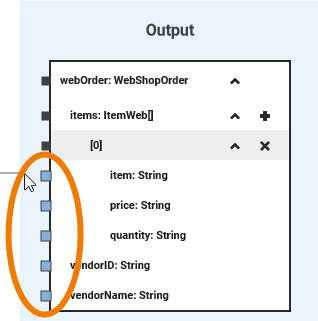

While dragging the object flow, the Designer highlights all available targets in blue:


Refer to Modeling Data Mapping for more information on how to work with the Mapping Editor, and to Mapping Data Structures for reference information regarding data mapping with the Designer.

Add the Mapping Operation to the Process

Finally, you need to add the mapping operation you've created to your process in user task Enter Web Order. Click user task Enter Web Order from your process to display the related UML diagram on the execution pane:

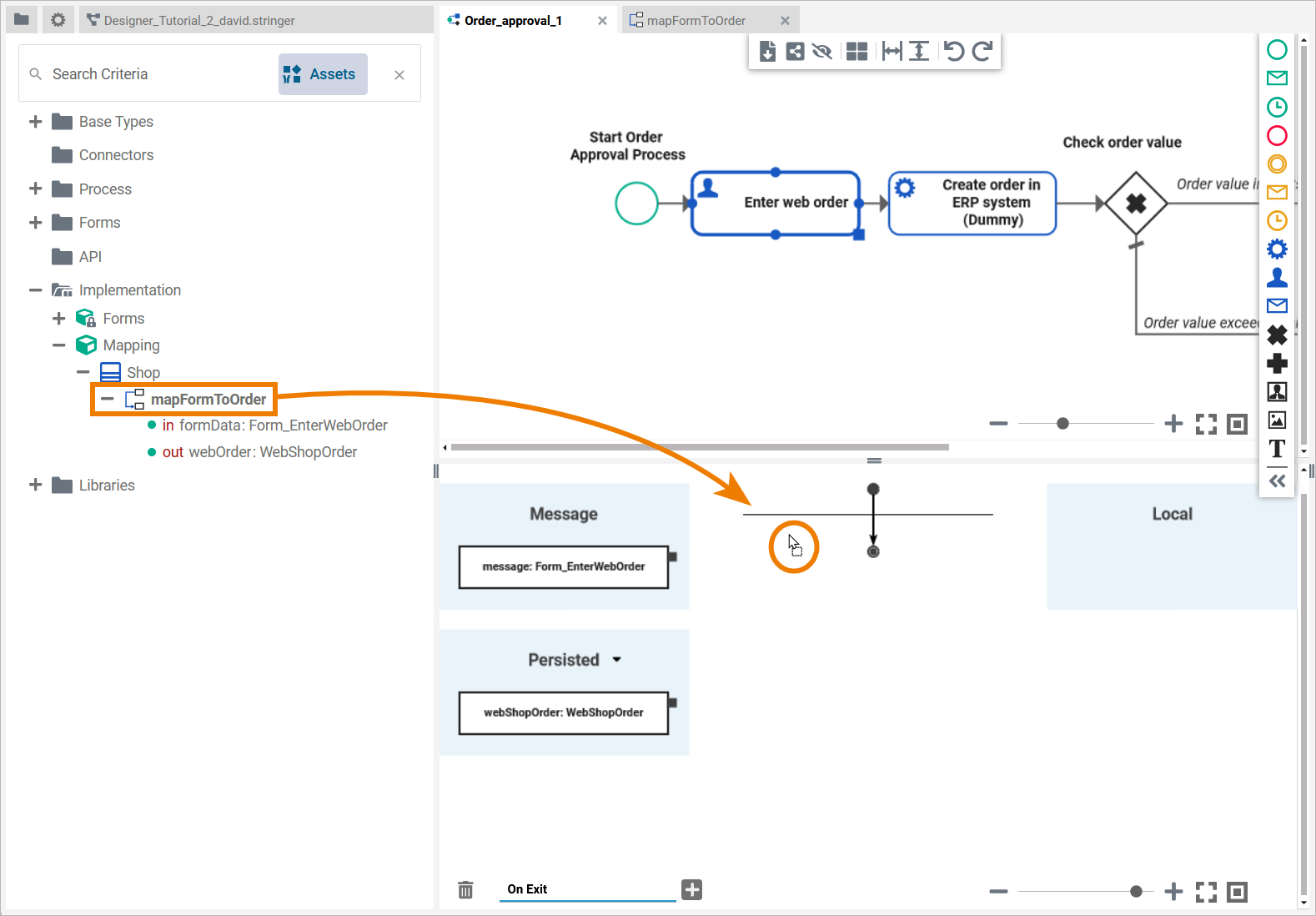

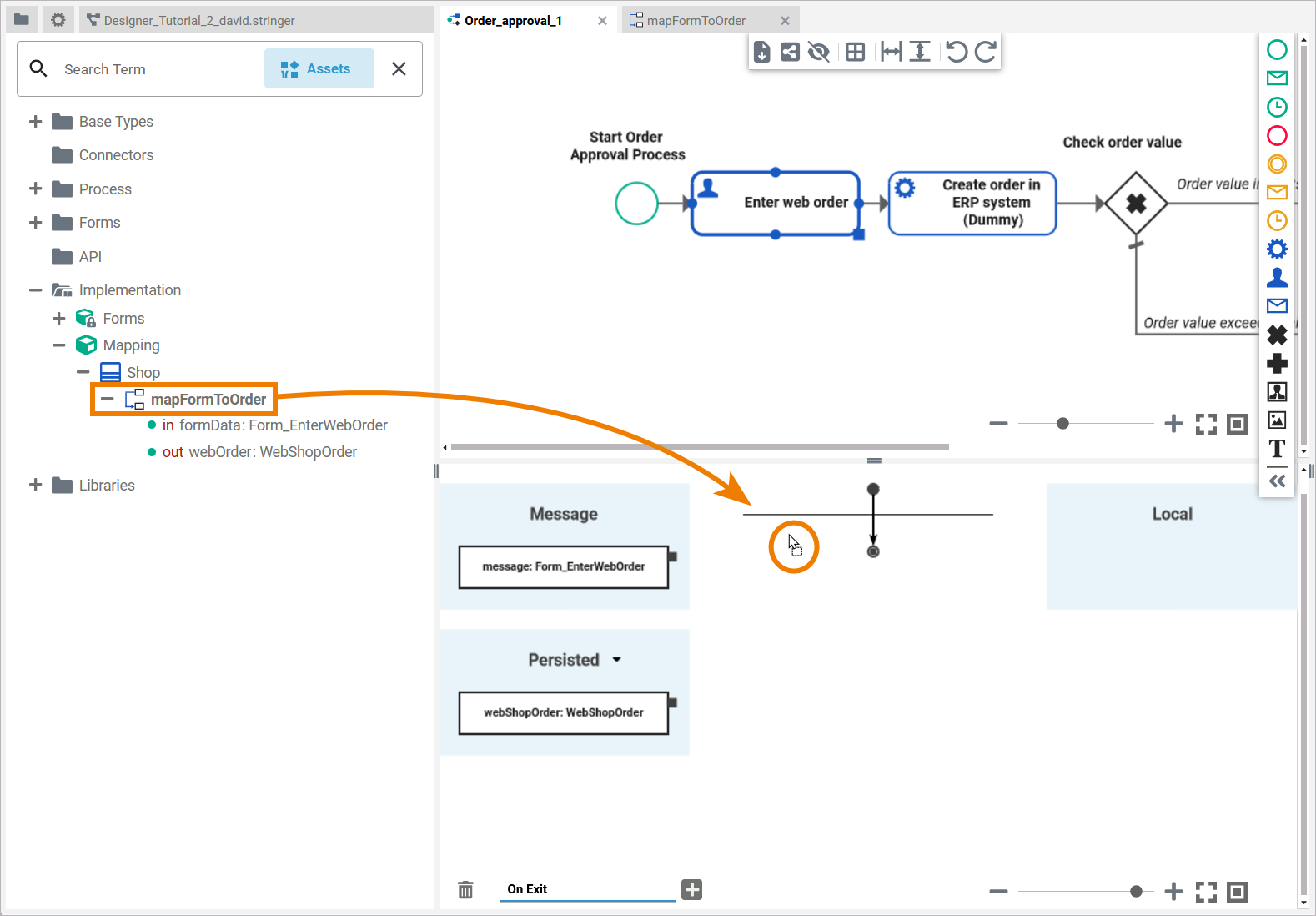

Select the operation mapFormToOrder you have created in the previous steps. Drag and drop the mapping operation to the activity flow on the execution pane:

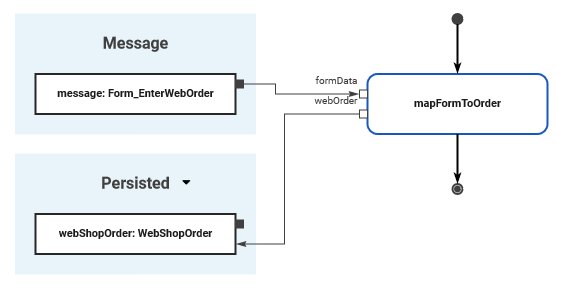

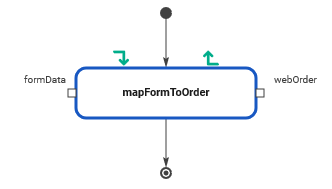

The operation has been added to the action flow of the execution UML. Pins on the left of the action node indicate needed incoming object flow, pins on the right indicate outgoing object flow. Operation mapFormToOrder needs an incoming object and provides one outgoing object:

You need to provide the form data you want to map as input.
