Step 3: Differences in Testing

Testing the Service

After a successful deployment, the deployed service is accessible via the deployment Controls section. Click Application to open your app:

The handling of the deployed service is the same as that of the test service:

• You can create new instances and execute the process.

• You can access the instance overview.

Create a test instance to verify that the UI looks the same as in your previous test:

Check if the new order limit of 500 is applied:

Test Service vs. Deployed Service

The difference between a test service and a deployed service is: Even if the developer changes the test service, the deployed service is a stable version and not affected by changes in the test environment.

To test this, go back to the Designer and open Form_EnterWebOrder. Enter a new label element:

Configure the new element as follows:

Test Service

Check the controls panel.
If the test environment is ready, open the test service:

Deployed Service

Open the deployed service:

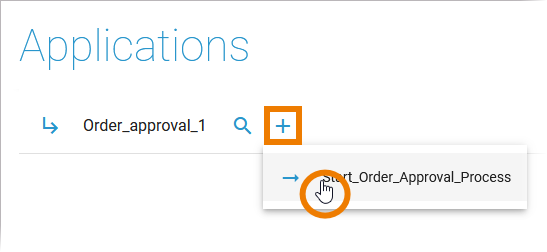

Create a new test instance:

Create a new test instance:

Form_EnterWebOrder shows the last change: The new label element is displayed:

Form_EnterWebOrder does not show the last change as it was done after the deployment:

Congratulations - you have done it!
You have deployed, managed and tested your service.

Next Level
You want to discover more?
In Tutorial 5: Adding Roles to the Process you learn how to insert roles to your service to enable the approval.
