URL Adapter

With the URL adapter, it is possible to get and post messages from and to a web endpoint. The table below lists what you can do with the URL adapter and what protocols are supported.

The input and output of this adapter is always of type Blob to support all possible data types (e.g. binary for images, text with HTML code, XML messages, etc.).

Static and Dynamic Requests

URL request can be static or dynamic.

• Static means that the whole backend information (host, path, protocol, etc.) is defined on the URL alias, and is not modified on the request action.

• For dynamic requests, the default information provided by the URL alias can be overridden on the request action before sending the request to the host. This is sometimes required, for example, when URL parameters must be calculated or are known at runtime only. Refer to URL Adapter Reference for more information on the URL adapter parameters.

If large amounts of data have to be transferred, the URL adapter offers the possibility of streaming the data from or into a file so avoiding to utilize large memory chunks. Streaming FTP explains how to do this for the ftp protocol. Applying streaming to the other protocols works analogously.

Find an overview on all attributes and parameters of the URL adapter on URL Adapter Reference.

HTTP Headers

With xUML service adapter calls, the xUML Runtime adds the following outgoing HTTP headers containing correlation information to the request:

• X-Transaction-Id or xTransactionId (in JMS context)
  This header identifies the transaction the call belongs to. You can set the transaction id manually with setTransactionID() Function. If not set, the Runtime will generate one.
  This header will be passed through the callstack to identify all service calls that belong to a transaction.

• X-Request-Id
  This header identifies the unique request. The Runtime generates a unique number for each adapter call.

• X-Sender-Host and X-Sender-Service
  These headers contain the sender host resp. the sender service. They are set by the Runtime automatically.

Transaction id and request id will be logged to the transaction log on the adapter call (refer to Contents of the xUML Service Transaction Log in the Administration Guide for more details). Having this information, you can use this for error analysis or usage metrics.

Adding an URL Adapter Operation to a Diagram

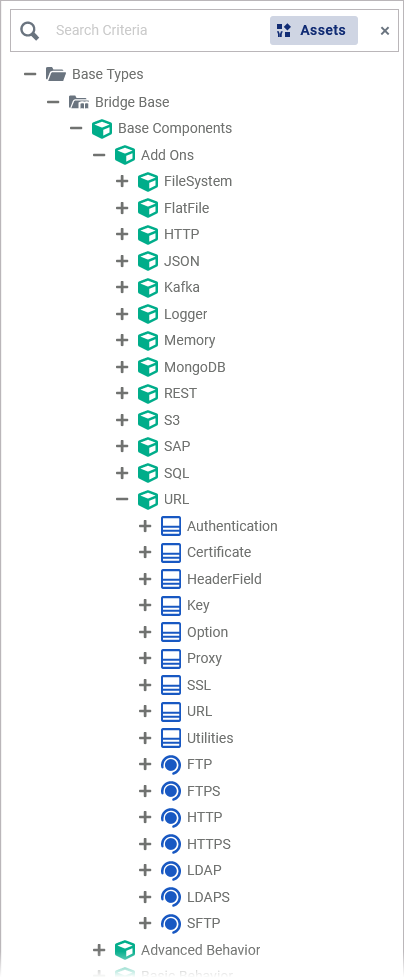

Expand the path to the URL adapter in the service panel (Base Types/Bridge Base/Base Components/Add Ons/URL):

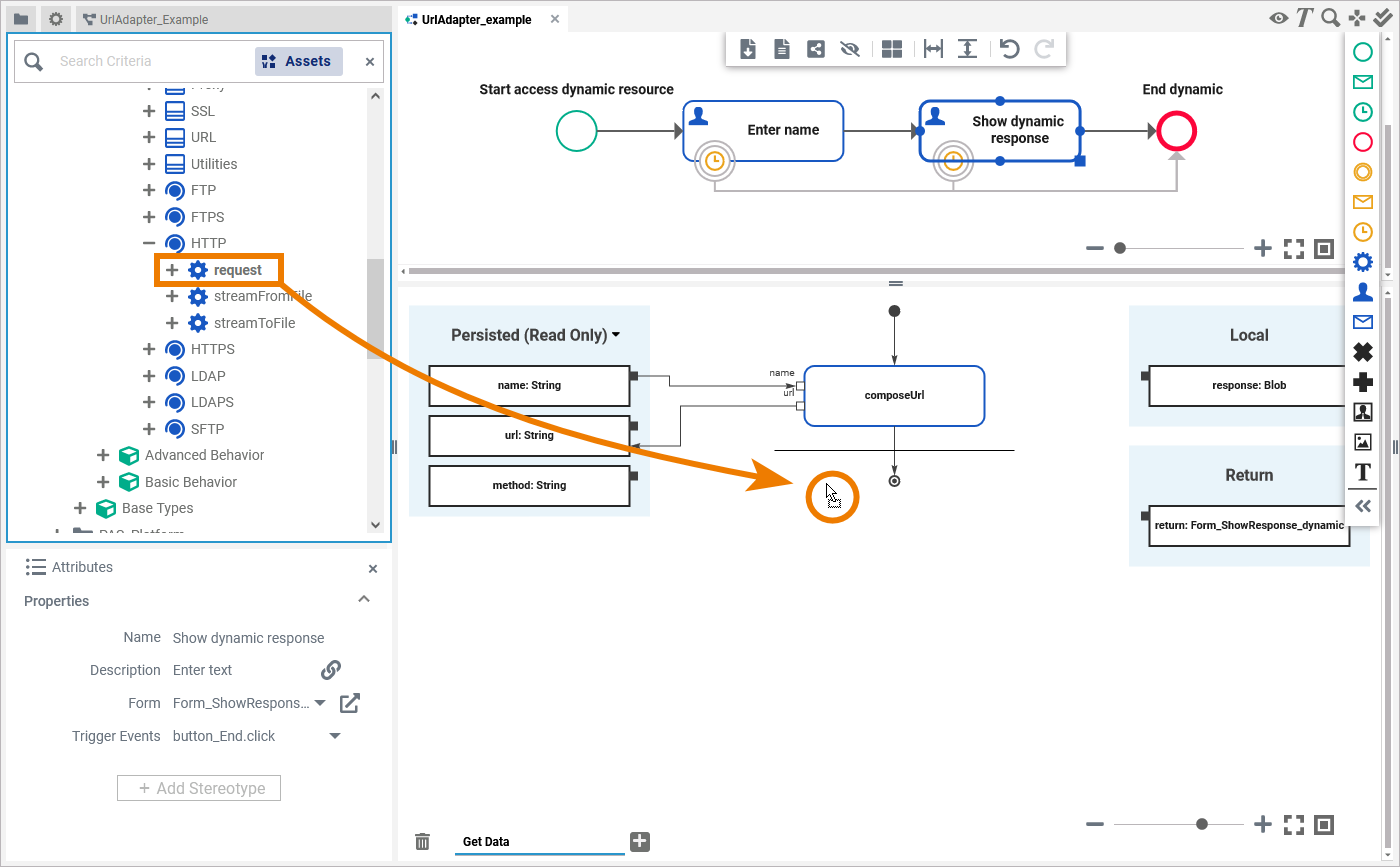

You can drag out operations from the data model to any diagram:

• BPMN execution diagram

• mapping diagram

• activity diagram

The example shows how to add an URL adapter operation to a BPMN execution diagram:

Configuring the URL Adapter Operation

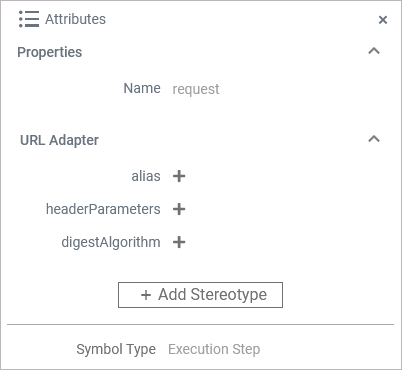

Once an operation has been added to a diagram, it needs to be configured as an URL adapter. Select the newly added URL adapter operation and switch to the Attributes panel. Depending on the diagram type you can see the following information (example BPMN execution diagram):

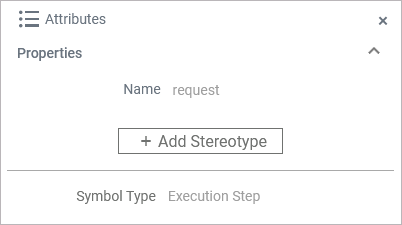

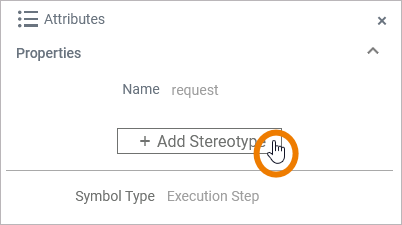

All this is predefined and cannot be changed. Click Add Stereotype to define the selected operation as to be an URL adapter:

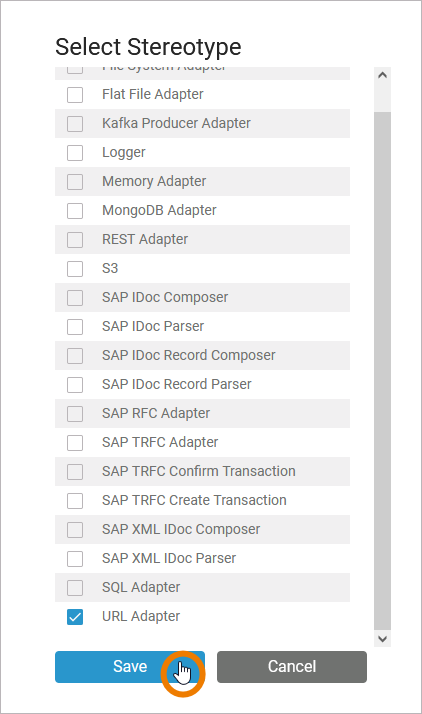

Select SQL Adapter from the list of available adapter stereotypes. Click Save:

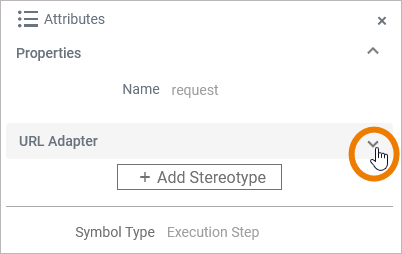

The Attributes panel shows the added adapter stereotype. Now you still need to configure the adapter. Expand the stereotype by clicking the arrow on the right:

An URL adapter is configured via its alias (see Aliases for more information on aliases):

Additionally, you can insert

• headerParameters

• digestAlgorithm

See further information below and on page URL Adapter Reference.

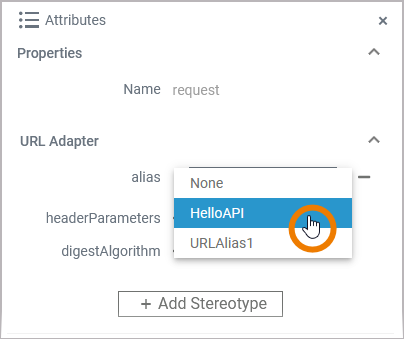

You can select an existing alias from a drop-down list by clicking the text Select alias:

If you want to remove an added alias, select None from the drop-down list:

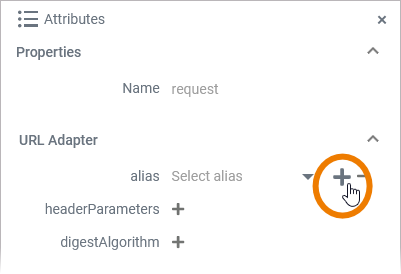

You can also create and add a new alias using option Plus:

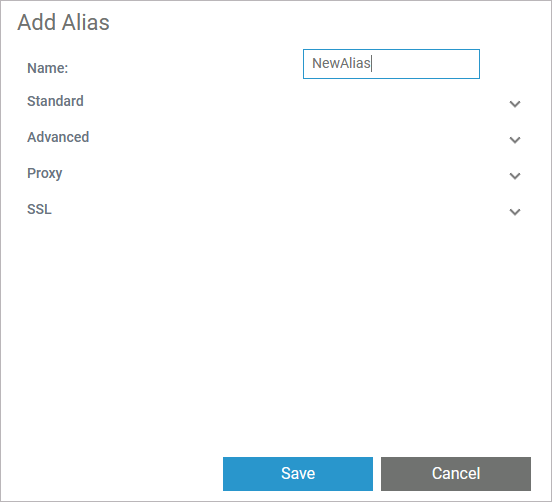

A dialog opens where you can name and configure the new alias. Click Save to create and add the new alias:

Refer to URL Adapter Reference for more information on the configuration options of this adapter.

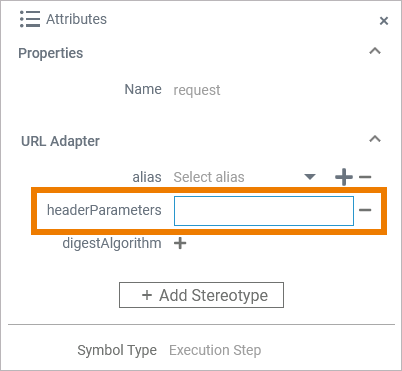

To add headerParameters click Plus and enter additional header information for the URL adapter call in form of name and value pairs:

Refer to URL Adapter Reference for more details.

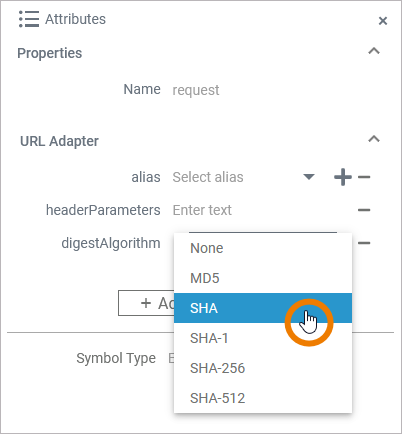

To select a digestAlgorithm, click Plus and select an algorithm from the list:

When applied, a digest header is generated using the specified algorithm, and sent with the request. Refer to URL Adapter Reference for detailed explanations of all options.
